The 3 Indy graphics options. XL8
The XL-8, also known as Newport graphics, is the same board as the XL-24 board, but with fewer bitplanes. The PC board is the same, but they are missing a number of ICs, most notably (on the top side of the board) 4 RAM chips.

Also note the GIO-32 connectors near the bottom of the board. This is where options are attached, such as the Indy video board and Cosmo Compress option.

XL24
The XL-24 board, has all chip positions filled.

XZ

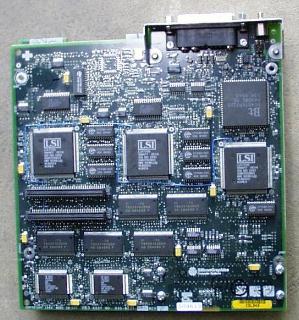

XZ is a 2 board set, here is a picture of the top board (the one visible when you open the case top)
