Appendix A. Examples

Code Examples

The following are the full listings for two examples. Example A-1 builds a simple notebook widget (shown in Figure A-2). Example A-2 builds an example of vertical writing (shown in Figure A-2).

Example A-1. Simple Notebook


/* include init */
#include <Xm/XmAll.h>

#define NUM_PAGES 8
#define APPNAME “Notebook”


void pageChangeCB(Widget w, XtPointer client, XtPointer call);

/* end init */


int
main(int argc, char ** argv)
{
    XtAppContext AppContext;
    Widget     TopLevel = XtVaOpenApplication(&AppContext,
                               APPNAME,
                               NULL, 0,
                               &argc, argv,
                               NULL,
                               sessionShellWidgetClass,
                               NULL);

/* include notebook */
    Widget notebook = XtVaCreateWidget(“notebook”,
                               xmNotebookWidgetClass,
                               TopLevel,
                               NULL);
    int i;
    XmString xmstr;
    char    labelString[32];

    for ( i=0; i< NUM_PAGES; i++ ) {

        sprintf(labelString,”Page %d\n”,i);
        xmstr = XmStringCreateLocalized(labelString);

        (void) XtVaCreateManagedWidget(“label”, xmLabelWidgetClass,
                        notebook,
                        XmNpageNumber, i+1,
                        XmNlabelString, xmstr,
                        NULL);

        XmStringFree(xmstr);
    }

    for ( i=0; i< NUM_PAGES; i+=4 ) {
        int j;

        sprintf(labelString,”Major\nTab %d\n”,i);
        xmstr = XmStringCreateLocalized(labelString);

        (void) XtVaCreateManagedWidget(“button”,
                        xmPushButtonWidgetClass,
                        notebook,
                        XmNpageNumber, i+1,
                        XmNlabelString, xmstr,
                        XmNnotebookChildType,
                        XmMAJOR_TAB,
                        NULL);
        XmStringFree(xmstr);

        for ( j=i; j<i+4; j++ ) {

            sprintf(labelString,”Minor\nTab %d\n”,j);
            xmstr = XmStringCreateLocalized(labelString);

            (void) XtVaCreateManagedWidget(“button”,
                            xmPushButtonWidgetClass,
                            notebook,
                            XmNpageNumber, j+1,
                            XmNlabelString, xmstr,
                            XmNnotebookChildType,
                            XmMINOR_TAB,
                            NULL);
            XmStringFree(xmstr);
        }
    }

    XtAddCallback(notebook, XmNpageChangedCallback,
                  (XtCallbackProc) pageChangeCB, NULL);

    XtManageChild(notebook);
/* end notebook */

    XtRealizeWidget(TopLevel);

    XtAppMainLoop(AppContext);

}


/* pageChangeCB - comment */
static void
pageChangeCB(Widget w, XtPointer client, XtPointer call)
{

}

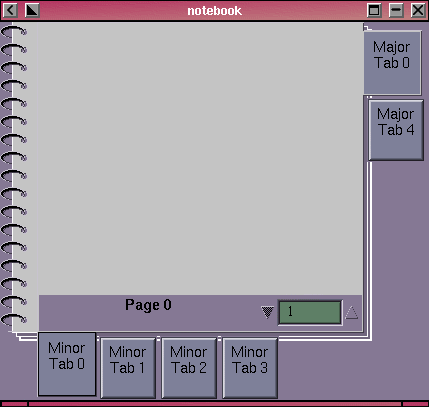

Figure A-1 shows the widget that results from the code in Example A-1.

Figure A-1. Simple Notebook Demo

Figure A-1 Simple Notebook Demo

Example A-2. Vertical Writing


#include <Xm/XmAll.h>

#define APPNAME “Vertical”

XtAppContext AppContext;
Widget TopLevel;

main(int argc, char ** argv)
{
    Widget form, vert, horiz;

    XtSetLanguageProc(NULL, NULL, NULL);

    TopLevel = XtVaOpenApplication(&AppContext,
                     APPNAME, NULL, 0,
                     &argc, argv,
                     NULL,
                     sessionShellWidgetClass,
                     NULL);

    form = XtVaCreateWidget(“form”, xmFormWidgetClass, TopLevel, NULL);

/* vertical text widget */

    vert = XtVaCreateManagedWidget(“vertical”,
                     xmTextWidgetClass, form,
                     XmNtopAttachment, XmATTACH_FORM,
                     XmNleftAttachment, XmATTACH_FORM,
                     XmNbottomAttachment, XmATTACH_FORM,
                     XmNlayoutDirection,
                     XmTOP_TO_BOTTOM,
                     XmNrows, 10, NULL);

/* horizontal text widget */

    horiz = XtVaCreateManagedWidget(“horizontal”,
                     xmTextWidgetClass, form,
                     XmNtopAttachment, XmATTACH_FORM,
                     XmNleftAttachment,
                     XmATTACH_WIDGET,
                     XmNleftWidget, vert,
                     XmNrightAttachment, XmATTACH_FORM,
                     NULL);

/* manage form */
    XtManageChild(form);

    XtRealizeWidget(TopLevel);

    XtAppMainLoop(AppContext);
}

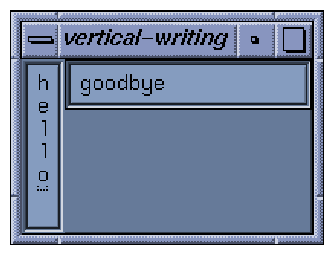

Figure A-2 shows the results of the code in Example A-2.

Figure A-2. Vertical Writing Demo

Figure A-2 Vertical Writing Demo
