Figure 1-1 shows connectors on the DIVO/DIVO-DVC I/O panel. To aid reading the connector labels, this figure shows the panel sideways.

The DIVO/DIVO-DVC board's XIO interface transmits the video signals between the connectors and system main memory.

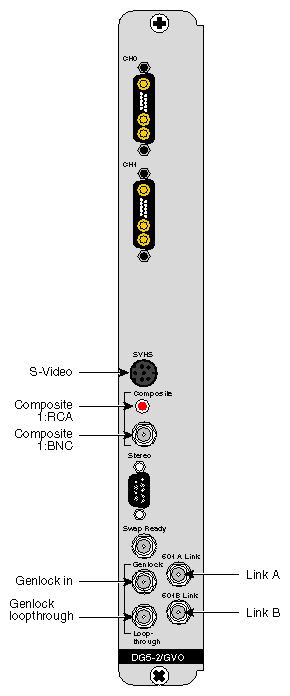

Figure 1-2 shows connectors on the DG5-2/GVO I/O panel. This panel has the connectors for the DG5-2 board and its daughter board, the GVO. The GVO is available only as a daughter board for the DG5-2.

The connectors on the left in Figure 1-2 are actually DG5 connectors; the GVO board itself has only two connectors, labeled 601 A Link and 601 B Link. These are outputs, corresponding to OUT LINK A and OUT LINK B on the DIVO or DIVO-DVC board.

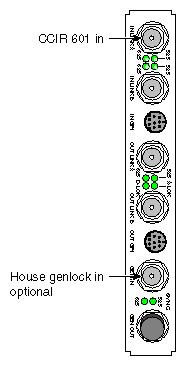

Figure 1-3 shows connection between CCIR 601 (4:2:2, serial digital interface) and DIVO/DIVO-DVC IN LINK A, plus house genlock in. These connections are directly attached cables from the external devices to the DIVO/DIVO-DVC connectors. The genlock connection is optional.

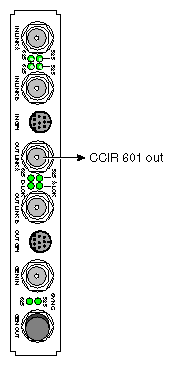

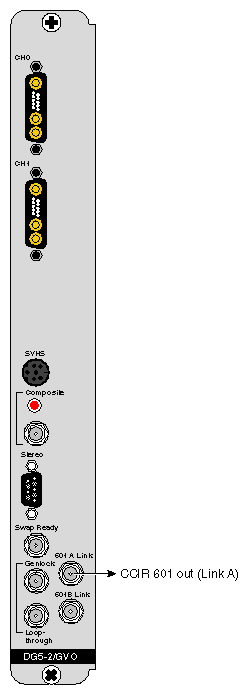

Figure 1-4 shows the connection between DIVO/DIVO-DVC OUT LINK A and CCIR 601; Figure 1-5 shows the connection between GVO OUT LINK A and CCIR 601. This connection is a direct cable between the DIVO/DIVO-DVC or GVO connector and the external video device.

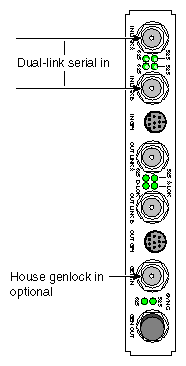

Figure 1-6 shows connections between both DIVO/DIVO-DVC IN BNCs and a dual-link serial digital interface (4:2:2:4/4:4:4:4), plus house genlock. These connections are directly attached cables between the DIVO/DIVO-DVC connectors and the external video devices. The genlock connection is optional.

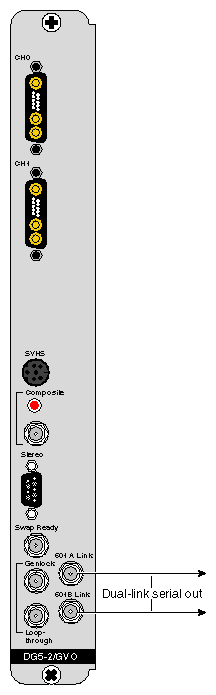

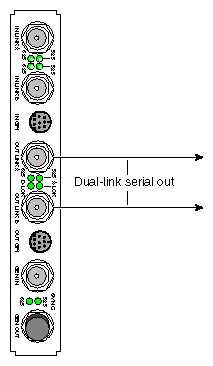

Figure 1-7 shows connections between both DIVO/DIVO-DVC OUT BNCs and a dual-link (4:2:2:4/4:4:4:4) serial digital interface; Figure 1-8 shows connections between both GVO OUT BNCs and a dual-link (4:2:2:4/4:4:4:4) serial digital interface. These connections are directly attached cables between the DIVO/DIVO-DVC or GVO connectors and the external video devices.

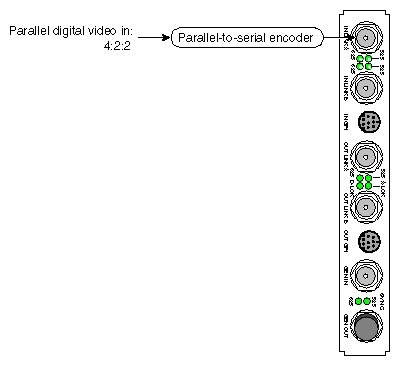

Figure 1-9 shows connections between DIVO/DIVO-DVC IN LINK A and a parallel digital video 4:2:2 (single-link) device.

Table 1-1 summarizes some parallel-to-serial encoders for DIVO/DIVO-DVC IN.

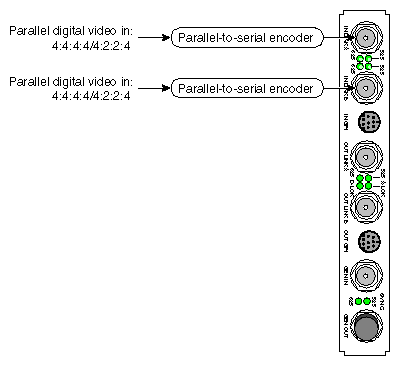

Figure 1-10 shows connections between both DIVO/DIVO-DVC IN BNCs and parallel digital video 4:2:2:4/4:4:4:4 (dual-link) encoders.

Table 1-2 summarizes some parallel-to-serial encoders for DIVO/DIVO-DVC IN.

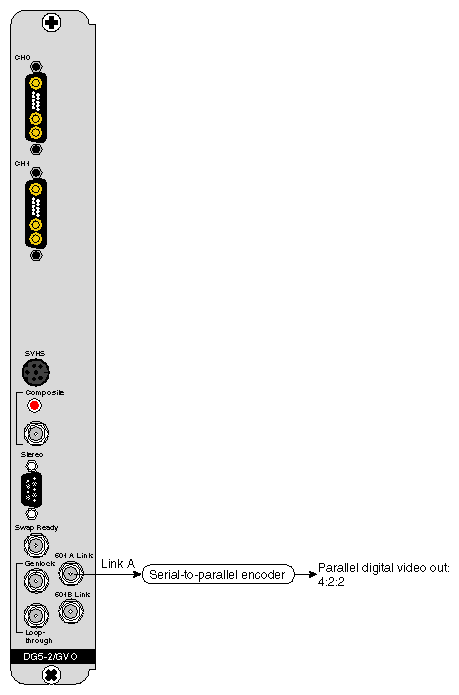

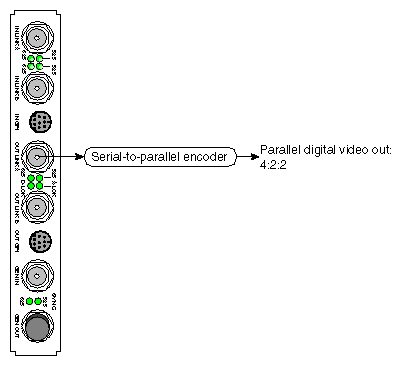

Figure 1-11 shows connections between DIVO/DIVO-DVC OUT LINK A and parallel digital video single-link devices; Figure 1-12 shows connections between GVO OUT LINK A and parallel digital video single-link devices.

Table 1-3 summarizes some parallel encoders for DIVO/DIVO-DVC or GVO OUT.

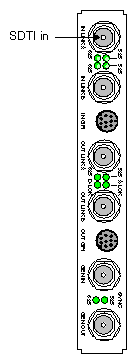

Figure 1-13 shows the connection between the DIVO and DIVO-DVC IN LINK A BNC and a Serial Data Transport Interface (SDTI) device.

You can connect a SMPTE 305M-compliant SDTI deck to IN LINK A to use SDTI on the DIVO or DIVO-DVC option board.

For more information on the SDTI standard, see “Serial Data Transport Interface (SDTI)” in Chapter 1 of the DIVO Option and DIVO-DVC Option Owner's Guide.

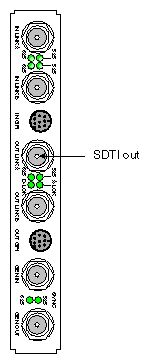

Figure 1-14 shows the connection between the DIVO/DIVO-DVC OUT LINK A and an SDTI device.

You can connect a SMPTE 305M-compliant SDTI deck to OUT LINK A to use SDTI on the DIVO or DIVO-DVC option board.

For more information on the SDTI standard, see “Serial Data Transport Interface (SDTI)” in Chapter 1 of the DIVO Option and DIVO-DVC Option Owner's Guide.

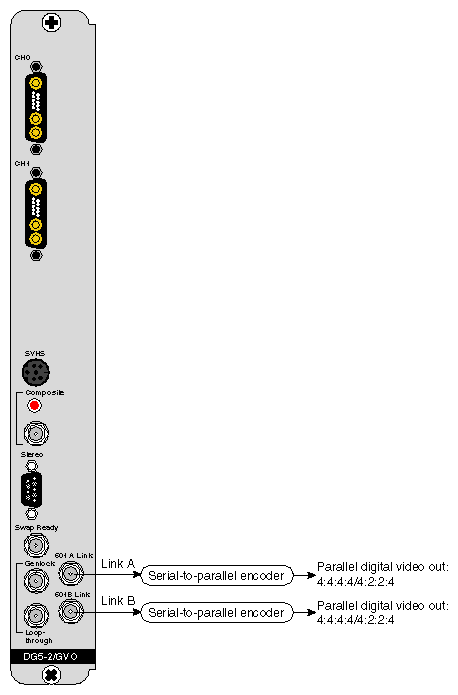

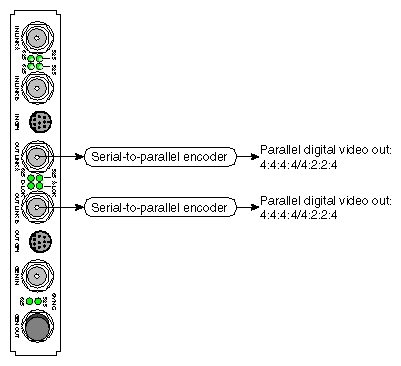

Figure 1-15 shows connections between both DIVO/DIVO-DVC OUT BNCs and parallel digital video 4:2:2:4/4:4:4:4 (dual-link) devices; Figure 1-16 shows connections between both GVO OUT BNCs and parallel digital video 4:2:2:4/4:4:4:4 (dual-link) devices.

Table 1-4 summarizes some parallel encoders for DIVO/DIVO-DVC or GVO OUT.

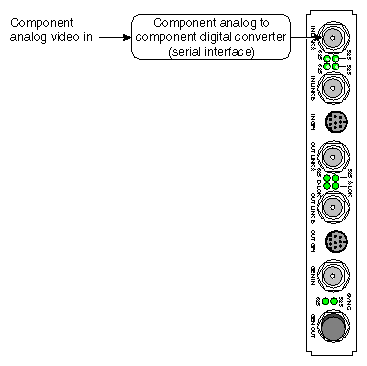

Figure 1-17 shows a connection between DIVO/DIVO-DVC IN LINK A and component analog to serial digital (such as Betacam).

Table 1-5 summarizes some suppliers of component analog converters for DIVO/DIVO-DVC IN.

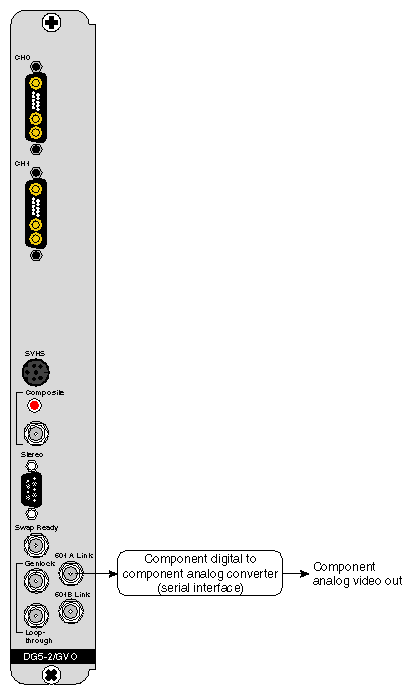

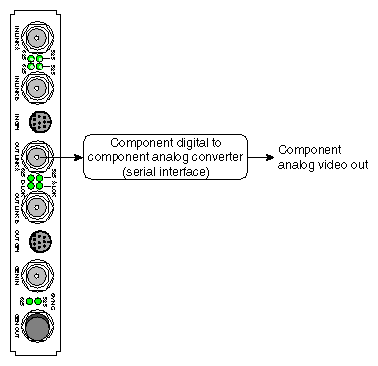

Figure 1-18 shows a connection between DIVO/DIVO-DVC OUT LINK A and component analog (such as Betacam); Figure 1-19 shows a connection between GVO OUT LINK A and component analog.

Table 1-6 summarizes some suppliers of component analog converters for DIVO/DIVO-DVC or GVO OUT.

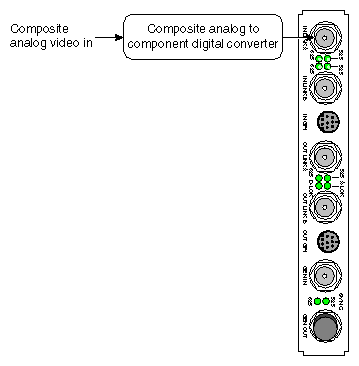

Figure 1-20 shows a connection between DIVO/DIVO-DVC IN LINK A and composite analog (NTSC/PAL).

Table 1-7 summarizes possible suppliers of this equipment.

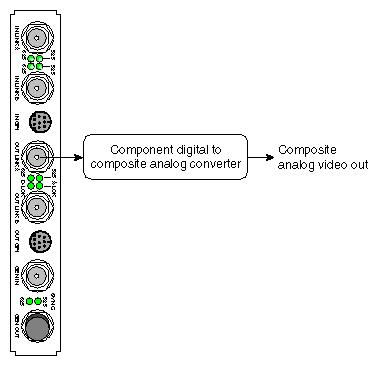

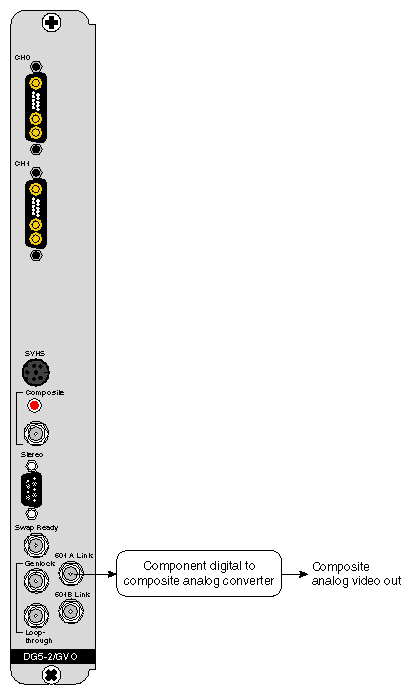

Figure 1-21 shows a connection between DIVO/DIVO-DVC OUT LINK A and composite analog (NTSC/PAL); Figure 1-22 shows a connection between GVO OUT LINK A and composite analog (NTSC/PAL).

Table 1-8 summarizes possible suppliers of this equipment.

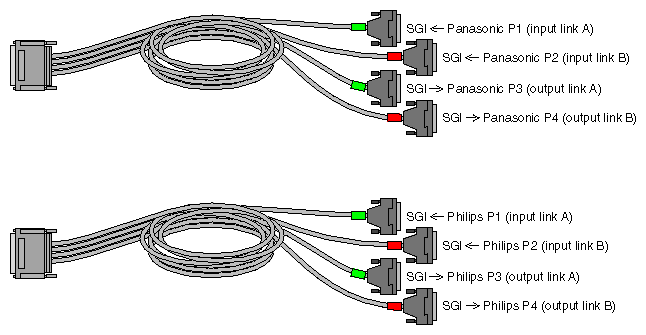

Figure 1-23 shows the two multiheaded cables included with the board; each has four 50-pin connectors for link A input, link B input, link A output, and link B output. The 50-pin connectors differ for each type of cable, following the Panasonic and Philips 50-pin video equipment interface standard.

See “HD I/O Panel and Cable” in Chapter 1 of the HD I/O Option Board Owner's Guide for more information on the cables included with the option.

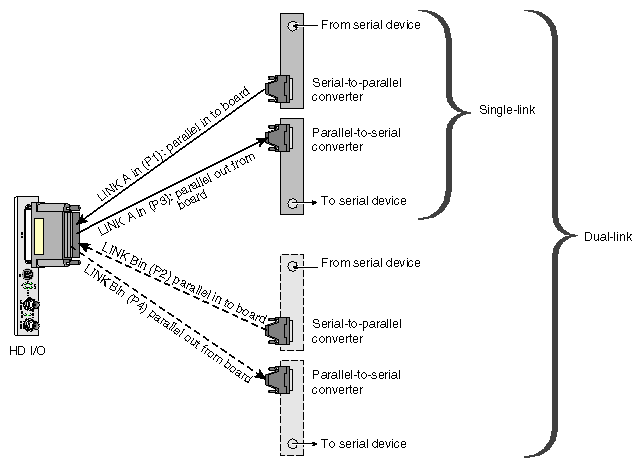

Figure 1-24 diagrams example connections between serializers and the HD I/O board.

Table 1-9 summarizes possible suppliers of this equipment.

Table 1-10 summarizes contact information for video equipment manufacturers listed in this chapter.
