A drag and drop transaction consists of the following actions:

A drop can be between applications or within the same application. An application can be both source and destination of a drop, source only, destination only, or not participate in drag and drop at all.

The user can request help about a drop site, if available, by dragging to the drop site and pressing osfHelp (usually F1).

The user can cancel the drag at any time by pressing osfCancel, usually Escape.

The drag icon consists of three parts:

In the following illustration, the running figure is the source icon, the arrow in the upper left is the state icon, and the rectangles with the corner folded over indicate a Copy is desired.

Figure 17-1. A Drag Icon

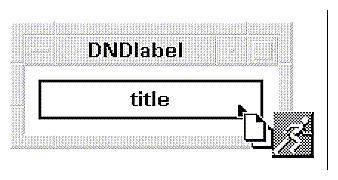

These parts can be combined (blended) and attached to each other in different ways. The default blending and attachment are shown in the previous illustration.

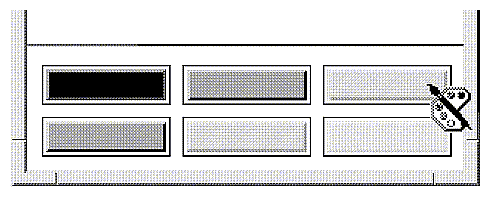

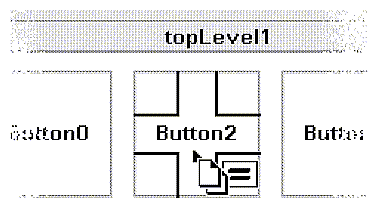

Parts of the drag icon may change shape or color as it is being dragged through potential drop sites, providing visual feedback about possible drop sites to the user. These changes are drag-over effects.

Applications can use the default drag icon effects, or provide more sophisticated or custom drag icons. The application or user can customize these drag-over effects in resource files.

---

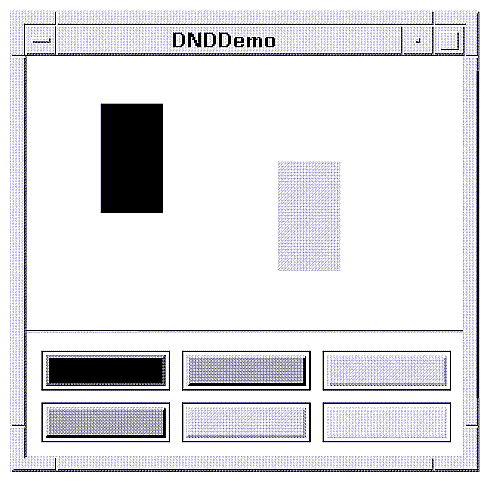

Note: This chapter contains several illustrations of default Motif drag and drop icons. In reality, there are two different sets of default Motif icons. The XmNenableDragIcon resource of XmDisplay determines which set is used. If XmNenableDragIcon is False (the default), the traditional Motif drag and drop icons are used. If XmNenableDragIcon is True, alternate Motif drag and drop icons are used. We have used only the traditional Motif drag and drop icons for the illustrations in this chapter.

---

A widget registered as a drop site may change visually as a drag icon passes over it. These visual cues are drag-under effects. The sensitive area of the widget is the part that responds to drag and drop. By default it is the whole widget, but applications can specify that only parts of the widget respond to drag and drop.

In addition, a widget may support pause drag. This means that if a drag icon pauses over a specifed part of a widget, some action will occur, such as scrolling. See Section 17.4.2.2 for more information about this feature.

Various highlighting styles are possible:

Applications can use the default drag-under visual effects, or create more sophisticated or custom effects, such as special animation or sound effects.

Visual effects also take place during the drop:

These drop effects cannot be changed by the application or the user. However, if the receiver wants to cancel these effects completely, the receiver should ask the source to convert the special _MOTIF_CANCEL_DROP_EFFECT target. For example, the receiver can make a call like the following to cancel the effects:

XmTransferValue(cs->transfer_id,
     XInternAtom(XtDisplay(wid), XmS_MOTIF_CANCEL_DROP_EFFECT, False),
     NULL, NULL, XtLastTimeStampProcessed(XtDisplay(wid)));

The Motif toolkit will intercept this request and fulfill it by cancelling all visual effects. The drag source should not provide any code to handle this target.

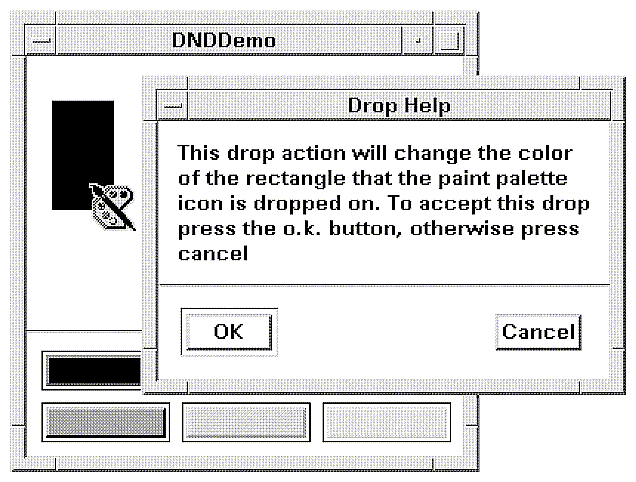

The application or widget should supply a DialogBox containing information about a drop site if the user has requested help and the receiver client provides help.

Applications can use drag and drop functionality on any of several levels:

Any UTM widget that provides an XmNdestinationCallback resource has the potential to be a drop site. Conversely, if a widget does not provide an XmNdestinationCallback resource, it cannot be a UTM drop site.

Of the widgets that provide an XmNdestinationCallback resource, many already contain all the required code to become a drop site. That is, many of the standard widgets can serve as drop sites without you, the application programmer, doing anything. However, some of the widgets that do provide an XmNdestinationCallback resource do not provide the drop site code. You can extend these widgets to become drop sites. For example, the XmDrawingArea widget provides an XmNdestinationCallback resource but does not provide any drop site code. You can write an application that makes XmDrawingArea into a drop site.

Consider the simple_drop sample program stored online in simple_drop.c. This program displays both a Label widget and a DrawingArea widget. The Label widget displays whatever pixmap you pass on the invocation command line. For example, if you invoke this application as follows:

$ simple_drop mypixmap.xpm

then the Label widget will display the contents of the mypixmap.xpm file. To experiment with this application, simply drag the pixmap from the Label and drop it into the framed DrawingArea.

The standard Label widget knows how to be a drag source without any help from the application. However, the standard DrawingArea does not know how to be a drop site. Therefore, simple_drop provides both of the following procedures in order to add pixmap drop support to the DrawingArea:

The only drop target that our DrawingArea supports is PIXMAP. The Label widget in the application provides a convenient PIXMAP source. In addition, you can drop a pixmap from any widget on the screen that knows how to convert a PIXMAP target.

The main routine instantiates the Label and DrawingArea widgets. main also calls XmeDropSink to establish the DrawingArea as a drop site.

int
main(int argc, char **argv)
{
 static Widget  MainWindow;
 XtAppContext   app_context;
 Widget         Frame1, RC1, Label1, DrawingArea1;
 Pixmap         pixmap;
 GC             gc;

   toplevel = XtAppInitialize(&app_context, "Test", NULL, 0,
                               &argc, argv, NULL, NULL, 0);

   MainWindow = XtVaCreateManagedWidget("MainWindow1",
                                    xmMainWindowWidgetClass, toplevel,
                                        NULL);

   CreateMenus(MainWindow);

   RC1 = XtVaCreateManagedWidget("RC1", xmRowColumnWidgetClass,
                                 MainWindow, NULL);

   if (!argv[1]) {
        printf("usage: %s bitmap-file\n", *argv);
        exit(1);
   }

   /* Load bitmap given in argv[1] */
    pixmap = XmGetPixmap(XtScreen(toplevel), argv[1],
        BlackPixelOfScreen(XtScreen(toplevel)),
        WhitePixelOfScreen(XtScreen(toplevel)));

    if (pixmap == XmUNSPECIFIED_PIXMAP) {
        printf("can't create pixmap from %s\n", argv[1]);
        exit(1);
    }

  /* Now instantiate an XmLabel widget that displays pixmap. */
    Label1 = XtVaCreateManagedWidget("Label1",
        xmLabelWidgetClass, RC1,
        XmNlabelType,   XmPIXMAP,
        XmNlabelPixmap, pixmap,
        NULL);

    Frame1 = XtVaCreateManagedWidget("Frame1",
        xmFrameWidgetClass, RC1,
        XmNshadowThickness, 3,
        NULL);

    DrawingArea1 = XtVaCreateManagedWidget("DrawingArea1",
        xmDrawingAreaWidgetClass, Frame1,
        XmNwidth, 150,
        XmNheight, 150,
        XmNresizePolicy, XmRESIZE_NONE,
        NULL);
    XmeDropSink(DrawingArea1, NULL, 0);
    XtAddCallback(DrawingArea1, XmNdestinationCallback,
                  DestinationCallback, NULL);

    XtRealizeWidget(toplevel);
    XtAppMainLoop(app_context);
}

When the user attempts a drop on the DrawingArea, UTM will call the DestinationCallback routine. This routine will call XmTransferValue, asking the source widget (the drag initiator) to convert its list of _MOTIF_EXPORT_TARGETS.

void
DestinationCallback(Widget  w,
                    XtPointer ignore,
                    XtPointer call_data)
{
 XmDestinationCallbackStruct *dcs =
           (XmDestinationCallbackStruct *)call_data;
 Atom TARGETS = XInternAtom(XtDisplay(w), "TARGETS", False);
 Atom _MOTIF_EXPORT_TARGETS = XInternAtom(XtDisplay(w),
                             "_MOTIF_EXPORT_TARGETS", False);

 /* Ask the source to return a list of all the export targets that
    it knows how to convert. */
 XmTransferValue(dcs->transfer_id, _MOTIF_EXPORT_TARGETS,
                 (XtCallbackProc)TransferProc, NULL, NULL);
}

UTM calls the TransferProc routine when the source widget has finished converting _MOTIF_EXPORT_TARGETS. If the source widget knows how to convert the PIXMAP target, the TransferProc routine will request it. When the source widget finishes converting PIXMAP, the TransferProc routine will paste a copy of the returned pixmap into the DrawingArea.

void
TransferProc(Widget  w,
             XtPointer ignore,
             XtPointer call_data)
{
 XmSelectionCallbackStruct *scs =
       (XmSelectionCallbackStruct *) call_data;
 Atom TARGETS = XInternAtom(XtDisplay(w), "TARGETS", False);
 Atom _MOTIF_EXPORT_TARGETS = XInternAtom(XtDisplay(w),
                             "_MOTIF_EXPORT_TARGETS", False);
 Atom PIXMAP = XInternAtom(XtDisplay(w), "PIXMAP", False);
 Atom  *targets = (Atom *)scs->value;
 int    PIXMAP_is_supported = 0;
 unsigned long    n;
 Widget Label2;

   if ((scs->target == _MOTIF_EXPORT_TARGETS) && (scs->type == XA_ATOM))  {
     printf("Number of supported targets is %ld\n", scs->length);
     ListAllTheTargets(w, targets, scs->length);
     for (n=0; n<=scs->length; n++)  {
  /* Look through list of returned TARGETS to see if PIXMAP is there. */
        if (targets[n] == PIXMAP)  {
          PIXMAP_is_supported = 1;
        }
     }

     if (PIXMAP_is_supported)  {
       XmTransferValue(scs->transfer_id, PIXMAP,
                   (XtCallbackProc)TransferProc, NULL, NULL);
     }
   }

  if ((scs->target == PIXMAP)) {
    Pixmap        transferred_pixmap = *(Pixmap*) scs->value;
    Pixmap        copy_of_transferred_pixmap;
    Window        root_return;
    int           x, y;
    unsigned int  width, height;
    unsigned int  border_width, depth;
    GC            gc;
    XtGCMask      valueMask;
    XGCValues     values;

    printf("TransferProc: source has transferred the PIXMAP.\n");
    printf("We need to paste it into the DrawingArea.\n");

  /* It is better to display a copy of the returned pixmap than
     to display the returned pixmap itself. The following code
     creates the copy. */
    XGetGeometry(XtDisplay(w), (Drawable)transferred_pixmap,
                 &root_return, &x, &y, &width, &height,
                 &border_width, &depth);
    copy_of_transferred_pixmap =
                 XCreatePixmap(XtDisplay(w), XtWindow(w), width,
                               height, depth);
    valueMask = GCFunction;
    values.function = GXcopy;

    gc = XtGetGC(w, valueMask, &values);
    XCopyArea(XtDisplay(w), transferred_pixmap,
              copy_of_transferred_pixmap, gc, x, y,
              width, height, x, y);

    Label2 = XtVaCreateManagedWidget("Label2", xmLabelWidgetClass, w,
        XmNlabelType,   XmPIXMAP,
        XmNlabelPixmap, copy_of_transferred_pixmap,
        NULL);
    XtReleaseGC(w, gc);
    XmTransferDone(scs->transfer_id, XmTRANSFER_DONE_SUCCEED);
  }
}

Any widget that provides an XmNconvertCallback resource has the potential to be a drag source. However, not all the potential drag sources are actual drag sources. For example, XmScrollBar supports an XmNconvertCallback resource (through its superclass, XmPrimitive) but does not provide any code to become a drag source. However, your application can turn an XmScrollBar into a drag source. In fact, that is just what the sample program, simple_drag does. This program is stored in simple_drag.c.

The normal action for Button 2 Press has been overridden to cause it to call the StartDrag routine, which causes the drag to begin. The program allows only the Copy operation, and will reply to requests for compound text.

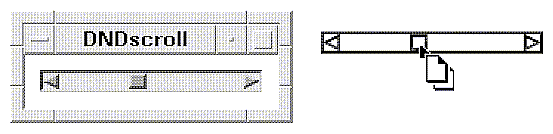

When a drag is started on the ScrollBar, the default drag icons are used.

The main routine of the simple_drag program instantiates a ScrollBar and a Text widget. The main routine also alters the translations of the ScrollBar widget, which is detailed later on in this chapter.

int
main(int argc, char **argv)
{
 static Widget  MainWindow;
 XtAppContext   app_context;
 Widget         Frame1, RC1;
 Widget         Text1, ScrollBar1;
 char    dragTranslations[] = "#override <Btn2Down>: StartDrag()";
 static  XtActionsRec  dragActions[] =
   {
    {"StartDrag", (XtActionProc)StartDrag}
   };
 XtTranslations            parsed_xlations;


   toplevel = XtAppInitialize(&app_context, "Test", NULL, 0,
                               &argc, argv, NULL, NULL, 0);

   MainWindow = XtVaCreateManagedWidget("MainWindow1",
                                    xmMainWindowWidgetClass, toplevel,
                                        NULL);

   CreateMenus(MainWindow);


 /* Create a RowColumn to contain the ScrollBar and Text widgets. */
    RC1 = XtVaCreateManagedWidget("RC1",
                                    xmRowColumnWidgetClass, MainWindow,
                                    NULL);

   /* Create a ScrollBar. */
    parsed_xlations = XtParseTranslationTable(dragTranslations);
    XtAppAddActions(app_context, dragActions, XtNumber(dragActions));
    ScrollBar1 = XtVaCreateManagedWidget("SB1",
                                    xmScrollBarWidgetClass, RC1,
                                    XmNorientation, XmHORIZONTAL,
                                    XmNtranslations, parsed_xlations,
                                    NULL);
  /* Associate a convert callback with the ScrollBar. */
   XtAddCallback(ScrollBar1, XmNconvertCallback, ConvertCallback, NULL);


  /* Create a text widget; it will be a potential drop site. */
   Text1 = XtVaCreateManagedWidget("Text",
                                    xmTextWidgetClass, RC1,
                                    XmNeditMode, XmMULTI_LINE_EDIT,
                                    XmNrows, 25,
                                    XmNcolumns, 25,
                                    NULL);

   XtRealizeWidget(toplevel);
   XtAppMainLoop(app_context);
}

When the user presses <Btn2Down>, StartDrag will be called. The StartDrag routine calls XmeDragSource as follows:

void
StartDrag(Widget w,
          XEvent *event)
{
 Arg       args[2];
 Cardinal  n=0;

  XtSetArg(args[n], XmNdragOperations, XmDROP_COPY); n++;
  XmeDragSource(w, NULL, event, args, n);
}

The simple_drag program provides an XmNconvertCallback procedure named ConvertCallback. This routine handles requests to convert targets. It knows how to convert the following targets:

void
ConvertCallback(Widget  w,
                XtPointer ignore,
                XtPointer call_data)
{
 XmConvertCallbackStruct  *ccs = (XmConvertCallbackStruct *)call_data;
 int  *value;
 Atom COMPOUND_TEXT = XInternAtom(XtDisplay(w), XmSCOMPOUND_TEXT, False);
 Atom TARGETS = XInternAtom(XtDisplay(w), "TARGETS", False);
 Atom MOTIF_EXPORT_TARGETS =
   XInternAtom(XtDisplay(w), XmS_MOTIF_EXPORT_TARGETS, False);
 int n;

 /* XmeDragSource is going to call ConvertCallback and ask
    it to convert MOTIF_EXPORT_TARGETS. */
  if ( (ccs->target == MOTIF_EXPORT_TARGETS) ||
       (ccs->target == TARGETS))
    {
 /* We have to create a list of targets that ConvertCallback
    can convert. For simplicity, we are going to restrict
    that list to one target: COMPOUND_TEXT. */
     Atom *targs = (Atom *) XtMalloc(sizeof(Atom) * 1);
     if (targs == NULL) {
      ccs->status = XmCONVERT_REFUSE;
      return;
     }
     n = 0;
     targs[n] = COMPOUND_TEXT; n++;

     ccs->value = (XtPointer) targs;
     ccs->type = XA_ATOM;
     ccs->length = n;
     ccs->format = 32;
     ccs->status = XmCONVERT_DONE;  /* Yes, we converted the target. */
   }


 /* If the drop site supports COMPOUND_TEXT as an import target, then
    the drop site will ask ConvertCallback to convert the
    value to COMPOUND_TEXT format. */
   else if (ccs->target == COMPOUND_TEXT) {
     char     *passtext;
     char     *ctext;
     XmString  cstring;
     char      ValueAsAString[10];

  /* The part of the ScrollBar that we are transferring is its
     XmNvalue resource. */
     XtVaGetValues(w, XmNvalue, &value, NULL);

  /* Convert XmNvalue to COMPOUND_TEXT. */
       sprintf(ValueAsAString, "%d", value);
       cstring = XmStringCreateLocalized(ValueAsAString);
       ctext = XmCvtXmStringToCT(cstring);
       passtext = XtMalloc(strlen(ctext)+1);
       memcpy(passtext, ctext, strlen(ctext)+1);
  /* Assign converted string to XmConvertCallbackStruct. */
     ccs->value  = (XtPointer)passtext;
     ccs->type   = XA_STRING;
     ccs->length = strlen(passtext);
     ccs->format = 8;
     ccs->status = XmCONVERT_DONE;
   }

   else  {
     /* Unexpected target. */
     ccs->status = XmCONVERT_REFUSE;
   }
}

The DropSite registry contains information about widgets that have been registered as drop sites. Although the drag icon can be dropped anywhere on the screen, only widgets that have been registered as drop sites can accept information from the initiator. The receiver is the application controlling the current drop site.

The "sensitive area" is the part of the widget that responds to drag and drop. By default, the sensitive area is the whole widget. However, the application can specify that only part of the widget is sensitive.

Widgets that are drop sites can be stacked on each other, with one widget partially or completely within the boundary of another. The sensitive areas of lower drop sites are clipped if they are covered by a higher widget.

The stacking order of the widgets with drop sites can be changed by the application.

The protocol describes how the initiator and receiver clients interact through the toolkit with each other.

Motif provides a number of Xt objects and widgets to encapsulate the underlying protocol; however, these are not mapped onto the screen:

Motif provides many functions to support drag and drop processing. However, many drag and drop functions were developed prior to UTM and, although not obsolete, no longer get much direct use. Application programmers will find the following drag and drop functions to be most useful:

Each drag source and drop site specifies what kinds of data types it can process, called targets. These targets are atoms, such as XA_STRING.

The DragContext resources XmNexportTargets and XmNnumExportTargets provide a list and number of the data types provided by the drag source. These are export targets.

The DropSite resources XmNimportTargets and XmNnumImportTargets provide a list and number of the data types accepted by the drop site. These are known as import targets. The primary purpose of the targets in XmNimportTargets is to provide visual feedback about the validity of the drop site. The XmNdestinationCallback procedure need not use the same targets as those specified by XmNimportTargets.

Any number of targets may be listed for each source and site. A drop site is considered valid for a particular drag if at least one of its targets matches any of the source's targets and if the source and drop site operations are compatible.

An application can define anything it wants as a target. Be aware, however, that other applications might not recognize that target.

There are three ways that the initiator and receiver can interact with each other:

When a drag is started, the initiator provides a list of valid operations in the DragContext XmNdragOperations resource. When a drop site is registered, the receiver provides a list of operations it supports in the DropSite XmNdropSiteOperations resource. These lists are the values XmDROP_MOVE, XmDROP_COPY, or XmDROP_LINK, connected by the bitwise OR operator (|). For example, the following value means that Move and Copy are valid operations, but Link is not:

XmDROP_MOVE | XmDROP_COPY

The value XmDROP_NOOP indicates that there are no operations possible for a drop at the current site.

The user can specify an operation by using key combinations discussed earlier in this chapter. The user can also change the operation at any time until the drop starts.

The initiator and the receiver need to be able to handle all the operations their application supports. If the operation is Move, the receiver first gets a copy of the data, then tells the initiator that it can delete the data. If the operation is Copy, both applications have the data, making two copies of it. If the operation is Link, there is only one copy of the data, and the receiver establishes a link to that copy.

The toolkit on the initiator side is in charge during the drag. The protocol in effect determines how it will find the information about drop sites that it needs to manage visuals, and how extensively the initiator and receiver clients are involved during the drag.

There are two kinds of drag protocol styles:

The code for the initiator is the same regardless of the protocol. The code for the receiver applications is the same except that in the dynamic mode, or in the preregister mode when the initiator and receiver are the same client, the receiver's XmNdragProc is called.

The drag protocol in use can change during the course of a drag. When the drag icon enters or leaves a top-level window, the source and potential drop receiver negotiate a mutually acceptable drag protocol, as described in Section 17.3.2.

The toolkit uses pixmap source icons if the client provides them. If not, the toolkit uses bitmap source icons if the client provides them. If the client provides neither, the toolkit uses XmScreen icons. The XmScreen icons can be either the default icons or ones provided by the client or user.

The user can specify which drag protocol to use or the application can specify the drag protocol in resource file.

The preregister drag protocol can be used with a minimum of additional coding in an application, because the toolkit manages the drag-over visual effects using the default drag icons specified in the XmScreen object. Or the application can override the default XmScreen icons with custom icons, but still allow the toolkit to manage the effects.

The dynamic drag protocol requires more work for the application program, but allows a receiver application to provide visual effects beyond the capabilities of the toolkit.

The drag protocol in use has an effect on the system performance as described later in this section.

myclient*dragInitiatorProtocolStyle: DRAG_PREFER_DYNAMIC
myclient*dragReceiverProtocolStyle: DRAG_PREFER_DYNAMIC

When a drop is made, the receiver checks what action should happen:

See the Chapter 16 for details on how UTM implements a drop.

The widgets shown in Appendix B are already registered as drop sites. An application must register any other widget it wants to use for a drop site, but only if the widget provides an XmNdestinationCallback procedure. A widget may be registered as only one drop site.

XmeDropSink registers a widget as a drop site, establishes callbacks to be used when a drag is made through the drop site or a drop is made in the drop site, and provides target and operation information. If the protocol is preregister, the information is stored in a database, which is read by the toolkit during the drag. If the drag protocol is dynamic, messaging is used to check for possible drop sites within a widget.

The optional XmNdragProc routine is executed only if the drag protocol is dynamic, or, if the protocol is preregister, only if the initiator and receiver are the same client. It is called in response to events during the drag, and allows the receiver to provide additional drag-under effects or additional drag processing.

The XmNdropSiteOperations resource lists all operations that the drop site will support, combined by the bitwise OR operations (|). For example, the default value

XmDROP_COPY | XmDROP_MOVE

means that Copy and Move are valid operations, but Link is not. During a drag, the toolkit on the receiver side compares this list with the DragContext's XmNdragOperations list and the user-selected operation to arrive at the operation that will be performed if a drop occurs on this site, along with a list of all operations possible between the initiator and the current drop site.

If an application wants to use only one operation, such as Copy, it should set the XmNdropSiteOperations field to just that operation to ensure that the toolkit chooses the correct operation and drag icon during the drag and drop transaction.

Drop sites that represent copying devices, such as printers, or transformation devices, such as compilers, should perform a Copy rather than a Move if both are possible.

The XmNdropSiteActivity resource indicates whether the drop site is available for use:

Use the XmDropSiteRegistered function to determine whether a widget is already a registered drop site. The function accepts a widget as an argument, and returns a Boolean value, which is TRUE if the widget is a registered drop site.

The XmDropSiteUnregister function removes a widget from the DropSite registry. Once a widget is unregistered, it displays no drag-under visual effects and cannot accept a drop.

The difference between an unregistered drop site and an inactive drop site is that the inactive drop site is still registered; it still uses memory, but does not engage in any drag and drop transactions. One use for inactive drop sites is to provide the correct clipping on overlapping drop sites. An unregistered drop site is no longer involved in the drag and drop system. It is the same as a widget that was never registered.

When the drag and drop is operating in preregister mode, and the receiving client is not the same as the initiating client, drop effects will be generated even if a drop site's widget is unmanaged. To avoid this, you can deactivate the drop site by calling XmDropSiteUpdate and setting XmNdropSiteActivity to XmDROP_SITE_INACTIVE. Specifying the resource as XmDROP_SITE_IGNORE at creation time will disable the drop site completely, producing some savings of computational overhead, since inactive drop sites are still used for clipping drag-under effects.

The following code registers a DrawingArea widget as a drop site. The only operation it will accept is Copy. The only import target it will accept is COMPOUND_TEXT. The other resources, including drag-under effects, are left at their default values.

DrawingArea = XmCreateDrawingArea(Frame, "Draw1", NULL, 0);
XtManageChild(DrawingArea);
Atom targets[2];
Arg  args[4];
int  n, nt;
Atom COMPOUND_TEXT = XInternAtom(XtDisplay(w), "COMPOUND_TEXT", False);

  /* Register the DrawingArea as a drop site */
  nt=0
  targets[nt++] = COMPOUND_TEXT;
  n = 0;
  XtSetArg(args[n], XmNdropSiteOperations, XmDROP_COPY); n++;
  XtSetArg(args[n], XmNimportTargets, targets); n++;
  XtSetArg(args[n], XmNnumImportTargets, nt); n++;
  XmeDropSink(DrawingArea, args, n);
  XtAddCallback(DrawingArea1, XmNdestinationCallback,
                DestinationCallback1, NULL);

Specially Shaped Drop Sites

The shape of a simple drop site can be specified as the union of a set of specified rectangles clipped by the associated widget.

If only part of the widget is to be sensitive to a drop, it is defined by a list of rectangles in the XmNdropRectangles resource. If the resource is NULL, the drop site is the smallest enclosing widget and the shape of the drop site is the shape of the widget.

The rectangles that make up the drop site do not need to be contiguous. All the noncontiguous segments of the drop site act as one; they are all highlighted the same way at the same time. A drop on one segment is the same as a drop on any of the other segments. This might look to the user as if there were several drop sites on a single widget, but the application handles nested drop sites differently from drop sites made of noncontiguous segments. Nested drop sites, whether simulated or real, may have different drag-under effects, targets, operations, or callback procedures.

The following example establishes a sensitive area shaped like a plus sign on a DrawnButton widget named Button2. Even if the drag icon is within the Button2 widget, no drag-under effects are shown until the drag icon is within the sensitive area. The area is visible only when a drag icon enters it and highlighting occurs. The sensitive area is the only part of the widget that accepts a drop.

Figure 17-2. Specially Shaped Drop Site

XRectangle plus[] = { {30, 0, 30, 30}, {0, 30, 90, 30}, {30, 60, 30, 30}, }; ... n = 0; XtSetArg(args[n], XmNimportTargets, importList); n++; XtSetArg(args[n], XmNnumImportTargets, 1); n++; XtSetArg(args[n], XmNdropRectangles, plus); n++; XtSetArg(args[n], XmNnumDropRectangles, 3); n++; XmeDropSink(Button2, args, n);

Drag-Under Visual Effects

Drag-under visual effects are displayed only when the pointer is within the sensitive area of the drop site widget. An application can either handle all or none of the animation effects for a particular drop site. That is, an application should never do a partial job of animation on a particular drop site. Various drag-under styles can be chosen in the XmNanimationStyle DropSite resource:

XmDRAG_UNDER_HIGHLIGHT		A solid border around the sensitive area of the drop site is used to show the drop site is valid. This is the default value.
XmDRAG_UNDER_SHADOW_OUT		The sensitive area of the drop site looks pushed out when it is valid.
XmDRAG_UNDER_SHADOW_IN		The sensitive are of the drop site looks pushed in when it is valid.
XmDRAG_UNDER_PIXMAP		A custom pixmap is used to indicate the drop site is valid. The pixmap is specified in XmNanimationPixmap.
XmDRAG_UNDER_NONE		No indication is given that the drop site is valid.

The following illustration shows the default drag-under animation around the Label widget drop site.

Figure 17-3. Default Drag-Under Animation

If the value of XmNanimationStyle is XmDRAG_UNDER_PIXMAP, the resources XmNanimationPixmap, XmNanimationMask, and XmNanimationPixmapDepth are used to provide more information about the pixmap. If the depth does not match the depth of the window controlling the drop site widget, no animation occurs. Except for XmDRAG_UNDER_PIXMAP, the colors used for the visual effects are based on the colors of the widget associated with the drop site.

The dynamic protocol provides the most control over the drop site animation. It is the only way to get visual effects that do not remain the same for the duration of the drag icon's stay in the drop site; for example, a background that flashes.

The procedure registered in the DropSite's XmNdragProc resource is called only when the dynamic protocol is in effect, or, in the case of the preregister protocol, if the initiator and receiver are the same client. This procedure is optional. Applications that need to provide special drag-under effects or other special processing during a drag can do so with this procedure.

The XmNdragProc procedure is called in response to messages from the toolkit, before the initiator's equivalent drag callback. The pointer from the drop site's XmNclientData resource is passed as the client data to this procedure. Applications may use this resource to pass any manner of information desired to the XmNdragProc procedure. Fields in the callback structure provide information to the receiver about the drag.

The reason field in the callback structure indicates why the procedure was called.

The operations field lists all the operations that are valid for the drop site with the current drag source. The operations field is initialized by the toolkit as follows:

The operation field indicates the type of action a successful drop will perform. The toolkit initializes the operation field by taking the following steps, in order of precedence from highest to lowest:

The dropSiteStatus field provides an indication of whether a transfer between the initiator and this drop site could occur. The value that the toolkit selects for the dropSiteStatus field depends on the reason the XmNdragProc procedure was entered:

The XmNdragProc procedure can update operation, operations, or dropSiteStatus further during its execution. The final values for these fields are available to the initiator in its drag callback structures. If the receiver's XmNdragProc procedure is called more than once while the drag icon is within the drop site (for example, because of motion events), the values used by the toolkit when it initializes the drag callback operations, operation, and dropSiteStatus fields are the ones at the end of the previous call to XmNdragProc.

The animate field tells the toolkit who should provide the drag-under visual effects. It is initially set to True, but the XmNdragProc routine can set it to False.

The DragProcCallback routine in the DNDDemo.c program is an example of a DragProc routine. It can process every drag message, changes the operations, operation, and dropSiteStatus as necessary, and sets the animate field to True, allowing the toolkit to manage the drag-under effects. The DragProcCallback routine is shown in the next section of this chapter.

Simulating Nested Drop Sites

A widget can be registered as only a single drop site. However, if the application needs one or more drop sites entirely enclosed within another drop site, there are two ways to accomplish this:

• Widgets that contain other widgets that are drop sites should be registered as composite drop sites as described earlier in this chapter.

  This method allows the toolkit to manage drop site messages and drag-under effects for each nested drop site.

• An application can simulate multiple drop sites on a single widget in the XmNdragProc and XmNdropProc routines. Because the XmNdragProc routine is executed only in the dynamic drag protocol mode, this method would only work if the drag procotol chosen is preregister in the case where the initiator and receiver are the same client.

  This method requires that the application manage all drag-under effects, because the toolkit is not aware of the simulated nesting.

To simulate nested drop sites on a single widget:

1. Register the widget as a single active drop site. Set XmNdropSiteOperations to all the operations possible for any of the nested drop sites. Set XmNimportTargets to all the targets possible for any of the nested drop sites. Register an XmNdragProc routine to provide any special drag-under effects for the simulated drop sites.

   The operations, operation, and dropSiteStatus fields are initialized by the toolkit only when this outer drop site is entered or left. The simulated drop sites must be managed by the application.

2. When either XmNdragProc or XmNdropProc is called, check the x and y fields in the callback structure to determine which of the nested drop sites contains the pointer.

3. If the pointer is within a simulated nested drop site, update the callback fields as follows:

   • When the pointer enters the simulated nested drop site, save the value of the operations and operation fields.

   • Remove any operations from the operations field that do not apply to the simulated drop site.

   • Set operation to the valid operation preferred by the simulated drop site, or to XmDROP_NOOP if the operations list does not contain the preferred operation.

   • The dropSiteStatus field must reflect the status of the simulated drop site so that the initiator can manage drag-over effects correctly:

     • Set the dropSiteStatus to XmDROP_SITE_VALID if the operation is allowed in the simulated drop site and if there is at least one target in common between the simulated drop site and the initiator. (Use the XmTargetsAreCompatible routine to check the targets.)

     • Set the dropSiteStatus to XmDROP_SITE_INVALID if the operation is not allowed in the simulated drop site, if there are no targets in common, or if the operation is XmDROP_NOOP.

   • Display appropriate drag-under visual effects.

   • When the pointer leaves the simulated drop site, restore the original values of operations and operation that apply to the outer drop site.

4. If the pointer is not within a simulated drop site, but drops are allowed in the outer drop site, update the fields as described in the previous step.

5. If the pointer is not within a simulated drop site, and drops are not allowed in the outer drop site, set the dropSiteStatus field to XmDROP_SITE_INVALID.

If the preregister protocol is in effect, the simulated drop sites cannot be managed during the move, because XmNdragProc is not performed; but they can be managed at the drop with XmNdropProc.

In the following example, only the top-level window, DNDDemo, is registered as a drop site. The user can create rectangles within the window that then act like drop sites themselves. The user can drag and drop colors from one of the six buttons in the lower part of the window onto the rectangles to change the color of the rectangle. However, these rectangles are not registered drop sites; they are simulated.

The user can also drag these rectangles to new locations.

Figure 17-4. Simulated Drop Sites

The RegisterDropSite routine registers the DrawingArea widget as a drop site. The list of operations and targets may not be valid for each simulated drop site, but are valid for other simulated drop sites.

static void RegisterDropSite(Widget w) { Display *display = XtDisplay(w); Atom targets[3]; Arg args[5]; int n = 0; /* Only accept moves or copies */ XtSetArg(args[n], XmNdragOperations, XmDROP_COPY | XmDROP_MOVE); n++; /* set all possible targets for any of the nested drop sites */ targets[0] = XmInternAtom(display, "_MY_RECTANGLE", False); targets[1] = XmInternAtom(display, "BACKGROUND", False); targets[2] = XmInternAtom(display, "PIXMAP", False); XtSetArg(args[n], XmNimportTargets, targets); n++; XtSetArg(args[n], XmNnumImportTargets, 3); n++; /* register a dragProc - necessary for simulating nested drop sites */ XtSetArg(args[n], XmNdragProc, DragProcCallback); n++; XmeDropSink(w, args, n); }

The XmNdragProc routine, DragProcCallback, is called whenever a drag icon enters the registered drop site (the top-level window). The RectFind routine from DNDDraw.c determines if the pointer is in a simulated drop site. The CheckTargets routine determines if the object being dragged is one of the six colors (bgFound) or one of the created rectangles (rectFound). (The value pixFound to represent a pixmap being dragged is coded in this routine, but not in the rest of the program.)

The only drag-under visual is displayed when a color is dragged to a rectangle. The outline of the rectangle is highlighted.

The entire DragProcCallback routine is too long to be listed in its entirety here. The section dealing with the drop site enter message is used as an example.

static void DragProcCallback(Widget w, XtPointer client, XtPointer call) { XmDragProcCallbackStruct *cb = (XmDragProcCallbackStruct *) call; Display *display = XtDisplay(w); Boolean rectFound, bgFound, pixFound; static unsigned char initial_operations; static unsigned char initial_operation; RectPtr rect; CheckTargets(cb->dragContext, display, &rectFound, &bgFound, &pixFound); switch(cb->reason) { case XmCR_DROP_SITE_ENTER_MESSAGE: /* save the value of the operations and operation fields */ initial_operations = cb->operations; initial_operation = cb->operation; rect = RectFind(cb->x, cb->y); /* Remove any operations for the operations field which do not * apply to the simulated drop site. */ if (rect) { if (bgFound || pixFound) { cb->operations = XmDROP_COPY; RectHighlight(w, rect); } else if (rectFound) { cb->operations = cb->operations & (XmDROP_COPY | XmDROP_MOVE); RectUnhighlight(w); } } else { cb->operations = initial_operations & (XmDROP_COPY | XmDROP_MOVE); RectUnhighlight(w); } /* Set operation to the valid operation preferred by the simulated * drop site or to XmDROP_NOOP if the operations list does not * contain the preferred operation. */ if (rect) { if (bgFound || pixFound) { if (cb->operations & XmDROP_COPY) cb->operation = XmDROP_COPY; else cb->operation = XmDROP_NOOP; } else if (rectFound) { if (cb->operations & XmDROP_MOVE) cb->operation = XmDROP_MOVE; else if (cb->operations & XmDROP_COPY) cb->operation = XmDROP_COPY; else cb->operation = XmDROP_NOOP; } } else { if (rectFound) { if (cb->operations & XmDROP_MOVE) cb->operation = XmDROP_MOVE; else if (cb->operations & XmDROP_COPY) cb->operation = XmDROP_COPY; else cb->operation = XmDROP_NOOP; } else cb->operation = initial_operation; } /* * Set dropSiteStatus to XmDROP_SITE_INVALID if the operation * field is XmDROP_NOOP, or if there are no common targets * between the source and the nested drop site. Otherwise, set * dropSiteStatus to XmDROP_SITE_VALID. */ if (cb->operation == XmDROP_NOOP || (rect && (!rectFound && !bgFound && !pixFound)) || (!rect && !rectFound)) cb->dropSiteStatus = XmINVALID_DROP_SITE; else cb->dropSiteStatus = XmVALID_DROP_SITE; /* * Display appropriate drag under visuals. Only highlight * the rectangle if we are changing rectangle attributes. */ if (rect && bgFound || pixFound && cb->dropSiteStatus == XmVALID_DROP_SITE) RectHighlight(w, rect); break; case XmCR_DROP_SITE_LEAVE_MESSAGE: ...

The initiator client must be able to recognize the Btn2Down event within a widget it allows to be a drag source. It may have to override an already-assigned translation for the widget.

The following example from the main routine of simple_drag in Section 17.2.1.2 overrides the existing mouse button 2 translation for the ScrollBar widget, and maps it to the StartDrag routine, which will start the drag transaction.

char    dragTranslations[] = "#override <Btn2Down>: StartDrag()";
static  XtActionsRec  dragActions[] =
   {
    {"StartDrag", (XtActionProc)StartDrag}
   };
XtTranslations            parsed_xlations;
...
/* override button two press to start a drag */
parsed_xlations = XtParseTranslationTable(dragTranslations);
XtAppAddActions(app_context, dragActions, XtNumber(dragActions));

/* create a scroll bar widget */
    ScrollBar1 = XtVaCreateManagedWidget("SB1",
        xmScrollBarWidgetClass, RC1,
        XmNorientation, XmHORIZONTAL,   /* for cosmetic reasons */
        XmNtranslations, parsed_xlations,
        NULL);

Translation may be more complicated in some editable widgets, in which Btn2DownBtn2Up is used for primary transfer, and Btn2Motion is used for drag and drop.

If your widget is to act as a drag initator, it must provide an XmNconvertCallback procedure that converts target requests. Your application must attach an XmNconvertCallback to the drag initiator widget; for example:

/* Associate a convert callback with the ScrollBar. */
  XtAddCallback(ScrollBar1, XmNconvertCallback, ConvertCallback, NULL);

The XmNconvertCallback procedure must be able to convert two kinds of requests:

XmeDragSource initiates a drag and creates an XmDragContext widget. In the simple_drag demo, XmeDragSource is called as follows from the StartDrag routine:

void
StartDrag(Widget w,
          XEvent *event)
{
 Arg       args[2];
 Cardinal  n=0;

  XtSetArg(args[n], XmNdragOperations, XmDROP_COPY); n++;
  XmeDragSource(w, NULL, event, args, n);

StartDrag is called when the user preses Btn2Down on the XmScrollBar.

See the Motif Widget Writer's Guide for syntactic details about XmeDragSource. In brief, XmeDragSource is the UTM replacement for the XmDragStart call. The args passed to XmeDragSource will eventually become resources of the DragContext.

If XmDisplay has the XmNdragStartCallback resource, the nominated procedure is called at the beginning of XmeDragSource. This allows the client to cancel the drag initiation, as well as perform any other necessary operation.

The XmNdragOperations resource lists all the operations that the initiator will support for this drag source, combined by the bitwise OR operation (|). During a drag, the toolkit compares this list with the receiver's XmNdropSiteOperations list and the user-selected operation to arrive at the operation that will be performed if a drop occurs on this site.

If an application wants to use only one operation, it should set the XmNdragOperations resource to just that operation to ensure that the correct operation and drag icon are chosen by the toolkit during the drag and drop transaction.

This drag source does not have any custom drag icons or any drag callbacks.

XtGetValues is used to check the values of widgets resources established as drag sources earlier in the application, and XtSetValues is used to update these values. The widget ID used is the DragContext, not the source widget ID, so that the change applies only to the widget during the drag.

If the widget is a predefined drag source (for example, XmText), overriding the default behavior becomes more complex. The widget calls XmeDragSource when the drag starts, and the application cannot call XmeDragSource again for the widget. Instead, it must update the existing DragContext. First it must find the DragContext for the widget, then establish the new behavior. One possible means to accomplish this is as follows:

For instance, Text allows the Copy and Move operations. If an application can support only Copy, it must update the DragContext's XmNdragOperations resource.

When the user moves the mouse, a drag icon representing the object being dragged moves around the screen instead of the usual pointer. As the icon is dragged over portions of the screen, the icon may change to show the status of a possible drop. These drag-over visual effects help the user know how to proceed with the drag.

There are four ways to provide drag-over visual effects:

If the application provides custom icons and they are unsuitable for some reason, the toolkit defaults to the XmScreen drag-over visuals.

The drag icon consists of a source icon, optionally combined with a state icon and an operation icon.

Each drag icon has a hotspot. Since a drag icon could be quite large, the hotspot provides a single pixel that is used in providing drag-over and drag-under effects. For example, if the drag icon moves into the area of a valid drop site, neither the drag icon or the drop site will provide visual clues until the hotspot has moved into the area. By default, the hotspot is the upper left corner of the state icon.

In the following illustration, the running figure is the source icon, the state icon is the arrow in the corner, and the operation icon shows a Copy will happen if a drop is made. The default blending and attachment values are used.

Figure 17-5. A Drag Icon

Source Icon

The source icon is a picture representing the object being dragged. It can be either a pixmap or cursor. The client can create a custom pixmap through the XmNsourcePixmapIcon resource or a custom cursor through the XmNsourceCursorIcon resource. If these resources are NULL or not usable (too large, not a bitmap, or created on a different screen, for example), the default cursor given in the XmScreen resource XmNdefaultSourceCursorIcon is used.

For example, the following code establishes the Pixmap stored in the pixmap variable as the custom pixmap:

/* Create a drag icon using "pixmap" as the DragIcon pixmap. */ XtSetArg(wargs[n],XmNpixmap,pixmap); n++; drag_icon = XmCreateDragIcon((Widget)cw,"dragIcon",wargs,n); /* Set the XmNsourcePixmapIcon resource to the drag icon widget */ n = 0; XtSetArg(wargs[n],XmNsourcePixmapIcon,drag_icon); n++;

The pixmap icon is used with the preregister visual style. The colormap is based on the source widget. The cursor icon is used for the dynamic visual style.

The following illustration shows the default source icons for general purpose, List, Label, and Text widgets.

Figure 17-6. Source Icons

*.validCursorForeground:          green
*.invalidCursorForeground:        red
*.noneCursorForeground:           yellow

Operation Icon

The operation icon is a cursor that indicates what operation is to happen when the drop is made. The default operation icons are the values of the XmScreen resources XmNdefaultMoveCursorIcon, XmNdefaultCopyCursorIcon, and XmNdefaultLinkCursorIcon.

A custom operation icon can be specified in the DragContext resource XmNoperationCursorIcon. The icon should be changed as the operation changes, using the drag callbacks. If XmNoperationCursorIcon is NULL, not a bitmap, or not defined on the same screen as XmScreen, the default XmScreen icons are used.

The following illustration shows the default Copy, Link, and Move operation icons.

Figure 17-7. Operation Icons

If the operation in effect is XmDROP_NOOP, meaning that no operation is possible, then the operation icon is left blank, as shown in the following illustration. This condition also sets the dropSiteStatus to XmDROP_SITE_INVALID.

Figure 17-8. Copy and Noop Drag Icons

Drag Icon Blending and Attachment

The client can specify which of the three icons to mix together to form the drag icon with the XmNblendModel DragContext resource:

XmBLEND_ALL		Use the source icon, state icon, and operation icon. The hotspot comes from the state icon. This is the default value. The order listed is also the order of the blend.
XmBLEND_STATE_SOURCE		Use only the source icon and state icon. The hotspot comes from the state icon.
XmBLEND_JUST_SOURCE		Use only the source icon. The hotspot comes from the source icon.
XmBLEND_NONE		Do not display any drag icon. The client handles all drag-over effects.

The XmNattachment DragIcon resource specifies where the state and operation icons will be placed on the source icon. The default placement is both the state and operation icons at the attachment point of the source icon, with the operation icon on top. The default value is XmATTACH_NORTH_WEST.

XmNoffsetX and XmNoffsetY are used to place the icon relative to the attachment point.

If the attachment point is XmATTACH_HOT, the state and operation icons are attached to the source icon at a point the same x and y distance from the upper left corner of the source icon as the pointer is from the upper left corner of the widget containing the source. This attachment style is particularly useful when the application makes a custom source icon that exactly reflects the source widget at the time the drag starts.

In the following illustration, the custom source icon is an outline of the scrollbar. When the drag was started, the pointer was on the slider. The operation and state icons are placed at the same location on the source icon.

Figure 17-9. An Attach_Hot Icon

When the state or operation icon is blended with a source icon, a specified point of the icon's XmNpixmap is aligned with the upper left corner of the source icon. The resulting XmNpixmap is large enough to include both, and the resulting XmNmask has 1 bits wherever either the source icon or source mask did.

If a dynamic cursor style is being used, and the resulting blended cursor is too large for the screen, the blending is done with the XmScreen XmNdefaultSourceCursorIcon instead of the DragContext's XmNsourceCursorIcon. If it is still too large, it is clipped relative to the hotspot (that is, if the hotspot is at an edge, the other edge is clipped; if the hotspot is in the center, opposite edges are clipped equally).

Creating a Drag Icon

Any of the three parts of a drag icon can be customized: the source icon, the state icon, and the operation icon.

Use the XmCreateDragIcon function to create any of these parts. The XmNattachment resource is not used for the source icon. The other resources specify pixmap, size, and hotspot details. The DragContext XmNblendModel resource indicates which hotspot is used for the entire drag icon.

The following example from DNDDemo.c creates a source icon from a bitmap. The source icon is the palette and the state icon is the paintbrush. (Actually, the state icon is not shown when the drag starts, because the blend style is XmBLEND_JUST_SOURCE. It is shown here as if the blend style were XmBLEND_ALL.)

Figure 17-10. Custom Source Icon

The ColorRect function is called when a drag starts from one of the color rectangles in the lower portion of the window. Among its other duties, it establishes the drag icon from source bits from the DNDDraw.c file.

void ColorRect(Widget w, XEvent *event, String *params, Cardinal *num_params) { ... Atom targets[1]; Widget sourceIcon, stateIcon; Pixel background, foreground; char *source_bits, *source_mask; char *state_bits, *state_mask; Dimension width, height; Arg args[16]; int n = 0; n = 0; XtSetArg(args[n], XmNbackground, &background); n++; XtSetArg(args[n], XmNforeground, &foreground); n++; XtGetValues(w, args, n); /* If the server will handle a large icon, create one */ if (appInfo->maxCursorWidth >= ICON_WIDTH && appInfo->maxCursorHeight >= ICON_HEIGHT) { source_bits = (char *)SOURCE_ICON_BITS; source_mask = (char *)SOURCE_ICON_MASK; state_bits = (char *)STATE_ICON_BITS; state_mask = (char *)STATE_ICON_MASK; width = ICON_WIDTH; height = ICON_HEIGHT; } else { /* If the server will handle a small icon, create one */ source_bits = (char *)SMALL_SOURCE_ICON_BITS; source_mask = (char *)SMALL_SOURCE_ICON_MASK; state_bits = (char *)SMALL_STATE_ICON_BITS; state_mask = (char *)SMALL_STATE_ICON_MASK; width = SMALL_ICON_WIDTH; height = SMALL_ICON_HEIGHT; } /* Create the drag cursor icons */ sourceIcon = GetDragIconFromBits(w, source_bits, source_mask, width, height, background, foreground); stateIcon = GetDragIconFromBits(w, state_bits, state_mask, width, height, background, foreground); /* Setup the arglist for the drag context that is created at drag start */ n = 0; ... /* set args for the drag cursor icons */ XtSetArg(args[n], XmNsourceCursorIcon, sourceIcon); n++; XtSetArg(args[n], XmNstateCursorIcon, stateIcon); n++; /* identify the necessary callbacks */ ... /* start the drag. This creates a drag context. */ myDC = XmeDragSource(w, NULL, event, args, n); }

The GetDragIconFromBits function turns the bits into a bitmap.

static Widget GetDragIconFromBits(Widget w, char *bits, char *mask, Dimension width, Dimension height, Pixel background, Pixel foreground) { Pixmap icon, iconMask; Display *display = XtDisplay(w); icon = XCreateBitmapFromData(display, DefaultRootWindow(display), bits, width, height); iconMask = XCreateBitmapFromData(display, DefaultRootWindow(display), mask, width, height); return(GetDragIcon(w, icon, iconMask, width, height, background, foreground)); }

The GetDragIcon function uses the bitmap created by the GetDragIconFromBits function to create a drag icon.

static Widget GetDragIcon(Widget w, Pixmap icon, Pixmap iconMask, Dimension width, Dimension height, Pixel background, Pixel foreground) { Widget dragIcon; Arg args[10]; int n = 0; XtSetArg(args[n], XmNhotX, ICON_X_HOT); n++; XtSetArg(args[n], XmNhotY, ICON_Y_HOT); n++; XtSetArg(args[n], XmNwidth, width); n++; XtSetArg(args[n], XmNheight, height); n++; XtSetArg(args[n], XmNmaxWidth, appInfo->maxCursorWidth); n++; XtSetArg(args[n], XmNmaxHeight, appInfo->maxCursorHeight); n++; XtSetArg(args[n], XmNbackground, background); n++; XtSetArg(args[n], XmNforeground, foreground); n++; XtSetArg(args[n], XmNpixmap, icon); n++; if (iconMask != XmUNSPECIFIED_PIXMAP && iconMask != None) { XtSetArg(args[n], XmNmask, iconMask); n++; } dragIcon = XmCreateDragIcon(w, "dragIcon", args, n); return(dragIcon); }

Callbacks notify the initiator of how the drag is proceeding. The receiver's XmNdragProc (if any) is first notified of the action and given a chance to update the operation, operations, and dropSiteStatus fields in its callback structure. The new values are available to the initiator's drag callback in the appropriate callback structure.

These drag callbacks are all optional. They enable the initiator to monitor the progress of the drag and manage its visual effects accordingly. Otherwise, the toolkit on the initiator side handles the drag-over effects.

Callback structures for these routines contain information about the drag. The callback structures for XmNdragMotionCallback, XmNoperationChangedCallback, and XmNdropSiteEnterCallback contain the operations, operation, and dropSiteStatus fields (among others), which are initialized by the toolkit before the callback is called.

The operations field lists all operations possible for a drop on the current site, whether the site is registered as a DropSite or not. The toolkit initializes the operations field as follows:

The operation field shows the operation that will occur if a drop happens at the current cursor location. It is initialized as follows:

The dropSiteStatus field in the callback structure indicates if the drag icon is over a valid drop site, an invalid drop site, or no drop site. The callback procedure can use this information to display the appropriate drag-over visuals. The toolkit initializes the dropSiteStatus field as follows:

If the application has not stored the DragContext ID in a global location, these callbacks can find the DragContext ID by passing the timeStamp field from the callback structure to the XmGetDragContext function.

This example shows a callback that is called when a new drop site is entered. It checks the validity of the drop site, and uses one of three custom source icons, depending on the status.

static void EnterCB(w, client_data, call_data)
Widget          w;
XtPointer       client_data, call_data;
{

   XmDragContext                   dc;
   XmDropSiteEnterCallback         EnterData;
   Cardinal                        n;
   Arg                             args[MAX_ARGS];

   dc = (XmDragContext)w;
   EnterData = (XmDropSiteEnterCallback )call_data;

   n = 0;

   if (EnterData->dropSiteStatus == XmVALID_DROP_SITE) {
      XtSetArg(args[n], XmNsourceCursorIcon,
                 GetValidIcon(w)); n++;
      XtSetValues(dc, args, n);
      }
   if (EnterData->dropSiteStatus == XmINVALID_DROP_SITE) {
      XtSetArg(args[n], XmNsourceCursorIcon,
                 GetInvalidIcon(w)); n++;
      XtSetValues(dc, args, n);
      }
   if (EnterData->dropSiteStatus == XmNO_DROP_SITE) {
      XtSetArg(args[n], XmNsourceCursorIcon,
                 GetNeutralIcon(w)); n++;
      XtSetValues(dc, args, n);
      }
}

If a drag callback is desired, it is added to the DragContext's callback resources. The following example adds a callback named EnterCB that is performed when the pointer enters an active drop site:

Widget       dc;

   dc = XmeDragSource(w, location_data, event, args, n);
   XtAddCallback(dc, XmNdropSiteEnterCallback, EnterCB,
                   NULL);

The initiator can find information about the current drop site with the XmDropSiteRetrieve function. It must pass in the DragContext so that the toolkit knows what drop site the request is for. The initiator can find the value of any drop site resource except the callback routines.

The following example gets the number and list of import targets for a drop site. The example shows a drop site enter callback, but it could be in any of the initiator's drag callbacks.

XmDropSiteEnterCallback      DragData;
...
n = 0;
XtSetArg(args[n], XmNimportTargets, &importTargets); n++;
XtSetArg(args[n], XmNnumImportTargets,
           &numImportTargets); n++;
XmDropSiteRetrieve(DragData->DragContext, args, n);

The drag in progress can be cancelled in either of two ways. Both ways are treated the same by the toolkit.

The initiator is notified of the cancel by the XmNdropStartCallback with a dropAction field value of XmDROP_CANCEL.

The receiver is notified by a XmCR_DROP_SITE_LEAVE_MESSAGE message. This message is processed by the XmNdragProc in the dynamic protocol mode. This allows any drag-under effects to be undone.

It might not always be obvious to the user what the result of dropping a particular source on a drop site might be. The user can request more information about the drop site by pressing osfHelp while the drag icon is over the drop site.

When the user presses osfHelp, UTM starts a drop by doing the following:

When the user presses osfHelp, your XmNdestinationCallback procedure must realize a DialogBox. This DialogBox must provide help about the drop site, and must give users the choice of either continuing or cancelling the drop. While the DialogBox is realized, your XmNdestinationCallback procedure must neither perform any transfers nor call XmTransferDone. Your XmNdestinationCallback procedure must save the transfer_id member for any later XmTransferValue calls to be made.

After the user accepts or rejects the transfer, the processing continues from the callbacks on the dialog buttons. In the case of accepting the transfer, the transfer may be continued by using the transfer_id in calls to all the normal transfer calls in UTM. In the case of rejecting the transfer, the programmer must call XmTransferDone with a status of XmTRANSFER_DONE_FAIL. This will clean up the internal state of UTM and provide drag and drop zap effects to indicate the failure to the user.

The following example taken from DNDDemo.c shows how the help dialog shown in the illustration was created.

Figure 17-11. Help Dialog

The handleDestination routine examines the operation member of the XmDestinationCallbackStruct. If operation holds XmOTHER, then the HandleHelp routine is called:

void
handleDestination(Widget w, XtPointer client, XtPointer call)
{
  XmDestinationCallbackStruct *cs = (XmDestinationCallbackStruct *) call;

  if (appInfo->highlightRect != NULL)
    RectUnhighlight(w);

  if (cs->operation != XmOTHER)
    HandleDrop(w, call, NULL);
  else
    HandleHelp(w, call, NULL);
}

The HandleHelp routine displays the help dialog. The text presented in the dialog depends on the drop site and on the requested operation. Callback routines are registered to be performed when either of the dialog pushbuttons is pressed.

static void
HandleHelp(Widget w, XtPointer call, XtPointer ignore)
{
  XmDestinationCallbackStruct *cs = (XmDestinationCallbackStruct *) call;
  XmDropProcCallbackStruct *ds =
    (XmDropProcCallbackStruct *) cs -> destination_data;
  Boolean                         rectFound, bgFound, pixFound;
  XmString                        helpStr;
  RectPtr                         rect;
  Arg                             args[5];
  XmString                        tempStr, buttonArray[2];
  int                             n = 0;

  savedCB = cs;

  /* if we haven't created a help dialog, create one now */
  if (helpDialog == NULL) {
    XtSetArg(args[n], XmNdialogStyle, XmDIALOG_FULL_APPLICATION_MODAL); n++;
    XtSetArg(args[n], XmNtitle, "Drop Help"); n++;
    helpDialog = XmCreateMessageDialog(topLevel, "Help", args, n);

    n = 0;
    buttonArray[0] = XmStringCreateSimple("Move");
    buttonArray[1] = XmStringCreateSimple("Copy");
    XtSetArg(args[n], XmNbuttons, buttonArray); n++;
    XtSetArg(args[n], XmNbuttonCount, 2); n++;
    XtSetArg(args[n], XmNbuttonSet, 0); n++;
    XtSetArg(args[n], XmNsimpleCallback, ChangeOperation); n++;
    tempStr = XmStringCreateSimple("Operations:");
    XtSetArg(args[n], XmNoptionLabel, tempStr); n++;
    helpMenu = XmCreateSimpleOptionMenu(helpDialog, "helpMenu", args, n);
    XmStringFree(tempStr);
    XmStringFree(buttonArray[0]);
    XmStringFree(buttonArray[1]);

    XtAddCallback(helpDialog, XmNokCallback,
                  (XtCallbackProc) HandleDrop, NULL);
    XtAddCallback(helpDialog, XmNcancelCallback,
                  (XtCallbackProc) CancelDrop, NULL);
    XtUnmanageChild(XmMessageBoxGetChild(helpDialog, XmDIALOG_HELP_BUTTON));
    XtRealizeWidget(helpDialog);
  }

  /* find the valid targets */
  CheckTargets(ds->dragContext, XtDisplay(w), &rectFound,
               &bgFound, &pixFound);

  /* determine the appropriate help message */
  if (rectFound) {
    if (ds->operations == XmDROP_MOVE | XmDROP_COPY) {
      XtManageChild(helpMenu);
      helpStr = XmStringCreateLtoR(HELP_MSG4, XmFONTLIST_DEFAULT_TAG);
      XtManageChild(XmMessageBoxGetChild(helpDialog, XmDIALOG_OK_BUTTON));
    } else if (ds->operation == XmDROP_MOVE) {
      XtUnmanageChild(helpMenu);
      helpStr = XmStringCreateLtoR(HELP_MSG2, XmFONTLIST_DEFAULT_TAG);
      XtManageChild(XmMessageBoxGetChild(helpDialog, XmDIALOG_OK_BUTTON));
    } else if (ds->operation == XmDROP_COPY) {
      XtUnmanageChild(helpMenu);
      helpStr = XmStringCreateLtoR(HELP_MSG3, XmFONTLIST_DEFAULT_TAG);
      XtManageChild(XmMessageBoxGetChild(helpDialog, XmDIALOG_OK_BUTTON));
    }
  } else if (bgFound || pixFound && ds->operation == XmDROP_COPY) {
    XtUnmanageChild(helpMenu);
    rect = RectFind(ds->x, ds->y);
    if (rect) {
      helpStr = XmStringCreateLtoR(HELP_MSG1, XmFONTLIST_DEFAULT_TAG);
      XtManageChild(XmMessageBoxGetChild(helpDialog, XmDIALOG_OK_BUTTON));
    } else {
      helpStr = XmStringCreateLtoR(HELP_MSG5, XmFONTLIST_DEFAULT_TAG);
      XtUnmanageChild(XmMessageBoxGetChild(helpDialog,
                                           XmDIALOG_OK_BUTTON));
    }
  } else {
    XtUnmanageChild(helpMenu);
    helpStr = XmStringCreateLtoR(HELP_MSG5, XmFONTLIST_DEFAULT_TAG);
    XtUnmanageChild(XmMessageBoxGetChild(helpDialog, XmDIALOG_OK_BUTTON));
  }

  /* set the help message into the dialog */
  XtSetArg(args[0], XmNmessageString, helpStr);
  XtSetValues(helpDialog, args, 1);

  /* Free the XmString */
  XmStringFree(helpStr);

  /* map the help dialog */
  XtManageChild(helpDialog);
}

If the user selects the OK button to continue the drop, the program calls HandleDrop again. If the user selects the Cancel button, the program calls the CancelDrop routine. This routine calls XmTransferDone as follows to cancel the drop:

static void
CancelDrop(Widget w, XtPointer call, XtPointer ignore)
{
  XmDestinationCallbackStruct *cs;

  /* For drop help we save the XmDestinationCallbackStruct in a global
     variable named savedCB. */
  cs = savedCB;

  XmTransferDone(cs -> transfer_id, XmTRANSFER_DONE_FAIL);
}

The receiver's XmNdropProc routine receives the drop message first if the drop occurred over a widget that was registered as a drop site. It verifies that a drop is possible, and updates fields in its callback structure. These fields become available to the initiator in its XmNdropStartCallback callback structure. The initiator can perform any actions necessary before the information is transferred; for example, providing a new drag icon.

The toolkit initializes the operation, operations, and dropSiteStatus fields as described in Section 17.5.5, with one difference: the initialization for the drag callbacks uses the values at the end of the receiver's XmNdragProc, while the initialization for the drop callbacks uses the values at the end of the receiver's XmNdropProc.

The dropAction field indicates the action that the receiver has taken. XmDROP shows that a normal drop is in progress. XmDROP_CANCEL shows that the receiver has cancelled the drop. If the action is XmDROP_HELP, the initiator is not expected to do anything, although this callback provides the opportunity to do so if desired (for example, changing the drag icon to reflect the Help request).

This procedure will not know the resolution of the help dialog. However, if the user chooses to continue, the initiator's XmNconvertProc routine is called as part of the transfer process and, if the user chooses to cancel, the initiator's XmNdropFinishCallback is called with a dropAction of XmDROP_CANCEL.

As of Motif Release 2.0, the role of the XmNconvertProc can be done more easily through the UTM XmNconvertCallback procedures. Nevertheless, we provide the information in this subsection for those maintaining older drag and drop applications.

The drag initiator must register a callback to process transfers in the XmNconvertProc DragContext resource. This routine is called when the receiver client invokes XmDropTransferStart. Before calling XmDropTransferStart, the receiver makes a list of the target formats it wants.

The initiator's XmNconvertProc callback routine processes transfer requests from the receiver. The routine should be able to return information about each object being dragged in each possible target format for that item.

If the DropTransfer XmNincremental resource is True, information is transferred between the initiator and the toolkit using the Xt selection incremental protocol. If the value is False, the information is transferred between the initiator and the toolkit in one pass. The initiator and receiver need not be using the same incremental or nonincremental protocol.

The XmNconvertProc routine is called for each target type desired by the receiver, a single target type for each request. The XmNconvertProc routine should be able to perform any of the operations listed in the DragContext's XmNdragOperations resource on data in any of the target types listed in the XmNexportTargets resource:

The XmNdropFinishCallback is called when the receiver's XmNtransferProc routine has finished processing all the transfers desired by the receiver.

The completionStatus field indicates whether the entire drop was successful or not.

The operations, operation, dropSiteStatus, and dropAction fields are initialized as for the XmNdropStartCallback procedure.

The XmdragDropFinishCallback routine is performed when the complete drag and drop transaction has finished. This routine is called immediately after the initiator's XmNdropFinishCallback has finished. The initiator frees any remaining structures it has allocated during the drag.

The following sample code from DNDDemo.c removes the icons when the drop is complete:

static void
ColorDragDropFinishCB(Widget w, XtPointer client, XtPointer call)
{
    Widget  sourceIcon;
    Widget  stateIcon = (Widget) client;
    Arg     args[1];

    XtSetArg(args[0], XmNsourceCursorIcon, &sourceIcon);
    XtGetValues(w, args, 1);

    XtDestroyWidget(sourceIcon);
    XtDestroyWidget(stateIcon);
}
