The DNDDemo program is a complex drag and drop application. It uses many of the features covered in Chapter 15, "Drag and Drop." The application uses both drag source and drop sites.

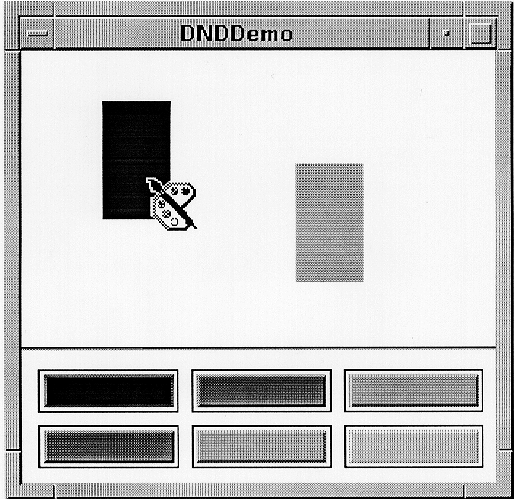

The window, shown in Figure B-1 , consists of an array of 6 colors in the lower section, with an empty drawing area in the upper section. The user can create a black box within the drawing area by pressing and holding mouse button 1 while moving the mouse until the desired size rectangle is outlined, then releasing the button. There can be as many rectangles as desired and they can overlap each other. A rectangle can be raised to the top by clicking mouse button 1 on it.
The user can change the color of a particular rectangle by moving the pointer to one of the six color choices, pressing button 2, and moving the pointer to the rectangle. A palette in that color becomes the drag icon. The state icon does not appear while the drag icon is in the lower section. It shows as a slashed circle in the background of the upper section, and as a paintbrush in the rectangles. When the mouse button is released to make a drop, the rectangle changes to the color chosen. If the rectangle is overlapped by another, the whole rectangle is changed, but only the unobscured part is shown in the new color.
The user can move the rectangles around the drawing area by pressing button 2 when the pointer is over the rectangle, holding it, and moving the mouse until the new location is reached. If the rectangle is small enough, it is used to create a pixmap for the source drag icon; otherwise, a similarly shaped, smaller pixmap is used for the source icon.
The program demonstrates the following drag and drop features:
Drag Source
Establishes translations
Establishes custom drag source targets
Starts a drag and creates a drag context
Creates custom drag icons
Transfers information to the receiver (about color or location)
Drop Site
The demonstration program consists of three files:
DNDDemo.h contains header information, global constants, and forward declarations of procedures.
DNDDemo.c creates the windows and manages the drag and drop functions.
DNDDraw.c does not have any drag and drop specific code in it. It manages creating, coloring, and destroying the rectangles and bitmaps within the window.
/*
* file: DNDDemo.h
*
* Header file for the program DNDDemo.
*/
#include <stdio.h>
#include <X11/Xatom.h>
#include <X11/Intrinsic.h>
#include <Xm/Xm.h>
#include <Xm/AtomMgr.h>
#include <Xm/MainW.h>
#include <Xm/DrawingA.h>
#include <Xm/SeparatoG.h>
#include <Xm/Form.h>
#include <Xm/RowColumn.h>
#include <Xm/PushB.h>
#include <Xm/MessageB.h>
#include <Xm/DragDrop.h>
#include <Xm/Screen.h>
/* The following is used to layout the color labels */
#define BOX_WIDTH 85
#define BOX_HEIGHT 25
#define BOX_X_OFFSET 95
#define BOX_Y_OFFSET 35
#define BOX_X_MARGIN 10
#define BOX_Y_MARGIN 10
/* The following are used in setting up the drag icons */
#define ICON_WIDTH 32
#define ICON_HEIGHT 32
#define SMALL_ICON_WIDTH 16
#define SMALL_ICON_HEIGHT 16
#define ICON_X_HOT 0
#define ICON_Y_HOT 0
/* Some scales or text entry field could be added to change
* this value */
#define RECT_WIDTH 20
#define RECT_HEIGHT 50
/* The following defines could be setup as application resources */
#define RECT_START_COLOR "black"
#define HIGHLIGHT_THICKNESS 3
#define HIGHLIGHT_COLOR "Black" /* this is equivalent to
gray60 in the R5
rgb.txt */
#define DRAW_AREA_BG_COLOR "white"
#define DRAW_AREA_FG_COLOR "white"
#define LABEL1_COLOR "#ff5026" /* a soft shade of
red */
#define LABEL2_COLOR "orange"
#define LABEL3_COLOR "yellow"
#define LABEL4_COLOR "violet"
#define LABEL5_COLOR "#00C3ff" /* a blue green color */
#define LABEL6_COLOR "green"
#define VALID_CURSOR_FG_COLOR "black"
#define INVALID_CURSOR_FG_COLOR "maroon"
#define NONE_CURSOR_FG_COLOR "maroon"
/*
* This struct is used to contain information about each rectangle
* to use in the dislay routines
*/
typedef struct _RectStruct {
Position x;
Position y;
Dimension width;
Dimension height;
Pixel color;
Pixmap pixmap; /* currently not in use */
} RectStruct, *RectPtr;
/* This struct is used to hold global application information */
typedef struct _AppInfoRec {
GC rectGC; /* graphic context used to draw the
rectangles */
Pixel currentColor; /* color that is currently in the
GC */
RectPtr *rectDpyTable; /* the rectangle display table */
int rectsAllocd; /* keeps track of how much the
above
table has been alloc'd */
int numRects; /* number of rects that are
visible */
RectPtr highlightRect; /* the current highlighted
rectangle */
RectPtr clearRect; /* the rectangle that is being
moved */
Boolean doMove; /* indicates that a move is being
performed */
Boolean creatingRect; /* indicates that a rect create is
being
performed */
unsigned char operation;/* indicates the drop help
operation */
unsigned int maxCursorWidth; /* the maximum allowable
cursor width */
unsigned int maxCursorHeight; /* the maximum allowable
cursor height */
Position rectX;
Position rectY;
Position rectX2;
Position rectY2;
} AppInfoRec, *AppInfo;
/*
* This struct is used to pass information
* from the dropProc to the transferProc
*/
typedef struct _DropTransferRec {
Widget widget;
Position x;
Position y;
} DropTransferRec, *DropTransfer;
/*
* This struct is used to pass information
* from the rectangle dragStart proc to it's associated
* callback procs.
*/
typedef struct _DragConvertRec {
Widget widget;
RectPtr rect;
} DragConvertRec, *DragConvertPtr;
#ifdef _NO_PROTO
extern void InitializeAppInfo();
extern void StartRect();
extern void ExtendRect();
extern void EndRect();
extern RectPtr RectCreate();
extern RectPtr RectFind();
extern void RectSetColor();
extern Pixel RectGetColor();
extern Pixmap GetBitmapFromRect();
extern void RectHide();
extern void RectFree();
extern void RedrawRectangles();
extern void RectDrawStippled();
extern void RectHighlight();
extern void RectUnhighlight();
extern void RectSetPixmap();
extern void RectRegister();
extern void InitializeRectDpyTable();
extern void CreateLayout();
extern void CreateRectGC();
extern Pixel GetColor();
extern void ColorRect();
#else
extern void InitializeAppInfo(void);
extern void StartRect(Widget, XEvent *, String *,
Cardinal *);
extern void ExtendRect(Widget, XEvent *, String *,
Cardinal *);
extern void EndRect(Widget, XEvent *, String *,
Cardinal*);
extern RectPtr RectCreate(Position, Position, Dimension,
Dimension, Pixel, Pixmap);
extern RectPtr RectFind(Position, Position);
extern void RectSetColor(RectPtr, Display *, Window,
Pixel);
extern Pixel RectGetColor(RectPtr);
extern Pixmap GetBitmapFromRect(Widget, RectPtr, Pixel,
Pixel, Dimension *, Dimension *);
extern void RectHide(Display *, Window, RectPtr);
extern void RectFree(RectPtr);
extern void RedrawRectangles(Widget);
extern void RectDrawStippled(Display *, Window, RectPtr);
extern void RectHighlight(Widget, RectPtr);
extern void RectUnhighlight(Widget);
extern void RectSetPixmap(RectPtr, Display *, Window,
Pixmap);
extern void RectRegister(RectPtr, Position, Position);
extern void InitializeRectDpyTable(void);
extern void CreateLayout(void);
extern void CreateRectGC(void);
extern Pixel GetColor(char *);
extern void ColorRect(Widget, XEvent *, String *,
Cardinal *);
#endif /* _NO_PROTO */
/* The following character arrays hold the bits for the source
* and state icons for both 32x32 and 16x16 drag icons. The
* source is a color palette icon and the state is a paint
* brush icon.
*/
extern char SOURCE_ICON_BITS[];
extern char SOURCE_ICON_MASK[];
extern char STATE_ICON_BITS[];
extern char STATE_ICON_MASK[];
extern char INVALID_ICON_BITS[];
extern char SMALL_SOURCE_ICON_BITS[];
extern char SMALL_SOURCE_ICON_MASK[];
extern char SMALL_STATE_ICON_BITS[];
extern char SMALL_STATE_ICON_MASK[];
extern char SMALL_INVALID_ICON_BITS[];
/* The folowing character arrays are for use with the drop help
* dialogs. For internationalization, message catalogs should
* replace these static declarations.
*/
extern char HELP_MSG1[];
extern char HELP_MSG2[];
extern char HELP_MSG3[];
extern char HELP_MSG4[];
extern char HELP_MSG5[];
/* Globals variables */
extern AppInfo appInfo;
extern Widget topLevel;
extern Widget drawingArea;
extern Widget helpDialog;
extern Widget helpLabel, helpMenu;
extern XtAppContext appContext;
|
/*
* file: DNDDemo.c
*
* A demo program showing the basic Drag And Drop operations.
*/
#include "DNDDemo.h"
/*
* The folowing character arrays are for use with the drop help
* dialogs. For internationalization, message catalogs should
* replace these static declarations.
*/
char HELP_MSG1[] =
"This drop action will change the color\n\
of the rectangle that the paint palette\n\
icon is dropped on. To accept this drop\n\
press the o.k. button, otherwise press\n\
cancel";
char HELP_MSG2[] =
"This drop action will move the rectangle\n\
to the new position. To accept this drop\n\
press the o.k. button, otherwise press\n\
cancel";
char HELP_MSG3[] =
"This drop action will copy the rectangle\n\
to the new position. To accept this drop\n\
press the o.k. button, otherwise press\n\
cancel";
char HELP_MSG4[] =
"This drop action can either copy or\n\
move the rectangle to the new position.\n\
Select the operation that you desire.\n\
In the future, use Ctrl with Btn2 to\n\
perform copy operations. The default\n\
operation is move. To accept this drop\n\
press the o.k. button, otherwise press\n\
cancel";
char HELP_MSG5[] =
"This drop action is at an Invalid drop\n\
position. Please cancel this drop \n\
by pressing the cancel button.";
/* Globals variables */
Widget topLevel;
Widget drawingArea;
Widget helpDialog = NULL;
Widget helpLabel, helpMenu;
Widget myDC;
XtAppContext appContext;
/* This function creates the Drag Icon. */
static Widget
#ifdef _NO_PROTO
GetDragIcon(w, icon, iconMask, width, height, background,
foreground)
Widget w;
Pixmap icon;
Pixmap iconMask;
Dimension width;
Dimension height;
Pixel background;
Pixel foreground;
#else
GetDragIcon(Widget w, Pixmap icon, Pixmap iconMask, Dimension width,
Dimension height, Pixel background, Pixel foreground)
#endif /* _NO_PROTO */
{
Widget dragIcon;
Arg args[10];
int n = 0;
XtSetArg(args[n], XmNhotX, ICON_X_HOT); n++;
XtSetArg(args[n], XmNhotY, ICON_Y_HOT); n++;
XtSetArg(args[n], XmNwidth, width); n++;
XtSetArg(args[n], XmNheight, height); n++;
XtSetArg(args[n], XmNmaxWidth, appInfo->maxCursorWidth);
n++;
XtSetArg(args[n], XmNmaxHeight, appInfo->maxCursorHeight);
n++;
XtSetArg(args[n], XmNbackground, background); n++;
XtSetArg(args[n], XmNforeground, foreground); n++;
XtSetArg(args[n], XmNpixmap, icon); n++;
XtSetArg(args[n], XmNmask, iconMask); n++;
dragIcon = XmCreateDragIcon(w, "dragIcon", args, n);
return(dragIcon);
}
/* This function creates the bitmaps for the icon and the mask
* and then calls GetDragIcon() to create the drag icon.
*/
static Widget
#ifdef _NO_PROTO
GetDragIconFromBits(w, bits, mask, width, height, background,
foreground)
Widget w;
char *bits;
char *mask;
Dimension width;
Dimension height;
Pixel background;
Pixel foreground;
#else
GetDragIconFromBits(Widget w, char *bits, char *mask,
Dimension width, Dimension height,
Pixel background, Pixel foreground)
#endif /* _NO_PROTO */
{
Pixmap icon, iconMask;
Display *display = XtDisplay(w);
icon = XCreateBitmapFromData(display,
DefaultRootWindow(display), bits, width,
height);
iconMask = XCreateBitmapFromData(display,
DefaultRootWindow(display), mask, width,
height);
return(GetDragIcon(w, icon, iconMask, width, height,
background, foreground));
}
/* This function creates the rectangle bitmaps for the icon and
* the mask based on the maximum server allowable cursor size
* and then calls GetDragIcon() to create the drag icon.
*/
static Widget
#ifdef _NO_PROTO
GetDragIconFromRect(w, rect, background)
Widget w;
RectPtr rect;
Pixel background;
#else
GetDragIconFromRect(Widget w, RectPtr rect, Pixel background)
#endif /* _NO_PROTO */
{
Pixmap icon, icon_mask;
Pixel foreground = RectGetColor(rect);
Dimension width, height;
/* Create a depth 1 pixmap (bitmap) for use with the drag
icon */
icon = icon_mask = GetBitmapFromRect(w, rect, background,
foreground, &width, &height);
/* use bitmap for both the bitmap and mask */
return(GetDragIcon(w, icon, icon_mask, width, height,
background, foreground));
}
/* This is a selection conversion function that is used in
* converting drag/drop export background color targets.
* The return types follow ICCC standards.
*/
/* ARGSUSED */
Boolean
#ifdef _NO_PROTO
ColorConvert(w, selection, target, type, value, length, format)
Widget w ;
Atom *selection ;
Atom *target ;
Atom *type ;
XtPointer *value ;
unsigned long *length ;
int *format ;
#else
ColorConvert(Widget w, Atom *selection, Atom *target, Atom *type,
XtPointer *value, unsigned long *length, int *format)
#endif /* _NO_PROTO */
{
Display *display = XtDisplay(w);
Atom BACKGROUND = XmInternAtom(display,
"BACKGROUND", False);
Atom PIXEL = XmInternAtom(display, "PIXEL", False);
Atom TARGETS = XmInternAtom(display, "TARGETS",
False);
Atom MULTIPLE = XmInternAtom(display, "MULTIPLE",
False);
Atom TIMESTAMP = XmInternAtom(display, "TIMESTAMP",
False);
int MAX_TARGS = 5;
Widget widget;
XtPointer client;
Arg args[1];
/* get the widget that initiated the drag */
XtSetArg(args[0], XmNclientData, &client);
XtGetValues(w, args, 1);
widget = (Widget) client;
/* Make sure we are doing a motif drag by checking if the
* widget that is passed in is a drag context. Make sure
* the widget in the client data is not NULL.
*/
if (!XmIsDragContext(w) || widget == NULL)
return False;
if (*target == BACKGROUND) {
/* Get widget's background */
Pixel *background;
background = (Pixel *) XtMalloc(sizeof(Pixel));
XtSetArg(args[0], XmNbackground, background);
XtGetValues(widget, args, 1);
/* value, type, length, and format must be set */
*value = (XtPointer) background;
*type = PIXEL;
*length = sizeof(Pixel);
*format = 32;
}
else if (*target == TARGETS) {
/* This target is required by ICCC */
Atom *targs = (Atom *)XtMalloc((unsigned)
(MAX_TARGS * sizeof(Atom)));
int target_count = 0;
*value = (XtPointer) targs;
*targs++ = BACKGROUND;
target_count++;
*targs++ = TARGETS;
target_count++;
*targs++ = MULTIPLE;
target_count++; /* supported in the Intrinsics */
*targs++ = TIMESTAMP;
target_count++; /* supported in the Intrinsics */
*type = XA_ATOM;
*length = (target_count * sizeof(Atom)) >> 2;
*format = 32;
}
else
return False;
return True;
}
/* This callback procedure resets the drag icon cursor to show
* when the drag is in a valid region . It cause the
* state icon to become visible when a drop is at a valid
* position for drag over effects.
*/
static void
#ifdef _NO_PROTO
DragMotionCallback(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
DragMotionCallback(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
XmDragMotionCallback cb = (XmDragMotionCallback) call;
Arg args[2];
Widget stateIcon, invalidIcon;
if (cb->dropSiteStatus == XmVALID_DROP_SITE) {
stateIcon = (Widget) client;
XtSetArg(args[0], XmNblendModel, XmBLEND_STATE_SOURCE);
XtSetArg(args[1], XmNstateCursorIcon, stateIcon);
XtSetValues(w, args, 2);
}
else if (cb->dropSiteStatus == XmINVALID_DROP_SITE) {
XtSetArg(args[0], XmNdefaultInvalidCursorIcon,
&invalidIcon);
XtGetValues(XmGetXmScreen(XtScreen(w)), args, 1);
XtSetArg(args[0], XmNblendModel, XmBLEND_STATE_SOURCE);
XtSetArg(args[1], XmNstateCursorIcon, invalidIcon);
XtSetValues(w, args, 2);
}
else {
XtSetArg(args[0], XmNblendModel, XmBLEND_JUST_SOURCE);
XtSetValues(w, args, 1);
}
}
/* This callback procedure resets the drag icon cursor to show
* when the drag is in a valid region . It cause the
* state icon to become visible when a drop is at a valid
* position for drag over effects.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
DropSiteLeaveCallback(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
DropSiteLeaveCallback(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
Arg args[1];
XtSetArg(args[0], XmNblendModel, XmBLEND_JUST_SOURCE);
XtSetValues(w, args, 1);
}
/* This callback procedure removes the icons when the drop is
* complete */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
ColorDragDropFinishCB(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
ColorDragDropFinishCB(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
Widget sourceIcon;
Widget stateIcon = (Widget) client;
Arg args[1];
XtSetArg(args[0], XmNsourceCursorIcon, &sourceIcon);
XtGetValues(w, args, 1);
XtDestroyWidget(sourceIcon);
XtDestroyWidget(stateIcon);
}
/* This action procedure sets up the drag data and begins the drag
* operation */
/* ARGSUSED */
void
#ifdef _NO_PROTO
ColorRect(w, event, params, num_params)
Widget w;
XEvent *event;
String *params;
Cardinal *num_params;
#else
ColorRect(Widget w, XEvent *event, String *params,
Cardinal *num_params)
#endif /* _NO_PROTO */
{
static XtCallbackRec dragDropFinishCB[] = {
{ColorDragDropFinishCB, NULL},
{NULL, NULL}
};
static XtCallbackRec dragMotionCB[] = {
{DragMotionCallback, NULL},
{NULL, NULL}
};
static XtCallbackRec dropSiteLeaveCB[] = {
{DropSiteLeaveCallback, NULL},
{NULL, NULL}
};
Atom targets[1];
Widget sourceIcon, stateIcon;
Pixel background, foreground;
char *source_bits, *source_mask;
char *state_bits, *state_mask;
Dimension width, height;
Arg args[16];
int n = 0;
n = 0;
XtSetArg(args[n], XmNbackground, &background); n++;
XtSetArg(args[n], XmNforeground, &foreground); n++;
XtGetValues(w, args, n);
/* If the server will handle a large icon, create one */
if (appInfo->maxCursorWidth >= ICON_WIDTH &&
appInfo->maxCursorHeight >= ICON_HEIGHT) {
source_bits = SOURCE_ICON_BITS;
source_mask = SOURCE_ICON_MASK;
state_bits = STATE_ICON_BITS;
state_mask = STATE_ICON_MASK;
width = ICON_WIDTH;
height = ICON_HEIGHT;
}
else {
/*If the server will handle a small icon, create one*/
source_bits = SMALL_SOURCE_ICON_BITS;
source_mask = SMALL_SOURCE_ICON_MASK;
state_bits = SMALL_STATE_ICON_BITS;
state_mask = SMALL_STATE_ICON_MASK;
width = SMALL_ICON_WIDTH;
height = SMALL_ICON_HEIGHT;
}
/* Create the drag cursor icons */
sourceIcon = GetDragIconFromBits(w, source_bits,
source_mask, width, height, background,
foreground);
stateIcon = GetDragIconFromBits(w, state_bits, state_mask,
width, height, background, foreground);
/* Setup the arglist for the drag context that is created
* at drag start */
n = 0;
/* initially only show the source icon */
XtSetArg(args[n], XmNblendModel, XmBLEND_JUST_SOURCE); n++;
/* set cursor colors for the drag states */
XtSetArg(args[n], XmNvalidCursorForeground,
GetColor(VALID_CURSOR_FG_COLOR)); n++;
XtSetArg(args[n], XmNinvalidCursorForeground,
GetColor(INVALID_CURSOR_FG_COLOR)); n++;
XtSetArg(args[n], XmNnoneCursorForeground,
GetColor(NONE_CURSOR_FG_COLOR)); n++;
/* set args for the drag cursor icons */
XtSetArg(args[n], XmNcursorBackground, background); n++;
XtSetArg(args[n], XmNcursorForeground, foreground); n++;
XtSetArg(args[n], XmNsourceCursorIcon, sourceIcon); n++;
XtSetArg(args[n], XmNstateCursorIcon, stateIcon); n++;
/*
* set up the available export targets. These are targets
* that we wish to provide data on
*/
targets[0] = XmInternAtom(XtDisplay(w), "BACKGROUND",
False);
XtSetArg(args[n], XmNexportTargets, targets); n++;
XtSetArg(args[n], XmNnumExportTargets, 1); n++;
/*
* identify the conversion procedure and
* the client data passed to the procedure
*/
XtSetArg(args[n], XmNclientData, w); n++;
XtSetArg(args[n], XmNconvertProc, ColorConvert); n++;
/* identify the necessary callbacks */
dragDropFinishCB[0].closure = (XtPointer) stateIcon;
XtSetArg(args[n], XmNdragDropFinishCallback,
dragDropFinishCB);
n++;
dragMotionCB[0].closure = (XtPointer) stateIcon;
XtSetArg(args[n], XmNdragMotionCallback, dragMotionCB);
n++;
XtSetArg(args[n], XmNdropSiteLeaveCallback, dragMotionCB);
n++;
/* set the drag operations that are supported */
XtSetArg(args[n], XmNdragOperations, XmDROP_COPY); n++;
/* start the drag. This creates a drag context. */
myDC = XmDragStart(w, event, args, n);
}
/*
* This is a selection conversion function that is used in
* converting requests for rectangle targets. The return types
* follow ICCC standards.
*/
/* ARGSUSED */
Boolean
#ifdef _NO_PROTO
RectConvert( w, selection, target, type, value, length, format)
Widget w ;
Atom *selection ;
Atom *target ;
Atom *type ;
XtPointer *value ;
unsigned long *length ;
int *format ;
#else
RectConvert(Widget w, Atom *selection, Atom *target, Atom *type,
XtPointer *value, unsigned long *length, int *format)
#endif /* _NO_PROTO */
{
Display *display = XtDisplay(w);
Atom MY_RECT = XmInternAtom(display, "_MY_RECTANGLE",
False);
Atom RECT_INFO = XmInternAtom(display, "RECT_INFO",
False);
Atom DELETE = XmInternAtom(display, "DELETE", False);
Atom TARGETS = XmInternAtom(display, "TARGETS", False);
Atom MULTIPLE = XmInternAtom(display, "MULTIPLE",
False);
Atom TIMESTAMP = XmInternAtom(display, "TIMESTAMP",
False);
Atom *targs;
int MAX_TARGS = 6;
int target_count;
DragConvertPtr conv;
Widget widget;
Arg args[1];
RectPtr rect, oldRect;
/* get the widget that initiated the drag */
XtSetArg(args[0], XmNclientData, &conv);
XtGetValues(w, args, 1);
widget = (Widget) conv->widget;
/* Make sure we are doing a motif drag by checking if the
* widget that is passed in is a drag context. Make sure
* the widget in the client data is not NULL.
*/
if (!XmIsDragContext(w) || widget == NULL)
return False;
if (*target == MY_RECT) {
/* Create a new rectangle using information from the
old retangle */
oldRect = conv->rect;
/* We create create a new rectangle and wait for a
* delete target on the old rectangle instead of just
* moving the old rectangle because the rectangle
* movement might be an interclient move.
*/
rect = RectCreate(oldRect->x, oldRect->y,
oldRect->width, oldRect->height,
oldRect->color, oldRect->pixmap);
/* value, type, length, and format must be assigned
values */
*value = (XtPointer) rect;
*type = RECT_INFO;
*length = sizeof(Pixel);
*format = 32;
}
else if (*target == DELETE) {
/* delete the old rectangle */
RectHide(XtDisplay(widget), XtWindow(widget),
conv->rect);
RectFree(conv->rect);
conv->rect = NULL;
/*
* DELETE target return parameters MUST be assigned as
* follows to ICCC compliant.
*/
*value = NULL;
*type = XmInternAtom(XtDisplay(w), "NULL", False);
*length = 0;
*format = 8;
}
else if (*target == TARGETS) {
/* This target is required by ICCC */
targs = (Atom *)XtMalloc((unsigned)
(MAX_TARGS * sizeof(Atom)));
target_count = 0;
*value = (XtPointer) targs;
*targs++ = MY_RECT;
target_count++;
*targs++ = DELETE;
target_count++;
*targs++ = TARGETS;
target_count++;
*targs++ = MULTIPLE;
target_count++; /* supported in the Intrinsics */
*targs++ = TIMESTAMP;
target_count++; /* supported in the Intrinsics */
*type = XA_ATOM;
*length = (target_count * sizeof(Atom)) >> 2;
*format = 32;
}
else
return False;
return True;
}
/* This callback procedure removes the old cursor icon */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
RectDragDropFinishCB(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
RectDragDropFinishCB(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
DragConvertPtr conv = (DragConvertPtr) client;
Widget sourceCursorIcon;
Arg args[1];
XtSetArg(args[0], XmNsourceCursorIcon, &sourceCursorIcon);
XtGetValues(w, args, 1);
XtFree((char *) conv);
XtDestroyWidget(sourceCursorIcon);
}
/* This callback procedure redraws the rectangles once the drop
* is completed */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
RectDropFinishCB(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
RectDropFinishCB(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
DragConvertPtr conv = (DragConvertPtr) client;
appInfo->clearRect = NULL;
appInfo->doMove = True;
RedrawRectangles(conv->widget);
}
/* This callback procedure handle the drawing of the target
* rectangle depending of the dropSiteStatus for drag over
* effects.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
RectDragMotionCB(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
RectDragMotionCB(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
XmDragMotionCallback cb = (XmDragMotionCallback) call;
DragConvertPtr conv = (DragConvertPtr) client;
Display *display;
Window window;
RectPtr rect;
if (cb->dropSiteStatus == XmVALID_DROP_SITE) {
/* re-stipple the rectangle when the pointer is inside
* the drop site */
if ( appInfo->clearRect == NULL && appInfo->doMove) {
display = XtDisplay(conv->widget);
window = XtWindow(conv->widget);
rect = conv->rect;
RectHide(display, window, rect);
RectDrawStippled(display, window, rect);
}
}
else {
/* re-fill the rectangle when the pointer is outside
* the drop site */
if (appInfo->clearRect != NULL && appInfo->doMove) {
appInfo->clearRect = NULL;
RedrawRectangles(conv->widget);
}
}
}
/* This callback procedure handle the drawing of the target
* rectangle When the operation changes.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
RectOperationChangedCB(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
RectOperationChangedCB(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
XmDragMotionCallback cb = (XmDragMotionCallback) call;
DragConvertPtr conv = (DragConvertPtr) client;
Display *display;
Window window;
RectPtr rect;
/* re-stipple the rectangle when the pointer is inside the
* drop site */
if ( appInfo->clearRect == NULL && appInfo->doMove) {
display = XtDisplay(conv->widget);
window = XtWindow(conv->widget);
rect = conv->rect;
RectHide(display, window, rect);
RectDrawStippled(display, window, rect);
}
/* re-fill the rectangle when the operation changes to
* copy */
if (appInfo->clearRect != NULL && !appInfo->doMove) {
appInfo->clearRect = NULL;
RedrawRectangles(conv->widget);
}
}
/* This action procedure sets up the drag data and begins the
* drag operation */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
StartMove(w, event, params, num_params)
Widget w;
XEvent *event;
String *params;
Cardinal *num_params;
#else
StartMove(Widget w, XEvent *event, String *params,
Cardinal *num_params)
#endif /* _NO_PROTO */
{
RectPtr rect;
Position x = event->xbutton.x;
Position y = event->xbutton.y;
static XtCallbackRec dragDropFinishCB[] = {
{RectDragDropFinishCB, NULL},
{NULL, NULL}
};
static XtCallbackRec dropFinishCB[] = {
{RectDropFinishCB, NULL},
{NULL, NULL}
};
static XtCallbackRec dragMotionCB[] = {
{RectDragMotionCB, NULL},
{NULL, NULL}
};
static XtCallbackRec operationChangedCB[] = {
{RectOperationChangedCB, NULL},
{NULL, NULL}
};
Atom targets[1];
Display *display = XtDisplay(w);
Widget sourceCursorIcon;
DragConvertPtr conv;
Pixel background, foreground;
Arg args[16];
int n = 0;
/* find a rectangle at the given x,y position */
rect = RectFind(x, y);
/* start move only if it begins on a rectangle */
if (rect) {
XtSetArg(args[0], XmNbackground, &background);
XtGetValues(w, args, 1);
foreground = RectGetColor(rect);
sourceCursorIcon = GetDragIconFromRect(w, rect,
background);
/*
* Set up information to pass to the convert
* function and callback procs.
*/
conv = (DragConvertPtr)
XtMalloc(sizeof(DragConvertRec));
conv->widget = w;
conv->rect = rect;
/* On a move operation, draw the current
* rectangle as a stippled outline.
*/
if (!(event->xbutton.state & ControlMask)) {
RectHide(display, XtWindow(w), rect);
RectDrawStippled(display, XtWindow(w), rect);
}
else
appInfo->doMove = False;
/* Setup arglist for the drag context that is created
* at drag start */
n = 0;
/* initially only show the source icon */
XtSetArg(args[n], XmNblendModel, XmBLEND_JUST_SOURCE);
n++;
/* set args for the drag cursor icons */
XtSetArg(args[n], XmNcursorBackground, background);
n++;
XtSetArg(args[n], XmNcursorForeground, foreground);
n++;
XtSetArg(args[n], XmNsourceCursorIcon,
sourceCursorIcon);
n++;
/*
* set up the available export targets. These are
* targets that we wish to provide data on
*/
targets[0] = XmInternAtom(display, "_MY_RECTANGLE",
False);
XtSetArg(args[n], XmNexportTargets, targets); n++;
XtSetArg(args[n], XmNnumExportTargets, 1); n++;
/*
* identify the conversion procedure and
* the client data passed to the procedure
*/
XtSetArg(args[n], XmNclientData, conv); n++;
XtSetArg(args[n], XmNconvertProc, RectConvert); n++;
/* identify the necessary callbacks and the client
* data to be passed */
dragDropFinishCB[0].closure = (XtPointer) conv;
XtSetArg(args[n], XmNdragDropFinishCallback,
dragDropFinishCB);
n++;
dropFinishCB[0].closure = (XtPointer) conv;
XtSetArg(args[n], XmNdropFinishCallback,
dropFinishCB); n++;
dragMotionCB[0].closure = (XtPointer) conv;
XtSetArg(args[n], XmNdragMotionCallback,
dragMotionCB); n++;
operationChangedCB[0].closure = (XtPointer) conv;
XtSetArg(args[n], XmNoperationChangedCallback,
operationChangedCB); n++;
/* set the drag operations that are supported */
XtSetArg(args[n], XmNdragOperations,
XmDROP_COPY |
XmDROP_MOVE); n++;
/* start the drag. This creates a drag context. */
myDC = XmDragStart(w, event, args, n);
}
}
/* This procedure searches through the export targets and
* returns flags to indicate which targets were found
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
CheckTargets(w, display, rectFound, bgFound, pixFound)
Widget w;
Display *display;
Boolean *rectFound;
Boolean *bgFound;
Boolean *pixFound;
#else
CheckTargets(Widget w, Display *display, Boolean *rectFound,
Boolean *bgFound, Boolean *pixFound)
#endif /* _NO_PROTO */
{
Atom MY_RECT = XmInternAtom(display,"_MY_RECTANGLE",
False);
Atom BACKGROUND = XmInternAtom(display,"BACKGROUND",
False);
Atom PIXMAP = XmInternAtom(display, "PIXMAP",
False);
Atom *exportTargets;
Cardinal numExportTargets;
Arg args[2];
int n;
/* Get list of transfer targets */
n = 0;
XtSetArg(args[0], XmNexportTargets, &exportTargets);
XtSetArg(args[1], XmNnumExportTargets, &numExportTargets);
XtGetValues(w, args, 2);
/* initialize targets found flags */
*rectFound = *bgFound = *pixFound = False;
/* search through the export targets */
for (n = 0; n < numExportTargets; n++) {
if (exportTargets[n] == MY_RECT)
*rectFound = True;
else if (exportTargets[n] == BACKGROUND)
*bgFound = True;
else if (exportTargets[n] == PIXMAP)
*pixFound = True;
}
}
/* This procedure handles drop site messages and performs the
* appropriate drag under effects.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
DragProcCallback(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
DragProcCallback(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
XmDragProcCallbackStruct *cb = (XmDragProcCallbackStruct *)
call;
Display *display = XtDisplay(w);
Boolean rectFound, bgFound, pixFound;
static unsigned char initial_operations;
static unsigned char initial_operation;
RectPtr rect;
CheckTargets(cb->dragContext, display, &rectFound,
&bgFound,
&pixFound);
switch(cb->reason) {
case XmCR_DROP_SITE_ENTER_MESSAGE:
/* save the value of the operations and operation
* fields */
initial_operations = cb->operations;
initial_operation = cb->operation;
rect = RectFind(cb->x, cb->y);
/* Remove any operations for the operations field
* which do not apply to the simulated drop site.
*/
if (rect) {
if (bgFound || pixFound) {
cb->operations = XmDROP_COPY;
RectHighlight(w, rect);
}
else if (rectFound) {
cb->operations = cb->operations &
(XmDROP_COPY |
XmDROP_MOVE);
RectUnhighlight(w);
}
}
else {
cb->operations = initial_operations &
(XmDROP_COPY | XmDROP_MOVE);
RectUnhighlight(w);
}
/* Set operation to the valid operation preferred
* by the simulated drop site or to XmDROP_NOOP if
* the operations list does not * contain the
* preferred operation.
*/
if (rect) {
if (bgFound || pixFound) {
if (cb->operations & XmDROP_COPY)
cb->operation = XmDROP_COPY;
else
cb->operation = XmDROP_NOOP;
}
else if (rectFound) {
if (cb->operations & XmDROP_MOVE)
cb->operation = XmDROP_MOVE;
else if (cb->operations & XmDROP_COPY)
cb->operation = XmDROP_COPY;
else
cb->operation = XmDROP_NOOP;
}
}
else {
if (rectFound) {
if (cb->operations & XmDROP_MOVE)
cb->operation = XmDROP_MOVE;
else if (cb->operations & XmDROP_COPY)
cb->operation = XmDROP_COPY;
else
cb->operation = XmDROP_NOOP;
}
else
cb->operation = initial_operation;
}
/*
* Set dropSiteStatus to XmDROP_SITE_INVALID if the
* operation field is XmDROP_NOOP, or if there are
* no common targets between the source and the
* nested drop site. Otherwise, set
* dropSiteStatus to XmDROP_SITE_VALID.
*/
if (cb->operation == XmDROP_NOOP ||
(rect && (!rectFound && !bgFound &&
!pixFound)) ||
(!rect && !rectFound))
cb->dropSiteStatus = XmINVALID_DROP_SITE;
else
cb->dropSiteStatus = XmVALID_DROP_SITE;
/*
* Display appropriate drag under visuals. Only
* highlight the rectangle if we are changing
* rectangle attributes.
*/
if (rect && bgFound || pixFound &&
cb->dropSiteStatus == XmVALID_DROP_SITE)
RectHighlight(w, rect);
break;
case XmCR_DROP_SITE_LEAVE_MESSAGE:
/* Only unhighlight the rectangle if previously
* highlighted */
if (appInfo->highlightRect != NULL)
RectUnhighlight(w);
break;
case XmCR_DROP_SITE_MOTION_MESSAGE:
rect = RectFind(cb->x, cb->y);
/*
* Remove any operations for the operations field
* which do not
* apply to the simulated drop site.
*/
if (rect) {
if (bgFound || pixFound) {
cb->operations = XmDROP_COPY;
RectHighlight(w, rect);
}
else if (rectFound) {
cb->operations = cb->operations &
(XmDROP_COPY |
XmDROP_MOVE);
RectUnhighlight(w);
}
}
else {
cb->operations = initial_operations &
(XmDROP_COPY | XmDROP_MOVE);
RectUnhighlight(w);
}
/*
* Set operation to the valid operation preferred
* by the simulated drop site or to XmDROP_NOOP if
* the operations list does not * contain the
* preferred operation.
*/
if (rect) {
if (bgFound || pixFound) {
if (cb->operations & XmDROP_COPY)
cb->operation = XmDROP_COPY;
else
cb->operation = XmDROP_NOOP;
}
else if (rectFound) {
if (cb->operations & XmDROP_MOVE)
cb->operation = XmDROP_MOVE;
else if (cb->operations & XmDROP_COPY)
cb->operation = XmDROP_COPY;
else
cb->operation = XmDROP_NOOP;
}
}
else {
if (rectFound) {
if (cb->operations & XmDROP_MOVE)
cb->operation = XmDROP_MOVE;
else if (cb->operations & XmDROP_COPY)
cb->operation = XmDROP_COPY;
else
cb->operation = XmDROP_NOOP;
}
else
cb->operation = initial_operation;
}
/*
* Set dropSiteStatus to XmDROP_SITE_INVALID if the
* operation field is XmDROP_NOOP, or if there are
* no common targets between the source and the
* nested drop site. Otherwise, set
* dropSiteStatus to XmDROP_SITE_VALID.
*/
if (cb->operation == XmDROP_NOOP ||
(rect && (!rectFound && !bgFound &&
!pixFound)) ||
(!rect && !rectFound))
cb->dropSiteStatus = XmINVALID_DROP_SITE;
else
cb->dropSiteStatus = XmVALID_DROP_SITE;
/*
* Display appropriate drag under visuals. Only
* highlight the rectangle if we are changing
* rectangle attributes.
*/
if (rect && bgFound || pixFound &&
cb->dropSiteStatus == XmVALID_DROP_SITE)
RectHighlight(w, rect);
break;
case XmCR_OPERATION_CHANGED:
if (rectFound) {
if (cb->operation == XmDROP_MOVE)
appInfo->doMove = True;
else
appInfo->doMove = False;
}
break;
default:
/* other messages we consider invalid */
cb->dropSiteStatus = XmINVALID_DROP_SITE;
break;
}
/* allow animation to be performed */
cb->animate = True;
}
/* This procedure handles the data that is being transfer */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
TransferProcCallback(w, closure, seltype, type, value, length,
format)
Widget w;
XtPointer closure ;
Atom *seltype ;
Atom *type ;
XtPointer value ;
unsigned long *length ;
int *format ;
#else
TransferProcCallback(Widget w, XtPointer closure, Atom *seltype,
Atom *type, XtPointer value, unsigned long *length, int *format)
#endif /* _NO_PROTO */
{
DropTransfer transferRec = (DropTransfer) closure;
Widget wid = transferRec->widget;
Display *display = XtDisplay(wid);
Atom RECT_INFO = XmInternAtom(display, "RECT_INFO",
False);
Atom PIXEL = XmInternAtom(display, "PIXEL", False);
Atom NULL_ATOM = XmInternAtom(display, "NULL", False);
Arg args[10];
RectPtr rect;
int n;
/*
* The delete target returns a NULL_ATOM type and value
* equal to NULL so it isn't a failure. Otherwise, check
* for NULL value or targets that we don't support and set
* transfer failure.
*/
if (*type != NULL_ATOM && (!value ||
(*type != RECT_INFO && *type != PIXEL &&
*type != XA_DRAWABLE))) {
n = 0;
/*
* On failures set both transferStatus to
* XmTRANSFER_FAILURE and numDropTransfers to 0.
*/
XtSetArg(args[n], XmNtransferStatus,
XmTRANSFER_FAILURE);
n++;
XtSetArg(args[n], XmNnumDropTransfers, 0); n++;
XtSetValues(w, args, n);
/* Free the value if there is one, or we would have a
* memory leak */
if (value)
XtFree(value);
return;
}
/* Handle pixel type (i.e. change in background) */
if (*type == PIXEL) {
rect = RectFind(transferRec->x, transferRec->y);
RectSetColor(rect, display, XtWindow(wid),
*((Pixel*)value));
}
/* Handle drawable type (i.e. change in pixmap) */
else if (*type == XA_DRAWABLE) {
rect = RectFind(transferRec->x, transferRec->y);
RectSetPixmap(rect, display, XtWindow(wid),
*((Pixmap *)value));
}
/* Handle rect_info type (i.e. new rectangle) */
else if (*type == RECT_INFO) {
rect = (RectPtr) value;
RectRegister(rect, transferRec->x, transferRec->y);
value = NULL;
/* No need to free, it is being stored in RecTable */
}
/* Free the value if there is one, or we would have a
* memory leak */
if (value)
XtFree(value);
}
/* This procedure frees the data used the data transfer proc
* that was passed from the drop procedure.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
DropDestroyCB(w, clientData, callData)
Widget w;
XtPointer clientData;
XtPointer callData;
#else
DropDestroyCB(Widget w, XtPointer clientData, XtPointer callData)
#endif /* NO_PROTO */
{
XtFree((char *)clientData);
}
/* This procedure initiates the drop transfer. */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
HandleDrop(w, call)
Widget w;
XtPointer call;
#else
HandleDrop(Widget w, XtPointer call)
#endif /* _NO_PROTO */
{
static XtCallbackRec dropDestroyCB[] = {
{DropDestroyCB, NULL},
{NULL, NULL}
};
XmDropProcCallbackStruct *cb = (XmDropProcCallbackStruct
*)call;
Display *display = XtDisplay(w);
Arg args[10];
int n;
Boolean rectFound, bgFound, pixFound;
DropTransfer transferRec;
XmDropTransferEntryRec transferEntries[2];
XmDropTransferEntryRec *transferList = NULL;
Cardinal numTransfers = 0;
Boolean transferValid = False;
RectPtr rect;
/* Cancel the drop on invalid drop operations */
if (!(cb->operations & XmDROP_MOVE || cb->operations
& XmDROP_COPY)) {
n = 0;
cb->operation = XmDROP_NOOP;
cb->dropSiteStatus = XmINVALID_DROP_SITE;
XtSetArg(args[n], XmNtransferStatus,
XmTRANSFER_FAILURE);
n++;
XtSetArg(args[n], XmNnumDropTransfers, 0); n++;
}
else {
/*Find out which nested dropsite contains the pointer*/
rect = RectFind(cb->x, cb->y);
CheckTargets(cb->dragContext, display, &rectFound,
&bgFound, &pixFound);
/* rect !NULL indicates we are within a nested
* dropsite */
if (rect) {
/* MY_RECT is a possible target, support it first
*/
if (rectFound)
transferValid = True;
else if (bgFound || pixFound) {
/* support only copy with the BACKGROUND and
* PIXMAP targets */
if (cb->operation != XmDROP_COPY)
cb->operation = XmDROP_COPY;
transferValid = True;
}
}
else {
if (rectFound)
transferValid = True;
}
if (transferValid) {
/* initialize data to send to drop transfer
* callback */
transferRec = (DropTransfer)
XtMalloc(sizeof(DropTransferRec));
transferRec->widget = w;
transferRec->x = cb->x;
transferRec->y = cb->y;
/* order of support is MY_RECT, then BACKGROUND,
* then PIXMAP */
if (rectFound)
transferEntries[0].target =
XmInternAtom(display,
"_MY_RECTANGLE", False);
else if (bgFound)
transferEntries[0].target =
XmInternAtom(display,
"BACKGROUND", False);
else if (pixFound)
transferEntries[0].target =
XmInternAtom(display,
"PIXMAP", False);
transferEntries[0].client_data =
(XtPointer) transferRec;
/* Set up move targets */
if (cb->operation == XmDROP_MOVE) {
transferEntries[1].client_data =
(XtPointer) transferRec;
transferEntries[1].target =
XmInternAtom(display,
"DELETE", False);
numTransfers = 2;
}
else if (cb->operation == XmDROP_COPY)
numTransfers = 1;
transferList = transferEntries;
/* Setup transfer list */
n = 0;
cb->dropSiteStatus = XmVALID_DROP_SITE;
XtSetArg(args[n], XmNdropTransfers, transferList);
n++;
XtSetArg(args[n], XmNnumDropTransfers,
numTransfers);
n++;
/* Setup destroy callback to free transferRec */
dropDestroyCB[0].closure = (XtPointer) transferRec;
XtSetArg(args[n], XmNdestroyCallback,
dropDestroyCB);
n++;
/* Setup transfer proc to accept the drop transfer
* data */
XtSetArg(args[n], XmNtransferProc,
TransferProcCallback);
n++;
}
else {
n = 0;
cb->operation = XmDROP_NOOP;
cb->dropSiteStatus = XmINVALID_DROP_SITE;
XtSetArg(args[n], XmNtransferStatus,
XmTRANSFER_FAILURE); n++;
XtSetArg(args[n], XmNnumDropTransfers, 0); n++;
}
}
XmDropTransferStart(cb->dragContext, args, n);
}
/* This procedure is used with the drop help dialog to continue
* with the drop */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
HandleOK(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
HandleOK(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
XmDropProcCallbackStruct *cb = (XmDropProcCallbackStruct
*)client;
cb->operation = appInfo->operation;
HandleDrop(w, (XtPointer) cb);
}
/* This procedure is used with the drop help dialog to cancel
* the drop */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
CancelDrop(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
CancelDrop(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
XmDropProcCallbackStruct *cb = (XmDropProcCallbackStruct
*)client;
Arg args[2];
/* On help, we need to cancel the drop transfer */
XtSetArg(args[0], XmNtransferStatus, XmTRANSFER_FAILURE);
XtSetArg(args[1], XmNnumDropTransfers, 0);
/* we need to start the drop transfer to cancel the
* transfer */
XmDropTransferStart(cb->dragContext, args, 2);
}
#ifdef _NO_PROTO
XtCallbackProc ChangeOperation(widget, client_data, call_data)
Widget widget;
caddr_t client_data;
XmAnyCallbackStruct *call_data;
#else
XtCallbackProc ChangeOperation(Widget widget, caddr_t client_data,
XmAnyCallbackStruct *call_data)
#endif
{
if (client_data == 0)
appInfo->operation = XmDROP_MOVE;
else
appInfo->operation = XmDROP_COPY;
}
/* This procedure manages the help dialog and determines which
* message is displayed in the dialog depending on the position
* and the type of drop.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
HandleHelp(w, call)
Widget w;
XtPointer call;
#else
HandleHelp(Widget w, XtPointer call)
#endif /* _NO_PROTO */
{
XmDropProcCallbackStruct *cb = (XmDropProcCallbackStruct
*)call;
static XmDropProcCallbackStruct client;
Boolean rectFound, bgFound,
pixFound;
XmString helpStr;
RectPtr rect;
Arg args[5];
XmString tempStr, buttonArray[2];
int n = 0;
/* the drop is valid until it is determined invalid */
cb->dropSiteStatus = XmVALID_DROP_SITE;
/* if we haven't created a help dialog, create one now */
if (helpDialog == NULL) {
XtSetArg(args[n], XmNdialogStyle,
XmDIALOG_FULL_APPLICATION_MODAL); n++;
XtSetArg(args[n], XmNtitle, "Drop Help"); n++;
helpDialog = XmCreateMessageDialog(topLevel, "Help",
args, n);
n = 0;
buttonArray[0] = XmStringCreateSimple("Move");
buttonArray[1] = XmStringCreateSimple("Copy");
XtSetArg(args[n], XmNbuttons, buttonArray); n++;
XtSetArg(args[n], XmNbuttonCount, 2); n++;
XtSetArg(args[n], XmNbuttonSet, 0); n++;
XtSetArg(args[n], XmNsimpleCallback, ChangeOperation);
n++;
tempStr = XmStringCreateSimple("Operations:");
XtSetArg(args[n], XmNoptionLabel, tempStr); n++;
helpMenu = XmCreateSimpleOptionMenu(helpDialog,
"helpMenu", args, n);
XmStringFree(tempStr);
XmStringFree(buttonArray[0]);
XmStringFree(buttonArray[1]);
XtAddCallback(helpDialog, XmNokCallback,
(XtCallbackProc) HandleOK, (XtPointer) &client);
XtAddCallback(helpDialog, XmNcancelCallback,
(XtCallbackProc) CancelDrop, (XtPointer) &client);
XtUnmanageChild(XmMessageBoxGetChild(helpDialog,
XmDIALOG_HELP_BUTTON));
XtRealizeWidget(helpDialog);
}
/* pass the necessary callback information along */
client.dragContext = cb->dragContext;
client.x = cb->x;
client.y = cb->y;
client.dropSiteStatus = cb->dropSiteStatus;
client.operation = cb->operation;
client.operations = cb->operations;
/* find the valid targets */
CheckTargets(cb->dragContext, XtDisplay(w), &rectFound,
&bgFound, &pixFound);
/* determine the appropriate help message */
if (rectFound) {
if (cb->operations == XmDROP_MOVE | XmDROP_COPY) {
XtManageChild(helpMenu);
helpStr = XmStringCreateLtoR(HELP_MSG4,
XmFONTLIST_DEFAULT_TAG);
XtManageChild(XmMessageBoxGetChild(helpDialog,
XmDIALOG_OK_BUTTON));
}
else if (cb->operation == XmDROP_MOVE) {
XtUnmanageChild(helpMenu);
helpStr = XmStringCreateLtoR(HELP_MSG2,
XmFONTLIST_DEFAULT_TAG);
XtManageChild(XmMessageBoxGetChild(helpDialog,
XmDIALOG_OK_BUTTON));
}
else if (cb->operation == XmDROP_COPY) {
XtUnmanageChild(helpMenu);
helpStr = XmStringCreateLtoR(HELP_MSG3,
XmFONTLIST_DEFAULT_TAG);
XtManageChild(XmMessageBoxGetChild(helpDialog,
XmDIALOG_OK_BUTTON));
}
}
else if (bgFound || pixFound && cb->operation ==
XmDROP_COPY) {
XtUnmanageChild(helpMenu);
rect = RectFind(cb->x, cb->y);
if (rect) {
helpStr = XmStringCreateLtoR(HELP_MSG1,
XmFONTLIST_DEFAULT_TAG);
XtManageChild(XmMessageBoxGetChild(helpDialog,
XmDIALOG_OK_BUTTON));
}
else {
helpStr = XmStringCreateLtoR(HELP_MSG5,
XmFONTLIST_DEFAULT_TAG);
XtUnmanageChild(XmMessageBoxGetChild(helpDialog,
XmDIALOG_OK_BUTTON));
}
}
else {
XtUnmanageChild(helpMenu);
helpStr = XmStringCreateLtoR(HELP_MSG5,
XmFONTLIST_DEFAULT_TAG);
XtUnmanageChild(XmMessageBoxGetChild(helpDialog,
XmDIALOG_OK_BUTTON));
}
/* set the help message into the dialog */
XtSetArg(args[0], XmNmessageString, helpStr);
XtSetValues(helpDialog, args, 1);
/* Free the XmString */
XmStringFree(helpStr);
/* map the help dialog */
XtManageChild(helpDialog);
}
/* The procedure either begins the drop of initiates the help
* dialog depending on the dropAction.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
DropProcCallback(w, client, call)
Widget w;
XtPointer client;
XtPointer call;
#else
DropProcCallback(Widget w, XtPointer client, XtPointer call)
#endif /* _NO_PROTO */
{
XmDropProcCallbackStruct *cb =
(XmDropProcCallbackStruct *)call;
if (appInfo->highlightRect != NULL)
RectUnhighlight(w);
if (cb->dropAction != XmDROP_HELP)
HandleDrop(w, call);
else
HandleHelp(w, call);
}
/* This procedure registers the drop targets and the drop site */
static void
#ifdef _NO_PROTO
RegisterDropSite(w)
Widget w;
#else
RegisterDropSite(Widget w)
#endif /* _NO_PROTO */
{
Display *display = XtDisplay(w);
Atom targets[3];
Arg args[5];
int n = 0;
/* Only accept moves or copies */
XtSetArg(args[n], XmNdragOperations, XmDROP_COPY |
XmDROP_MOVE);
n++;
/* set all possible targets for any of the nested drop
* sites */
targets[0] = XmInternAtom(display, "_MY_RECTANGLE", False);
targets[1] = XmInternAtom(display, "BACKGROUND", False);
targets[2] = XmInternAtom(display, "PIXMAP", False);
XtSetArg(args[n], XmNimportTargets, targets); n++;
XtSetArg(args[n], XmNnumImportTargets, 3); n++;
/* register a dragProc - necessary for simulating nested
* drop sites */
XtSetArg(args[n], XmNdragProc, DragProcCallback); n++;
/* register a dropProc */
XtSetArg(args[n], XmNdropProc, DropProcCallback); n++;
XmDropSiteRegister(w, args, n);
}
static void
#ifdef _NO_PROTO
SetInvalidIcon(w)
Widget w;
#else
SetInvalidIcon(Widget w)
#endif /* _NO_PROTO */
{
Widget invalidIcon;
char *invalid_bits;
Dimension width, height;
Arg args[1];
if (appInfo->maxCursorWidth >= ICON_WIDTH &&
appInfo->maxCursorHeight >= ICON_HEIGHT) {
invalid_bits = INVALID_ICON_BITS;
width = ICON_WIDTH;
height = ICON_HEIGHT;
} else {
/* If the server will handle a small icon, create one
*/
invalid_bits = SMALL_INVALID_ICON_BITS;
width = SMALL_ICON_WIDTH;
height = SMALL_ICON_HEIGHT;
}
invalidIcon = GetDragIconFromBits(w, invalid_bits,
invalid_bits, width,
height, GetColor(DRAW_AREA_FG_COLOR),
GetColor(DRAW_AREA_BG_COLOR));
XtSetArg(args[0], XmNdefaultInvalidCursorIcon,
invalidIcon);
XtSetValues(XmGetXmScreen(XtScreen(w)), args, 1);
}
/* This procedure initializes the toolkit and other application
* information */
static void
#ifdef _NO_PROTO
InitializeApplication(argc, argv)
int *argc;
String *argv;
#else
InitializeApplication(int *argc, String *argv)
#endif /* _NO_PROTO */
{
static XtActionsRec new_actions[] = {
{"StartRect", StartRect},
{"ExtendRect", ExtendRect},
{"EndRect", EndRect},
{"StartMove", StartMove},
{"ColorRect", ColorRect},
};
Arg args[5];
Cardinal n = 0;
/* Ininialize struct that hold global information */
InitializeAppInfo();
/* Initialize Toolkit and create shell */
XtSetArg(args[n], XmNwidth, 295); n++;
XtSetArg(args[n], XmNheight, 270); n++;
topLevel = XtAppInitialize(&appContext, "DNDDemo", NULL, 0,
argc, argv, NULL, args, n);
/* Set drag protocol styles */
n = 0;
XtSetArg(args[n], XmNdragInitiatorProtocolStyle,
XmDRAG_PREFER_RECEIVER); n++;
XtSetArg(args[n], XmNdragReceiverProtocolStyle,
XmDRAG_DYNAMIC);
n++;
XtSetValues(XmGetXmDisplay(XtDisplay(topLevel)), args, n);
/* Initialize tables for holding rectangle information */
InitializeRectDpyTable();
/* Add new actions for use with translation tables */
XtAppAddActions(appContext, new_actions, 5);
/* Get the display server's best cursor size */
XQueryBestCursor(XtDisplay(topLevel),
RootWindowOfScreen(XtScreen(topLevel)), 64, 64,
&appInfo->maxCursorWidth, &appInfo->maxCursorHeight);
}
/* This the program start procedure */
void
#ifdef _NO_PROTO
main (argc, argv)
int argc;
String *argv;
#else
main (int argc, String *argv)
#endif /* _NO_PROTO */
{
/* Initialize toolkit and application global values */
InitializeApplication(&argc, argv);
/* Create main window, drawing area, and color labels */
CreateLayout();
/* Register the drawing area as a drop site */
RegisterDropSite(drawingArea);
SetInvalidIcon(drawingArea);
/* Realize and map widget hiearchy */
XtRealizeWidget(topLevel);
/* Create GC for drawing rectangles */
CreateRectGC();
/* Begin event loop processing */
XtAppMainLoop(appContext);
}
|
/*
* file: DNDDraw.c
*
* File containing all the drawing routines needed to run
* DNDDemo program.
*
*/
#include "DNDDemo.h"
/* The following character arrays hold the bits for
* the source and state icons for both 32x32 and 16x16 drag
* icons. The source is a color palette icon and the state is
* a paint brush icon.
*/
char SOURCE_ICON_BITS[] = {
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xa0,
0xaa, 0x02, 0x00, 0x50, 0x55, 0x07, 0x00, 0x28, 0x00, 0x0c,
0x00, 0x94, 0x42, 0x19, 0x00, 0xca, 0xe5, 0x33, 0x00, 0x85,
0xc6, 0x33, 0x80, 0x42, 0xe7, 0x33, 0x40, 0x81, 0xc3, 0x31,
0xa0, 0x00, 0x00, 0x38, 0x50, 0x00, 0x00, 0x1c, 0x28, 0x00,
0x00, 0x0e, 0x90, 0x02, 0x00, 0x07, 0xc8, 0x05, 0x80, 0x03,
0x90, 0x07, 0xc0, 0x01, 0x48, 0x05, 0xe0, 0x00, 0x90, 0x03,
0x70, 0x00, 0x08, 0x00, 0x30, 0x00, 0x10, 0x14, 0x30, 0x00,
0x08, 0x2a, 0x30, 0x00, 0x10, 0x34, 0x30, 0x00, 0x28, 0x2a,
0x60, 0x00, 0x50, 0x9c, 0xe2, 0x00, 0xa0, 0x40, 0xc4, 0x01,
0x40, 0x01, 0x84, 0x01, 0x80, 0x42, 0x84, 0x03, 0x00, 0x85,
0x03, 0x03, 0x00, 0x0a, 0x00, 0x03, 0x00, 0xf4, 0xff, 0x03,
0x00, 0xf8, 0xff, 0x01, 0x00, 0x00, 0x00, 0x00};
char SOURCE_ICON_MASK[] = {
0x00, 0x00, 0x00, 0x00, 0x00, 0xf0, 0xff, 0x07, 0x00, 0xf8,
0xff, 0x0f, 0x00, 0xfc, 0xff, 0x1f, 0x00, 0xfe, 0xff, 0x3f,
0x00, 0xff, 0xff, 0x7f, 0x80, 0xff, 0xff, 0x7f, 0xc0, 0xff,
0xff, 0x7f, 0xe0, 0xff, 0xff, 0x7f, 0xf0, 0xff, 0xff, 0x7f,
0xf8, 0xff, 0xff, 0x7f, 0xfc, 0xff, 0xff, 0x7f, 0xfc, 0xff,
0xff, 0x3f, 0xfc, 0xff, 0xff, 0x1f, 0xfc, 0xff, 0xff, 0x0f,
0xfc, 0xff, 0xff, 0x07, 0xfc, 0xff, 0xff, 0x03, 0xfc, 0xff,
0xff, 0x01, 0xfc, 0xff, 0xff, 0x00, 0xfc, 0xff, 0x7f, 0x00,
0xfc, 0xff, 0x7f, 0x00, 0xfc, 0xff, 0xff, 0x00, 0xfc, 0xff,
0xff, 0x01, 0xfc, 0xff, 0xff, 0x03, 0xf8, 0xff, 0xff, 0x03,
0xf0, 0xff, 0xff, 0x07, 0xe0, 0xff, 0xff, 0x07, 0xc0, 0xff,
0xff, 0x07, 0x80, 0xff, 0xff, 0x07, 0x00, 0xff, 0xff, 0x07,
0x00, 0xfe, 0xff, 0x07, 0x00, 0xfc, 0xff, 0x03};
char STATE_ICON_BITS[] = {
0x00, 0x00, 0x00, 0x00, 0x1e, 0x00, 0x00, 0x00, 0x78, 0x00,
0x00, 0x00, 0xf8, 0x01, 0x00, 0x00, 0xf8, 0x01, 0x00, 0x00,
0xf8, 0x03, 0x00, 0x00, 0xf0, 0x03, 0x00, 0x00, 0xf0, 0x07,
0x00, 0x00, 0xc0, 0x0d, 0x00, 0x00, 0x00, 0x1b, 0x00, 0x00,
0x00, 0x3e, 0x00, 0x00, 0x00, 0x7e, 0x00, 0x00, 0x00, 0xfc,
0x00, 0x00, 0x00, 0xf8, 0x01, 0x00, 0x00, 0xf0, 0x03, 0x00,
0x00, 0xe0, 0x07, 0x00, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x80,
0x1f, 0x00, 0x00, 0x00, 0x3f, 0x00, 0x00, 0x00, 0x7e, 0x00,
0x00, 0x00, 0xfc, 0x00, 0x00, 0x00, 0xf8, 0x01, 0x00, 0x00,
0xf0, 0x01, 0x00, 0x00, 0xe0, 0x03, 0x00, 0x00, 0xc0, 0x07,
0x00, 0x00, 0x80, 0x0f, 0x00, 0x00, 0x00, 0x1f, 0x00, 0x00,
0x00, 0x1e, 0x00, 0x00, 0x00, 0x3c, 0x00, 0x00, 0x00, 0x38,
0x00, 0x00, 0x00, 0x60, 0x00, 0x00, 0x00, 0xc0};
char STATE_ICON_MASK[] = {
0x3f, 0x00, 0x00, 0x00, 0xff, 0x00, 0x00, 0x00, 0xff, 0x03,
0x00, 0x00, 0xfc, 0x03, 0x00, 0x00, 0xfc, 0x07, 0x00, 0x00,
0xfc, 0x07, 0x00, 0x00, 0xfc, 0x07, 0x00, 0x00, 0xf8, 0x07,
0x00, 0x00, 0xf8, 0x0f, 0x00, 0x00, 0xe0, 0x1f, 0x00, 0x00,
0x00, 0x3e, 0x00, 0x00, 0x00, 0x7e, 0x00, 0x00, 0x00, 0xfc,
0x00, 0x00, 0x00, 0xf8, 0x01, 0x00, 0x00, 0xf0, 0x03, 0x00,
0x00, 0xe0, 0x07, 0x00, 0x00, 0xc0, 0x0f, 0x00, 0x00, 0x80,
0x1f, 0x00, 0x00, 0x00, 0x3f, 0x00, 0x00, 0x00, 0xfe, 0x01,
0x00, 0x00, 0xfc, 0x03, 0x00, 0x00, 0xf8, 0x03, 0x00, 0x00,
0xf0, 0x07, 0x00, 0x00, 0xe0, 0x0f, 0x00, 0x00, 0xc0, 0x1f,
0x00, 0x00, 0x80, 0x3f, 0x00, 0x00, 0x00, 0x7f, 0x00, 0x00,
0x00, 0x7e, 0x00, 0x00, 0x00, 0x7e, 0x00, 0x00, 0x00, 0xfe,
0x00, 0x00, 0x00, 0xfc, 0x00, 0x00, 0x00, 0xf0};
char INVALID_ICON_BITS[] = {
0x00, 0xe0, 0x0f, 0x00, 0x00, 0xfc, 0x7f, 0x00, 0x00, 0xff,
0xff, 0x01, 0x80, 0xff, 0xff, 0x03, 0xc0, 0x1f, 0xf0, 0x07,
0xe0, 0x07, 0xc0, 0x0f, 0xf0, 0x07, 0x00, 0x1f, 0xf8, 0x0f,
0x00, 0x3e, 0xf8, 0x1f, 0x00, 0x3c, 0xfc, 0x3f, 0x00, 0x7c,
0x3c, 0x7f, 0x00, 0x78, 0x3c, 0xfe, 0x00, 0x78, 0x1e, 0xfc,
0x01, 0xf0, 0x1e, 0xf8, 0x03, 0xf0, 0x1e, 0xf0, 0x07, 0xf0,
0x1e, 0xe0, 0x0f, 0xf0, 0x1e, 0xc0, 0x1f, 0xf0, 0x1e, 0x80,
0x3f, 0xf0, 0x1e, 0x00, 0x7f, 0xf0, 0x3c, 0x00, 0xfe, 0x78,
0x3c, 0x00, 0xfc, 0x79, 0x7c, 0x00, 0xf8, 0x7f, 0x78, 0x00,
0xf0, 0x3f, 0xf8, 0x00, 0xe0, 0x3f, 0xf0, 0x01, 0xc0, 0x1f,
0xe0, 0x07, 0xc0, 0x0f, 0xc0, 0x1f, 0xf0, 0x07, 0x80, 0xff,
0xff, 0x03, 0x00, 0xff, 0xff, 0x01, 0x00, 0xfc, 0x7f, 0x00,
0x00, 0xe0, 0x0f, 0x00, 0x00, 0x00, 0x00, 0x00};
char SMALL_SOURCE_ICON_BITS[] = {
0x80, 0x1f, 0x40, 0x60, 0x20, 0x91, 0x90, 0xaa, 0x08, 0x91,
0x08, 0x40, 0x08, 0x20, 0x08, 0x10, 0x28, 0x10, 0x78, 0x10,
0x28, 0x20, 0x08, 0x41, 0x90, 0x43, 0x20, 0x21, 0x40, 0x10,
0x80, 0x0f};
char SMALL_SOURCE_ICON_MASK[] = {
0x80, 0x1f, 0xc0, 0x7f, 0xe0, 0xff, 0xf0, 0xff, 0xf8, 0xff,
0xf8, 0x7f, 0xf8, 0x3f, 0xf8, 0x1f, 0xf8, 0x1f, 0xf8, 0x1f,
0xf8, 0x3f, 0xf8, 0x7f, 0xf0, 0x7f, 0xe0, 0x3f, 0xc0, 0x1f,
0x80, 0x0f};
char SMALL_STATE_ICON_BITS[] = {
0x0f, 0x00, 0x1e, 0x00, 0x1e, 0x00, 0x3c, 0x00, 0x50, 0x00,
0xe0, 0x00, 0xc0, 0x01, 0x80, 0x03, 0x00, 0x07, 0x00, 0x0e,
0x00, 0x1c, 0x00, 0x18, 0x00, 0x20, 0x00, 0x40, 0x00, 0x80,
0x00, 0x00};
char SMALL_STATE_ICON_MASK[] = {
0x0f, 0x00, 0x1e, 0x00, 0x1e, 0x00, 0x3c, 0x00, 0x70, 0x00,
0xe0, 0x00, 0xc0, 0x01, 0x80, 0x03, 0x00, 0x07, 0x00, 0x0e,
0x00, 0x1c, 0x00, 0x18, 0x00, 0x20, 0x00, 0x40, 0x00, 0x80,
0x00, 0x00};
char SMALL_INVALID_ICON_BITS[] = {
0xe0, 0x03, 0xf8, 0x0f, 0x1c, 0x1c, 0x1e, 0x30, 0x3e, 0x30,
0x73, 0x60, 0xe3, 0x60, 0xc3, 0x61, 0x83, 0x63, 0x03, 0x67,
0x06, 0x3e, 0x06, 0x3c, 0x1c, 0x1c, 0xf8, 0x0f, 0xe0, 0x03,
0x00, 0x00};
/* Globals variables */
AppInfo appInfo;
/* This is a string to pixel conversion function. */
Pixel
#ifdef _NO_PROTO
GetColor(colorstr)
char *colorstr;
#else
GetColor(char *colorstr)
#endif /* _NO_PROTO */
{
XrmValue from, to;
from.size = strlen(colorstr) +1;
if (from.size < sizeof(String))
from.size = sizeof(String);
from.addr = colorstr;
to.addr = NULL;
XtConvert(topLevel, XmRString, &from, XmRPixel, &to);
if (to.addr != NULL)
return ((Pixel) *((Pixel *) to.addr));
else
return ( (XtArgVal) NULL);
}
/* This procedure is used to initialize the application
* information structure */
void
#ifdef _NO_PROTO
InitializeAppInfo()
#else /* _NO_PROTO */
InitializeAppInfo(void)
#endif /* _NO_PROTO */
{
if (!appInfo) {
appInfo = (AppInfo) XtMalloc(sizeof(AppInfoRec));
appInfo->rectGC = NULL;
appInfo->currentColor = 0;
appInfo->rectDpyTable = NULL;
appInfo->rectsAllocd = 0;
appInfo->numRects = 0;
appInfo->highlightRect = NULL;
appInfo->clearRect = NULL;
appInfo->doMove = True;
appInfo->creatingRect = True;
appInfo->operation = XmDROP_MOVE;
appInfo->maxCursorWidth = 64;
appInfo->maxCursorHeight = 64;
appInfo->rectX = 0;
appInfo->rectY = 0;
appInfo->rectX2 = 0;
appInfo->rectY2 = 0;
}
}
/* This procedure sets the color in the GC for drawing the
* rectangles in a new color.
*/
void
#ifdef _NO_PROTO
SetColor(display, color)
Display *display;
Pixel color;
#else
SetColor(Display *display, Pixel color)
#endif /* _NO_PROTO */
{
/*
* if the GC already has a foreground of this color,
* it would be wasteful to reset the color
*/
if (color != appInfo->currentColor) {
XSetForeground(display, appInfo->rectGC,
(unsigned long) color);
appInfo->currentColor = color;
}
}
/* This function draws the rectangle in the color provided */
static int
#ifdef _NO_PROTO
RectDraw(display, window, rect)
Display *display;
Window window;
RectPtr rect;
#else
RectDraw(Display *display, Window window, RectPtr rect)
#endif /* _NO_PROTO */
{
SetColor(display, rect->color);
XFillRectangle(display, window, appInfo->rectGC, rect->x,
rect->y, rect->width, rect->height);
}
/* This procedure draws the rectangle highlight in a specified
* color */
static void
#ifdef _NO_PROTO
RectDrawHighlight(w, rect, color )
Widget w;
RectPtr rect;
Pixel color;
#else
RectDrawHighlight( Widget w, RectPtr rect, Pixel color )
#endif /* _NO_PROTO */
{
Display *display = XtDisplay(w);
Window window = XtWindow(w);
Pixel currentColor = rect->color;
XGCValues values;
values.foreground = color;
XChangeGC(display, appInfo->rectGC, GCForeground, &values);
XDrawRectangle(display, window, appInfo->rectGC,
rect->x + 1, rect->y + 1,
rect->width - HIGHLIGHT_THICKNESS,
rect->height - HIGHLIGHT_THICKNESS);
/* Return the GC to it's previous state */
values.foreground = appInfo->currentColor = currentColor;
XChangeGC(display, appInfo->rectGC, GCForeground, &values);
}
/* This procedure handles redrawing the rectangles. It draws
* them according to the order in the rectangle display table.
* The rectangles at the top of the table are drawn first.
*/
void
#ifdef _NO_PROTO
RedrawRectangles(w)
Widget w;
#else
RedrawRectangles(Widget w)
#endif /* _NO_PROTO */
{
Display *display = XtDisplay(w);
RectPtr rect;
Window window = XtWindow(w);
int i;
for (i = 0; i < appInfo->numRects; i++) {
rect = appInfo->rectDpyTable[i];
/* Only draw the rectangles that haven't been cleared
*/
if (rect != appInfo->clearRect) {
RectDraw(display, window, rect);
}
/* Draw the rectangle highlight of the highlight
* rectangle */
if (rect == appInfo->highlightRect) {
RectDrawHighlight(w, rect,
GetColor(HIGHLIGHT_COLOR));
}
}
}
/* This procedure will clear the current rectangle and redraw
* any rectangles that were partially cleared by the rectangle
* that was deleted.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
RectHide(display, window, rect)
Display *display;
Window window;
RectPtr rect;
#else
RectHide(Display *display, Window window, RectPtr rect)
#endif /* _NO_PROTO */
{
Pixel background, oldColor;
Arg args[1];
/* Get the background of the drawing area. */
XtSetArg(args[0], XmNbackground, &background);
XtGetValues(drawingArea, args, 1);
/* Save the old color for restoration purposes. */
oldColor = rect->color;
/* Clear the rectangle */
rect->color = background;
RectDraw(display, window, rect);
appInfo->clearRect = rect;
/* redraw the rest of the rectangles */
RedrawRectangles(drawingArea);
/* restore the rectangle color */
rect->color = oldColor;
}
/* This procedure draws the stipple rectangle that is used in
* marking the old rectangle position during a rectangle move
* operation.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
RectDrawStippled(display, window, rect)
Display *display;
Window window;
RectPtr rect;
#else
RectDrawStippled(Display *display, Window window, RectPtr rect)
#endif /* _NO_PROTO */
{
register int x = rect->x;
register int y = rect->y;
register Dimension width = rect->width;
register Dimension height = rect->height;
XGCValues values;
XSegment segments[4];
/* Set the rectangle color */
values.foreground = appInfo->currentColor = rect->color;
XChangeGC(display, appInfo->rectGC, GCForeground ,
&values);
/* Create the segments for drawing the stippled rectangle
*/
segments[0].x1 = segments[2].x1 = x;
segments[0].y1 = segments[0].y2 = y;
segments[0].x2 = x + width - 1;
segments[1].x1 = segments[1].x2 = x + width - 1;
segments[1].y1 = segments[3].y1 = y;
segments[3].y2 = y + height;
segments[2].y1 = segments[2].y2 = y + height - 1;
segments[3].x1 = segments[3].x2 = x;
segments[2].x2 = x + width;
segments[1].y2 = y + height;
/* Set the line attributes and draw */
XSetLineAttributes(display, appInfo->rectGC, 1,
LineOnOffDash, CapButt, JoinMiter);
XDrawSegments (display, window, appInfo->rectGC, segments,
4);
/* restore the default line settings */
values.line_width = HIGHLIGHT_THICKNESS;
values.line_style = LineSolid;
XChangeGC(display, appInfo->rectGC, GCLineWidth |
GCLineStyle, &values);
}
/* This procedure sets the highlight rectangle and
* redraws the rectangles. The expose routine will draw
* the highlight around the highlighted rectangle.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
RectHighlight(w, rect)
Widget w;
RectPtr rect;
#else
RectHighlight(Widget w, RectPtr rect)
#endif /* _NO_PROTO */
{
if (appInfo->highlightRect != rect) {
appInfo->highlightRect = rect;
RedrawRectangles(w);
}
}
/* This procedure sets the highlight rectangle to NULL and
* redraws the rectangles. The expose routine will clear
* the highlight around the highlighted rectangle.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
RectUnhighlight(w)
Widget w;
#else
RectUnhighlight(Widget w)
#endif /* _NO_PROTO */
{
if (appInfo->highlightRect) {
appInfo->highlightRect = NULL;
RedrawRectangles(w);
}
}
/* This function creates and initialized a new rectangle */
RectPtr
#ifdef _NO_PROTO
RectCreate(x, y, width, height, color, pixmap)
Position x;
Position y;
Dimension width;
Dimension height;
Pixel color;
Pixmap pixmap;
#else
RectCreate(Position x, Position y, Dimension width,
Dimension height, Pixel color, Pixmap pixmap)
#endif /* _NO_PROTO */
{
RectPtr rect;
rect = (RectPtr) XtMalloc(sizeof(RectStruct));
rect->x = x;
rect->y = y;
rect->width = width;
rect->height = height;
rect->color = color;
rect->pixmap = pixmap;
return(rect);
}
/* This procedure will move the rectangle to the end of the
* rectangle display table (effectively raising it to top of
* the displayed rectangles).
*/
static void
#ifdef _NO_PROTO
RectToTop(rect)
RectPtr rect;
#else
RectToTop(RectPtr rect)
#endif /* _NO_PROTO */
{
int i, j;
if (rect) {
/* Get the index to the target rectangle */
for (i = 0; i < appInfo->numRects; i++) {
if (appInfo->rectDpyTable[i] == rect)
break;
}
/* Shift the other rectangles downward */
for (j = i; j < appInfo->numRects - 1; j++)
appInfo->rectDpyTable[j] =
appInfo->rectDpyTable[j + 1];
/* Place the target rectangle at the end */
appInfo->rectDpyTable[j] = rect;
}
}
/* This procedure raises the rectangle to the top of the
* drawing area */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
RectRaise(w, rect)
Widget w;
RectPtr rect;
#else
RectRaise(Widget w, RectPtr rect)
#endif /* _NO_PROTO */
{
RectToTop(rect);
RedrawRectangles(w);
}
/* This procedure moves the rectangle the the end of the
* display stack, decrements the number of rectangles, and
* then frees the rectangle.
*/
void
#ifdef _NO_PROTO
RectFree(rect)
RectPtr rect;
#else
RectFree(RectPtr rect)
#endif /* _NO_PROTO */
{
/* if the rectangle is registered */
if (rect) {
RectToTop(rect);
appInfo->numRects--;
XtFree((char *)rect);
}
}
/* This procedure added the rectangle to the rectangle display
* table (reallocing the table if necessary).
*/
void
#ifdef _NO_PROTO
RectRegister(rect, x, y)
RectPtr rect;
#else
RectRegister(RectPtr rect, Position x, Position y)
#endif /* _NO_PROTO */
{
appInfo->numRects++;
/* rectangles can have their x and y values reset at
* registration time */
rect->x = x;
rect->y = y;
/* realloc the table if it is too small */
if (appInfo->numRects > appInfo->rectsAllocd) {
/* grow geometrically */
appInfo->rectsAllocd *= 2;
appInfo->rectDpyTable = (RectPtr *)
XtRealloc((char *) appInfo->rectDpyTable,
(unsigned) (sizeof(RectPtr) *
appInfo->rectsAllocd));
}
/* Add to end of display table */
appInfo->rectDpyTable[appInfo->numRects - 1] = rect;
}
/* This function find the top most rectangle at the given x,y
* position */
RectPtr
#ifdef _NO_PROTO
RectFind(x, y)
Position x;
Position y;
#else
RectFind(Position x, Position y)
#endif /* _NO_PROTO */
{
RectPtr rect;
int i;
/*
* Search from the end of the rectangle display table
* to find the top most rectangle.
*/
for (i = appInfo->numRects - 1; i >= 0; i--) {
rect = appInfo->rectDpyTable[i];
if (rect->x <= x && rect->x + rect->width >= x &&
rect->y <= y && rect->y + rect->height >= y) {
return(rect);
}
}
/* If a rectangle is not found return NULL */
return(NULL);
}
/* This procedure sets the retangle's color */
void
#ifdef _NO_PROTO
RectSetColor(rect, display, window, color)
RectPtr rect;
Display *display;
Window window;
Pixel color;
#else
RectSetColor(RectPtr rect, Display *display, Window window,
Pixel color)
#endif /* _NO_PROTO */
{
rect->color = color;
RectDraw(display, window, rect);
}
/* This function gets the retangle's color */
Pixel
#ifdef _NO_PROTO
RectGetColor(rect)
RectPtr rect;
#else
RectGetColor(RectPtr rect)
#endif /* _NO_PROTO */
{
return(rect->color);
}
/* This procedure sets the retangle's pixmap. The pixmap
* portion of the rectangle is not currently being used.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
RectSetPixmap(rect, display, window, pixmap)
RectPtr rect;
Display *display;
Window window;
Pixmap pixmap;
#else
RectSetPixmap(RectPtr rect, Display *display, Window window,
Pixmap pixmap)
#endif /* _NO_PROTO */
{
rect->pixmap = pixmap; /* not currently being looked at */
RectDraw(display, window, rect);
}
/* This function gets the retangle's pixmap. The pixmap
* portion of the rectangle is not currently being used.
*/
/* ARGSUSED */
static Pixmap
#ifdef _NO_PROTO
RectGetPixmap(rect)
RectPtr rect;
#else
RectGetPixmap(RectPtr rect)
#endif /* _NO_PROTO */
{
return (rect->pixmap);
}
/* This procedure gets the retangle's height and width. */
/* ARGSUSED */
static void
#ifdef _NO_PROTO
RectGetDimensions(rect, width, height)
RectPtr rect;
Dimension *width;
Dimension *height;
#else
RectGetDimensions(RectPtr rect, Dimension *width,
Dimension *height)
#endif /* _NO_PROTO */
{
*width = rect->width;
*height = rect->height;
}
/* This function creates the rectangle bitmaps for the icon. */
Pixmap
#ifdef _NO_PROTO
GetBitmapFromRect(w, rect, background, foreground, widthRtn,
heightRtn)
Widget w;
RectPtr rect;
Pixel background;
Pixel foreground;
Dimension *widthRtn;
Dimension *heightRtn;
#else
GetBitmapFromRect(Widget w, RectPtr rect, Pixel background,
Pixel foreground, Dimension *widthRtn, Dimension *heightRtn)
#endif /* _NO_PROTO */
{
Dimension width, height, maxHeight, maxWidth;
GC fillGC;
Pixmap icon_pixmap;
Display *display = XtDisplay(w);
XGCValues values;
RectGetDimensions(rect, &width, &height);
/* Get the maximum allowable width and height allowed by
* the cursor */
maxWidth = appInfo->maxCursorWidth;
maxHeight = appInfo->maxCursorHeight;
/* if the dimensions aren't within the allowable dimensions
* resize then proportionally
*/
if (maxWidth < width || maxHeight < height) {
if (width > height) {
height = (height * maxWidth) / width;
width = appInfo->maxCursorWidth;
} else {
width = (width * maxHeight) / height;
height = appInfo->maxCursorHeight;
}
}
/* Create a depth 1 pixmap (bitmap) for use with the drag
* icon */
icon_pixmap = XCreatePixmap(display, XtWindow(w), width,
height, 1);
/* create a GC for drawing into the bitmap */
fillGC = XCreateGC(display, icon_pixmap, 0,
(XGCValues *)NULL);
/* fill the bitmap with 0's as a starting point */
XFillRectangle(display, icon_pixmap, fillGC, 0, 0, width,
height);
/* Change GC to be able to create the rectangle with 1's on
* the bitmap */
values.foreground = 1;
XChangeGC(display, fillGC, GCForeground, &values);
/*
* This draw a filled rectangle. If only a outline is
* desired use the XDrawRectangle() call. Note: the
* outline does not produce very effect icon melting.
*/
XFillRectangle(display, icon_pixmap, fillGC, 0, 0, width,
height);
/* Free the fill GC */
XFreeGC(display, fillGC);
*widthRtn = width;
*heightRtn = height;
return(icon_pixmap);
}
/*************************************************************
*************************************************************
Functions used in Drawing Outlines:
*************************************************************
*************************************************************/
/*
* This procedure changes the GC to do rubberband
* drawing of a rectangle frame .
*/
static void
#ifdef _NO_PROTO
SetXorGC(w)
Widget w;
#else
SetXorGC(Widget w)
#endif /* _NO_PROTO */
{
unsigned long valueMask = GCFunction | GCForeground |
GCLineWidth;
XGCValues values;
values.function = GXxor;
values.foreground = GetColor(DRAW_AREA_BG_COLOR);
values.line_width = 1;
XChangeGC(XtDisplay(w), appInfo->rectGC, valueMask,
&values);
}
/* This procedure returns the GC to it's initial state. */
static void
#ifdef _NO_PROTO
SetNormGC(w)
Widget w;
#else
SetNormGC(Widget w)
#endif /* _NO_PROTO */
{
unsigned long valueMask = GCFunction | GCLineWidth |
GCForeground;
XGCValues values;
values.function = GXcopy;
values.foreground = appInfo->currentColor;
values.line_width = HIGHLIGHT_THICKNESS;
XChangeGC(XtDisplay(w), appInfo->rectGC, valueMask,
&values);
}
/* This procedure returns the values of the current rectangle
* outline */
static void
#ifdef _NO_PROTO
OutlineGetDimensions(x, y, width, height)
Position *x;
Position *y;
Dimension *width;
Dimension *height;
#else
OutlineGetDimensions(Position *x, Position *y, Dimension *width,
Dimension *height)
#endif /* _NO_PROTO */
{
if (appInfo->rectX < appInfo->rectX2) {
*x = appInfo->rectX;
*width = appInfo->rectX2 - *x;
} else {
*x = appInfo->rectX2;
*width = appInfo->rectX - *x;
}
if (appInfo->rectY < appInfo->rectY2) {
*y = appInfo->rectY;
*height = appInfo->rectY2 - *y;
} else {
*y = appInfo->rectY2;
*height = appInfo->rectY - *y;
}
if (*width < 0)
*width = 1;
if (*height < 0)
*height = 1;
}
static void
#ifdef _NO_PROTO
OutlineDraw(w)
Widget w;
#else
OutlineDraw(Widget w)
#endif /* _NO_PROTO */
{
Position x, y;
Dimension width, height;
OutlineGetDimensions(&x, &y, &width, &height);
XDrawRectangle(XtDisplay(w), XtWindow(w), appInfo->rectGC,
x, y, width, height);
}
/* This procedure sets initializes the drawing positions */
static void
#ifdef _NO_PROTO
OutlineSetPosition(x, y)
Position x;
Position y;
#else
OutlineSetPosition(Position x, Position y)
#endif /* _NO_PROTO */
{
appInfo->rectX = appInfo->rectX2 = x;
appInfo->rectY = appInfo->rectY2 = y;
}
/* This procedure resets outline end position */
static void
#ifdef _NO_PROTO
OutlineResetPosition(x, y)
Position x;
Position y;
#else
OutlineResetPosition(Position x, Position y)
#endif /* _NO_PROTO */
{
appInfo->rectX2 = x;
appInfo->rectY2 = y;
}
/* This action procedure begins creating a rectangle at the x,y
* position of the button event if a rectangle doesn't already
* exist at that position. Otherwise is raises the rectangle
* to the top of the drawing area.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
StartRect(w, event, params, num_params)
Widget w;
XEvent *event;
String *params;
Cardinal *num_params;
#else
StartRect(Widget w, XEvent *event, String *params,
Cardinal *num_params)
#endif /* _NO_PROTO */
{
Display *display = XtDisplay(w);
RectPtr rect;
Position x = event->xbutton.x;
Position y = event->xbutton.y;
rect = RectFind(x, y);
/* if there isn't a rectangle at this position, begin
* creating one */
if (!rect) {
appInfo->creatingRect = True;
/* set gc for drawing rubberband outline for
* rectangles */
SetXorGC(w);
/* set the initial outline positions */
OutlineSetPosition(x, y);
/* Draw the rectangle */
OutlineDraw(w);
}
else
RectRaise(w, rect);
}
/* This action procedure extends the drawing of the outline
* for the rectangle to be created.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
ExtendRect(w, event, params, num_params)
Widget w;
XEvent *event;
String *params;
Cardinal *num_params;
#else
ExtendRect(Widget w, XEvent *event, String *params,
Cardinal *num_params)
#endif /* _NO_PROTO */
{
if (appInfo->creatingRect) {
/* erase the old outline */
OutlineDraw(w);
/* set the new outline end positions */
OutlineResetPosition(event->xbutton.x,
event->xbutton.y);
/* redraw the outline */
OutlineDraw(w);
}
}
/* This action procedure creates a rectangle depending on the
* dimensions set in the StartRect and ExtendRect action procs.
*/
/* ARGSUSED */
void
#ifdef _NO_PROTO
EndRect(w, event, params, num_params)
Widget w;
XEvent *event;
String *params;
Cardinal *num_params;
#else
EndRect(Widget w, XEvent *event, String *params,
Cardinal *num_params)
#endif /* _NO_PROTO */
{
Position x, y;
Dimension width, height;
RectPtr rect;
if (appInfo->creatingRect) {
/* erase the last outline */
OutlineDraw(w);
/* return GC to original state */
SetNormGC(w);
/* Get the outline dimensions for creating the
* rectangle */
OutlineGetDimensions(&x, &y, &width, &height);
/* don't want to create zero width or height
* rectangles */
if (width == 0 || height == 0){
appInfo->creatingRect = False;
return;
}
rect = RectCreate(x, y, width, height,
GetColor(RECT_START_COLOR),
XmUNSPECIFIED_PIXMAP);
RectDraw(XtDisplay(w), XtWindow(w), rect);
RectRegister(rect, x, y);
appInfo->creatingRect = False;
}
}
/* The procedure assigns new translations the the given widget */
static void
#ifdef _NO_PROTO
SetupTranslations(widget, new_translations)
Widget widget;
char *new_translations;
#else
SetupTranslations(Widget widget, char *new_translations)
#endif /* _NO_PROTO */
{
XtTranslations new_table;
new_table = XtParseTranslationTable(new_translations);
XtOverrideTranslations(widget, new_table);
}
/* This procedure handles exposure events and makes a call to
* RedrawRectangles() to redraw the rectangles
* The rectangles at the top of the table are drawn first.
*/
/* ARGSUSED */
static void
#ifdef _NO_PROTO
HandleExpose(w, closure, call_data)
Widget w;
XtPointer closure;
XtPointer call_data;
#else
HandleExpose(Widget w, XtPointer closure, XtPointer call_data)
#endif /* _NO_PROTO */
{
RedrawRectangles(w);
}
/* This procedure sets up the drawing area */
static void
#ifdef _NO_PROTO
CreateDrawingArea(parent)
Widget parent;
#else
CreateDrawingArea(Widget parent)
#endif /* _NO_PROTO */
{
static char da_translations[] =
"#replace <Btn2Down>: StartMove() \\
<Btn1Down>: StartRect() \\
<Btn1Motion>: ExtendRect() \\
<Btn1Up>: EndRect() \\
c <Key>t: XtDisplayTranslations()";
Arg args[10];
int n = 0;
XtTranslations new_table;
new_table = XtParseTranslationTable(da_translations);
/* create drawing area at the top of the form */
n = 0;
XtSetArg(args[n], XmNtranslations, new_table); n++;
XtSetArg(args[n], XmNtopAttachment, XmATTACH_FORM); n++;
XtSetArg(args[n], XmNleftAttachment, XmATTACH_FORM); n++;
XtSetArg(args[n], XmNrightAttachment, XmATTACH_FORM); n++;
XtSetArg(args[n], XmNwidth, 295); n++;
XtSetArg(args[n], XmNheight, 180); n++;
XtSetArg(args[n], XmNresizePolicy, XmRESIZE_NONE); n++;
XtSetArg(args[n], XmNbackground,
GetColor(DRAW_AREA_BG_COLOR));
n++;
XtSetArg(args[n], XmNforeground,
GetColor(DRAW_AREA_FG_COLOR));
n++;
drawingArea = XmCreateDrawingArea(parent, "drawingArea",
args, n);
XtManageChild(drawingArea);
/* add expose callback to redisplay rectangles */
XtAddCallback(drawingArea, XmNexposeCallback, HandleExpose,
(XtPointer) NULL);
}
/* This procedure sets up the area for obtaining rectangle colors */
static void
#ifdef _NO_PROTO
CreateColorPushButtons(parent, separator)
Widget parent;
Widget separator;
#else
CreateColorPushButtons(Widget parent, Widget separator)
#endif /* _NO_PROTO */
{
static char label_translations[] = "<Btn2Down>:
ColorRect()";
Widget bulletinBoard;
Widget children[6];
XmString csString;
Arg args[10];
int n = 0;
/* Creating an empty compound string so the labels will
* have no text. */
csString = XmStringCreateSimple("");
/* Creating 6 color labels */
n = 0;
XtSetArg(args[n], XmNtopAttachment, XmATTACH_WIDGET); n++;
XtSetArg(args[n], XmNtopWidget, separator); n++;
XtSetArg(args[n], XmNtopOffset, 2); n++;
XtSetArg(args[n], XmNleftAttachment, XmATTACH_FORM); n++;
XtSetArg(args[n], XmNrightAttachment, XmATTACH_FORM); n++;
XtSetArg(args[n], XmNwidth, 295); n++;
bulletinBoard = XmCreateBulletinBoard(parent,
"buletinBoard", args, n);
XtManageChild(bulletinBoard);
n = 0;
XtSetArg(args[n], XmNx, BOX_X_MARGIN); n++;
XtSetArg(args[n], XmNy, BOX_Y_MARGIN); n++;
XtSetArg(args[n], XmNwidth, BOX_WIDTH); n++;
XtSetArg(args[n], XmNheight, BOX_HEIGHT); n++;
XtSetArg(args[n], XmNlabelString, csString); n++;
XtSetArg(args[n], XmNbackground, GetColor(LABEL1_COLOR));
n++;
XtSetArg(args[n], XmNborderWidth, 1); n++;
children[0] = XmCreatePushButton(bulletinBoard,
"PushButton1", args, n);
/* add translations for manipulating rectangles */
SetupTranslations(children[0], label_translations);
n = 0;
XtSetArg(args[n], XmNx, BOX_X_MARGIN + BOX_X_OFFSET); n++;
XtSetArg(args[n], XmNy, BOX_Y_MARGIN); n++;
XtSetArg(args[n], XmNwidth, BOX_WIDTH); n++;
XtSetArg(args[n], XmNheight, BOX_HEIGHT); n++;
XtSetArg(args[n], XmNlabelString, csString); n++;
XtSetArg(args[n], XmNbackground, GetColor(LABEL2_COLOR));
n++;
XtSetArg(args[n], XmNborderWidth, 1); n++;
children[1] = XmCreatePushButton(bulletinBoard,
"PushButton1", args, n);
/* add translations for manipulating rectangles */
SetupTranslations(children[1], label_translations);
n = 0;
XtSetArg(args[n], XmNx, BOX_X_MARGIN + (2 *
BOX_X_OFFSET)); n++;
XtSetArg(args[n], XmNy, BOX_Y_MARGIN); n++;
XtSetArg(args[n], XmNwidth, BOX_WIDTH); n++;
XtSetArg(args[n], XmNheight, BOX_HEIGHT); n++;
XtSetArg(args[n], XmNlabelString, csString); n++;
XtSetArg(args[n], XmNbackground, GetColor(LABEL3_COLOR));
n++;
XtSetArg(args[n], XmNborderWidth, 1); n++;
children[2] = XmCreatePushButton(bulletinBoard,
"PushButton3", args, n);
/* add translations for manipulating rectangles */
SetupTranslations(children[2], label_translations);
n = 0;
XtSetArg(args[n], XmNx, BOX_X_MARGIN); n++;
XtSetArg(args[n], XmNy, BOX_Y_MARGIN + BOX_Y_OFFSET); n++;
XtSetArg(args[n], XmNwidth, BOX_WIDTH); n++;
XtSetArg(args[n], XmNheight, BOX_HEIGHT); n++;
XtSetArg(args[n], XmNlabelString, csString); n++;
XtSetArg(args[n], XmNbackground, GetColor(LABEL4_COLOR));
n++;
XtSetArg(args[n], XmNborderWidth, 1); n++;
children[3] = XmCreatePushButton(bulletinBoard,
"PushButton4", args, n);
/* add translations for manipulating rectangles */
SetupTranslations(children[3], label_translations);
n = 0;
XtSetArg(args[n], XmNx, BOX_X_MARGIN + BOX_X_OFFSET); n++;
XtSetArg(args[n], XmNy, BOX_Y_MARGIN + BOX_Y_OFFSET); n++;
XtSetArg(args[n], XmNwidth, BOX_WIDTH); n++;
XtSetArg(args[n], XmNheight, BOX_HEIGHT); n++;
XtSetArg(args[n], XmNtopWidget, children[0]); n++;
XtSetArg(args[n], XmNlabelString, csString); n++;
XtSetArg(args[n], XmNbackground, GetColor(LABEL5_COLOR));
n++;
XtSetArg(args[n], XmNborderWidth, 1); n++;
children[4] = XmCreatePushButton(bulletinBoard,
"PushButton5", args, n);
/* add translations for manipulating rectangles */
SetupTranslations(children[4], label_translations);
n = 0;
XtSetArg(args[n], XmNx, BOX_X_MARGIN + (2 *
BOX_X_OFFSET)); n++;
XtSetArg(args[n], XmNy, BOX_Y_MARGIN + BOX_Y_OFFSET); n++;
XtSetArg(args[n], XmNwidth, BOX_WIDTH); n++;
XtSetArg(args[n], XmNheight, BOX_HEIGHT); n++;
XtSetArg(args[n], XmNlabelString, csString); n++;
XtSetArg(args[n], XmNbackground, GetColor(LABEL6_COLOR));
n++;
XtSetArg(args[n], XmNborderWidth, 1); n++;
children[5] = XmCreatePushButton(bulletinBoard,
"PushButton6", args, n);
/* add translations for manipulating rectangles */
SetupTranslations(children[5], label_translations);
/* Managing the children all at once helps performance */
XtManageChildren(children, 6);
/* Freeing compound string. It is no longer necessary. */
XmStringFree(csString);
}
/* This procedure initializes the rectangle display table */
void
#ifdef _NO_PROTO
InitializeRectDpyTable()
#else
InitializeRectDpyTable(void)
#endif /* _NO_PROTO */
{
/*
* Initialize display table. This is used to maintain the
* order in which the rectangles are displayed
*/
appInfo->rectDpyTable =
(RectPtr *) XtMalloc((unsigned)sizeof(RectPtr));
/* Initialize rectangle counter. This is used in
* reallocing the tables */
appInfo->rectsAllocd = 1;
}
/* This procedure creates the components to be displayed */
void
#ifdef _NO_PROTO
CreateLayout()
#else
CreateLayout(void)
#endif /* _NO_PROTO */
{
Widget mainWindow, form, separator;
Arg args[10];
int n = 0;
/* Create main window */
mainWindow = XmCreateMainWindow(topLevel, "mainWindow",
args, n);
XtManageChild(mainWindow);
/* Create form for hold drawing area, separator, and color
* labels */
n = 0;
XtSetArg(args[n], XmNwidth, 300); n++;
form = XmCreateForm(mainWindow, "form", args, n);
XtManageChild(form);
/* Create area for drawing rectangles */
CreateDrawingArea(form);
/* Create separator to separate drawing area from color
* labels */
n = 0;
XtSetArg(args[n], XmNtopAttachment, XmATTACH_WIDGET); n++;
XtSetArg(args[n], XmNtopWidget, drawingArea); n++;
XtSetArg(args[n], XmNtopOffset, 5); n++;
XtSetArg(args[n], XmNleftAttachment, XmATTACH_FORM); n++;
XtSetArg(args[n], XmNrightAttachment, XmATTACH_FORM); n++;
XtSetArg(args[n], XmNwidth, 300); n++;
separator = XmCreateSeparatorGadget(form, "separator",
args, n);
XtManageChild(separator);
/* Create color labels for changing colors of buttons */
CreateColorPushButtons(form, separator);
/* Make form the work window of the main window */
n = 0;
XtSetArg(args[n], XmNworkWindow, form); n++;
XtSetValues(mainWindow, args, n);
}
/* This procedure initializes the GC for drawing rectangles */
void
#ifdef _NO_PROTO
CreateRectGC()
#else
CreateRectGC(void)
#endif /* _NO_PROTO */
{
XGCValues values;
values.line_style = LineSolid;
values.line_width = HIGHLIGHT_THICKNESS;
values.foreground = appInfo->currentColor =
GetColor(RECT_START_COLOR);
appInfo->rectGC = XCreateGC(XtDisplay(topLevel),
XtWindow(drawingArea),
GCLineStyle | GCLineWidth |
GCForeground, &values);
}
|
