Table B-1 shows the physical environment specifications for the Silicon Graphics 230 Visual Workstation.
Table B-1. Physical Environment Specifications
System dimensions | 48.9 cm (19.25'') H x 20.95 cm (8.25'') W x 44.1 cm (17.375'') D-without bezel, 49.16 cm (19.375'') D-with bezel |
Power Requirements | The power requirements are shown on the back of the system |
Ambient Temperature | +10°C (+50°F) to +35°C (+95°F) (operating) -20°C (-4°F) to +60°C (+149°F) (non-operating) |
Relative Humidity | 10% to 90% non-operating (no condensation) |
Vibration | 0.38 mm (0.015''), 5-16.2 Hz; 0.2 G, 16.2-250 Hz (operating) 0.6 G, 5-27.1 Hz; 0.4 mm (0.016”), 27.1-50 Hz; 2 G, 50-500 Hz (non-operating) |

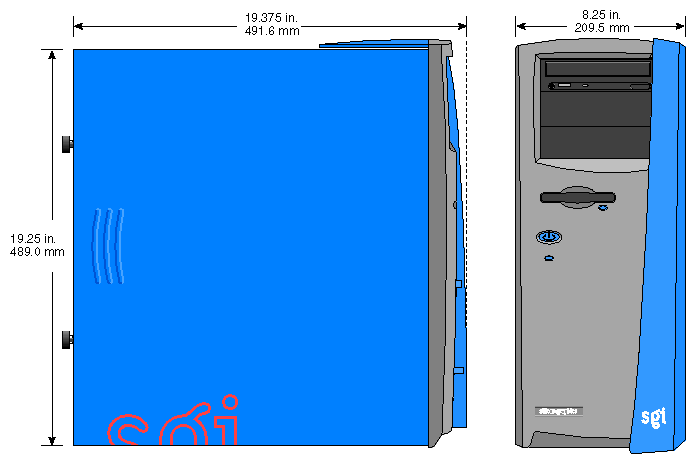

Figure B-1 shows the system dimensions with bezel.
