This appendix contains technical specification information about your system, as follows:
Table A-1 summarizes the Altix 3700 Bx2 system configuration ranges.
Table A-1. Altix 3700 Bx2 System Configuration Ranges
Category | Minimum | Maximum |
|---|---|---|
Processors | 8 | 512 |
|
|
|
CR–brick DIMM capacity | 16 | 48 |
System main memory capacity | 8 GB (4-node bricks) | 6 TB (64-node bricks) |
Available XIO I/O channels | 2 | 128 |
Number of I/O bricks | One IX-brick | One IX-brick and seven PX-bricks |
Table A-2 shows the physical specifications of the Altix 3700 Bx2 system.
Table A-2. Altix 3700 Bx2 Physical Specifications
Feature | Specification |
|---|---|
Dimensions for a single tall rack, including doors and side panels | Height: 74.25 in. (1886 mm) |
Shipping dimensions | Height: 80 in. (2032 mm) |
Weight (maximum) Compute rack I/O rack Disk rack
|
1400 lb (635 kg) 1225 lb (556 kg) 1400 lb (635 kg)
|
Shipping weight (maximum) Compute rack I/O rack Disk rack
|
1785 lb (810 kg) 1588 lb (720 kg) 1785 lb (810 kg) |
Access requirements Front Rear Side
|
48 in. (1219 mm) 48 in. (1219 mm) None |
Table A-3 lists the environmental specifications of the system.
Table A-3. Environmental Specifications
Feature | Specification |
|---|---|
Temperature tolerance | +5 °C (41 °F) to +35 °C (95 °F) (up to 1500 m / 5000 ft.) |
Temperature tolerance | -40 °C (-40 °F) to +60 °C (140 °F) |
Relative humidity | 10% to 80% operating (no condensation) |
Heat dissipation to air Altix 3700 Bx2 (rack) |
37.2 kBTU/hr maximum (based on 10.9 kW) |
Cooling requirement | Ambient air |
Air flow: intake (front), exhaust (rear) | Approximately 3200 CFM |
Maximum altitude | 10,000 ft. (3,049 m) operating |
Acoustical noise level | Less than 65 dBa maximum |
Table A-4 shows the power specifications for the system.
Table A-4. Power Specifications
Feature | Specification |
|---|---|
Single-phase power requirements Voltage Frequency Power |
200-240V (180-254 VAC min/max) 50-60 Hz 11.2 kW per rack |
Hold-up time | 20 ms |
Total harmonic distortion | Less than 14% at full load |
This section contains specifications and port pinout information for the base I/O ports of your system, as follows:
The system auto-selects the Ethernet port speed and type (duplex vs. half-duplex) when the server is booted, based on what it is connected to. Figure A-1 shows the Ethernet port.
Table A-5 shows the cable pinout assignments for the Ethernet port operating in 10/100-Base-T mode and also operating in 1000Base-T mode.
Ethernet 10/100Base-T Pinouts | Gigabit Ethernet Pinouts |
|---|---|
Pins Assignment | Pins Assignment |
1 Transmit + | 1 Transmit/Receive 0 + |
2 Transmit – | 2 Transmit/Receive 0 – |
3 Receive + | 3 Transmit/Receive 1 + |
4 NU | 4 Transmit/Receive 2 + |
5 NU | 5 Transmit/Receive 2 – |
6 Receive – | 6 Transmit/Receive 1 – |
7 NU | 7 Transmit/Receive 3 + |
8 NU | 8 Transmit/Receive 3 – |
NU = Not used
The IX-brick features two standard available 9-pin serial ports via the base I/O PCI card. These ports are capable of transferring data at rates as high as 230 kbps. Other features of the ports include the following:
Programmable data, parity, and stop bits
Programmable baud rate and modem control

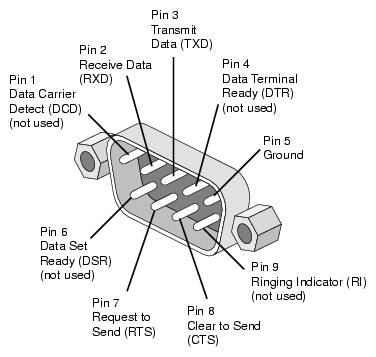

Figure A-2 shows a serial port.
Table A-6 shows pinout assignments for the 9-pin male DB-9 connector.
Pin | Assignment | Description |
|---|---|---|
1 | DCD | Data carrier detect |
2 | RXD | Receive data |
3 | TXD | Transmit data |
4 | DTR | Data terminal ready |
5 | GND | Signal ground |
6 | DSR | Data set ready |
7 | RTS | Request to send |
8 | CTS | Clear to send |
9 | RI | Ring indicator |
