Appendix A. Technical Specifications

This chapter contains technical information about the Silicon Graphics Fuel visual workstation. The following topics are covered:

Physical Environment Specifications

Table A-1 shows the physical environment specifications for the Silicon Graphics Fuel visual workstation.

Table A-1. Physical Environment Specifications

Feature

Specification

Workstation dimensions

Height: 19.0 in.

Width: 8.9 in. at the bezel

8.3 in. on the rest of the chassis

Depth: 19.4 in. from front of bezel to rear of chassis

Workstation weight

Base system



42 lb. (19 kg)

Power requirements

Voltage and frequency: 100-240 VAC, 50-60 Hz, 7.0-3.0 A, 430 W

Voltage and frequency

50-60Hz and 100-120/200-240 VAC

Temperature Tolerance
(operating)

+5 o C (13.6 oF) to +35 oC (95 oF) 5000 ft. ASL or less

+5 o C (13.6 oF) to +30o C (81.6 oF) 5000 ft. ASL to 10,000 ft. ASL

Temperature tolerance
(non-operating)

-40 C (-40 oF) to +60 o C (140o F)

Relative humidity

10% to 80% operating (no condensation)

10% to 95% non-operating (no condensation)

Heat dissipation

1075 Btu/hr

Maximum altitude

10,000 ft. (3,049 m) operating

40,000 ft. (12,195 m) non-operating

Vibration, sine sweep (operating)

0.01”, 5-19 Hz; 0.25 G, 19-500 Hz

Vibration, sine sweep (non-operating)

0.10”, 3-10 Hz; 0.5 G, 10-200 Hz

Vibration, random
(operating)

0.10 Grms for 15 minutes

Vibration, random
(non- operating)

1.15 Grms for 15 minutes

Shock, half-sine wave (operating)

30 G, 3 msec (vertical); 15 G, 3 msec. (horizontal)

Shock, trapezoidal wave (non-operating)

30 G, 200 in./sec.

Sound power

4.29 bels

Sound pressure

38.8dBA at operator position per ISO 7779


Power Supply Specifications

Table A-2 shows the power supply specifications for the Silicon Graphics Fuel visual workstation.

Table A-2. Power Supply Specifications

Feature

Specification

AC line voltage rating

90-264 VAC RMS nominal, 47-63 Hz

Output ratings

45 amps @ 3.3 V



27 amps @ 5 V



16 amps @ +12 V

18 amps @ +12 V (digital)

0.6 amps @ -12 V



3 amps @ +5 stand by

Combined output Limit

Combined 3.3-V, 5-V, and 12-V output is limited to 300 watts.
An additional 18 amps @ 12 V powers the onboard switching regulators.


I/O Port Specifications

This section contains specifications and port pinout information for the I/O ports of the Silicon Graphics Fuel visual workstation. The ports are discussed in the following sections:

Ethernet 10-Base-T/100-Base-T Port

The workstation auto-selects the Ethernet port speed and type (duplex vs. half-duplex) when the workstation is booted, based on what it is connected to. Figure A-1 shows the Ethernet port.

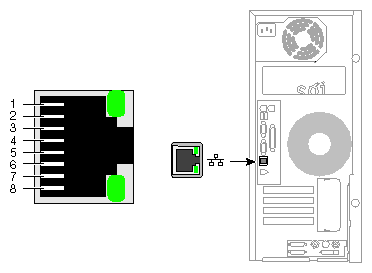

Figure A-1. Ethernet 10-Base-T/100-Base-T Port

Ethernet 10-Base-T/100-Base-T Port

Table A-3 shows the cable pinout assignments for the Ethernet port.

Table A-3. Ethernet 10-Base-T/100-Base-T Port Pinout

Pin

Assignment

1

Transmit+

2

Transmit–

3

Receive+

4

(Reserved)

5

(Reserved)

6

Receive–

7

(Reserved)

8

(Reserved)


IEEE 1284-A Parallel Port

The parallel port on the workstation is bi-directional and supports both EPP and ECP modes. Figure A-2 shows the IEEE 1284-A parallel port.

Figure A-2. IEEE 1284-A Parallel Port

IEEE 1284-A Parallel Port

Table A-4 shows the cable pinout assignments for the IEEE 1284-A parallel port.

Table A-4. IEEE 1284-A Parallel Port Pinout

Pin

Assignment

Pin

Assignment

1

Strobe

14

AutoFd

2

Data 1 (least significant bit)

15

Fault

3

Data 2

16

Init

4

Data 3

17

SelectIn

5

Data 4

18

Signal Ground

6

Data 5

19

Signal Ground

7

Data 6

20

Signal Ground

8

Data 7

21

Signal Ground

9

Data 8 (most significant bit)

22

Signal Ground

10

Ack

23

Signal Ground

11

Busy

24

Signal Ground

12

Error

25

Signal Ground

13

Select






Keyboard and Mouse Ports

The workstation uses keyboards and mouse devices that are PS/2-compatible. The combined current draw of the keyboard and mouse is limited to 0.5 amps at +5V. Figure A-3 shows the keyboard and mouse ports.

Figure A-3. Keyboard and Mouse Ports

Keyboard and Mouse Ports

Table A-5 shows the pinout assignments for the keyboard and mouse ports.

Table A-5. Keyboard and Mouse Port Pinout

Pin

Assignment

1

Keyboard/mouse data

2

(Reserved)

3

Ground

4

Keyboard/mouse power (+5V)

5

Keyboard/mouse clock

6

(Reserved)


Serial Ports

The workstation features two 9-pin serial ports. These ports are capable of transferring data at rates as high as 230 kbps. Other features of the ports include:

  • Programmable data, parity, and stop bits

  • Programmable baud rate and modem control

Figure A-4 shows a serial port.

Figure A-4. Serial Port

Serial Port

Table A-6 shows pinout assignments for the 9-pin male DB-9 connector.

Table A-6. Serial Port Pinout

Pin

Assignment

Description

1

DCD

Data carrier detect

2

RXD

Receive data

3

TXD

Transmit data

4

DTR

Data terminal ready

5

GND

Signal ground

6

DSR

Data set ready

7

RTS

Request to send

8

CTS

Clear to send

9

RI

Ring indicator


USB Ports

The workstation is equipped with two USB-A ports. These ports support both low-speed (1.5 Mbps) and high-speed (12 Mbps) USB devices. They are connected to a USS-312 USB controller, which uses a 32-bit, 33-MHz PCI interface. Figure A-5 shows the USB-A ports.

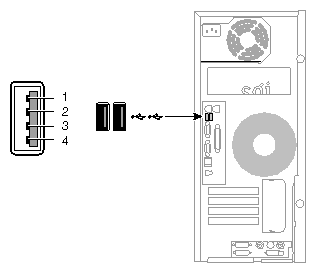

Figure A-5. USB-A Port

USB-A Port

Table A-7 shows the pinout information for the USB-A ports.

Table A-7. USB-A Port Pinout

Pin

Assignment

1

+5 V

2

- DATA

3

+ DATA

4

GND


Note: The Silicon Graphics Fuel visual workstation also has a USB-B port, but this port is used only for system maintenance. Do not attempt to connect any devices to the USB-B port.

Serial Cables and Adapter Specifications

This section contains cable pinout information for serial cables that you can connect to your Silicon Graphics Fuel visual workstation. It also describes SGI serial port converters. The following topics are covered:

Printer/Dumb Terminal Serial Cable

For serial printers and dumb terminals, use a 3-wire standard PC cable. Table A-8 shows the cable connector pinout assignments for this cable.

Note: For a 3-wire cable and no hardware flow control modem, you must use the /dev/ttyd* command devices in the configuration files. For more detailed information, see the serial man page. To access the man page, select Help > InfoSearch > Man pages from the Toolchest or place the cursor in the console window and type man serial.

Table A-8. Printer/Dumb Terminal Cable Pinout

Signal Description

Pin Number
DB-9 Connector (Female)

Pin Number
DB-25 Connector (Male)



1

NOT CONNECTED

RXD

2

2

TXD

3

3



4

NOT CONNECTED

GND

5

7



6

NOT CONNECTED



7

NOT CONNECTED



8

NOT CONNECTED



9

NOT CONNECTED


PC Modem Serial Cable

Use a full-handshake (includes RTS and CTS) PC modem serial cable for a modem with RTS/CTS flow control. Table A-9 shows the cable connector pin assignments for this cable.

You can use this cable for all serial devices except those that do not need RTS flow control. If you add a null modem adapter to one end of the cable, you can still use it with devices like serial printers and dumb terminals that do not need RTS flow control. You can purchase the full-handshake PC modem serial cable from SGI or your local service provider.

Note: If you are attaching a modem with modem signals and RTS/CTS flow control, you must use the /dev/ttyf* command devices in the configuration files. For more detailed information, see the serial man page. To access this man page, select Help > InfoSearch > Man pages from the Toolchest or place the cursor in the console window and type man serial.

Table A-9. PC Modem Cable Pinout

Signal Description

Pin Number
DB-9 Connector (Female)

Pin Number
DB-25 Connector (Male)

DCD

1

8

RXD

2

3

TXD

3

2

DTR

4

20

GND

5

7

DSR

6

6

RTS

7

4

CTS

8

5

RI

9

22


Serial Port Adapter Cables

The workstation's serial ports conform to the PC standard pinout for EIA standard RS-232 signals.

The purpose of the adapter cable is to allow the workstation to use standard PC serial devices. Table A-10 shows the adapter cable pinout for a standard PC or Macintosh serial port.

Table A-10. Female DB-9 to Female MiniDIN8 Adapter Cable Pinout

From: Female DB

To: MiniDIN8

PC Signal

Macintosh Signal

1

7

DCD

GPi

2

5

RD

RxD-

3

3

TD

TxD-

4

1

DTR

TxD+

5

4

SG

SG

6

8

DSR

RxD+

7

6

RTS

HSKo

8

2

CTS

HSKi

9

Unused

RI

Unused

The purpose of the following adapter cable is to support ANSI/SMPTE Standard 107M-1992.

Table A-11 shows the pinout for a female DB-9 to female DB-9 adapter cable.

Table A-11. Female DB-9 to Female DB-9 Adapter Cable Pinout

Female DB-9 Connected
to Workstation

Female DB-9 Connected
to Peripheral

1

Unused

2

To DB9 -2 (RxD-)

3

To DB9-8 (TxD-)

4

Unused

5

To DB9-6 and DB9-4 (GND)

6

To DB9-7 (RxD+)

7

To DB9-3 (TxD+)

8

Unused

9

Unused


Note: For more detailed information, see the serial man page. To access it, open an IRIX shell and enter man serial

You can also access man pages by selecting Help > InfoSearch and entering man serial.

VPro Graphics Board I/O Port Specifications

This section provides specifications for the following ports:

DVI-I Video Port

Figure A-6 shows the DVI-I video port.

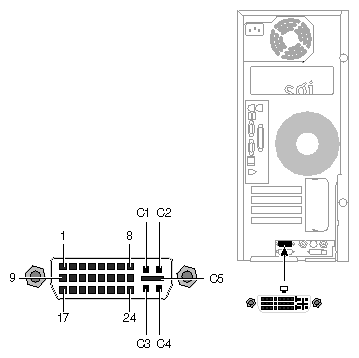

Figure A-6. DVI-I Port

DVI-I Port

Table A-12 shows the port pinout assignments for DVI-I port(s).

Table A-12. DVI-I Video Port Pinout

Pin

Assignment

Pin

Assignment

1

DATA 2-

16

HOT_POWER

2

DATA2+

17

DATA 0-

3

SHIELD 2/4

18

DATA 0+

4

DATA 4-

19

SHIELD 0/5

5

DATA 4+

20

DATA 5-

6

DDC_CLOCK

21

DATA 5+

7

DDC_DATA

22

SHIELD CLOCK

8

VSYNC

23

CLOCK -

9

DATA 1-

24

CLOCK +

10

DATA1+

C1

A_RED

11

SHIELD 1/3

C2

A_GREEN

12

DATA 3-

C3

A_BLUE

13

DATA 3+

C4

HYNSC

14

DDC_POWER

C5

A_GROUND2

15

A_GROUND1

C6

A_GROUND3

Table A-13 lists the scan rates supported by the VPro graphics board.

Table A-13. Supported VPro Graphics Board Scan Rates

Format

Supported by

V10 8bpp

Supported by

V10 16bpp

Supported by

V12

1024x768 at 60Hz,75Hz, and 96Hz-Stereo

yes

yes

yes

1280x1024 at 59, 60, 72, 75, 85Hz, and 96Hz-Stereo

yes

yes

yes

1280x1024 at 100Hz Stereo
(also through DCD2 on V12)

yes



yes

1280x720 at 60 and 72 Hz

yes

yes

yes

1280x1024 at 30 Hz interlaced

yes



yes

1280x960 at 30 Hz interlaced

yes



yes

1600x1024 at 83 Hz

yes



yes

1600x1200 at 60, 72, and 75 Hz

yes

no

yes

1920x1035 at 30 Hz interlaced

yes



yes

1920x1080 at 30 Hz interlaced

yes



yes

1920x1200 at 60 Hz

yes



yes

1920x1200 at 25 and 30 Hz

yes



yes


Stereo View Port

The following diagram shows the Stereo View port.

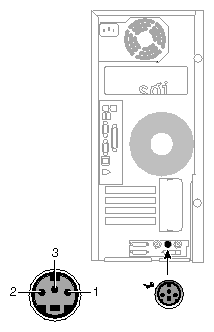

Figure A-7. StereoView Port

StereoView Port

Table A-14 shows the cable pinout assignments for the Stereo View port on the VPro graphics board.

Table A-14. Stereo View Pinout Assignments

Pin

Assignment

1

+12 V DC output to Stereo View device

2

Ground

3

Stereo left/right Eye signal (1=left, 0=right) (STEREO_LEFT)


Genlock Port

The following diagram shows the Genlock port.

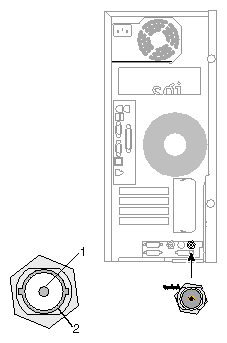

Figure A-8. Genlock Port

Genlock Port

Table A-15 shows the cable pinout assignments for the Genlock port on the VPro graphics board

Table A-15. Genlock Pinout Assignments

Pin

Assignment

1

Genlock Input/output video or 3.3V TTL signal levels

2

Sigma - return ground


Swap Ready Port

The following diagram shows the Swap Ready port.

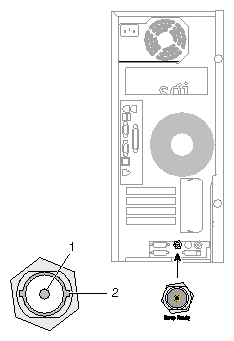

Figure A-9. Swap Ready Port

Swap Ready Port

Note: The swap ready port is not functional with this release, but may be at a future date.

Table A-16 shows the cable pinout assignments for the Swap Ready port on the VPro graphics board.

Table A-16. Swap Ready Pinout Assignments

Pin

Assignment

1

Swapbuffer gang sync open Collector I/O

2

Signal return ground
