Appendix A. Technical Specifications and Pinouts

This chapter contains technical information about the Silicon Graphics® Tezro™ visual workstation. The following topics are covered:

Physical and Environmental Specifications

Table A-1 shows the physical and environmental specifications for the workstation.

Table A-1. Physical Environment Specifications

Feature

Specification



Workstation dimensions

17 in. (44 cm) tall
13.75 in. (35 cm) wide
20.75 in. (53 cm) deep





Note: The rear fan assembly extends an additional 1.25 inches (3 cm) from the rear of the enclosure. You must leave adequate clearance for airflow at the rear of the enclosure.





Weight

60.6 lb. (27.5 kg)



Power requirements

50-60 Hz and 100-120/200-240 VAC



Voltage and frequency

100-240 VAC, 50-60 Hz, 7.0-3.0 A, 430 W



Temperature Tolerance
(operating)

+5 o C (41 oF) to +35 oC (95 oF) 5000 ft ASL or less

+5 o C (41 oF) to +30 oC (86 oF) 5000 ft ASL to 10,000 ft ASL



Temperature tolerance
(non-operating)

-40 oC (-40 oF) to +85 o C (185 o F)



Relative humidity

10% to 80% operating (no condensation)

10% to 95% non-operating (no condensation)



Heat dissipation

815 Btu/h minimum

2053 Btu/h maximum



Maximum altitude

10,000 ft (3,049 m) operating

40,000 ft (12,195 m) non-operating





Vibration, sine sweep (operating)

5-500-5 Hz, 0.25 G input



Vibration, sine sweep (non-operating)

3-200-3 Hz, 0.5 G input



Vibration, random
(operating)

0.10 Grms for 15 minutes



Vibration, random
(non-operating)

1.15 Grms for 15 minutes



Shock, half-sine wave (operating)

30 G, 3 msec (vertical);
15 G, 3 msec. (horizontal)



Shock, trapezoidal wave (non-operating)

35 G, 200 in./sec.



Sound power

5.2 bels per ISO 7779 at +5 o C to +25 o C up to 5000 feet altitude; higher temperatures or altitudes will increase sound



Sound pressure

39.4 dBA at operator position per ISO 7779




Power Supply Specifications

Table A-2 shows the power supply specifications for the workstation.

Table A-2. Power Supply Specifications

Feature

Specification

AC line voltage rating

90-264 VAC RMS nominal, 50-60 Hz

Output ratings

24 amps @ 3.3 V



24 amps @ 5 V



8 amps @ +12 V1

12 amps @ +12 V2

18 amps @ +12 V3

0.5 amps @ -12 V

2 amps @ +5 standby

Combined output Limit

Combined 3.3-V, 5-V, and 12-V output is limited to 500 watts.


I/O Port Specifications

This section contains specifications and port pinout information for the I/O ports of the workstation. The ports are discussed in the following sections:

Ethernet 10-Base-T/100-Base-T Port

The workstation auto-selects the Ethernet port speed and type (duplex versus half-duplex) when the workstation is booted, based on what it is connected to. Figure A-1 shows the Ethernet port.

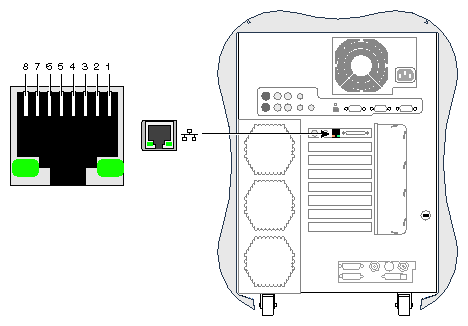

Figure A-1. Ethernet 10-Base-T/100-Base-T Port Pinout and Location

Ethernet 10-Base-T/100-Base-T Port Pinout and Location

Table A-3 shows the cable pinout assignments for the Ethernet port.

Table A-3. Ethernet 10-Base-T/100-Base-T Port Pinout

Pin

Assignment

1

Transmit+

2

Transmit–

3

Receive+

4

(Reserved)

5

(Reserved)

6

Receive–

7

(Reserved)

8

(Reserved)


Keyboard and Mouse Ports

The workstation uses keyboards and mouse devices that are PS/2-compatible. The combined current draw of the keyboard and mouse is limited to 0.5 amps at +5V. Figure A-2 shows the keyboard and mouse ports.

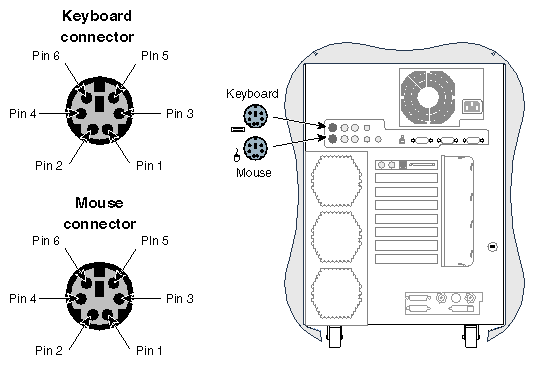

Figure A-2. Keyboard and Mouse Port Pinouts and Locations

Keyboard and Mouse Port Pinouts and Locations

Table A-4 shows the pinout assignments for the keyboard and mouse ports.

Table A-4. Keyboard and Mouse Port Pinout

Pin

Assignment

1

Keyboard/mouse data

2

(Reserved)

3

Ground

4

Keyboard/mouse power (+5V)

5

Keyboard/mouse clock

6

(Reserved)


Serial Ports

The workstation features two 9-pin serial ports. These ports are capable of transferring data at rates as high as 230 KB/s. Other features of the ports include:

  • Programmable data, parity, and stop bits

  • Programmable baud rate and modem control

Figure A-3 shows a serial port.

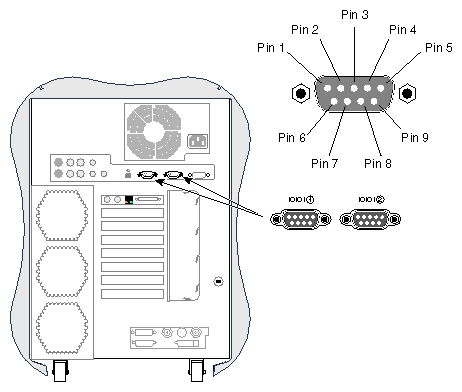

Figure A-3. Serial Port Pinouts and Locations

Serial Port Pinouts and Locations

Table A-5 shows pinout assignments for the 9-pin male DB-9 connector.

Table A-5. Serial Port Pinout

Pin

Assignment

Description

1

DCD

Data carrier detect

2

RXD

Receive data

3

TXD

Transmit data

4

DTR

Data terminal ready

5

GND

Signal ground

6

DSR

Data set ready

7

RTS

Request to send

8

CTS

Clear to send

9

RI

Ring indicator


Serial Cables and Adapter Specifications

This section contains cable pinout information for serial cables that you can connect to your workstation. It also describes SGI serial port converters. The following topics are covered:

Printer/Dumb Terminal Serial Cable

For serial printers and dumb terminals, use a 3-wire standard PC cable. Table A-6 shows the cable connector pinout assignments for this cable.

Note: For a 3-wire cable and no hardware flow control modem, you must use the /dev/ttyd* command devices in the configuration files. For more detailed information, see the serial man page. To access the man page, select Help > Man pages from the Toolchest or place the cursor in the console window and type man serial.

Table A-6. Printer/Dumb Terminal Cable Pinout

Signal Description

Pin Number
DB-9 Connector (Female)

Pin Number
DB-25 Connector (Male)



1

NOT CONNECTED

RXD

2

2

TXD

3

3



4

NOT CONNECTED

GND

5

7



6

NOT CONNECTED



7

NOT CONNECTED



8

NOT CONNECTED



9

NOT CONNECTED


PC Modem Serial Cable

Use a full-handshake (includes RTS and CTS) PC modem serial cable for a modem with RTS/CTS flow control. Table A-7 shows the cable connector pin assignments for this cable.

You can use this cable for all serial devices except those that do not need RTS flow control. If you add a null modem adapter to one end of the cable, you can still use it with devices like serial printers and dumb terminals that do not need RTS flow control. You can purchase the full-handshake PC modem serial cable from SGI or your local service provider.

Note: If you are attaching a modem with modem signals and RTS/CTS flow control, you must use the /dev/ttyf* command devices in the configuration files. For more detailed information, see the serial man page. To access this man page, select Help > Man pages from the Toolchest or place the cursor in the console window and type man serial.

Table A-7. PC Modem Cable Pinout

Signal Description

Pin Number
DB-9 Connector (Female)

Pin Number
DB-25 Connector (Male)

DCD

1

8

RXD

2

3

TXD

3

2

DTR

4

20

GND

5

7

DSR

6

6

RTS

7

4

CTS

8

5

RI

9

22


Serial Port Adapter Cables

The workstation's serial ports conform to the PC standard pinout for EIA standard RS-232 signals.

The purpose of the adapter cable is to allow the workstation to use standard PC serial devices. Table A-8 shows the adapter cable pinout for a standard PC or Macintosh serial port.

Table A-8. Female DB-9 to Female MiniDIN8 Adapter Cable Pinout

From: Female DB

To: MiniDIN8

PC Signal

Macintosh Signal

1

7

DCD

GPi

2

5

RD

RxD-

3

3

TD

TxD-

4

1

DTR

TxD+

5

4

SG

SG

6

8

DSR

RxD+

7

6

RTS

HSKo

8

2

CTS

HSKi

9

Unused

RI

Unused

The purpose of the following adapter cable is to support ANSI/SMPTE Standard 107M-1992.

Table A-9 shows the pinout for a female DB-9 to female DB-9 adapter cable.

Table A-9. Female DB-9 to Female DB-9 Adapter Cable Pinout

Female DB-9 Connected
to Workstation

Female DB-9 Connected
to Peripheral

1

Unused

2

To DB9 -2 (RxD-)

3

To DB9-8 (TxD-)

4

Unused

5

To DB9-6 and DB9-4 (GND)

6

To DB9-7 (RxD+)

7

To DB9-3 (TxD+)

8

Unused

9

Unused


Note: For more detailed information, see the serial man page. To access it, open an IRIX shell and enter man serial

You can also access man pages by selecting Help > InfoSearch and entering man serial.

VPro Graphics Board I/O Port Specifications

This section provides specifications for the following ports:

DVI-I Video Port

Figure A-4 shows the DVI-I video port.

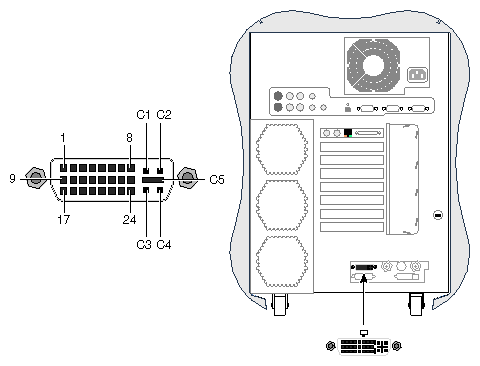

Figure A-4. DVI-I Port Pinout and Location

DVI-I Port Pinout and Location

Table A-10 shows the port pinout assignments for DVI-I port(s).

Table A-10. DVI-I Video Port Pinout

Pin

Assignment

Pin

Assignment

1

DATA 2-

16

HOT_POWER

2

DATA2+

17

DATA 0-

3

SHIELD 2/4

18

DATA 0+

4

DATA 4-

19

SHIELD 0/5

5

DATA 4+

20

DATA 5-

6

DDC_CLOCK

21

DATA 5+

7

DDC_DATA

22

SHIELD CLOCK

8

VSYNC

23

CLOCK -

9

DATA 1-

24

CLOCK +

10

DATA1+

C1

A_RED

11

SHIELD 1/3

C2

A_GREEN

12

DATA 3-

C3

A_BLUE

13

DATA 3+

C4

HYNSC

14

DDC_POWER

C5

A_GROUND2

15

A_GROUND1

C6

A_GROUND3

Table A-11 lists the scan rates supported by the VPro graphics board.

Table A-11. Supported VPro Graphics Board Scan Rates

Resolution

Refresh Rate

1024x768

60 Hz,75 Hz, and 96 Hz-Stereo

1280x1024

59, 60, 72, 75, 85 Hz, and 96 Hz-Stereo

1280x1024

100 Hz Stereo (also through DCD2)

1280x720

60 and 72 Hz

1280x1024

30 Hz interlaced

1280x960

30 Hz interlaced

1600x1024

 83 Hz

1600x1200

60, 72, and 75 Hz

1920x1035

30 Hz interlaced

1920x1080

30 Hz interlaced

1920x1200

60 Hz

1920x1200

25 and 30 Hz


Stereo View Port

The following diagram shows the Stereo View port.

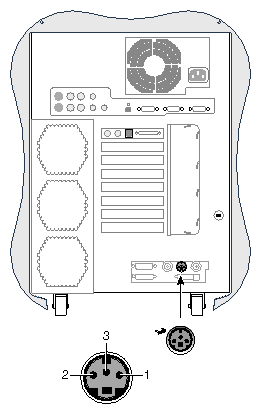

Figure A-5. StereoView Port Pinout and Location

StereoView Port Pinout and Location

Table A-12 shows the cable pinout assignments for the Stereo View port on the VPro graphics board.

Table A-12. Stereo View Pinout Assignments

Pin

Assignment

1

+12 VDC output to Stereo View device

2

Ground

3

Stereo left/right Eye signal (1=left, 0=right) (STEREO_LEFT)


Genlock Port

The following diagram shows the Genlock port.

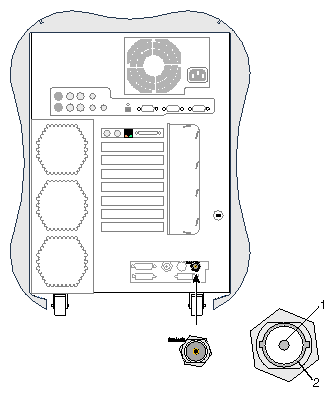

Figure A-6. Genlock Port Pinout and Location

Genlock Port Pinout and Location

Table A-13 shows the cable pinout assignments for the Genlock port on the VPro graphics board

Table A-13. Genlock Pinout Assignments

Pin

Assignment

1

Genlock Input/output video or 3.3V TTL signal levels

2

Sigma - return ground


Swap Ready Port

The following diagram shows the Swap Ready port.

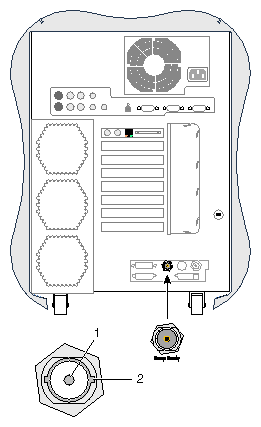

Figure A-7. Swap Ready Port Pinout and Location

Swap Ready Port Pinout and Location

Table A-14 shows the cable pinout assignments for the Swap Ready port on the VPro graphics board.

Table A-14. Swap Ready Pinout Assignments

Pin

Assignment

1

Swapbuffer gang sync open Collector I/O

2

Signal return ground
