This chapter provides safety instructions to follow when using and maintaining your system. It also describes how to install and remove module customer-replaceable units (CRUs). This information is covered in the following sections:
Before you perform any type of maintenance to your system, read the following safety instructions:
Follow all warnings and instructions marked on the product and noted in this and other documentation included with the product.
Unplug this product from the wall outlet before you clean it. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water.
Do not place this product or components of this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
Slots and openings on the cabinet and components are provided for ventilation, reliable operation, and protection from overheating of the product. These slots and openings must not be blocked or covered. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
This product should be operated with the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
Do not use extension cords with your SGI system.
Never push objects of any kind into this product through cabinet slots because they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
Do not attempt to service this product yourself except as noted in this guide. Opening or removing covers of internal components may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
If the power cord or plug is damaged or frayed.
If the product has been exposed to rain, water, or other type of liquid.
If the product does not operate normally when the operating instructions are followed.
Note: Adjust only those controls that are covered by the operating instructions, because improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition. If the product has been dropped or if the cabinet has been damaged.
If the product exhibits a distinct change in performance, which indicates a need for service.
Only qualified service personnel should replace the soldered lithium battery (or batteries) in the SGI Origin 350 server system. Please see the “Lithium Battery Statement” in Appendix B for more information.
Use only the proper type of power supply cord set (provided with the system) for this unit.

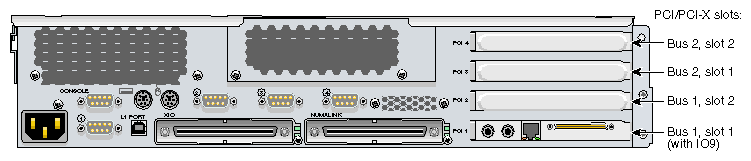

Your system module and various optional modules in your system support PCI and PCI–X cards. The following instructions, which describe how to install and remove a PCI or PCI–X card from an Origin 350 server system base compute module, can be used to install and remove PCI and PCI–X cards from the expansion compute module and a memory and PCI expansion (MPX) module. Figure 6-1 shows the location of the PCI and PCI–X card slots in the base compute module.
For an updated list of supported PCI and PCI-X cards, see SGI Supportfolio at http://support.sgi.com .
This section describes the following:
When installing or removing PCI or PCI–X cards from your system, be aware of the following rules:
If you run a PCI and PCI–X cards on the same bus at the same time, the PCI–X card will run on PCI mode.
If you run cards of different speeds on the same bus, the highest-speed card will run at the speed of the slower card. For example, if a card is running at 100 MHz in one slot of a bus and a card is running at 33 MHz on the second slot of the same bus, both cards will run at 33 MHz.
When deciding to install a PCI or PCI–X card, be aware that if an IO9 card (a PCI card that runs at 66 MHz) is installed in your module (usually in the lowermost slot), and if you want to install a card in a slot (slot immediately above where the IO9 card is installed) that is on the same bus as the IO9 card, the slot will operate only in PCI mode at a speed no faster than 66 MHz.
Note the following caution when installing or removing a card:
Caution: Electronic equipment can be irreparably damaged by electrostatic discharge (ESD). Always follow these preventive measures when you handle a system component:
- Remove a component from its antistatic bag only when you are ready to install it.
- If you handle a component before installation, do not place it on surfaces that produce ESD (carpeting, for example) or near devices that create static electricity.
- Attach a static wrist strap to a grounded connection on your system when you install or remove a component.
To install a PCI or PCI–X card, follow these steps:
Power off the server system. For power off instructions, see “Powering the Server System On and Off” in Chapter 1.
Disconnect all of the cables at the rear of the module.
Warning: Components may be hot. To avoid injury, allow the components to cool for approximately five minutes before you proceed with these instructions. If your module is rackmounted, remove the two screws that secure the module to the front rails of the rack. If your module is not rackmounted, proceed to step 5.
Pull the module from the rack until it is stopped by the safety latches.
Note: If you are removing a card from one of the two lower slots (bus 1, slot 1, or bus 1, slot 2), you must remove the module from the rack. For instructions, see “Removing a Module on Slide Rails from a Rack” in Chapter 1. Make sure that you read “Safety Instructions ”, and “Rules for Card Installation and Removal” before beginning your card installation.
To access the card, remove the ten Phillips screws as shown in Figure 6-2 and lift the hinged cover. If you are installing a card into the top two PCI/PCI–X slots, you can install it without removing the module from the rack.

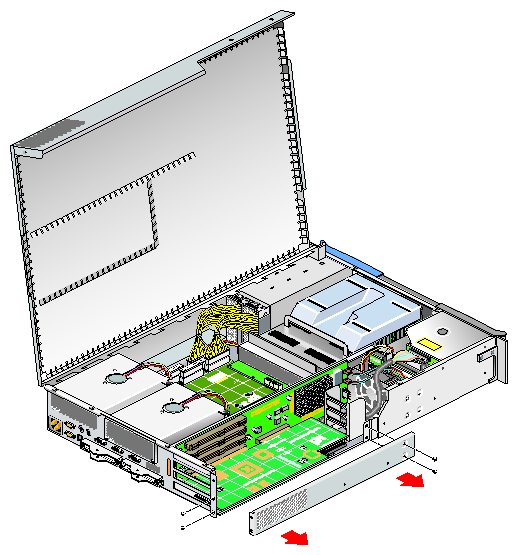

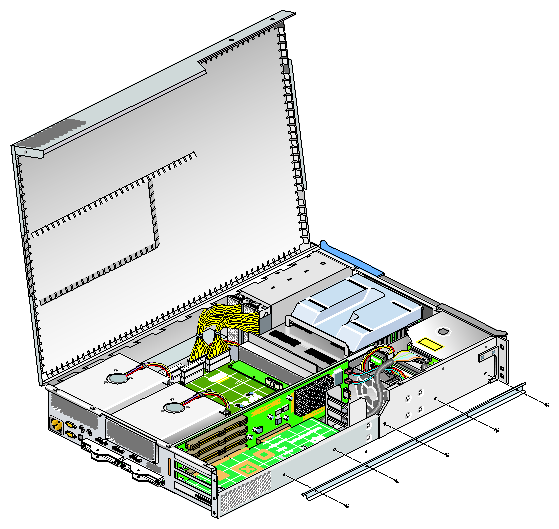

If you are installing a card in one of the two bottom–most card slots, you must also remove the chassis rail by unscrewing the five Phillips screws, as shown in Figure 6-3. (If you are not installing a card into one of the bottom-most card slots, proceed to step 9.)
Caution: Your system may or may not have a factory-installed IO9 card, which always comes installed in the lowermost slot. To prevent damage to your system, only a trained SGI service support engineer can install or remove an IO9 card. If you are installing a card in one of the two lowermost card slots, you must also remove the lower PCI/PCI–X support bracket that covers the two lowermost slots, as shown in Figure 6-4, by removing the four Phillips screws.

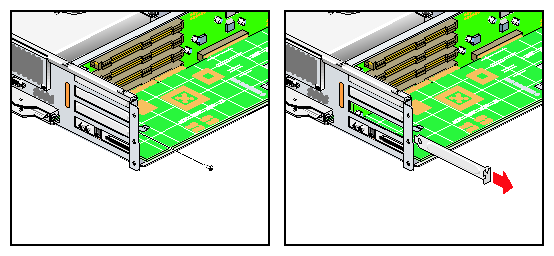

If a blanking plate covers the slot that is needed for the installation, remove the retaining screw, as shown in Figure 6-5, and the blanking plate.

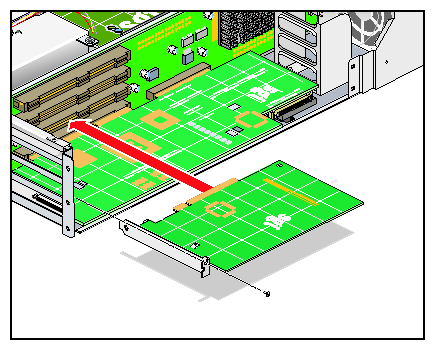

Insert the card into the slot by pushing the card into the connector until it is properly seated and install the retaining screw, as shown in Figure 6-6. If you have installed the card into one of the upper two slots, proceed to step 13.
If you have installed a card in one of the two bottom–most card slots, replace the lower PCI/PCI–X support bracket that covers the two bottom–most slots and screw in the four Phillips screws, as shown in Figure 6-7.
Replace the chassis rail by screwing in the five Phillips screws, as shown in Figure 6-8.

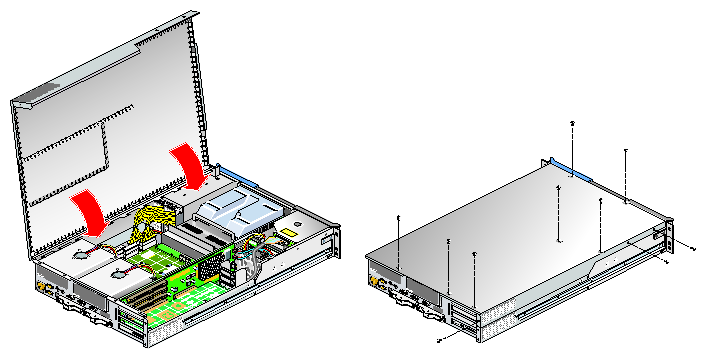

Close the hinged cover on the system and screw in the ten Phillips screws to secure the cover, as shown in Figure 6-9.
If you removed the module from the rack, perform the following substeps. (If you have not removed the module from the rack, proceed to step 15.)
Fully extend the left and right slide rails from the rack until they lock into place.
This step requires two people. With one person holding each side of the module, align the chassis rails of the module with the slide rails of the rack.
Slide the chassis rails into the slide rails until the chassis rails are stopped by the safety latches.
Press the safety latches on both sides of the module and slide the module into the rack.
Install the two screws that secure the module to the front rails of the rack.
Install all of the cables at the rear of the module.
Power on the server system. For power on instructions, see “Powering the Server System On and Off” in Chapter 1.
To remove a PCI or PCI–X card, follow these steps:
Power off the server system. For powering off instructions, see “Powering the Server System On and Off” in Chapter 1.
Disconnect all of the cables at the rear of the module.
Warning: Components may be hot. To avoid injury, allow the components to cool for approximately five minutes before you proceed with these instructions. Remove the two screws that secure the module to the front rails of the rack.
Pull the module from the rack until it is stopped by the safety latches.
Note: If you are removing a PCI or PCI–X card from one of the two lower slots (bus 1, slot 1, or bus 1, slot 2), you must remove the module from the rack. For instructions, see “Removing a Module on Slide Rails from a Rack” in Chapter 1. Make sure that you read “Safety Instructions ”, and “Rules for Card Installation and Removal”, before installing the card.
To access the card, remove the ten Phillips screws, as shown in Figure 6-10, and lift the hinged cover.
If you are removing a card from one of the two lowermost card slots, remove the chassis rail, by unscrewing the five Phillips screws as shown in Figure 6-11. (If you are not removing a PCI/PCI–X card from one of the two lowermost card slots, proceed to step 9.)
Caution: Only a trained SGI service support engineer can install and remove an IO9 card. Otherwise, your system could be damaged. Therefore, if an IO9 card is installed in your system (it is always installed in the lowermost slot), you can remove a card only from the upper three slots. If you are removing a card from one of the two lowermost slots, you must also remove the lower PCI/PCI–X support bracket that covers the two lowermost slots by unscrewing the four Phillips screws, as shown in Figure 6-12.

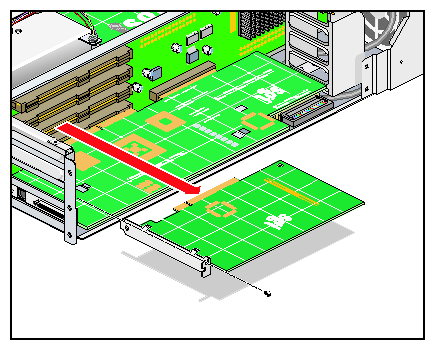

Unscrew the retaining screw from the card that you will remove, and extract the card, as shown in Figure 6-13. Place the card on an ESD-safe surface.
If you are replacing the card that you have removed, proceed to step 10 of “Installing a Card”. If you are not replacing the card that you have removed, proceed to the next step.

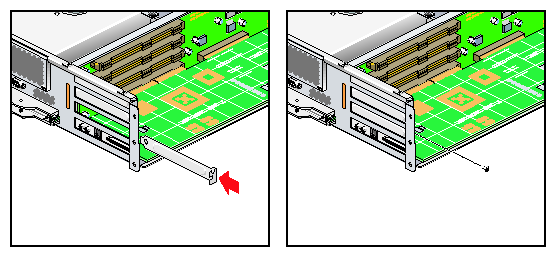

Place a blanking plate to cover the slot where you removed the card, and screw in the retaining screw, as shown in Figure 6-14. After installing the blanking plate, if you have removed a card from one of the two lowermost slots, proceed to the next step. Otherwise, proceed to step 14.
If you have removed a card from one of the two bottom–most card slots, replace the lower PCI/PCI–X support bracket that covers the two bottom–most slots, and screw in the four Phillips screws, as shown in Figure 6-15.
Replace the chassis rail, by screwing the five Phillips screws, as shown in Figure 6-16.
Close the hinged cover on the system and screw in the ten Phillips screws to secure the cover, as shown in Figure 6-17.
If you removed the module from the rack, follow these substeps. (If you have not removed the module from the rack, proceed to step 16.)
Fully extend the left and right slide rails from the rack until they lock into place.
This step requires two people. With one person holding each side of the module, align the chassis rails of the module with the slide rails of the rack.
Slide the chassis rails into the slide rails until the chassis rails are stopped by the safety latches.
Press the safety latches on both sides of the module, and slide the module into the rack.
Install the two screws that secure the module to the front rails of the rack.
Install all of the cables at the rear of the module.
Power on the server system. For powering on instructions, see “Powering the Server System On and Off” in Chapter 1.

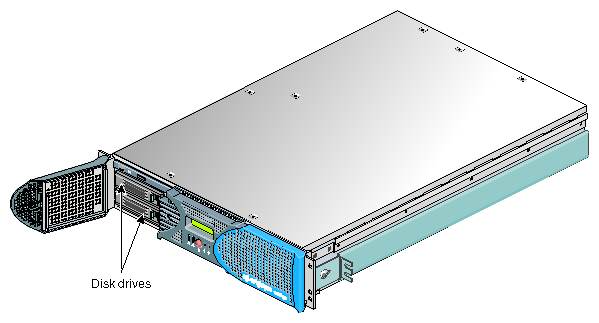

Each base compute module of an Origin 350 server system can contain one or two sled-mounted Ultra3 SCSI disk drives (see Figure 6-18).
| Note: A system expansion compute module, or an MPX module, may or may not contain disk drives. These modules would require an IO9 PCI card in order to have the SCSI disk drives. |

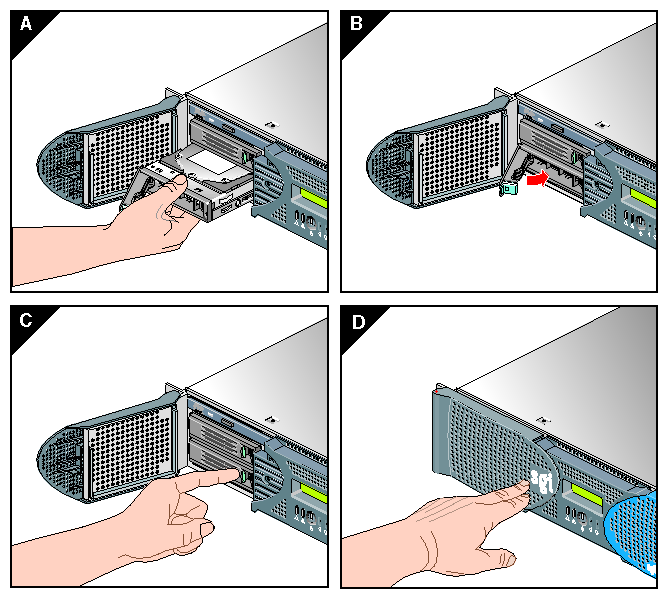

To install a disk drive, follow these steps:
Open the bezel door as far as it will open. Position the drive assembly so that it engages the bay guide rails and, with the locking handle fully swung open, gently push the drive into the bay until the locking handle engages with left side of the bay opening, as shown in Figure 6-19A.
Note: If you will have only one disk drive in your system, it should be located in the bottom–most slot. Swing the locking handle towards the chassis until the locking handle engages the latch, as shown in Figure 6-19B and Figure 6-19C.
Close the bezel door, as shown in Figure 6-19D.

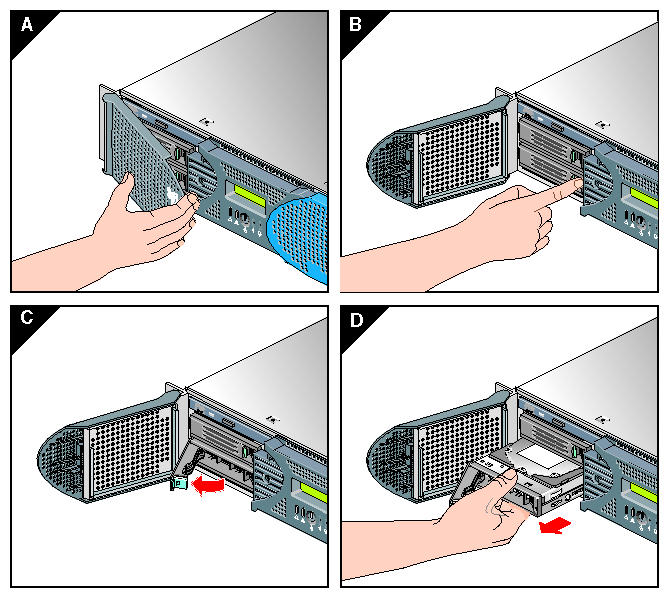

To remove a disk drive, follow these steps:
If you are replacing a data drive, ensure that the drive has spun down before you remove it.
If you are replacing the system drive, you must first power off the server system. For instructions to power off the server system, see “Powering the Server System On and Off” in Chapter 1.
Open the bezel door located on the left side of the front panel of the module, as shown in Figure 6-20A. (Make sure that you open the door as far as it will open.)
Remove the drive by depressing the locking handle with your forefinger (Figure 6-20B). Then swing open the locking handle away from the chassis until the handle disengages the drive connector from the backplane connector (see Figure 6-20C).
Note: If you will have only one disk drive, it should be located in the bottom–most slot. Carefully slide the drive out of the bay (see Figure 6-20D) and gently place it on a flat ESD-safe surface. (Do not use the handle to pull the drive out of the bay.)
If you are replacing the disk drive, proceed to “Installing a Disk Drive”. (After you have replaced the disk drive, return to step 8 for instructions to power on your module.) If you are not replacing the disk drive, proceed to the next step.
Close the bezel door.
Power on the server system as described in “Powering the Server System On and Off” in Chapter 1.

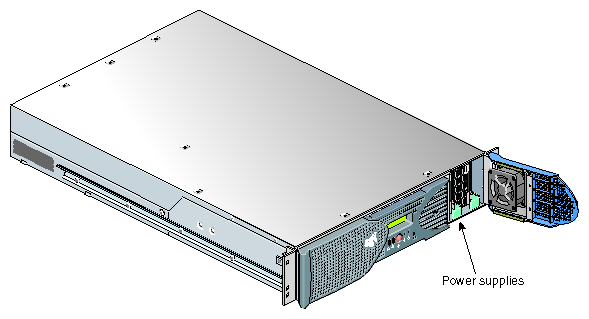

Each Origin 350 server system compute module and MPX module can contain one or two sled-mounted power supplies (refer to Figure 6-21). The second is a redundant power supply to assure that your system always has power.
This section provides the following information:
Use the LED located on the front (towards the top) of the power supply to read the condition of the power supply. Table 6-1 shows the LED status and the power supply condition the LED status indicates.
Table 6-1. LED Status and Power Supply Condition
LED Status | Power Supply Condition Indicated |
|---|---|
Off | If your system has one power supply, it indicates that the power supply is not receiving AC power. If your system has two power supplies, the LED on both power supplies would be Off, and it would indicate that both power supplies are not receiving AC power. Power supplies will not be receiving AC power because either the module is not plugged into power, or a electrical fuse has blown. |
Amber | Indicates a fault condition for one of the following reasons: - The temperature limit has been exceeded. - The current limit has been exceeded. |
Blinking Green | The power supply is receiving AC power, but the main primary DC power has not yet activated. |
Green | The power supply is operating properly. |
To replace a power supply, follow these steps:
If you are replacing a power supply in a module that has only one power supply (no redundant power supply), power off the server system as described in the “Powering the Server System On and Off” in Chapter 1. If you are replacing a redundant power supply, you do not have to power off your server system to replace the power supply.

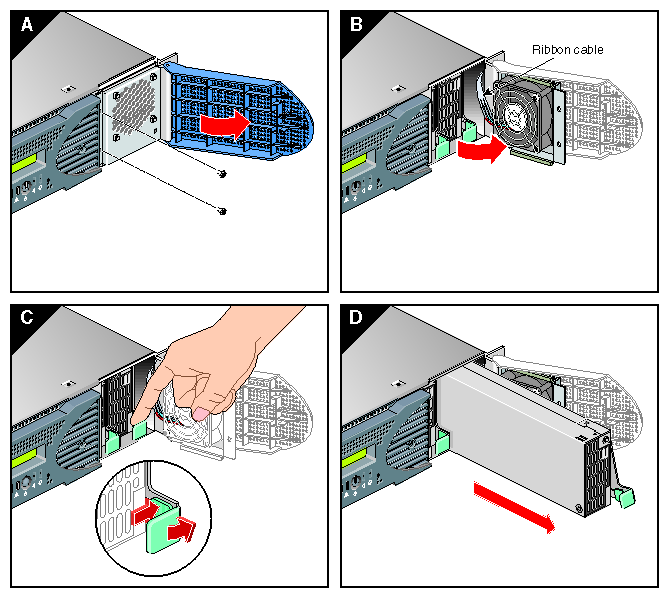

Remove the power supply to be replaced, as follows:
Swing open the bezel door located on the right side of the module front panel. With a Phillips screw driver, unscrew the two screws on the screen cover as shown in Figure 6-22A.
Swing open the screen cover as shown in Figure 6-22B.
Disengage the power supply from the power supply bay by pushing the interior release button to the right and pulling up and out on the green–colored handle lock as shown in Figure 6-22C.
Gently pull out the power supply from the chassis until it clears the power supply bay as shown in Figure 6-22D. Place the power supply on an ESD-safe surface.
Caution: When pulling out the power supply from the chassis, make sure not to disturb the power supply fan's ribbon cable.

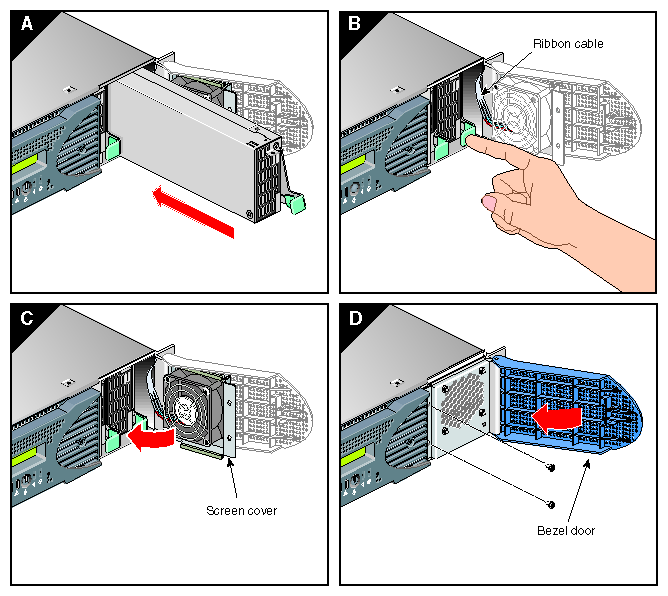

Install the replacement power supply, as follows:
Position the power supply in the slot and with the power supply handle pulled up (fully opened), gently push the power supply into the bay as shown in Figure 6-23A.
Caution: When installing the power supply, make sure that the power supply does not clip or pinch the power supply fan's ribbon cable. Push in and down on the green–colored handle and snap the power supply into place as shown in Figure 6-23B.
After you have installed the power supply, swing the screen cover until it closes as shown in Figure 6-23C.
Caution: When closing the screen cover, make sure that the cover does not clip or pinch the power supply fan's ribbon cable. Screw in the two Phillips screws that you had removed as shown in Figure 6-23D, and close the bezel door.
If you have replaced a power supply in a module that has only one power supply, power on the server system, as described in “Powering the Server System On and Off” in Chapter 1.

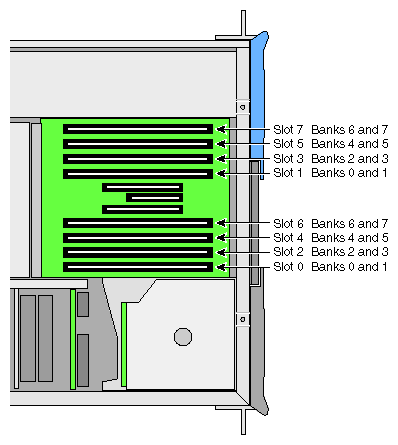

Memory is contained on cards that are referred to as DIMMs (dual inline memory modules). Each Origin 350 server system base compute module, system expansion compute module, and MPX module can contain two, four, six, or eight DIMMs installed on eight DIMM slots located on the module.
These eight DIMM slots are organized into a group of even–numbered slots 0, 2, 4, and 6, and a group of odd-numbered slots 1, 3, 5, and 7, as shown in Figure 6-24.
DIMMs are installed one per DIMM slot, and two at a time, so that the two DIMMs installed provide local memory for the same pair of banks. For example, if you install a DIMM in slot 0, you must install a DIMM in slot 1. (This adds memory to bank pairs 0 and 1). Table 6-2 lists the DIMM slots and the corresponding bank pairs to which local memory is provided when DIMMs are installed.
Table 6-2. DIMMs and Bank Pairs
DIMM in Slot Number | Provides Local Memory for Bank Pair Numbers |
|---|---|
0[a] | 0 and 1 |
1 | 0 and 1 |
2 | 2 and 3 |
3 | 2 and 3 |
4 | 4 and 5 |
5 | 4 and 5 |
6 | 6 and 7 |
7 | 6 and 7 |
[a] The first two DIMMs must be installed in DIMM slot 0 and DIMM slot 1. | |
You must note these guidelines when installing DIMMs:
Memory is increased or decreased in two-DIMM increments only.
The two DIMMs that make up a bank pair must be the same memory size; however, each pair of DIMMs can differ in memory size.
The first two DIMMs must be installed in DIMM slot 0 and DIMM slot 1. Subsequent DIMMs can be installed into any bank pairs as long as the two DIMMs are installed so that they provide local memory for the same bank pair. For example, you can install DIMMs in slots 2 and 3 to provide local memory for banks 2 and 3. Or you can install DIMMs in slots 4 and 5 to provide memory to banks 4 and 5, or you can install DIMMs in slots 6 and 7 to provide memory for banks 6 and 7.
The DIMMs used in the Origin 350 server system base compute module, the system expansion compute module, and the MPX module are not compatible with the DIMMs used in the Origin 200, SGI 2000 series, Onyx2, or Octane systems.
The Origin 350 server system supports the following memory kits:
1-GB kit with integrated directory memory.
2-GB kit with integrated directory memory.
Caution: Electronic equipment can be irreparably damaged by electrostatic discharge (ESD). Always follow these preventive measures when you handle a system component:
- Remove a component from its antistatic bag only when you are ready to install it.
- If you handle a component before installation, do not place it on surfaces that produce ESD (carpeting, for example) or near devices that create static electricity.
- Attach a static wrist strap to a grounded connection on your system when you install or remove a component.
To install a DIMM, follow these steps:
Power off the server system. For powering off instructions, see “Powering the Server System On and Off” in Chapter 1.
Disconnect all of the cables at the rear of the module.
Warning: Components may be hot. To avoid injury, allow the components to cool for approximately five minutes before you proceed with these instructions. Remove the two screws that secure the module to the front rails of the rack.
Pull the module from the rack until it is stopped by the safety latches.

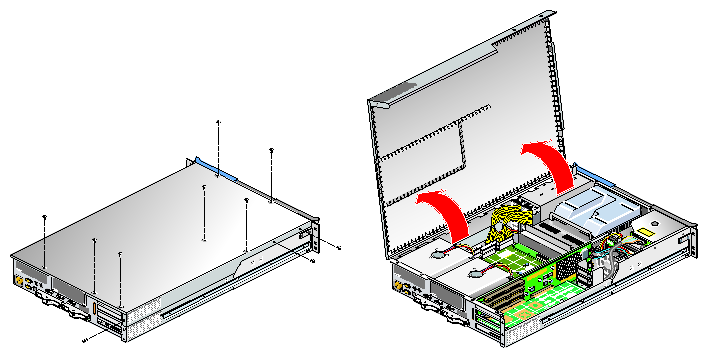

To access the DIMMs, remove the ten Phillips screws shown in Figure 6-25 and lift and open the hinged cover.

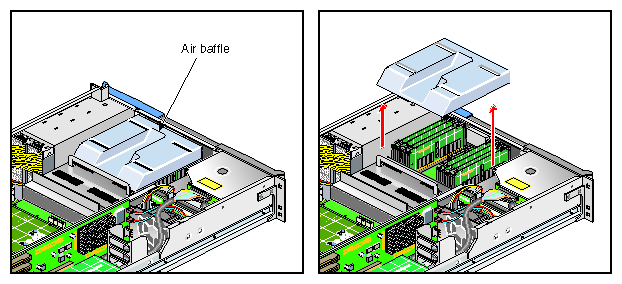

Remove the plastic air baffle covering the DIMMs, as shown in Figure 6-26.

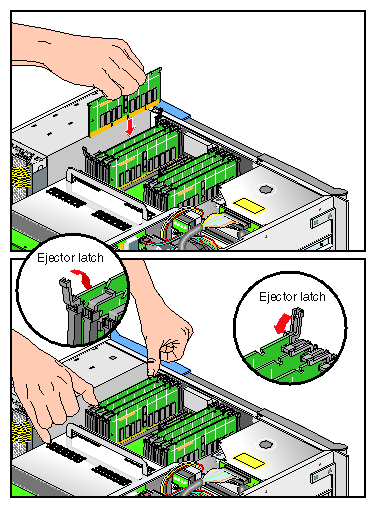

Install the DIMM, as follows (see Figure 6-27):
Note: If you need to find the correct location in which to install the DIMMs, make sure to read the introductory material in “Memory”. Open the ejector latches.
Hold the DIMM only by its edges and remove it from its antistatic package.
Align the three notches in the bottom edge of the DIMM with the keyed socket.
Insert the bottom edge of the DIMM into the socket, and then press down on the DIMM until it seats correctly. Use extreme care when you install a DIMM. If you apply too much pressure, you can damage the socket.
Gently push the plastic ejector latches down to secure the DIMM, as shown in Figure 6-27. When the DIMM is fully seated in the connector, the ejector latches snap into place.
Replace the plastic air baffle.
Attach the hinged cover and secure it to the module with ten Phillips screws.
Press the safety latches on both sides of the module and slide the module into the rack.
Install the two screws that secure the module to the front rails of the rack.
Install all of the cables at the rear of the module.
Power on the server system as described in “Powering the Server System On and Off” in Chapter 1.
To remove a DIMM, follow these steps:
Power off the server system. For powering off instructions, see “Powering the Server System On and Off” in Chapter 1.
Disconnect all of the cables at the rear of the module.
Warning: Components may be hot. To avoid injury, allow the components to cool for approximately five minutes before you proceed with these instructions. Remove the two screws that secure the module to the front rails of the rack.
Pull the module from the rack until it is stopped by the safety latches.
To access the DIMMs, remove the ten Phillips screws shown in Figure 6-28 and open the hinged cover.
Remove the plastic air baffle covering the DIMMs, as shown in Figure 6-29.

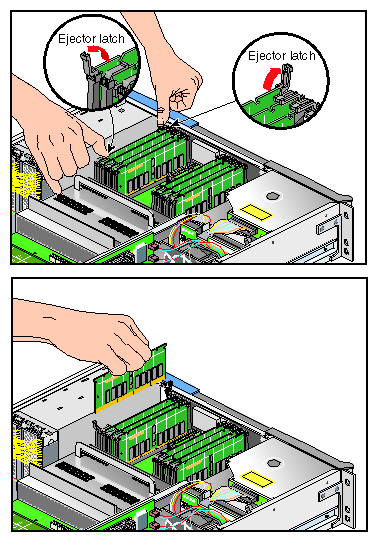

Remove the DIMM, as follows (see Figure 6-30):
Note: If you need to find the correct location from which to remove the DIMMs, make sure to read the introductory material in “Memory”. Lift the two ejector latches simultaneously to disengage the DIMM from its connector.
Carefully grasp the DIMM and pull it up and out of the guide rails.
Note: Hold the DIMM only by its edges. Be careful not to touch its components or gold edge connectors. Place the DIMM on an ESD-safe surface.
If you are installing a new DIMM, proceed to “Installing a DIMM ”. If you are not installing a new DIMM, proceed to the next step.
Replace the plastic air baffle.
Attach or close the hinged cover and secure it to the module with the ten Phillips screws.
Press the safety latches on both sides of the module and slide the module into the rack.
Install the two screws that secure the module to the front rails of the rack.
Install all of the cables at the rear of the module.
Power on the server system as described in “Powering the Server System On and Off” in Chapter 1.

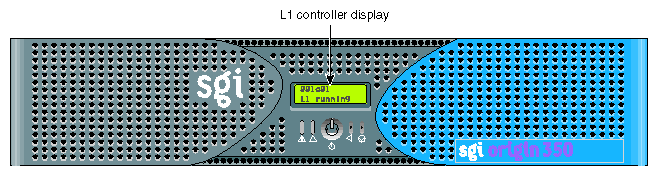

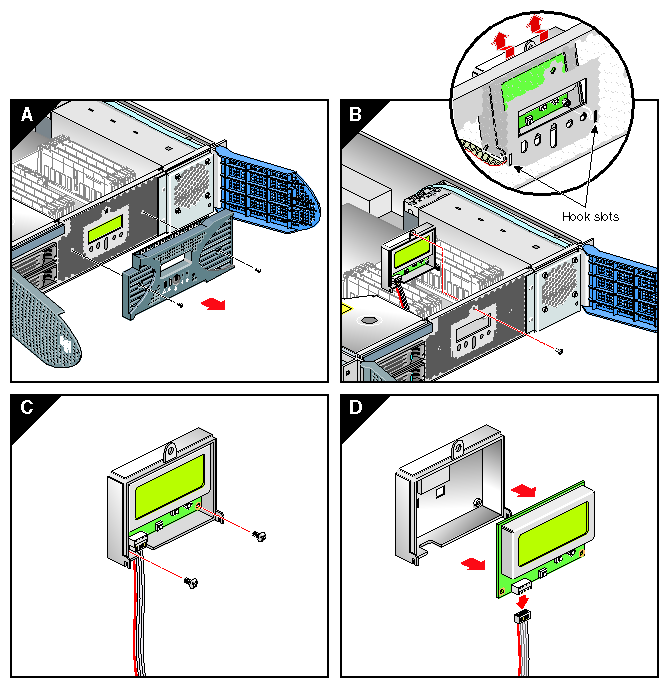

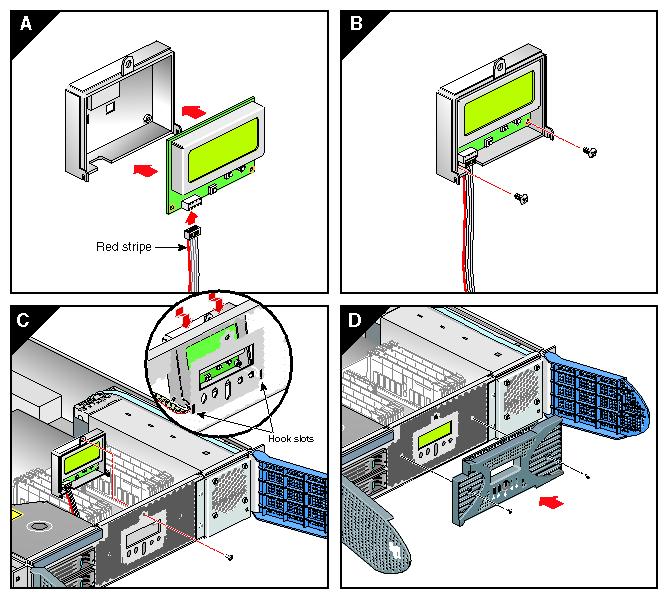

The L1 controller, which is used to monitor and manage the base compute module of the Origin 350 server system, has a display located on the front panel of the base compute module as shown in Figure 6-31. Every Origin 350 server system module is factory- shipped with an L1 controller display. This section describes how to replace an L1 controller display panel for a base compute module. (You can also use these instructions to replace an L1 controller display panel for a system expansion compute module and an MPX module.)
To replace an L1 controller display, follow these steps:
Power off the server system as described in “Powering the Server System On and Off” in Chapter 1.
Disconnect all of the cables at the rear of the module.
Warning: Components may be hot. To avoid injury, allow the components to cool for approximately five minutes before you proceed with these instructions. Remove the two screws that secure the module to the front rails of the rack.
Pull the module from the rack until it is stopped by the safety latches.
To access the area where the L1 display is replaced, remove the ten Phillips screws shown in Figure 6-32, and lift and open the hinged cover.
On the front panel of your system, remove the front bezel by unscrewing the two Phillips screws holding the bezel to the chassis, as shown in Figure 6-33A.
Holding the L1 display cover with one hand, unscrew the single Phillips screw holding the L1 display cover to the chassis, as shown in Figure 6-33B. Gently unhook and pull away the L1 display cover from the chassis.
Unscrew the two Phillips screws holding the L1 controller display panel to the L1 display protective cover, as shown in Figure 6-33C.
Gently disconnect the L1 controller cable from the connector on the L1 controller display, as shown in Figure 6-33D.
Connect the L1 controller cable to the connector on the new L1 controller display, making sure that the red stripe is to your left, as shown in Figure 6-34A.
Align the two screw holes on the L1 controller display with the holes on the L1 display protective cover, and screw in the two Phillips screws, as shown in Figure 6-34B.
Hook in the L1 display protective cover onto the slots on the front chassis and, holding the L1 display cover up against the front chassis, screw in the Phillips screw, as shown in Figure 6-34C.
Replace the front bezel onto the front chassis of the system by screwing in the two Phillips screws holding the bezel to the chassis, as shown in Figure 6-34D.
Attach the hinged cover and secure it to the module with the ten Phillips screws.
Press the safety latches on both sides of the module, and slide the module into the rack.
Install the two screws that secure the module to the front rails of the rack.
Install all of the cables at the rear of the module.
Power on the server system as described in “Powering the Server System On and Off” in Chapter 1.
