If you are experiencing problems with your Silicon Graphics® Tezro™ visual workstation, and are unable to resolve them using the information in this chapter, contact your service provider:
If you are located in North America, contact the Technical Assistance Center at
1 800 800 4SGI. SGI personnel will guide you through the troubleshooting process.If you are located outside of North America, contact your local SGI subsidiary or authorized distributor.
This chapter provides the following sections to help you troubleshoot your system:
Table 4-1 lists recommended actions for problems that can occur on your system. For problems that are not listed in this table, use the SGI Electronic Support system (see “SGI Electronic Support ”) or contact your SGI system support engineer (SSE).
Table 4-1. Troubleshooting Chart
Recommended Action | |
|---|---|
The system will not power on.
| Ensure that the power cord of the PDU is seated properly in the power receptacle. Ensure that the PDU circuit breaker is on. Ensure that the power switch at the rear of the module is on (position 1). Check the power input connection on the rear of the module. View the L1 display; see Table 4-2 if an error message is present. If the L1 controller is not running, contact your SSE. |
|
|
The system will not boot the operating system. | Contact your SSE. |
The service-required LED illuminates on either workstation enclosure. | View the L1 display of the failing enclosure; see Table 4-2 for a description of the error message. |
The failure LED illuminates on either workstation enclosure. | View the L1 display of the failing module; see Table 4-2 for a description of the error message. |
If the green or yellow LED of the NUMAlink port is not illuminated on a dual-enclosure workstation. | Ensure that the NUMAlink cable is seated properly on the workstation enclosures. |
The PWR LED of a populated PCI slot is not illuminated. | Reseat the PCI card. |
The fault LED of a populated PCI slot is illuminated (on). | Reseat the PCI card. If the fault LED remains on, replace the PCI card. |
The amber LED of a disk drive is on. | Replace the disk drive. |
Table 4-2 lists error messages that the L1 controller generates and displays on the L1 display. This display is located on the front of the workstation and expansion module.
 | Note: In Table 4-2, a voltage warning occurs when a supplied level of voltage is below or above the nominal (normal) voltage by 10 percent. A voltage fault occurs when a supplied level is below or above the nominal voltage by 20 percent. |
Table 4-2. L1 Controller Messages
L1 System Controller Message | Message Meaning and Action Needed |
|---|---|
Internal voltage messages: |
|
ATTN: x.xV high fault limit reached @ x.xxV | 30-second power-off sequence for the module. |
ATTN: x.xV low fault limit reached @ x.xxV | 30-second power-off sequence for the module. |
ATTN: x.xV high warning limit reached @ x.xxV | A higher than nominal voltage condition is detected. |
ATTN: x.xV low warning limit reached @ x.xxV | A lower than nominal voltage condition is detected. |
ATTN: x.xV level stabilized @ x.xV | A monitored voltage level has returned to within acceptable limits. |
Fan messages: |
|
ATTN: FAN # x warning limit reached @ xx RPM | A fan has increased its RPM level. Check the ambient temperature. Ensure that adequate front and rear clearance is provided for proper air flow. Check to see if the fan stabilizes. |
ATTN: FAN # x stabilized @ xx RPM | An increased fan RPM level has returned to normal. |
ATTN: FAN # x fault limit reached @ xx RPM | A fan is not meeting its minimum RPM level. Check to see if a fan has failed. |
ATTN: TEMP # advisory temperature reached | The temperature within the enclosure is greater than target temperature and the fans are running at 80% of maximum RPM. Lower the ambient temperature of the room. Ensure that adequate front and rear clearance is provided for proper air flow. Check for air-flow obstructions. |
ATTN: TEMP # critical temperature reached | The temperature within the enclosure is 6 °C greater than target temperature and the fans are running at 100% RPM. Lower the ambient temperature of the room. Ensure that adequate front and rear clearance is provided for proper air flow. Check for air-flow obstructions. |
ATTN: TEMP # fault temperature reached | The temperature within the enclosure is 10 °C greater than target temperature and the fans are running at 100% RPM. Lower the ambient temperature of the room. Ensure that adequate front and rear clearance is provided for proper air flow. Check for air-flow obstructions. |
Temperature stable message: |
|
ATTN: TEMP # stabilized @ xxC/xxF | The ambient temperature at the module's air inlet has returned to an acceptable level. |
Power off messages: |
|
Auto power down in xx seconds | The L1 controller has registered a fault and is shutting down. The message displays every five seconds until shutdown. |
Base module appears to have been powered down | The L1 controller has registered a fault and has shut down. |
SGI Electronic Support provides system support and problem-solving services that function automatically, which helps resolve problems before they can affect system availability or develop into actual failures. SGI Electronic Support integrates several services so they work together to monitor your system, notify you if a problem exists, and search for solutions to the problem.

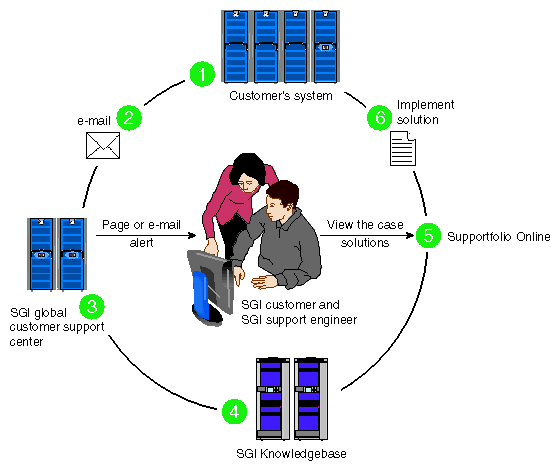

Figure 4-1 shows the sequence of events that occurs if you use all of the SGI Electronic Support capabilities.
The sequence of events can be described as follows:
Embedded Support Partner (ESP) monitors your system 24 hours a day.
When a specified system event is detected, ESP notifies SGI via e-mail (plain text or encrypted).
Applications that are running at SGI analyze the information, determine whether a support case should be opened, and open a case if necessary. You and SGI support engineers are contacted (via pager or e-mail) with the case ID and problem description.
SGI Knowledgebase searches thousands of tested solutions for possible fixes to the problem. Solutions that are located in SGI Knowledgebase are attached to the service case.
You and the SGI support engineers can view and manage the case by using Supportfolio Online as well as search for additional solutions or schedule maintenance.
Implement the solution.
Most of these actions occur automatically, and you may receive solutions to problems before they affect system availability. You also may be able to return your system to service sooner if it is out of service.
In addition to the event monitoring and problem reporting, SGI Electronic Support monitors both system configuration (to help with asset management) and system availability and performance (to help with capacity planning).
The following three components compose the integrated SGI Electronic Support system:
SGI Embedded Support Partner (ESP) is a set of tools and utilities that are embedded in the IRIX operating system. ESP can monitor a single system or group of systems for system events, software and hardware failures, availability, performance, and configuration changes, and then perform actions based on those events. ESP can detect system conditions that indicate potential problems, and then alert appropriate personnel by pager, console messages, or e-mail (plain text or encrypted). You also can configure ESP to notify an SGI call center about problems; ESP then sends e-mail to SGI with information about the event.
SGI Knowledgebase is a database of solutions to problems and answers to questions that can be searched by sophisticated knowledge management tools. You can log on to SGI Knowledgebase at any time to describe a problem or ask a question. Knowledgebase searches thousands of possible causes, problem descriptions, fixes, and how-to instructions for the solutions that best match your description or question.
Supportfolio Online is a customer support resource that includes the latest information about patch sets, bug reports, and software releases.
The complete SGI Electronic Support services are available to customers who have a valid SGI Warranty, FullCare, FullExpress, or Mission-Critical support contract. To purchase a support contract that allows you to use the complete SGI Electronic Support services, contact your SGI sales representative. For more information about the various support contracts, see the following website:
http://www.sgi.com/support/customerservice.html
