Appendix A. Technical Specifications and Pinouts

This appendix contains technical specification information about your server, as follows:

Configuration Specifications

Table A-1 summarizes the configuration ranges for the Origin 3900 server.

Table A-1. Origin 3900 Server Configuration Ranges

Category

Minimum

Maximum

Processors

4

512

Memory

1 GB (one IP53 node board)

1024 GB (32 Cx-bricks)

I/O bricks

1 IX-brick

8


Environmental Specifications

Table A-2 lists the environmental specifications of the Origin 3900 server.

Table A-2. Environmental Specifications

Feature

Specification

Non-operating environment:

Temperature

Humidity

Altitude



-40 to 140 °F (-40 to +60 °C)

10% to 95% non-condensing

0 to 40,000 ft maximum

Operating environment:

 Air temperature (0 to 5000 ft)

 Air temperature (5000 ft to 10,000 ft)

 Humidity

 Altitude



41 to 95 °F (+5 to +35 °C)

41 to 86 °F (+5 to +30 °C)

10% to 95% non-condensing

0 to 10,000 ft (0 to 3048 m)

Acoustical noise level (maximum)

Less than 65 dBa

Heat dissipation to air (maximum):

 Compute rack

 Router rack

 I/O rack



30.20 Kbtu/hr (8.85 kW)

5.46 Kbtu/hr (1.60 kW)

11.53 Kbtu/hr (3.38 kW)

Cooling requirement

Ambient air

Airflow: intake, front; exhaust, rear

Less than 2200 CFM

Non-operating environment:

Temperature

Humidity

Altitude



-40 to 140 °F (-40 to +60 °C)

10% to 95% non-condensing

0 to 40,000 ft maximum

Operating environment:

 Air temperature (0 to 5000 ft)

 Air temperature (5000 ft to 10,000 ft)

 Humidity

 Altitude



41 to 95 °F (+5 to +35 °C)

41 to 86 °F (+5 to +30 °C)

10% to 95% non-condensing

0 to 10,000 ft (0 to 3048 m)


Power Specifications

Table A-3 lists the power specifications for the server.

Table A-3. Power Specifications

Feature

Specification



Input voltage:

 Single-phase option

 Three-phase option



180 - 254 VAC

180 - 254 VAC (North America/Japan) or 312 - 440 VAC (international)



Frequency:

North America / Japan

47-63 Hz

 International

47-63 Hz

Maximum power consumption:

 Compute rack

 Router rack

 I/O rack



9.03 kVA (8.85 kW)

1.63 kVA (1.60 kW)

3.45 kVA (3.38 kW)



Hold-up time

20 ms



Total harmonic distortion

Less than 10% THD-Rms at full load



Power cable

8-ft (2.4-m) pluggable drop cord(s)



Power receptacle:

North America / Japan

International

 Compute, router, or I/O rack (three-phase option)

(1) 60 A, IEC60309 , 4 wire

(1) 32 A, IEC60309, 5 wire

 Compute or router rack
(single-phase option)

(1 or 2) 30 A, NEMA L6-30R

(1 or 2) 32 A, IEC60309

 I/O rack (single-phase option)

(1) 30 A, NEMA L6-30R

(1) 32 A, IEC60309

Wall breaker size:

 Single-phase

 Single-phase (Europe)

 Three-phase



30 A

32 A

60 A




Rack Specifications

Table A-4 lists the mechanical specifications of the 39U rack

Table A-4. 39U Rack Mechanical Specifications

Characteristic

Description

Rack height

74.25 in. (1886 mm)

Rack width

30 in. (762 mm)

Rack depth (less system display)

51.5 in. (1308 mm)

Rack weight (maximum):

Compute rack

 Router rack

 I/O rack



1300 lbs (590 kg)

1050 lbs (476 kg)

1300 lbs (590 kg)

Rack shipping weight (maximum):

 Compute rack

 Router rack

 I/O rack



1665 lbs (755 kg)

1415 lbs (642 kg)

1665 lbs (755 kg)

Rack access requirements:

 Front

 Rear

 Side



48 in. minimum (1219 mm)

48 in. (1219 mm)

None


Non-proprietary Connector Pinouts

This section contains pinout information for the non-proprietary connectors of your server, as follows:

L1 Port

The Cx-brick and R-brick have one L1 port that connects the brick's L1 controller to the L2 controller. This port uses a USB type B connector (see Figure A-1). Table A-5 lists the pin assignments for the USB type B connector.

Figure A-1. USB Type B Connector

USB Type B Connector

Table A-5. USB Type B Connector Pin Assignments

Signal

Color

Pin Number

VCC

Red

1

–Data

White

2

+Data

Green

3

Ground

Black

4


External SCSI Port

The external SCSI port uses a SCSI 68-pin VHDCI connector (see Figure A-2). This connector is located on the IO9 PCI card in the IX-brick and on the TP900 storage module. Table A-6 shows the SCSI VHDCI pin assignments.

Figure A-2. External SCSI Connector

External SCSI Connector

Table A-6. SCSI VHDCI Pin Assignments

Pin Number

Signal Name

Pin Number

Signal Name

1

+DB (12)

35

-DB (12)

2

+DB (13)

36

-DB (13)

3

+DB (14)

37

-DB (14)

4

+DB (15)

38

-DB (15)

5

+DB (P1)

39

-DB (P1)

6

+DB (0)

40

-DB (0)

7

+DB (1)

41

-DB (1)

8

+DB (2)

42

-DB (2)

9

+DB (3)

43

-DB (3)

10

+DB (4)

44

-DB (4)

11

+DB (5)

45

-DB (5)

12

+DB (6)

46

-DB (6)

13

+DB (7)

47

-DB (7)

14

+DB (P0)

48

-DB (P0)

15

Ground

49

Ground

16

DIFFSENS

50

Ground

17

TERMPWR

51

TERMPWR

18

TERMPWR

52

TERMPWR

19

Reserved

53

Reserved

20

Ground

54

Ground

21

+ATN

55

-ATN

22

Ground

56

Ground

23

+BSY

57

–BSY

24

+ACK

58

–ACK

25

+RST

59

–RST

26

+MSG

60

–MSG

27

+SEL

61

–SEL

28

+CD

62

–CD

29

+REQ

63

–REQ

30

+IO

64

–IO

31

+DB (8)

65

-DB (8)

32

+DB (9)

66

-DB (9)

33

+DB (10)

67

-DB(10)

34

+DB (11)

68

-DB (11)


Serial and Console Ports

The IX-brick has two standard serial ports. As an option, two additional serial ports can be added to the IX-brick. These ports are capable of transferring data at rates as high as 230 kbps. Other features of the ports include the following:

  • Programmable data, parity, and stop bits

  • Programmable baud rate and modem control

The Cx-brick has one console port that connects the Cx-brick L1 controller to a system console.

Both the serial and console ports use a DB9 connector (see Figure A-3).

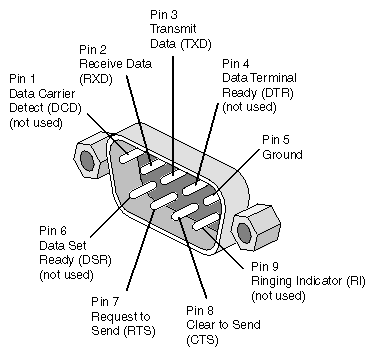

Figure A-3. DB9 Connector

DB9 Connector

Table A-7 shows pinout assignments for the 9-pin male DB-9 connector.

Table A-7. DB9 Pin Assignment

Pin

Assignment

Description

1

DCD

Data carrier detect

2

RXD

Receive data

3

TXD

Transmit data

4

DTR

Data terminal ready

5

GND

Signal ground

6

DSR

Data set ready

7

RTS

Request to send

8

CTS

Clear to send

9

RI

Ring indicator


Ethernet Port

The Ethernet port, which is located on the L2 controller, uses an RJ-45 connector (see Figure A-4).

Figure A-4. RJ-45 Connector

RJ-45 Connector

Table A-8 shows the cable pinout assignments for the Ethernet port operating in 10/100-Base-T mode and also operating in 1000Base-T mode.

Note: The system auto-selects the Ethernet port speed and type (duplex vs. half-duplex) when the server is booted, based on what it is connected to.

Table A-8. RJ-45 Connector Pin Assignments

Ethernet 10/100Base-T Pinouts



Gigabit Ethernet Pinouts



Pins

Assignment

Pins

Assignment

1

Transmit +

1

Transmit/Receive 0 +

2

Transmit –

2

Transmit/Receive 0 –

3

Receive +

3

Transmit/Receive 1 +

4

Not used

4

Transmit/Receive 2 +

5

Not used

5

Transmit/Receive 2 –

6

Receive –

6

Transmit/Receive 1 –

7

Not used

7

Transmit/Receive 3 +

8

Not used

8

Transmit/Receive 3 –


Real Time Interrupt Input and Output

Figure A-5 shows the stereo jack connector conductors that are used for the RT interrupt input and RT interrupt output ports of the IO9 PCI card, which is located in the IX-brick. Table A-9 lists the conductor assignments for the stereo jack connector.

Figure A-5. Stereo Jack Connector Conductors

Stereo Jack Connector Conductors

Table A-9. Stereo Jack Connector Conductor Assignments

Conductor

Function

Tip

 +5 V

Ring

Signal; interrupt (active low)

Sleeve

Chassis ground and cable shield
