This chapter explains how to install or remove DIMMs (double in-line memory modules), PCI option boards, or a digital display option board. The following topics are covered:
“Verifying the Hardware Installation”
Caution: Boards and DIMMs are extremely sensitive to static electricity. Handle the boards carefully, and wear the wrist strap while installing the hardware.
Before installing memory or option boards, you must follow these steps:
 | Note: The illustrations show an O2+ RM7000class workstation. The process of installing and removing the system module is the same for the O2+ R12000class workstation. |
Turn off the workstation by pressing the power button on the front (Figure 2-1).
Remove the power cable from the rear (Figure 2-2).
Caution: Always remove the power cable before removing the system module from the workstation. When you walk quickly across a room, or sit down or stand up, you build up a lot of static electricity. To perform any of the hardware tasks on the system module, you should stand in one place until you have completed the task.

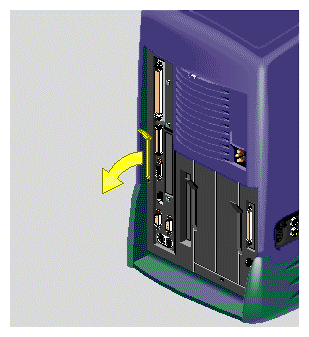

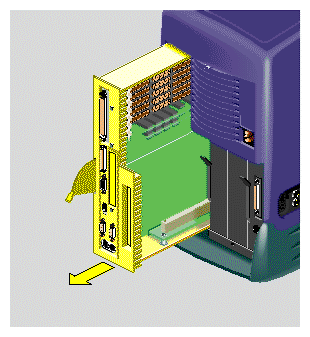

The system module is on the left as you face the rear. Pull down the lever on the left side of the module to release it (Figure 2-3).
Note: You do not need to remove the cables from the system module, if you are careful when handling it. But you may find it easier to work if the cables are removed. Slide the system module out of the chassis (Figure 2-4).

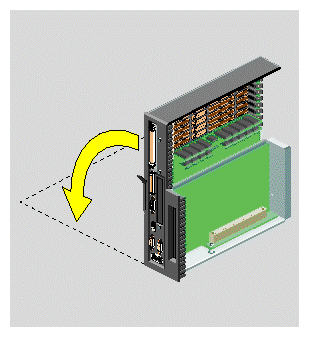

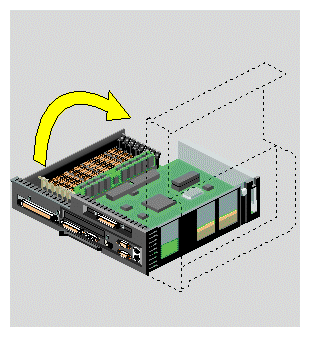

Lay the system module on a clean, flat surface, such as your desktop (Figure 2-5).
Now that you have removed the system module, you can perform the following activities:
To install memory, see “Installing Memory Modules”.
To remove memory, see “Removing Memory Modules”.
To install a PCI option board in an RM7000class workstation, see “Installing a PCI Board in an RM7000class Workstation”.
To remove a PCI option board in an RM7000class workstation, see “Removing a PCI Board in an RM7000class Workstation”.
To install a PCI option board in an R12000class workstation, see “Installing a PCI Board in an R12000class Workstation”.
To remove a PCI option board in an R12000class workstation, see “Removing the PCI Tray in an R12000class Workstation”.
To install a digital display option board, see “Installing an Option Board”.
To remove a digital display option board, see “Removing an Option Board”.
To see a 3D animation of installing memory modules, see Hardware Central . When the browser window opens, see “Hardware Overview” and then “Installing Memory Modules.” (If your Web browser is not loaded, it takes a few seconds to load.) If you are viewing this on a remote server, the 3D animation is not available.
| Note: The illustrations show an O2+ RM7000class workstation. The process of installing and removing memory modules is the same for the O2+ R12000class workstation. Also note that DIMMs cannot be installed on earlier workstations that used SIMMs. |
To install memory modules, follow these steps:
If you have not already done so, remove the power cable, and remove the system module from the chassis. See “Removing the System Module”.
Components on the system module are extremely sensitive to static electricity. Before touching any of the components, ground yourself to a metal part of the chassis, as follows:
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the strap and peel the liner from the copper foil at the opposite end.

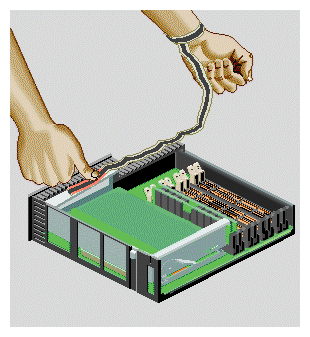

Attach the copper foil to the PCI tray. Attach the wrist strap to your wrist and to the PCI tray (Figure 2-6).

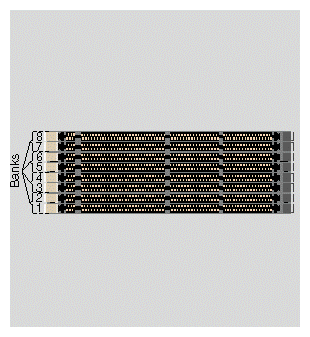

Familiarize yourself with the memory (DIMM) banks (Figure 2-7) and (Figure 2-8). There are four banks comprised of eight sockets, numbered 1 through 8. Two sockets form a bank.
The minimum configuration has 256 MB of memory—one 128-MB module installed in slot 1 and one 128-MB module installed in slot 2.
Read the following guidelines and then proceed to the next step.
Slots 1 and 2 must always be populated.
High-density DIMMs must always be installed in the lowest slots, that is, slots 1 and 2.
Install the DIMMs in groups of two, with DIMMs of the same capacity in each bank of two. You cannot mix capacities in one bank.
In a bank of two slots, both slots must have a DIMM or both slots must be empty (except for slots 1 and 2, which must always be populated). For example, you can install a 128-MB module in slot 3, a 128-MB module in slot 4, a 64-MB module in slot 5 and a 64-MB module in slot 6. But you cannot install a 128-MB module in slot 3 and a 64-MB module in slot 4.

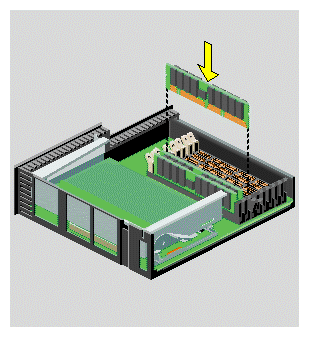

Install the DIMMs consecutively in groups of two, beginning with the lowest open slot (Figure 2-9), as follows:
Check the DIMMs visually to make sure they are installed correctly (Figure 2-10), as follows:
Remove the wrist strap and follow the steps in “Reinstalling the System Module”.
To remove memory modules, follow these steps:
If you have not already done so, remove the power cable, and remove the system module from the chassis. See “Removing the System Module”.
Before touching any of the components, ground yourself to a metal part of the chassis, as follows:
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the strap and peel the liner from the copper foil at the opposite end.
Attach the copper foil to the PCI tray. Attach the wrist strap to your wrist and to the PCI tray (Figure 2-11).

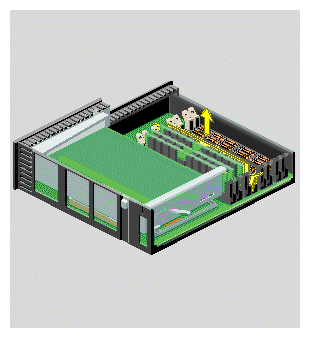

Remove the DIMM by pushing down the latches on both sides to release it. Pick up the DIMM and set it aside (Figure 2-12).
If you want to install memory modules, see “Installing Memory Modules”. If not, remove the wrist strap and follow the steps in “Reinstalling the System Module”.
To install a PCI board in an RM7000class workstation, follow these steps:
| Note: Check the documentation and software release notes that come with the PCI board for instructions on installing the software. The software may include online software guides. |
If you have not already done so, remove the power cable, and remove the system module from the chassis. (See “Removing the System Module”.)
Release the PCI tray by pushing up the lever on the side (Figure 2-13). The tray pops up.
Push down slightly on the rear of the PCI tray and remove it from the system module (Figure 2-14).

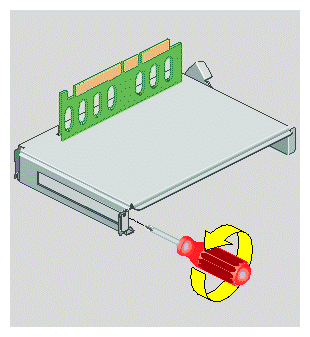

Hold the PCI tray with one hand and remove the screw and the filler panel from the tray (Figure 2-15). Keep the panel and screw. If you later remove the PCI board and do not replace it, you must reinstall the filler panel.

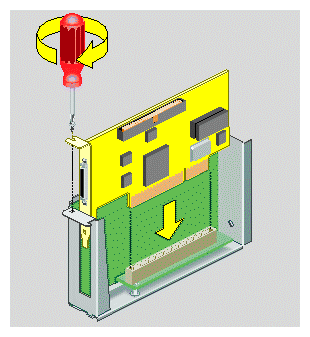

Slide the PCI board into the tray and push the PCI connector firmly into the slot (Figure 2-16). Make sure it is completely seated. You should hear a click as it is seated. You may have to use some pressure.

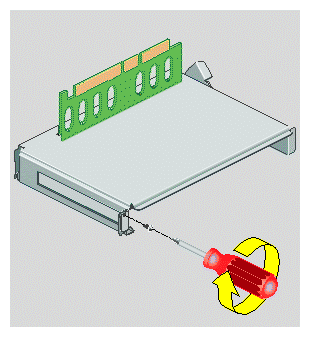

Replace the screw and tighten it (Figure 2-16).
Push the lever to return it to its starting position (Figure 2-17).
Replace the tray in the system module (Figure 2-18), as follows:
Push the tray down firmly until it is completely seated. You hear a click as it seats. Check that the lever returns to its starting position (Figure 2-19).
Caution: If the PCI tray is not completely seated, the system module will not slide back into the chassis. Note: If the option board you installed comes with a cable, remember to connect the cable to the option board's external port after you reinstall the system module. Follow the steps in “Reinstalling the System Module”.
To remove a PCI board in an RM7000class workstation, follow these steps:
If you have not already done so, remove the power cable and remove the system module from the chassis. (See “Removing the System Module”.)
Release the PCI tray by pushing up the lever on the side (Figure 2-20). The tray pops up.
Push down slightly on the rear of the PCI tray and remove it from the system module (Figure 2-21).

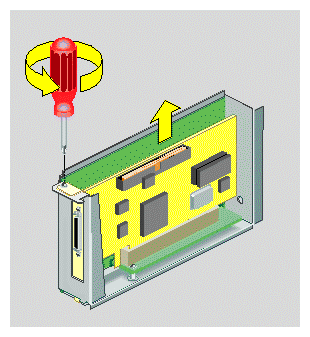

Remove the screw that secures the board (Figure 2-22). Disconnect the PCI board and slide it out of the tray. (It may be a little difficult to remove.)
Note: If the PCI board has an extra long I/O connector , pivot up the side of the board without the long I/O connector first. Then slide out the side with the I/O connector. If you want to install another PCI board, see “Installing a PCI Board in an RM7000class Workstation”. If not, replace the filler panel and screw (Figure 2-23). (You removed the panel and screw when you installed the board.)
Follow the steps in “Reinstalling the System Module”.
To install a PCI board in an R12000class workstation, follow these steps:
| Note: Check the documentation and software release notes that comes with the PCI board for instructions on installing the software. The software may include online software guides. |
If you have not already done so, remove the power cable, and remove the system module from the chassis. (See “Removing the System Module”.)

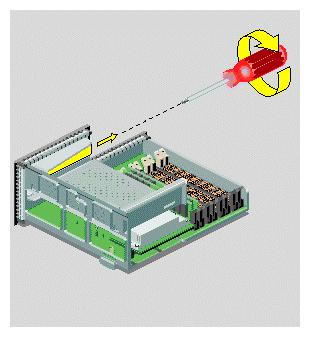

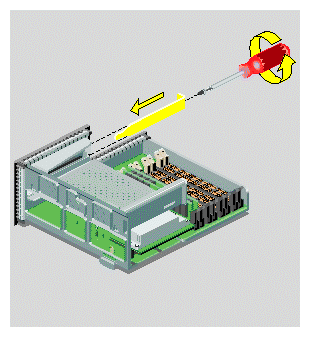

Remove the screw and filler panel from the PCI tray.
Keep the panel. If you later remove the PCI board and do not replace it, you must reinstall the filler panel and screw (Figure 2-24).

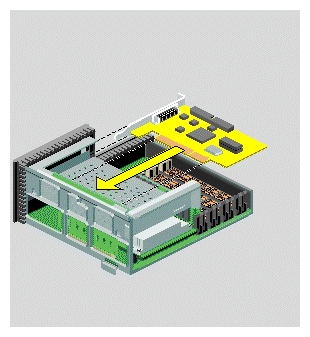

Install the PCI board by sliding the PCI board into the tray and pushing the PCI connector firmly into the slot. Make sure it is completely seated (Figure 2-25). You may need to use some pressure to seat it all the way.

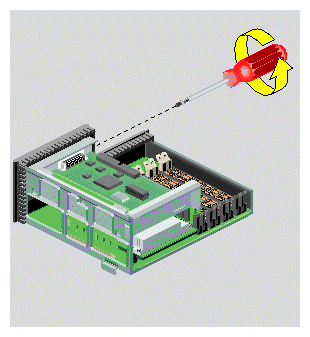

Insert and tighten the screw that secures the PCI board (Figure 2-26).
Follow the steps in “Reinstalling the System Module”.
To remove a PCI board in an R12000class workstation, follow these steps:
If you have not already done so, remove the power cable and remove the system module from the chassis. (See “Removing the System Module”.)

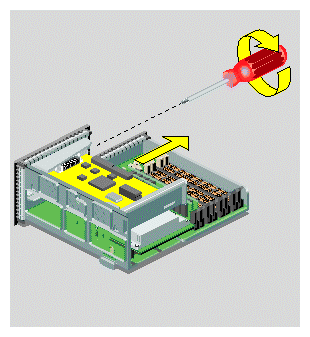

Remove the screw that secures the PCI board (Figure 2-27).
Remove any external cables connected to the PCI board.
Disconnect the PCI board from the connector and slide it out of the tray. (It may be a little difficult to remove.)
Note: If the PCI board has an extra long I/O connector , slide out the side opposite the long I/O connector first. Then remove the side with the I/O connector. If you want to install another PCI board, see “Installing a PCI Board in an R12000class Workstation”. If not, replace the screw and filler panel (Figure 2-28). (You removed the screw and panel when you first installed the board.)
Follow the steps in “Reinstalling the System Module”.

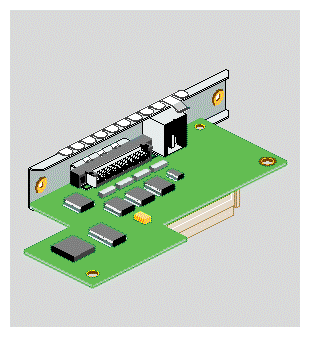

The figures in this section show an option board similar to the Dual Channel Display Option Board (DCD), which enables two monitors to be plugged into an O2+ workstation (Figure 2-29).
The board you want to install may look different, but the installation steps are the same. Review any documentation that comes with the option board.
| Caution: Option boards are extremely sensitive to static electricity. Handle it carefully, and wear the wrist strap while installing the board. |
The slot for the display option is on the system module .
To install an option board, follow these steps:
If you have not already done so, remove the power cable, and remove the system module from the chassis. (See “Removing the System Module”.)
Remove the PCI tray as follows:
If you have an RM7000class workstation, see “Removing a PCI Board in an RM7000class Workstation”.
If you have an R12000class workstation, see “Removing the PCI Tray in an R12000class Workstation”.
Note: Most of the illustrations in this section show an RM7000class workstation. The installation process is the same for an R12000class workstation.
Before touching any of the components, ground yourself to a metal part of the chassis with a wrist strap (Figure 2-30), as follows:
If there is a filler panel covering the I/O slot, remove the filler panel as follows:

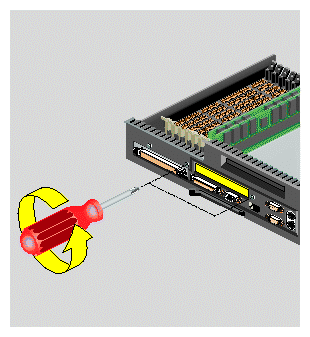

Use a Phillips screwdriver to remove the two screws that hold it (Figure 2-31).
Push the filler panel inward.
Remove the filler panel and save it. In the event that you remove the option board and do not replace it, you must reinstall the panel.

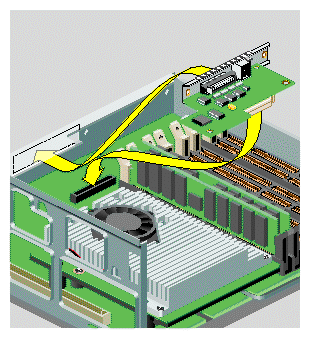

Maneuver the board until its I/O connector is opposite the open slot in the rear of the chassis and it is parallel to the system board (Figure 2-32). You may find this installation difficult, especially on an R12000class workstation, because there is limited space in which to work. Figure 2-32, Figure 2-33, and Figure 2-34 show an R12000class O2+ workstation.
Push the left side of the board toward the rear and then to the right side, until the connector underneath is aligned over the socket on the system board. Remember to keep the board parallel to the system board as you align it (Figure 2-33).

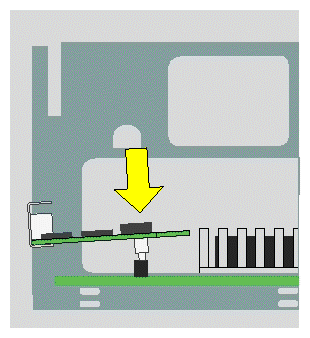

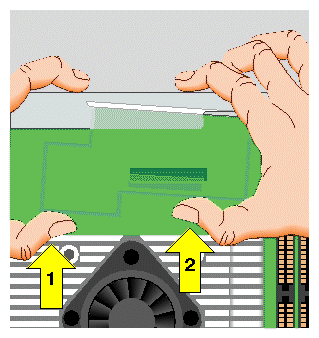

Push the board down into the socket firmly until it clicks and the connectors are completely seated. Look from the side as shown in Figure 2-34.
Insert and tighten two screws in the locations shown (Figure 2-35).
Remove the wrist strap.
Reinstall the PCI tray as follows:
If you have an RM7000class workstation, see “Reinstalling the PCI Tray in an RM7000class Workstation”.
If you have an R12000class workstation, see “Reinstalling the PCI Tray in an R12000class Workstation”.
To remove the PCI tray in an RM7000class workstation, follow these steps:
Push up the lever on the side of the PCI tray to release it (Figure 2-36). The tray pops up.
Push down slightly on the rear of the PCI tray and remove it from the system module (Figure 2-37). Do not remove the PCI board from the tray, if one is installed.
Follow the steps in “Installing an Option Board”.
To remove the PCI tray in an R12000class workstation, follow these steps:
You must remove the plastic faceplate of the system module as follows:
Use a Phillips screwdriver to remove five screws in the rear and two screws on the underside, in the locations shown (Figure 2-38). Keep the two screws from the underside separate. When reinstalling the faceplate you must use the same screws.
Caution: On the underside, remove only two screws. Do not remove the third screw that attaches the lever to the faceplate. Remove the faceplate by grasping it where the plastic comes to a “V” and pulling it outward. (See Figure 2-39.) The filler panel covering the I/O port falls away as you remove the faceplate.
Remove the PCI tray from the system module, as follows. If a PCI board is installed in the tray, do not remove it from the tray. However, you need to disconnect any cables attached to the PCI board.
Insert a screwdriver in the small opening shown (Figure 2-40). Use a twisting motion first to release the PCI connector from the slot on the system module. Then use an up and down motion to release the PCI tray .
Pull the PCI tray straight up to remove it and set it aside.
Follow the steps in “Installing an Option Board”.
To reinstall the PCI tray in an RM7000class workstation, follow these steps:

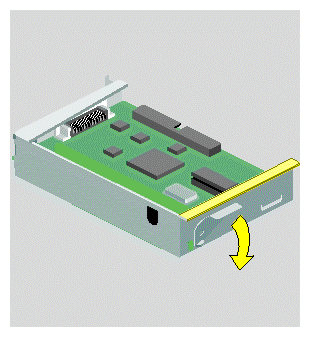

Push the lever to return it to its starting position (Figure 2-41).
Reinstall the PCI tray in the system module (Figure 2-42), as follows:
Push the tray down firmly until it is completely seated. You hear a click as it seats (Figure 2-43).
Caution: If the PCI tray is not completely seated, the system module will not slide back into the chassis. Follow the steps in “Reinstalling the System Module”.
To reinstall the PCI tray in an R12000class workstation, follow these steps:
Replace the PCI tray in the system module, as follows:
Lower the PCI tray, engaging it on the tab on the side of the system module (Figure 2-44).
Insert the PCI connector beneath the tray into the slot on the system module.
Once the connector is aligned, push down firmly until it is completely seated.
Note: If the PCI tray is not completely seated, the system module will not slide back into the chassis.
Replace the faceplate by sliding it onto the system module, while at the same time lifting the plastic at the “V” to snap it in place. When properly seated, the underside of the faceplate is flush to the module and the screw holes are aligned (Figure 2-45).
Align the screw holes on the faceplate with the screw holes on the system module. Use a Phillips screwdriver to insert and tighten two screws on the underside in the locations shown (Figure 2-46).
Use a Phillips screwdriver to insert and tighten five screws on the rear in the locations shown (Figure 2-47).
Follow the steps in “Reinstalling the System Module”.
To remove an option board, follow these steps:
If you have not already done so, remove the power cable, and remove the system module from the chassis. (See “Removing the System Module”.)
To reach the option board, you must first remove the PCI tray, as follows:
If you have an RM7000class workstation, see “Removing a PCI Board in an RM7000class Workstation”.
If you have an R12000class workstation, see “Removing the PCI Tray in an R12000class Workstation”.
Before touching any of the components, ground yourself to a metal part of the chassis with a wrist strap (Figure 2-48), as follows:

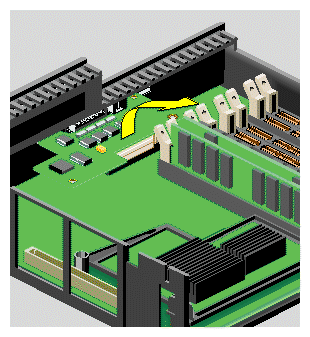

Grasp the board on either side and gently rock it out until it disconnects from the slot on the system board (Figure 2-49). Do not exaggerate the rocking motion, because you should not bend the pins. You may find this difficult because there is limited space in which to work.
If you want to install another option board, see “Installing an Option Board”. If not, replace the filler panel that you removed when you installed the first option board.
Remove the wrist strap.
Reinstall the PCI tray, as follows:
If you have an RM7000class workstation, see “Reinstalling the PCI Tray in an RM7000class Workstation”.
If you have an R12000class workstation, see “Reinstalling the PCI Tray in an R12000class Workstation”.
To reinstall the system module, follow these steps:
| Note: The illustrations show an RM7000class workstation. The process of installing the system module is the same for an R12000class workstation. |
Return the system module to its upright position (Figure 2-50).

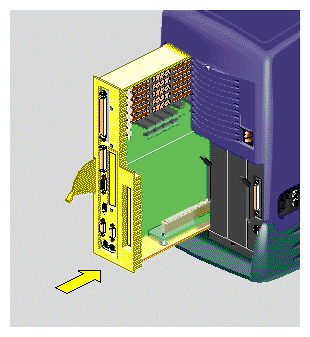

Slide the system module into the chassis until the lever engages (Figure 2-51).

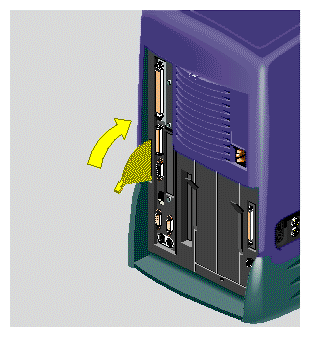

Push the lever up to lock the module in place (Figure 2-52). If installed correctly, the lever is all the way up and the system module is flush with the system drive module and other modules.
Remove the wrist strap from the chassis.
Reconnect the power cable and any other cables you removed (Figure 2-53).
If you installed an option board that has a cable, connect the cable to the I/O port on the board you installed.
Turn on the workstation by pressing the power button on the front (Figure 2-54).
If you have just installed memory modules or an option board, follow the steps in “Verifying the Hardware Installation”.
Once you have installed memory modules or an option board, you should verify that the system recognizes the new hardware, as follows:
Log in to your account.
From the Toolchest (Figure 2-55), select System > System Manager > About This System.
If you installed memory, look under the Hardware menu. Check the amount of memory shown. It should equal the total amount that you installed.
For example, if you had 32 MB of memory when you started and you installed another 64 MB, the total shown should be 96 MB.
If the system does not show the total amount of memory you installed, turn off the workstation, remove the power cable, remove the system module, and make sure all the DIMMs are installed correctly.
If you installed a PCI option board , from a shell window, enter:
hinvThis shows the hardware inventory for your workstation. Look for a line describing the board you installed. For some option boards, the software must be installed before the board is shown.
If it is now shown, turn off the workstation, and review the installation steps again to make sure the board is seated correctly. (See “Installing a PCI Board in an RM7000class Workstation”, or “Installing a PCI Board in an R12000class Workstation”.)
