This system is designed to be user maintainable. If diagnostic tests identify a faulty part, you must order a replacement part, remove the faulty part, and install a replacement part. Contact your service organization before removing the faulty part.
This chapter tells you how to replace the following parts:
graphics board set
CPU module
power supply
SIMM modules
internal drives
CPU baseboard
keyboard or mouse
external SCSI drives
If diagnostics have identified a faulty part, remove the faulty part, then follow these steps to order a replacement:
Copy the “Part Request Form” directly from the last page of this guide.
Note the name of the faulty part on the copy of the form.
Note the serial number of your system. The number is on a label on the back of the system.
Identify the part number of the faulty part.
Contact your service provider for further instructions.
Your service provider will ask you for the system serial number, configuration information, the faulty part's part number, and a description of the problem.
Pack and ship the faulty part to your service provider if requested.
For maximum protection to the part, use two sturdy boxes for shipping. Graphics boards, CPU modules and SIMM modules are extremely sensitive to static electricity. Whenever possible, package them in antistatic bags.
Place the faulty part and “Part Request Form” into one of the two boxes. Pack them in plenty of packing material so the part won't sustain further damage. Tape the box securely.
Place the box containing the faulty part into a larger box and fill the empty space with packing materials. Tape the box securely and affix a mailing label. Ship the box to your service provider.
Internal replacement parts include the graphics board, CPU module, power supply, SIMM modules, internal drives, and CPU baseboard.
To replace an internal part, follow the steps below to shut down the system, remove the cover, attach the wrist strap, replace the part, replace the cover, and start up the system.
To shut down the system, follow these steps:
Open the front cover.
Press and release the power switch on the front of the system to shut down the software and power off the system.
The system powers off automatically.
Press the monitor power switch to turn off your monitor.
Disconnect the power cable from back of the Indigo2.
Once the system is shut down and all of the cables are disconnected, follow these steps:
Remove the front cover.
Face the front of the Indigo2 chassis.

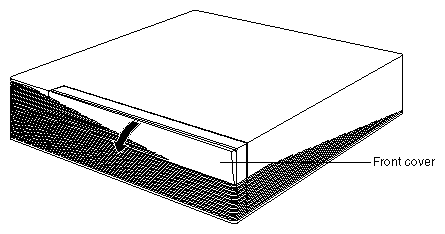

Open the front cover by snapping it away from the top edge of the chassis and tipping it down, as shown in Figure 8-1.
Remove the front bezel.
Press down on the tabs on each side of the bezel, as shown in Figure 8-2.
Pull the bezel away from the chassis.
Remove the top cover.
Press up on the tabs on each side of the drive openings.
Pull up on the cover and rotate it back and away from the chassis, as shown in Figure 8-3.
Wear the wrist strap to prevent the flow of static electricity, which can damage the board.
 | Caution: The components inside the Indigo2 are extremely sensitive to static electricity; you must wear the wrist strap while replacing parts inside the system. |
To attach the wrist strap, follow these steps:
You are now ready to replace the part.
After you've shut down the system, removed the cover, and attached the wrist strap, turn to one of the following sections to replace the part you need to replace:
To replace the graphics board set, follow these steps:
If you have not already shut down the system, removed the cover, and attached the wrist strap, go to “Replacing Internal Parts” for instructions.
Move the system or position yourself so that you are facing the expansion slots.
The expansion slots are located on the left side of the system, behind the internal fan.
To replace an XZ or Extreme graphics broad set, go to “Removing and Replacing the XZ or Extreme Graphics Board Set”.
To replace an XL graphics board, go to “Removing and Replacing the XL Board”.
To remove the XZ or Extreme graphics board set, follow these steps:
Make sure the wrist strap is attached to a metal part of the system.
Move the system or position yourself so that you are facing the expansion slots, as shown in Figure 8-4.

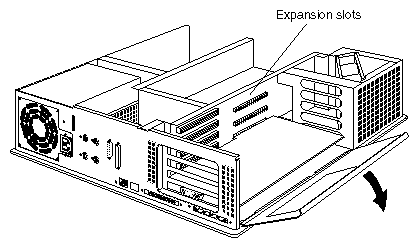

Open the metal panel in front of the expansion slots by pulling up on the panel and lowering it. Figure 8-4 shows an XZ graphics board set.

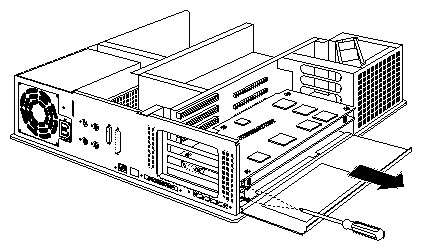

Remove the screws attaching the board to the system slots as shown in Figure 8-5.
The screws are located on the metal extension on the left side of each board.
Note: Figure 8-5 shows an XZ graphics board set. If your system has the Extreme graphics board set, there will be three screws to remove. Loosen each screw first with the Phillips screwdriver.
Then unscrew it all the way with your hand, and remove it.
The screws are very small. If you drop a screw into the chassis, remove it to prevent the possibility of shorting the system.

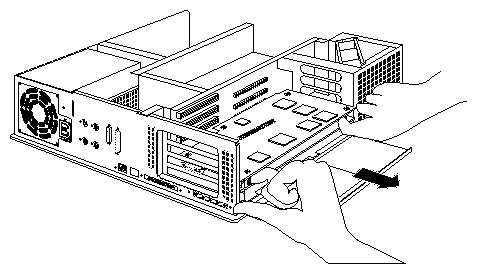

Pull the board set out of the system, as shown in Figure 8-6.
Turn both hands inward so that your thumbs point to the floor,
Place your index fingers behind the small metal posts on each side of the board.
Brace your thumbs against the chassis, and pull the board out of the slot. You may need to use some force.
Place the board set down on a flat, antistatic surface so the side with the chips faces up. An empty antistatic bag or a clean, dry desktop works well.

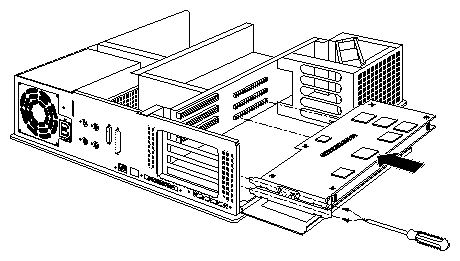

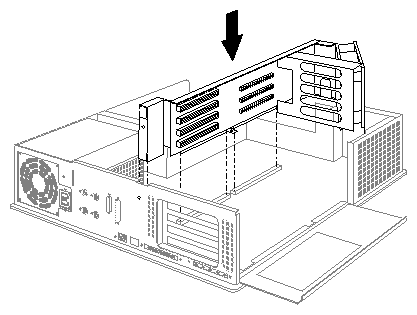

Position the replacement board set in the lowest available slot, as shown in Figure 8-7.
Grasp the board set with metal extensions on the left and the sides with the chips facing up.
Align the metal extensions on the left of the board set with the slots on the chassis. At the same time align the right edge of the board set with the metal grooves on the right of the chassis, as shown in Figure 8-7.
Push the board set into the slot until the connector on the back of the board is securely connected to the connector on the EISA backplane.
Insert and tighten the screws that hold the board set to the chassis. The screw openings are located on the metal extension on the left side of each board. Make sure that the EMI lining is not damaged and remains between the chassis and the XZ graphics board's metal extension.
Note: Figure 8-7 shows an XZ graphics board set. If you have an Extreme graphics board set, there will be three screws to insert and tighten. Tip the metal panel up in front of the boards you just installed until it snaps into place.
You are finished replacing the XZ or Extreme graphics board set.To replace the top cover, turn to “Replacing the Cover”.
To remove the XL graphics board, follow these steps:
Make sure the wrist strap is attached to a metal part of the system.
Move the system or position yourself so that you are facing the expansion slots.
Open the metal panel in front of the expansion slots by pulling up on the panel and lowering it, as shown in Figure 8-8.

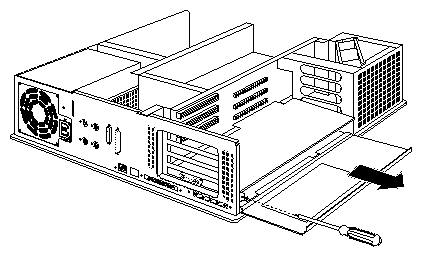

Remove the screw attaching the graphics board to the system slot as shown in Figure 8-9.
The screw is located on the metal extension on the left side of the board.
Loosen the screw first with the Phillips screwdriver.
Then unscrew it all the way with your hand, and remove it.
Note: The screw is very small. If you drop it into the chassis, remove it to prevent the possibility of shorting the system.

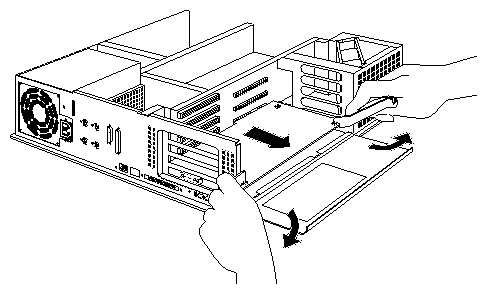

Remove the board from the chassis, using the two open-ended wrenches provided with the system. Note that if your XL board has handles attached, use them to extract the board instead of the wrenches.
Grasp the wrenches as shown in Figure 8-10. The orientation of the wrenches is important.
Hook the ends of the wrenches in the small holes on each side of the front of the board, as shown in Figure 8-11.
Brace your index fingers against the chassis and pry the wrenches outward. The board comes out.
Place the board on a flat, antistatic surface so the side with the chips faces up. An empty antistatic bag or a clean, dry desktop works well.
Install the replacement board.
Grasp the board with the metal extension on the left and the side with the chips facing up.
Align the metal extension on the left of the board with the slot on the chassis. At the same time align the right edge of the board with the metal grooves on the right of the chassis, as shown in Figure 8-12.
Push the board into the slot until the connector on the back of the board is securely connected to the connector on the EISA backplane. Make sure that the EMI lining is not damaged and remains between the chassis and the XL graphics board's metal extension.
Insert and tighten the screw that holds the board to the chassis. The screw opening is located on the metal extension on the left side of the board. (See Figure 8-12).
Tip the metal panel up in front of the board you just installed until it snaps into place.
You are finished replacing the XL graphics board. To replace the top cover, turn to “Replacing the Cover”.
To replace the CPU module, follow the steps below to remove the
5-1/4" drive tray, remove the CPU module, install the new CPU module, and install the drive tray.
If you have not already shut down the system, removed the cover, and attached the wrist strap, go to “Replacing Internal Parts” for instructions.
Remove the 5-1/4" drive tray. If there is a drive installed, there is no need to remove the drive from the tray.
Disconnect the SCSI cable from the connector on the back of the 5-1/4" drive tray. (See Figure 8-13.)
Using a phillips screwdriver, loosen the two captive screws that hold the 5-1/4" drive tray to the chassis.
The screws are located below the drive tray in the center front of the system.
Push the drive tray toward the back of the system, and pull up to remove the tray, as shown in Figure 8-14.
Locate the CPU module.
The CPU module is the large elevated module on the CPU board that is protected by a textured heat sink. It contains the CPU chip, cache, and CPU clock crystal.
The Indigo2 workstation supports several CPU module shapes.

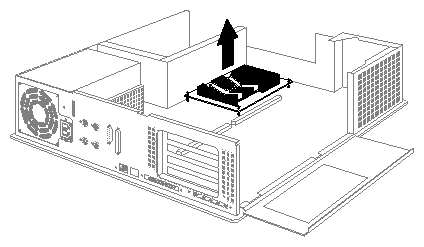

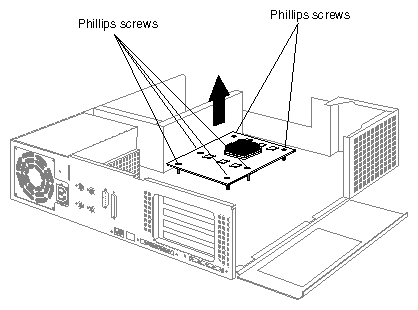

Remove the R4000 100 MHz CPU module, as shown in Figure 8-15. (Some R4000 modules may look like the module shown in Figure 8-16.)
Remove the screws on the corners of the module that attach the CPU module to the board.
Disconnect the module connector from the socket on the board by lifting up on the sides of the module and gently rocking it back and forth.
Lift the module up and away from the board.
Skip to step 8.

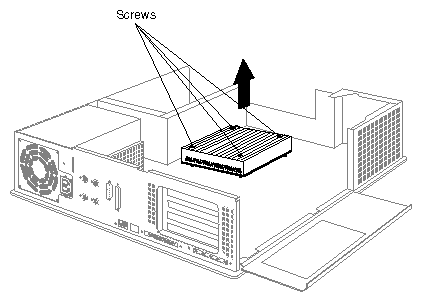

Remove the R4400 150 MHz CPU module, as shown in Figure 8-16.
Loosen the four captive screws on the corners of the module that attach it to the system board.
Disconnect the module connector from the socket on the system board by lifting up on the edges of the module and gently rocking it back and forth.
Lift the module up and away from the board.
Skip to step 8.

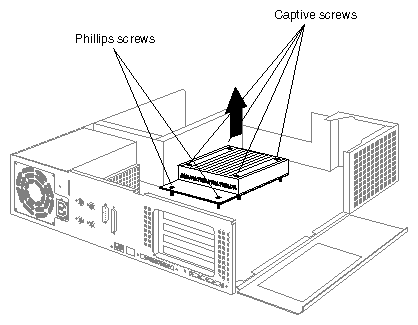

Remove the R4400 200 MHz CPU module, as shown in Figure 8-17.
Loosen the four captive screws on top of the heat sink.
Remove the two Phillips screws on the corners of the module that attach the CPU module to the system board.
Disconnect the module connector from the socket on the system board by lifting up on the edges of the module and gently rocking it back and forth.
Lift the module up and away from the board.
Skip to step 8.
Remove the R4600 133 MHz CPU module, as shown in Figure 8-18.
Remove 6 Phillips screws that attach the CPU module to the system board.
Disconnect the module connector from the socket on the system board by lifting up on the edges of the module and gently rocking it back and forth.
Lift the module up and away from the board.
-

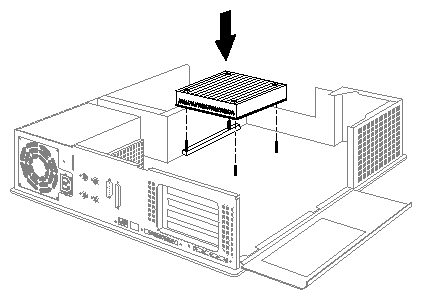

Position the new module so that the connector on the bottom of the module aligns with the socket on the board.
Press down on top of the module connector until it is securely attached to the socket on the board.
If the CPU module has captive screws, tighten the four screws.
Insert and tighten any Phillips screws you removed. (The R4400 150 MHz CPU has only captive screws.)
Replace the 5-1/4" drive and tray, as shown in Figure 8-19.
Position the drive tray so that the tabs on the sides of the tray fit inside the slot openings in the chassis and so that the open side of the tray faces the front of the system.
Push the tray forward about 1/2" to lock it in place.
Tighten the two captive screws.
Reattach the SCSI cable to the connector on the back of the drive tray.
You are finished replacing the CPU module. To replace the top cover, turn to “Replacing the Cover”.
To replace the power supply, follow these steps:
If you have not already shut down the system, removed the cover, and attached the wrist strap, go to “Replacing Internal Parts” for instructions.
Remove the power supply.
Face the back of the system. The power supply is located on the left, as shown in Figure 8-20.

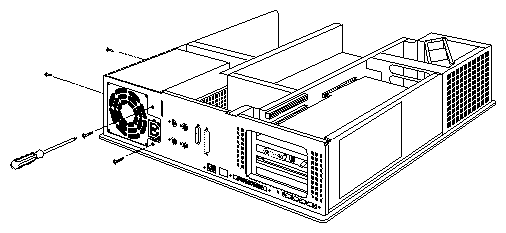

Remove the two screws from the back and side of the chassis.
Move the system, or position yourself so that you are facing the front of the system, as shown in Figure 8-21.
Remove the 5-1/4" drive tray. Removing the drive tray makes it easier to remove the power supply and install the new one. If there is a drive installed, there is no need to remove the drive from the tray.
Disconnect the SCSI cable from the connector on the back of the 5-1/4" drive tray. (See Figure 8-21.)
Loosen the two captive screws that hold the 5-1/4" drive tray to the chassis.
The screws are located below the drive tray in the center front of the system.
Push the drive tray toward the back of the system, and pull up to remove the tray, as shown in Figure 8-22.
Move the system, or position yourself so that you are facing the back of the system, as shown in Figure 8-23.

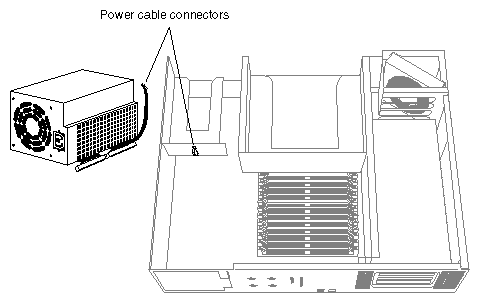

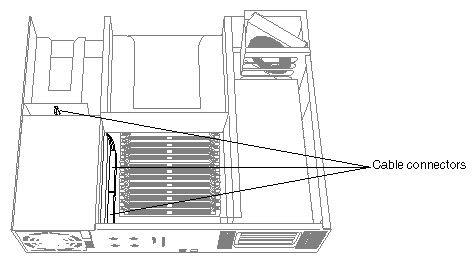

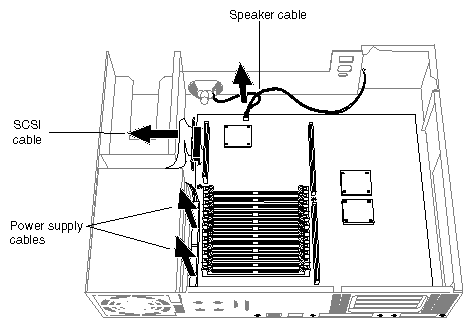

Disconnect the three power connectors, as shown in Figure 8-23.
Remove the power supply.

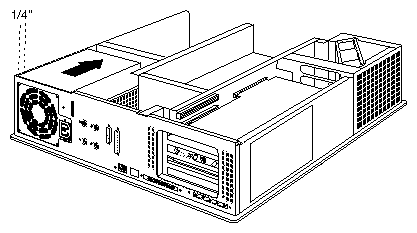

Move the power supply toward the front of the system about 1/4", as shown in Figure 8-24, by pushing on the flat surfaces around the fan.

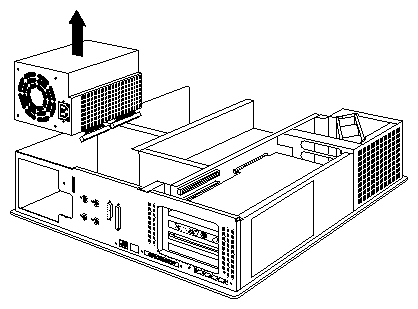

Lift the power supply up and out of the chassis, as shown in Figure 8-25.
Before installing the new power supply, connect the power cable located close to the disk drives.
Hold the power supply with one hand, and with your other hand connect the free end of the power cable shown in Figure 8-26 to the connector located close to the disk drives.
The connector is keyed so that you can connect it only one way if you don't force it.
Press the connector firmly until seated. Check that it is seated all the way in the socket.

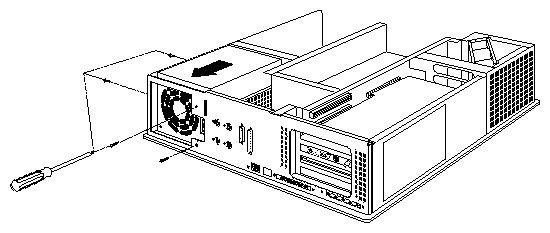

Install the new power supply, as shown in Figure 8-27.
Hold the power supply so that the fan faces the back of the chassis and the power cables are at the bottom.
Lower the power supply into the Indigo2 chassis as close to the disk drives as possible. Make sure that the power supply is flat against the bottom of the chassis.
Shove the power supply toward the back of the Indigo2 chassis, as far as it will go, making sure the metal tabs on the floor of the chassis engage in the slot underneath the power supply.
If the tabs do not engage in the slot, raise the power supply and lower it again, making sure it is flat against the bottom of the chassis.
Tip: A good test is to lift up the power supply. If the chassis comes up with it, the metal tabs are engaged. Replace the four screws that hold the power supply, in the locations shown in Figure 8-27.
If the screw holes do not line up, verify that the power supply is seated all the way, and is pushed all the way against the back of the chassis.
Connect the remaining two power cables.
Connect the two power cables located close to the memory modules, as shown in Figure 8-28. These connectors are not keyed, so make sure you align them correctly before pressing firmly to seat them.
Check that the two connectors are seated all the way in the sockets.
You are finished replacing the power supply. Turn to “Replacing the Cover” to replace the top cover.
Before replacing memory SIMMs, check to make sure that all SIMMs are seated correctly in their slots.
If you have not already shut down the system, removed the cover, and attached the wrist strap, go to “Replacing Internal Parts” for instructions.
Check to see that all the SIMMs are installed correctly.
A SIMM is installed correctly when it is vertical and perpendicular to the CPU baseboard, and when the latches on the sides of the SIMM fit snugly around it.
If the SIMM appears to be leaning, push it up into a vertical position.
Once the SIMMs are all the way in, replace the cover and power up the system. See “Replacing the Cover” for instructions.
If the error message still says:
Check or replace SIMM#
You have a faulty SIMM. Follow the instructions in “Ordering Replacement Parts”. Then contact your service provider for further instructions.
To replace an internal drive, follow these steps:
If you have not already shut down the system, go to “Replacing Internal Parts” for instructions.
Remove the drive.
Push on the ribbed portion of the lever below the drive.
Pull the lever all the way to the left.
This releases the drive.
Pull the drive all the way out of the slot.
Install the new drive.
To install the new drive, follow the instructions in “Installing an Internal Drive”.
To replace the CPU baseboard, follow the steps below to remove the
5-1/4" drive tray, the graphics board set and any EISA boards, the EISA board backplane, the CPU module, and the CPU baseboard. Then replace each item in reverse order.
If you have not already shut down the system, removed the cover, and attached the wrist strap, go to “Replacing Internal Parts” for instructions.
Remove the 5-1/4" drive tray and drive, as shown in Figure 8-29. (There is no need to remove the drive from the tray first.)
Disconnect the SCSI cable from the connector on the back of the drive tray.
Loosen the two captive screws holding the 5-1/4" drive tray to the chassis.
The screws are located below the drive tray in the center front of the system.
Push the drive tray toward the back of the system about 1/2", and pull up to remove the tray and the drive, as shown in Figure 8-30.
Remove the graphics board set and any EISA boards.
Move the system or position yourself so that you are facing the expansion slots.
The slots are located on the left side of the system, behind the internal fan.

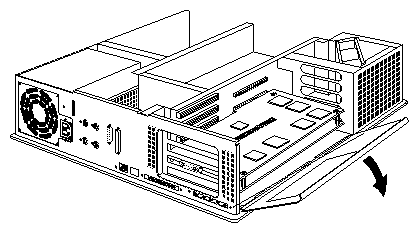

Open the metal panel in front of the slots by pulling up on the panel and lowering it down, as shown in Figure 8-31.
Figure 8-31 shows an XZ graphics board set. Your system may have an XL (single) or Extreme (triple) graphics board set.
Remove the screw or screws attaching each board to its expansion slot, as shown in Figure 8-32.
Each board layer has a screw located on the metal extension on the upper left side of the board.
To remove an XZ or Extreme board set, follow these steps:
Turn both hands inward so that your thumbs point to the floor, and place your index fingers behind the small metal posts on each side of the board set. (See Figure 8-33.)
Brace your thumbs against the chassis, and pull the board out of the slot. You may need to use some force.
Place the board set down on a flat, antistatic surface so the side with the chips faces up. An empty antistatic bag or a clean, dry desktop works well.
To remove an XL graphics board, use the two open-ended wrenches provided with the system. (If your XL board has handles attached, use them to extract the board instead of the wrenches.) Follow these steps:
Grasp the wrenches as shown in Figure 8-34. The orientation of the wrenches is important.
Hook the ends of the wrenches in the small holes on each side of the front of the board, as shown in Figure 8-35.
Brace your index fingers against the chassis and pry the wrenches outward. The board comes out.

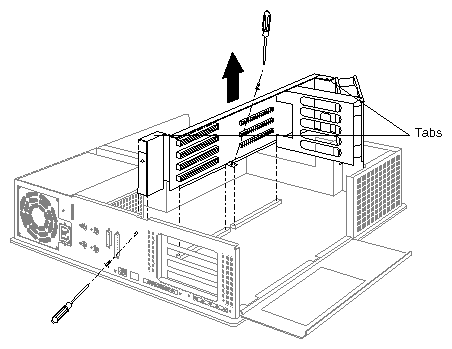

Remove the EISA board backplane, as shown in Figure 8-36.
The backplane is the gold-colored metal wall that extends from the fan in the front of the system, along the back of the expansion board slots, to the back of the chassis. The fan is attached to the backplane.
Remove the screw from the back of the chassis that holds the backplane to the chassis.
Remove the screw from the center of the backplane that holds the backplane to the CPU baseboard.
Note: Some older Indigo2 systems may not have the above two screws. Facing the front of the system, remove the backplane by pulling up on the metal tabs located to the right of the fan and on the back of the backplane.
Remove the CPU module.
The CPU module is the large, elevated module on the CPU baseboard that is protected by a textured black heat sink. It is located in the middle section of the chassis, in front of the memory SIMMs.
Note: Several CPU module shapes are supported on the Indigo2 workstation. Figure 8-37 shows the R4400 150 MHz CPU module. The CPU module on your system may look different, but is located in the same place. Loosen any captive screws on the CPU module.
Use a phillips screwdriver to remove any phillips screws that attach the CPU module and shield to the board. (The R4400 150 MHz has no phillips screws to remove.)
Disconnect the module connector from the socket on the board by lifting up on the sides of the module and gently rocking it back and forth.
Lift the module up and away from the board.
Remove the CPU baseboard.

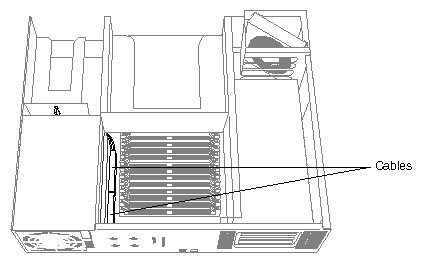

Facing the back of the system, disconnect the SCSI cable, the two power supply cables, and the speaker cable from the board, as shown in Figure 8-38.
The speaker cable is attached to the front of the board, toward the front of the system. The SCSI flex cable is attached to the left side of the board, toward the front of the system. The power supply cables are attached to the left side of the board, toward the back of the system.

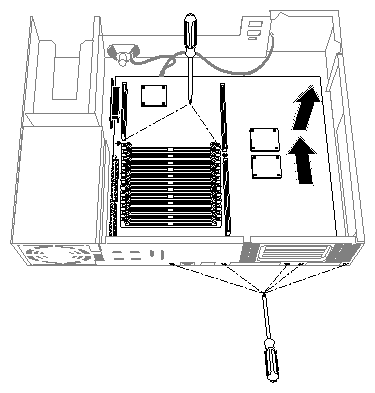

Remove the five screws from the back of the chassis that hold the board to the chassis, as shown in Figure 8-39.
Two of the screws are located on either side of the Ethernet 10-BASE T port. The Ethernet 10-BASE T port looks like a telephone jack. The third screw is located to the right of the SCSI connector. The fourth and fifth screws are located on either side of the audio ports.
Remove the small screw from the left side of the baseboard, as shown in Figure 8-39.
Note: In some older Indigo2 systems the gold screw in the center of the CPU baseboard (as shown in Figure 8-39) should also be removed. In newer systems this screw was already removed when you removed the backplane earlier. Pull the board toward the front of the chassis. Then lift it up and out.

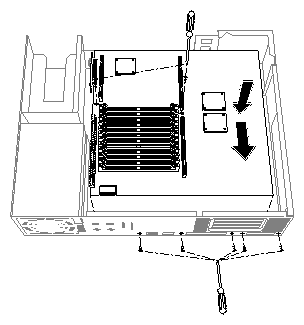

Install the new CPU baseboard, as shown in Figure 8-40.
Position the board so that the small connector protruding from the back of the board is facing the back of the chassis.
Align the open slots in the sides of the board over the slot pins and slide the board down onto the pins. You may need to hold up the connectors toward the back right side of the chassis in order to slide the board into position.
Slide the board toward the back of the chassis as far as it will go.
Tip: If you don't push the board all the way back, the connectors on the backplane may not align correctly with the ports on the board. Insert and tighten the five screws that you removed from the back of the chassis.
Insert and tighten the screw that you removed from the CPU baseboard.
Note: If you have an older Indigo2 system that does not have a bracket on the EISA backplane, also insert and tighten the gold screw in the center of the CPU baseboard.
Reattach the SCSI flex cable connector to the port on the forward right side of the board.
Reattach the power cables and speaker cable to the board.
Replace the CPU module. Figure 8-41 shows the R4400 150 MHz CPU module. Your CPU module may look different, but is installed in the same location.
Position the module so that the connector on the bottom of the module aligns with the connector on the board, as shown in Figure 8-41.
Press down on the top of the module connector until it is firmly attached to the socket on the board.
Tighten each of the captive screws to secure the module to the board. If your CPU module has additional phillips screws, insert and tighten them.
Replace the EISA board backplane, as shown in Figure 8-42.
Position the backplane so that the fan is aligned over the slot openings in the forward left side of the chassis, and the back end of the backplane is aligned over the slot in the back side of the chassis.
Slide the backplane down into the chassis.
Press firmly so that the connectors on the backplane fit securely into the ports on the CPU baseboard. If the connectors do not align correctly with the ports, the CPU baseboard may not be pushed all the way back
Tip: If you're having trouble inserting the EISA backplane, tilt up the chassis and place one hand underneath the center of the chassis while you push down on the backplane. Insert and tighten the screws that hold the EISA backplane to the back of the chassis and the center of the CPU baseboard. (Some older Indigo2 systems may not have these screws.)
Replace the graphics board or board set and any EISA boards.
Move the system or position yourself so that you are facing expansion slots.
Expansion slots are located on the left side of the system, behind the internal fan.
Align the right side of the board or board set with the metal grooves on the right. Align the connector on the left side of the board or board set with the connector opening on the left, as shown in Figure 8-43.
Push the board or board set into the slot until the connector on the back of the board is securely connected to the port on the backplane.
Insert and tighten the screws that hold the board or board set to the chassis.
The screw openings are located on the metal extension on the upper left side of each board.
Install the 5-1/4" drive and tray, as shown in Figure 8-44.
Position the drive tray so that the tabs on the sides of the tray fit inside the slot openings in the chassis and so that the open side of the tray faces the front of the system.
Push the tray forward to lock it in place.
Tighten the two captive screws.
Reattach the SCSI cable to the connector on the back of the drive tray.
You are now finished replacing the CPU baseboard. Turn to “Replacing the Cover” to replace the cover.
To replace the top cover, follow these steps:
Place the prongs on the underside of the cover into the slots under the top ridge of the backplane of the chassis, as shown in Figure 8-45.
Lower the cover down onto the chassis until it snaps into place.
Replace the front bezel.
Place the tabs on the bottom of the bezel in the grooves in the front of the chassis, as shown in Figure 8-46.
Tilt the bezel up and snap it into place.
Reconnect the power cable to the back of the system.
You are finished replacing the part and are ready to start up the system.
External replacement parts include the keyboard, mouse, and external SCSI devices. To replace an external part on the Indigo2, shut down the system, replace the part, then start up the system.
To shut down and power off the system, follow these steps:
Open the front cover.
Press and release the power switch on the front of the system to shut down the software and power off the system.
The system powers off automatically.
Press the monitor power switch to turn off your monitor.
Disconnect the power cable from back of the Indigo2 workstation.
To replace the keyboard or mouse, see below for instructions. To replace an external SCSI device, turn to “Replacing External SCSI Devices”.
To replace the keyboard or mouse, follow these steps:
See “Shutting Down and Powering Off the System” on this page to shut down the system.
Disconnect the cable from the main unit.
Connect the new mouse or keyboard to the main unit.
Reconnect the power cable to the back of the system.
Press and release the power switch on the monitor. Then press and release the power switch on the front of the system to power up the system.
To replace an external SCSI device, follow these steps:
Turn to “Shutting Down and Powering Off the System” to shut down the system.
Disconnect the power cable from the SCSI device.
Disconnect the SCSI cable from the back of the Indigo2 chassis.
Squeeze the clips on both sides of the connector.
Pull off the connector.
If you are not going to install another external device, replace the terminator that came with your workstation on your Indigo2.
Note: The terminator that shipped with your Indigo2 is a high-density active terminator. The terminator on an external drive may be a low-density terminator. Use only an active high-density terminator to terminate the Indigo2. Gently put the terminator on the SCSI connector on the back of the Indigo2 chassis.
The SCSI connector is designed so that you can put the terminator on only one way, if you do not force it.
Secure the clips on each side of the terminator.
Reconnect the power cable to the back of the system.
Press and release the power switch on the monitor. Then press and release the power switch on the front of the system to power up the system.
To install a replacement external SCSI device, follow the instructions in “Installing External SCSI Devices”.
