This system is designed to be user maintainable. If diagnostic tests identify a faulty part, contact your service organization before removing the faulty part. In some cases you may be instructed to return the system.
This chapter tells you how to:
order a replacement part and package the faulty part for return
replace the system
replace the following internal parts
GIO option board (optional video, network or fast SCSI-2 boards)
graphics board
CPU module
SIMMs (Single Inline Memory Modules)
internal drives (floptical, second hard disk and system disk)

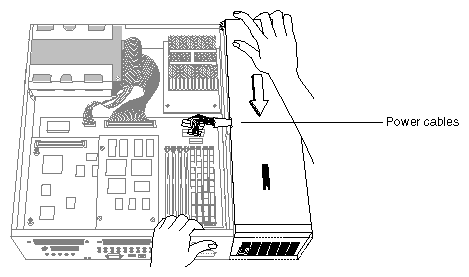

power supply
external SCSI (Small Computer Systems Interface) devices
If diagnostics have identified a faulty part, call your service provider. You will be instructed either to order a replacement part, or to ship the system back. If instructed to return the system, go to “Replacing the System”. If asked to return the part, Figure 8-1 will help you locate the part number of the faulty part.
Follow these steps to order a replacement part:
Contact your service provider.
You will be asked for the system serial number, configuration information, the faulty part's part number, and a description of the problem. You may be instructed to remove the faulty part, or you may be asked to return the entire system.
Make a photocopy of the “Part Request Form” at the back of this guide.
Note the name of the faulty part on the copy of the form.
Note the serial number of your system. The number is on a label on the back of the system.
Remove the faulty part if instructed to do so. Go to the appropriate instructions on replacing parts in this chapter.

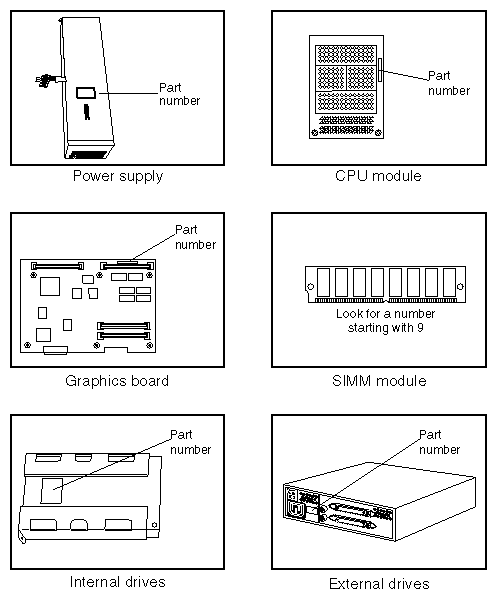

Look for the part number of the faulty part; it's shown on the part. (Refer to Figure 8-1.)
Pack and ship the faulty part to your service provider:
If possible, package the part in an antistatic bag. Graphics and GIO option boards, CPU modules, and SIMM modules are extremely sensitive to static electricity.
For maximum protection to the part, use two sturdy boxes for shipping.
Place the faulty part and “Part Request Form” into one of the two boxes. Pack them in plenty of packing material so the part won't sustain further damage. Tape the box securely.
Place the box containing the faulty part into a larger box and fill the empty space with packing materials. Tape the box securely and affix a mailing label. Ship the box to your service provider.
If diagnostics have identified a problem with the system, call your service provider. If instructed to return the system, follow these instructions to prepare it for shipping and complete the necessary paperwork.
To preserve your data, remove the disk drives from the system:
Remove the floptical disk drive or second hard disk drive in the top drive slot (if installed). Go to “Replacing the Internal Floptical Drive or Second Hard Disk Drive”.
Remove the system disk drive. Go to “Replacing the System Drive”.
Remove any non-Silicon Graphics memory modules or other non-Silicon Graphics parts installed on the system. Refer to the appropriate section in this chapter to remove the parts.
Remove any external SCSI devices or external parts such as the keyboard, mouse, camera, or monitor. Do not ship these external parts unless told to do so by your service provider.
Make a photocopy of the “Part Request Form” on the last page of this guide.
Complete the “Part Request Form.” You need to know the serial number of your system. The number is on a label on the back of the system. The serial number allows your service provider to identify the correct replacement system for you.
Pack the workstation in the original packing materials that came with it. The workstation should include all the internal parts (except for the system drive) that it shipped with: power supply, system board, CPU module, graphics board, and memory modules.
Note: It's important that you use the original packing materials to prevent further damage to the workstation and its internal parts. If you don't have the original packing materials, contact your service provider.
Ship the workstation to your service provider.
Internal replacement parts include the graphics board, GIO option board, CPU module, SIMM modules, internal drives, and power supply.
Note: Before replacing an internal part, call your service provider for instructions. If the system is under warranty, you may be instructed to ship the system back.
Follow the steps below to shut down the system, remove the cover, attach the wrist strap, replace the part, replace the cover, and start up the system.
For non-Silicon Graphics GIO option boards, contact the supplier for maintenance instructions.
To replace a single-width or double-width GIO option board, follow these steps:
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the Indy chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.
Caution: The GIO option board is extremely sensitive to static electricity. Wearing the wrist strap prevents the discharge of static electricity, which could damage the board. Move the system or position yourself so that you are facing the rear of the system as shown in Figure 8-2.
GIO option boards are installed on top of the graphics board. A single-width GIO option board covers half of the graphics board; a double-width covers the entire graphics board. Figure 8-2 shows a single-width board.
If there are external cables connected to the GIO board connector on the rear of the workstation, disconnect them.
Using the tool provided with the replacement GIO board, remove the screws from GIO board connector on the rear of the workstation. Figure 8-3 shows the screw locations for a single-width board; Figure 8-4 shows the screw locations for a double-width board.
Using a phillips screwdriver, remove the screws that connect the GIO option board to the graphics board. Figure 8-5 shows a single-width board. Figure 8-6 shows a double-width board.
Disconnect the GIO board from the graphics board by grasping the GIO board firmly on the side close to the system disk drive and pulling it up.
Install the replacement GIO option board.
To install the new board, follow the instructions in “Installing a GIO Option Board”.
 | Note: If your system has an XZ graphics boardset, do not follow these instructions. Go to “Replacing the XZ Graphics Boardset”. |
To replace the graphics board, you first need to remove any GIO option boards installed on it. Follow these steps:
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the Indy chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.
| Caution: The graphics board is extremely sensitive to static electricity. Wearing the wrist strap prevents the discharge of static electricity, which could damage the board. |
Move the system or position yourself so that you are facing the rear of the system, as shown in Figure 8-7.

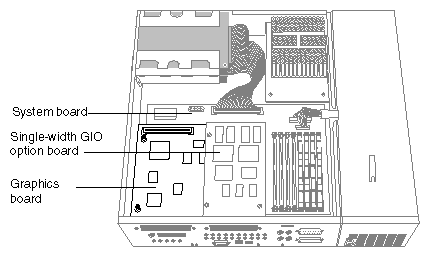

To gain access to the graphics board, remove any GIO option boards,
if installed.There might be one double-width GIO option board, or one single-width board, or two single-width boards installed on the graphics board. Figure 8-7 shows one single-width GIO option
board installed.Refer to “Replacing a GIO Option Board” for instructions on removing the board, and then continue with the next step.

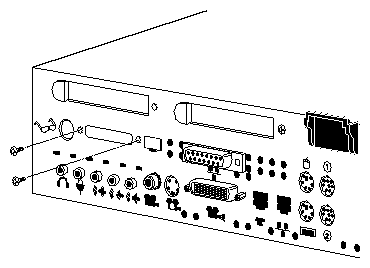

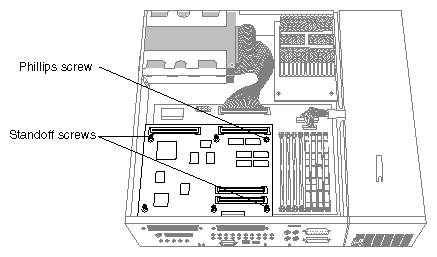

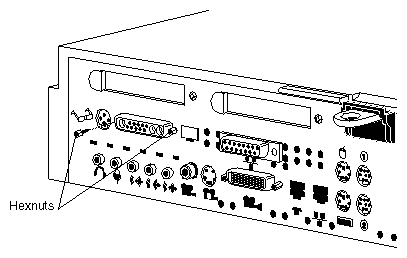

Use the end of the tool that has an icon (provided with the replacement graphics board) to unscrew the two hexnuts on either side of the graphics board's I/O connector on the rear of the workstation, as shown in Figure 8-8.
Use the end of the tool without an icon to unscrew the two standoff screws (tall, hexagonal posts) from the graphics board, as shown in Figure 8-9.
Use a phillips screwdriver to remove one Phillips screw from the
graphics board.

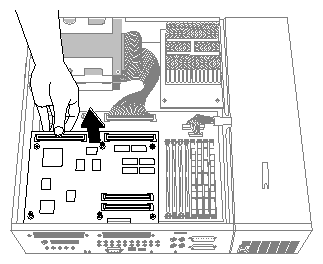

Disconnect the graphics board from the system board, as shown in Figure 8-10.
Lower the replacement graphics board over the system board, tilting it to insert the graphics board's I/O connector through the open I/O slot on the rear of the chassis.

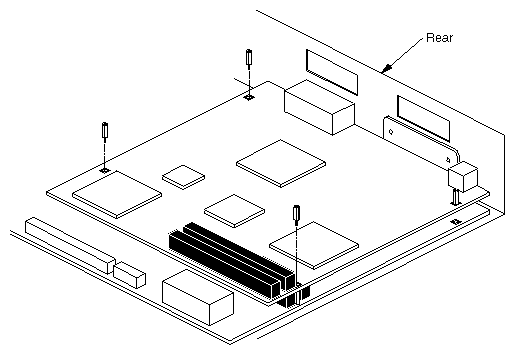

Align the screw holes on the graphics board over the vacant standoff screws (tall, hexagonal posts) on the system board.

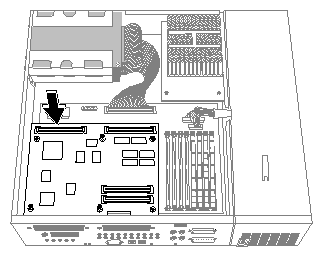

Connect the graphics board to the system board, as shown in Figure 8-11.
Seat the connectors under the graphics board over the sockets on the system board. Make sure they are positioned correctly before going on to the next step.
Press down firmly on all four corners of the graphics board until it is securely seated in the two sockets on the system board. If the board is not seated all the way, the screws will not tighten correctly.
Use the end of the tool without an icon to insert and tighten the two standoff screws that you removed earlier on the graphics board, as shown in . As you tighten the screws, alternate between them so that the board is connected evenly.
Insert and tighten the phillips screw that you removed earlier on the graphics board.
Use the end of the tool that has an icon, to insert and tighten the two hexnut screws on either side of the graphics board's I/O connector on the rear of the chassis, as shown in . You removed these two screws earlier.
If you removed any GIO option boards, re-install them. Refer to“Installing a GIO Option Board”.
Replace the top cover by inserting the tab through the hole in the rear of the chassis and sliding it back until it snaps into place. For more information, see “Replacing the Top Cover”.
Reconnect the power cable to the connector on the back of the Indy workstation.
You are finished replacing the graphics board and ready to power on
the system.
To replace the XZ graphics boardset, follow the steps below.
| Note: If you have an Indy Presenter XZ adapter board installed in your Indy, you must first remove it, before removing the XZ graphics boardset. Refer to the Indy Presenter Owner's Guide for instructions. |
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the Indy chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.
| Caution: The graphics boardset is extremely sensitive to static electricity. Wearing the wrist strap prevents the discharge of static electricity, which could damage the boards. |

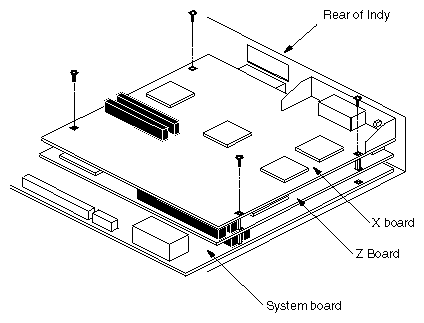

The XZ graphics boardset consists of two boards, the X board and the Z board, which are installed on top of each other. Using a Phillips screwdriver, remove the screws securing the X board to the Z board, as shown in Figure 8-14.

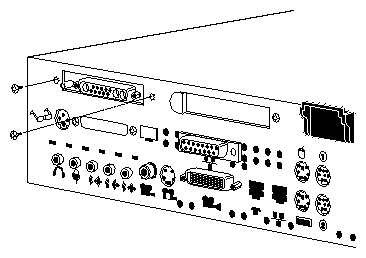

On the rear of the workstation, remove the two screws in the locations shown in Figure 8-15.

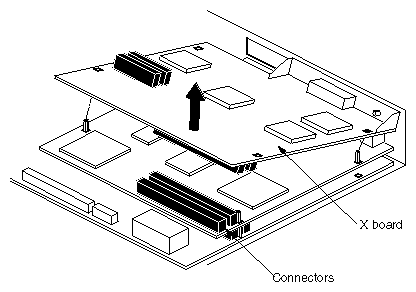

Disconnect the X board from the Z board, by grasping the board firmly on the side close to the system disk drive and pulling up to disconnect the two connectors underneath the board. See Figure 8-16.
Using an open-ended wrench, remove the standoff screws from the Z board, as shown in Figure 8-17.
On the rear of the workstation, remove the two screws, as shown in Figure 8-18.

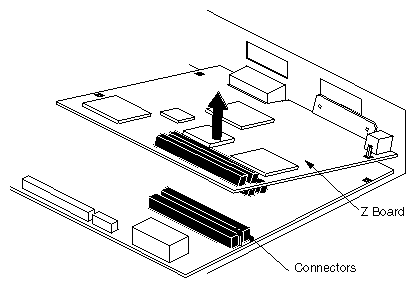

Disconnect the Z board from the system board, by grasping the board firmly on the side close to the system disk drive and pulling up to disconnect the two connectors underneath the board. See Figure 8-19.
Install the replacement XZ boardset, using the instructions for removing the boardset in reverse order. That is, install the Z board first on the system board. Then install the X board on top of the Z board.
If you removed an Indy Presenter XZ adapter board, re-install it., referring to the instructions in the Indy Presenter Owner's Guide.
Replace Indy's top cover by inserting the tab through the hole in the rear of the chassis and sliding it back until it snaps into place. For more information, see “Replacing the Top Cover”.
Reconnect the power cable to the connector on the back of the Indy workstation.
You are finished replacing the XZ graphics boardset and ready to power on the system.
Follow the steps below to remove the CPU module and install the new
CPU module.
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the Indy chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.
| Caution: The CPU module is extremely sensitive to static electricity. Wearing the wrist strap prevents the discharge of static electricity, which could damage the board. |

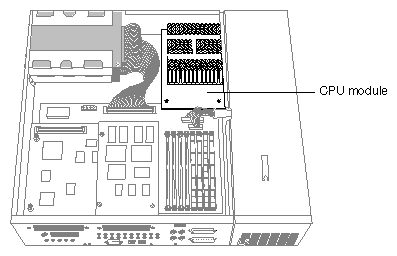

Locate the CPU module, as shown in Figure 8-20.
The CPU module is elevated on the system board and is located at the front of the system between the power supply and the system disk drive. It is protected by a textured heat sink. Do not remove the heat sink.
Note: The Indy workstation supports several CPU module shapes. Your system may have a CPU module and heat sink that look different than the one shown below.

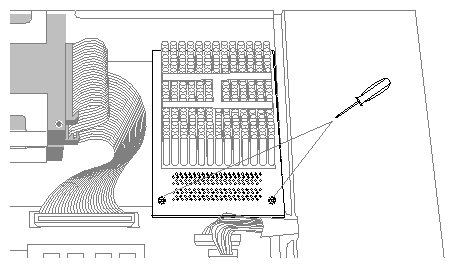

Using a Phillips screwdriver, remove the two screws that connect the CPU module to the system board, as shown in Figure 8-21.

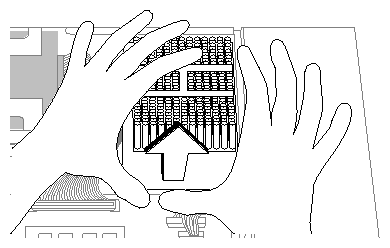

Lift the board by bracing your hands against the power supply and the chassis and pushing the board up with your thumbs, as shown in Figure 8-22.
Note: Note that when the board disconnects, it pops up quite quickly and may startle you.
Install the replacement CPU module, as shown in Figure 8-23.
Slide the feet on the bottom of the CPU module into the slippers on the base of the chassis.
Align the two screw holes on the CPU module over the screw holes on the system board.
Seat the connector under the CPU module over the connector on the system board. Make sure it is positioned correctly before going on to the next step.
Press down firmly on the CPU module until it is securely seated in the socket on the system board.
If the connector does not seem to fit into the socket, do not force it. Lift the end of the CPU module slightly and lower it again, making sure it's seated correctly over the connector before pressing it all the way down.
Insert and tighten the two screws you removed earlier to connect the CPU module to the system board. As you tighten the screws, alternate from one to the other so that the board is connected evenly.
Replace the top cover by inserting the tab through the hole in the rear of the chassis and sliding it back until it snaps into place. For more information, see “Replacing the Top Cover”.
Reconnect the power cable to the connector on the back of the Indy workstation.
You are finished replacing the CPU module and ready to power on the system.
You may need to remove and replace SIMMs (single in-line memory modules) if one fails or if you want to upgrade the memory in your system.
Follow these steps to shut down the system, remove the cover, remove the SIMMs, and replace the cover.
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about one minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.
| Caution: SIMMs and the system's internal components are sensitive to static electricity. Handle the SIMMs carefully, and wear the wrist strap to avoid discharging static electricity. |

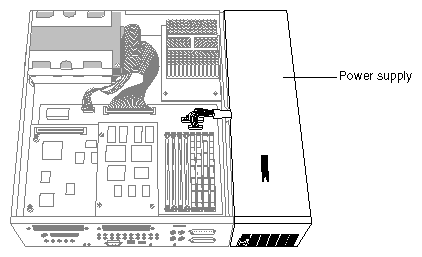

Move the system or position yourself so that you are facing the power supply, as shown in Figure 8-24.
Locate the SIMMS between the power supply and the graphics board.There are eight SIMM sockets, split into two banks—0 and 1. Bank 0 is closer to the power supply and contains sockets S1 through S4. Bank 1 is closer to the graphics board and contains sockets S5 through S8.
Locate the memory SIMMs you want to remove. In order to replace a faulty SIMM, you need to remove the SIMM farthest from you first (closest to the graphics board), then remove the other SIMMs until you reach the SIMM you want to replace.
With your thumbs, pull the latches away from the SIMM, as shown in Figure 8-25.
The SIMM releases and tips away from you about 45 degrees.
Note: Some GIO option boards, if installed on the side of the graphics board close to the SIMMs as shown in Figure 8-26, may impede your installation of the SIMM in the last socket of bank 1 (closest to the graphics board). If this is the case, you may have to remove the GIO option board to gain access to the SIMM socket. Turn to“Replacing a GIO Option Board” for instructions and then return to this section.
Remove the other SIMMs the same way.
Install the replacement SIMMs. To install the SIMMs, turn to “Installing SIMMs”.
To remove the internal floptical or second hard disk drive from the top drive slot, follow these steps:
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the Indy chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.

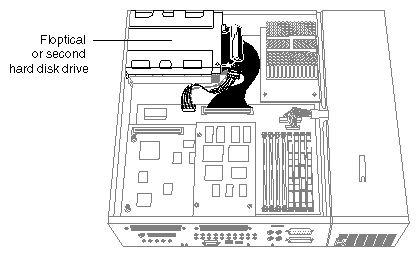

Locate the floptical or second hard drive, as shown in Figure 8-27.

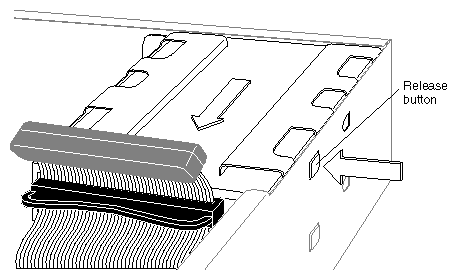

Remove the drive and bracket by pressing the release button that protrudes through the hole on the side of the chassis, and pulling the unit toward you, as shown in Figure 8-28.
Disconnect the following cables:

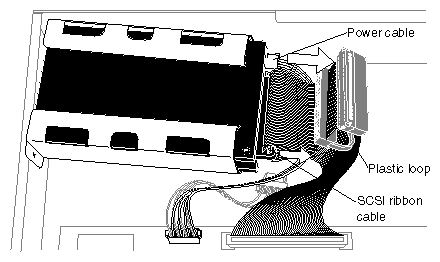

Disconnect the power cable connector from the drive, as shown in Figure 8-29.
Disconnect the SCSI ribbon cable connector from the drive. You can pull the plastic loop behind the connector to help you disconnect the cable.
Install the replacement drive.
To install the new drive, follow the instructions in “Installing the Drive”, starting with step 7.
| Note: If you remove the floptical or secondary hard disk drive and do not intend to replace it, you need to inform the system that the drive is no longer there. For more information, select “Online Books” from the Help toolchest, and search for “Removing a Disk” in the Personal System Administration Guide. |

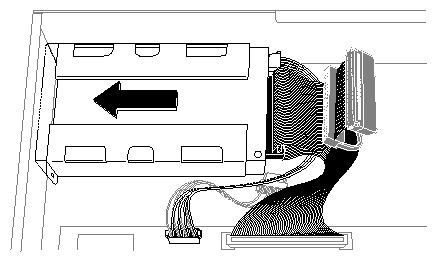

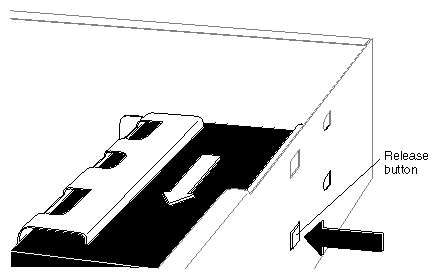

To replace the system drive, you must first remove the drive and bracket, or the empty bracket if no drive is installed, from the upper drive slot. The drive could be a floptical drive or second hard disk drive.
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the Indy chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.
Locate the floptical drive (if installed) in the top drive slot, as shown in Figure 8-30 . (This might also be a second hard disk drive.)
If no drive is installed, there will be an empty bracket.
Remove the floptical drive and bracket, (or the empty bracket if no drive is installed), by pressing the release button that protrudes through the hole in the side of the chassis and pulling the unit toward you. (See Figure 8-31.)
If you are not replacing a drive in the top slot, you must re-install the empty bracket in the top slot after replacing the system disk drive.
Caution: The empty drive bracket provides support for the monitor that sits on top of the system. You must replace it if you're not installing a drive in the top slot. Disconnect the following cables.
Disconnect the power cable connector from the drive, as shown in Figure 8-32.
Disconnect the SCSI ribbon cable connector from the drive.There's a plastic loop on the back of the connector which you can pull to help you disconnect the cable.
Remove the system drive and bracket from the lower drive slot by pressing the release button that protrudes through the hole on the side of the chassis and pulling the unit toward you, as shown in Figure 8-33.
Disconnect the following cables:
Disconnect the power cable connector from the system drive, as shown in Figure 8-34.
Disconnect the SCSI ribbon cable connector from the drive. You can pull on the plastic loop behind the connector to help you disconnect it.
Pick up the replacement system drive and reconnect the SCSI cable and the power cable to the replacement system drive.
Install the replacement system drive, as shown in Figure 8-35.
Lower the drive and bracket onto the chassis, making sure it engages in the metal tab on the floor of the chassis. At the same time the button on the right side of the bracket snaps into the hole on the side of the chassis.
If you don't hear it snap, push the bracket forward until you hear the snap and can see the button protruding through the hole.
Reconnect the SCSI ribbon cable connector and the power cable connector to the floptical drive.
Reinstall the floptical drive in the upper drive slot, as shown in Figure 8-36.
Position the drive and bracket over the system drive.
Slide the metal tabs underneath the bracket into the holes on the top of the system drive's bracket. At the same time make sure that the button release on the right side of the bracket snaps into the chassis.
Check that the power cable is not caught between the system drive and the floptical drive.
Replace the top cover by inserting the tab through the hole in the rear of the chassis and sliding it back until it snaps into place. For more information, see “Replacing the Top Cover”.
Reconnect the power cable to the connector on the back of the Indy workstation.
You are finished replacing the system disk drive and ready to power on the system.
To replace the power supply, follow these steps:
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from the back of the Indy workstation.
Remove the top cover by releasing the latch on the rear of the cover and sliding it forward. For more details, see “Removing the Top Cover”.
Ground yourself to a metal part of the Indy chassis.
Unwrap the first two folds of the wrist strap and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a metal part of the Indy chassis.
Move the system or position yourself so that you are facing the rear of the system. Locate the power supply, as shown in Figure 8-37.

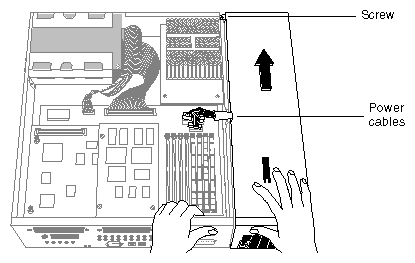

Disconnect the two power cables that connect the power supply to the system board. (Refer to Figure 8-38.)
Disconnect the smaller of the two cables by grasping the connector (not the cables) and pulling it upward.
Disconnect the larger cable by grasping the connector, pressing in the lever on its side and pulling it upward. Do not pull the connector up by the cables.
Use a phillips screwdriver to remove the screw that connects the power supply to the chassis.
Remove the power supply.
Place your right hand on the power supply and your left hand on the chassis a few inches from the power supply, as shown in Figure 8-38.
Slide the power supply forward about one quarter-inch to disengage it from the chassis. You may have to exert some pressure.
Remove the power supply by pulling it away from the chassis.
Install the replacement power supply.
Grasp the replacement power supply with your right hand and place your left hand on the front of the chassis as shown in Figure 8-39.
Place the power supply against the chassis and slide it toward you, making sure that the two metal buttons on its side engage in the two holes on the chassis.
Insert and tighten the screw that you removed on the power supply.
Connect the two power cables to the system board.
Insert the larger of the two power connectors into the socket on the system board, pressing it firmly until seated.
Insert the smaller power connector into the socket on the system board, pressing it firmly until seated.
Replace the top cover by inserting the tab through the hole in the rear of the chassis and sliding it back until it snaps into place. For more information, see “Replacing the Top Cover”.
Reconnect the power cable to the connector on the back of the Indy workstation. You are finished replacing the power supply and ready to power on the system.
To replace an external SCSI device, follow these steps:
If the system is powered on, press and release the power button on the front of the system to shut down the software and power off the system.
The system powers off automatically after about a minute.
Disconnect the power cable from back of the Indy workstation.
Disconnect the power cable from the SCSI device.
Disconnect the SCSI cable from the back of the Indy workstation.
Squeeze the clips on both sides of the connector.
Pull off the connector.
If you are not going to install another external device, replace the terminator that came with your Indy workstation.
Note: The terminator that shipped with your Indy workstation is a high-density active terminator. The terminator on an external drive may be a low-density terminator. Use only an active high-density terminator to terminate the Indy system. Put the terminator on the SCSI connector on the back of the Indy workstation.
The SCSI connector is designed so that you can put the terminator on only one way.
Secure the clips on each side of the terminator.
Reconnect the power cable to the back of the system.
Press and release the power button on the front of the system to power up the system.
To install a replacement external SCSI device, follow the instructions in “Installing External SCSI Devices”.
