The Indigo2 IMPACT workstation allows several configurations of graphics boards, texture memory option boards, and option boards attached by standoffs and cables to the graphics board set.
This chapter tells you how to
identify graphics board(s) and option boards
remove and replace option boards attached to the graphics boards
upgrade graphics boards
install and remove texture memory option boards
install and remove graphics boards
upgrade from an IMPACT Ready workstation to an Indigo2 IMPACT workstation
 | Note: If diagnostics have identified a faulty part, remove the faulty part and see Chapter 9, “Ordering Replacement Parts”. |
To shut down the system, follow these steps:

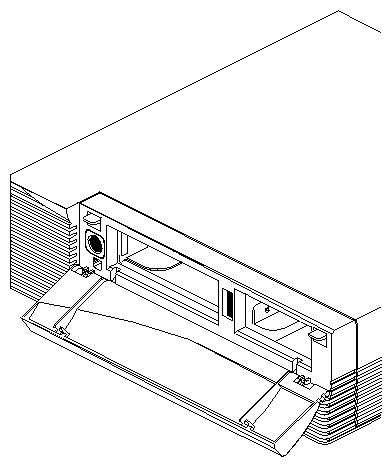

Open the front cover.

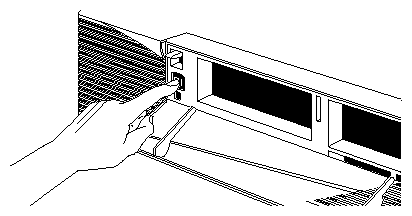

Press and release the power switch on the front of the workstation to shut down the software and power off the system.
The system powers off automatically.
Press the monitor power switch to turn off your monitor.
Disconnect any cables from the back of the Indigo2 IMPACT workstation.
Once the system is shut down and all of the cables are disconnected, follow these steps:
Remove the lockbar if you have one installed.
Remove the lock from the lockbar at the back of the workstation.
Pull the lockbar through the bezel and out.

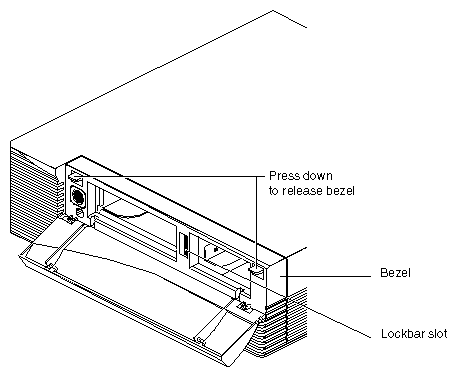

Remove the bezel.

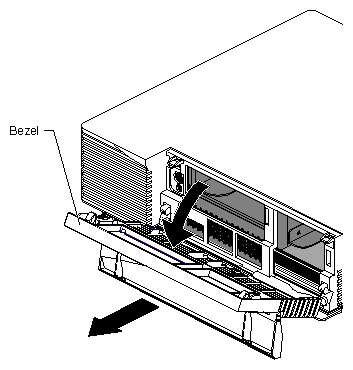

Press down on the tabs on each side of the bezel, as shown in Figure 5-3.
Pull the bezel away from the chassis.

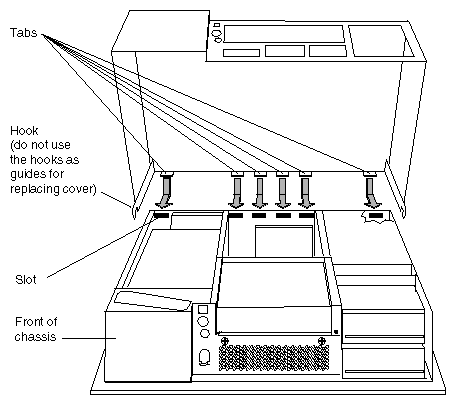

Remove the top cover.

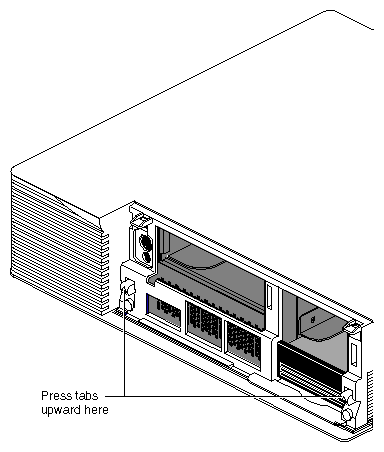

Press up on the tabs on each side of the drive openings, as shown in Figure 5-5.

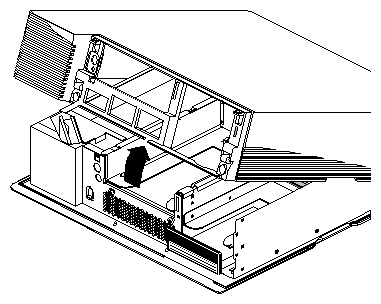

Pull up on the cover and rotate it back and away from the chassis, as shown in Figure 5-6.
 | Tip: If the cover is difficult to raise, check the locking levers of your drives to be sure they are fully locked. The levers should be pushed all the way to the right. |
Wear the wrist strap to prevent the flow of static electricity, which can damage the board.
 | Caution: The components inside the Indigo2 IMPACT workstation are extremely sensitive to static electricity; you must wear the wrist strap while replacing parts inside the workstation. |
To attach the wrist strap, follow these steps:
Unwrap the first two folds of the band and wrap the exposed adhesive side firmly around your wrist.
Unroll the rest of the band and peel the liner from the copper foil at the opposite end.
Attach the copper foil to a convenient and exposed electrical ground, such as a metal part of the Indigo2 IMPACT workstation.
To remove the Indigo2 Solid IMPACT, High IMPACT, or Maximum IMPACT graphics boards, follow these steps:
Make sure the wrist strap is attached to a metal part of the chassis.
Move the workstation or position yourself so that you are facing the expansion slots, as shown in Figure 5-7.

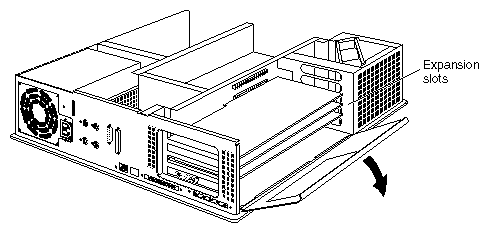

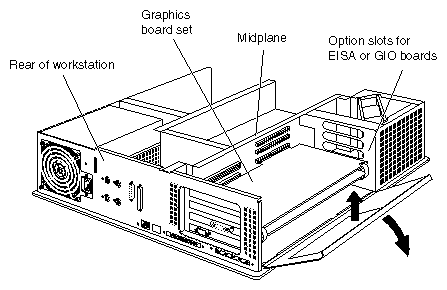

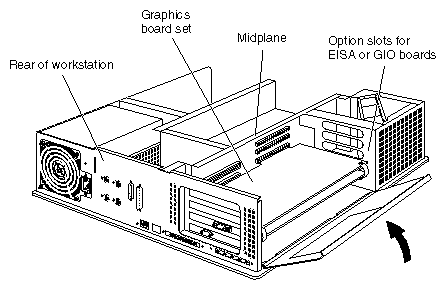

Open the metal panel in front of the expansion slots by pulling up on the panel and lowering it.
Caution: The heat sinks in your Indigo2 IMPACT workstation become hot when the workstation is running. Take a coffee break for a few minutes while the graphics boards cool before you begin working with them.
Note: Illustrations show the High IMPACT board set, but are true for the Solid IMPACT graphics board, the High IMPACT and Maximum IMPACT graphic board sets. Note: Any option boards and your Indigo2 Solid IMPACT, Indigo2 High IMPACT, or Maximum IMPACT board set must be replaced in the same slots. Remove the screws attaching the board set to the workstation slots as shown in Figure 5-8. The number of screws to be removed equals the number of boards you are removing.

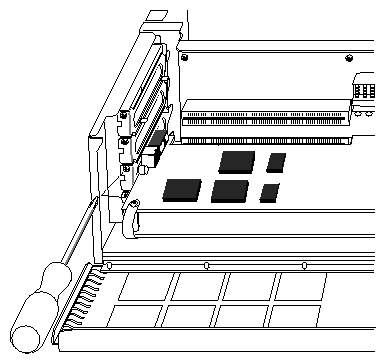

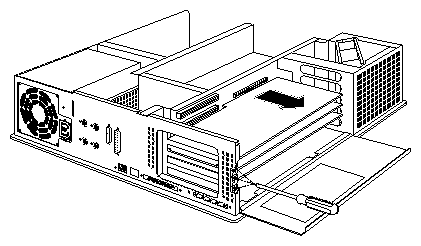

The screws are located on the metal extension on the left side of each board.
Loosen each screw with the Phillips screwdriver.
Unscrew and remove the screws with your hand.
The screws are very small. If you drop a screw into the chassis, retrieve it to prevent shorting the system.
Note: You will have to remove one screw from a Solid IMPACT graphics board and three screws from a Maximum IMPACT graphics board set. Remove the retention pin from the workstation.

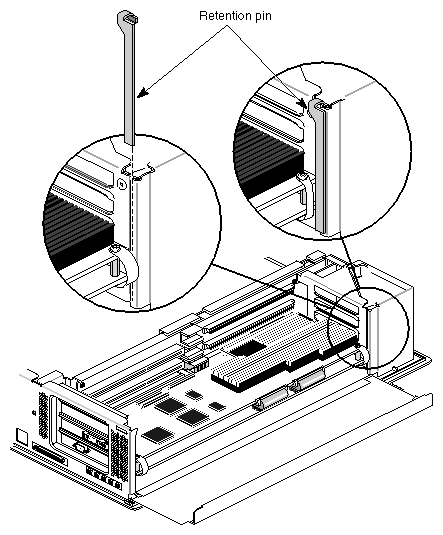

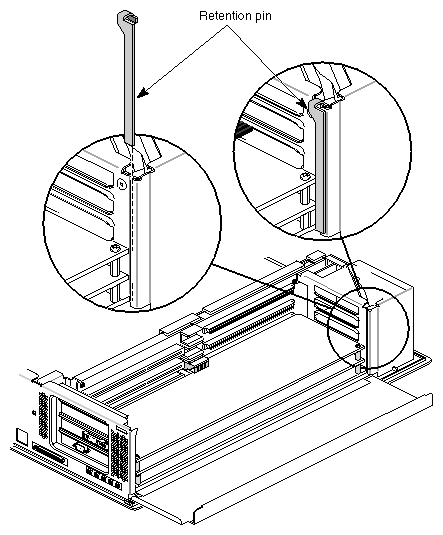

Grasp the retention pin on the right front end of the board set and pull it up and off. See Figure 5-9.
Note: Check the placement of the retention pin. It hangs in front of the board, not beside it.

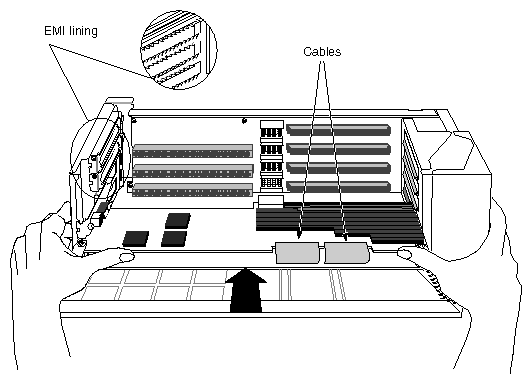

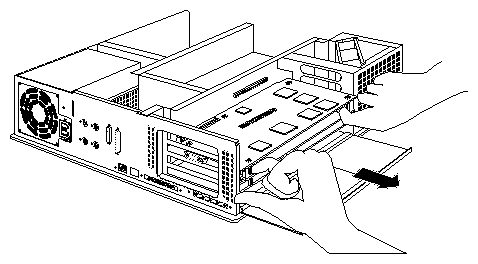

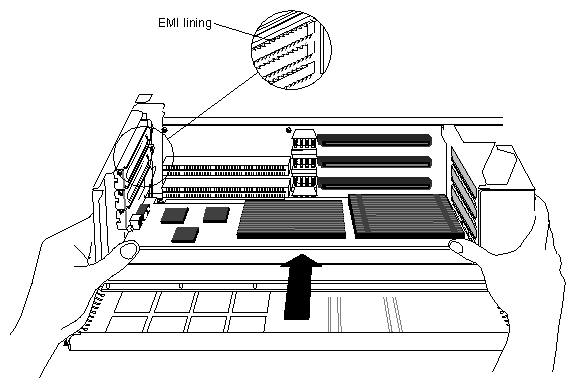

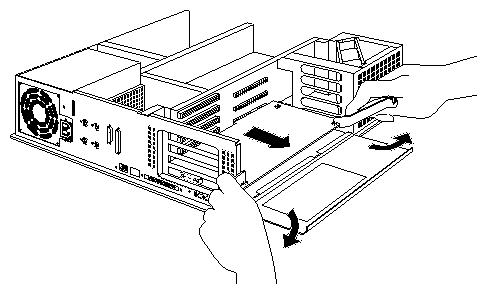

Remove the Solid IMPACT, High IMPACT, or Maximum IMPACT board set.

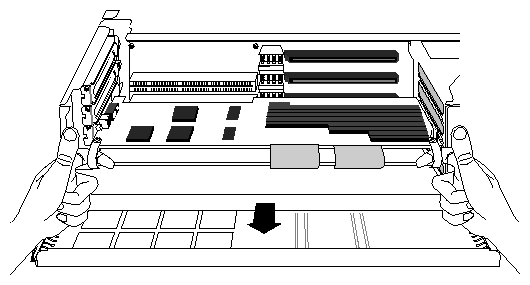

Place the your index fingers behind the plastic loops on each side of the board set as shown in Figure 5-10.
Brace your knuckles and thumbs on the chassis frame and pull the board set out of its slots. You may need to use some force.

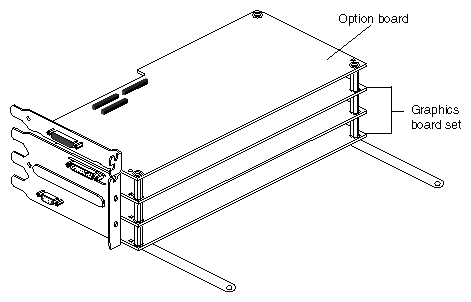

Place the board set down on a flat, antistatic surface so the side with the chips faces up. An empty antistatic bag or a clean, dry desktop works well.
Note: If you received a Solid IMPACT graphics board without pull straps, Grasp the edges of the graphics board with your thumb and fingers and pull the board from the chassis.
Place the board set down on a flat, antistatic surface so the side with the chips faces up. An empty antistatic bag or a clean, dry desktop works well.
If you need help identifying and removing option boards from the graphic board sets, turn to “Identifying, Removing, and Installing Option Boards Attached to Graphic Board Sets”.
If you do not need help removing option boards from the graphics board set, turn to:
page 150 to replace your Solid IMPACT graphics board set.
page 151 o replace your High IMPACT graphics board set.
page 153 to replace your Maximum IMPACT graphics board set.
page 131 for installing a texture memory option board on the top board of your graphics board set.
page 137 for installing a texture memory option board on the middle board of your graphics board set.
page 128 for upgrading from High IMPACT to Maximum IMPACT
This section provides information to help you identify option boards connected to the graphics board or graphics board sets, and properly disconnect and reconnect the cables and standoffs.
Other option boards do not connect to the graphics board set by cables or standoffs. These option boards sit in a board slot independent of other boards.
This section tells you how to
identify option boards and the graphics board or graphics board sets
remove option boards from the graphics board or graphics board set
remove any ribbon cables
remove four screws or standoffs
remove any flex cables
remove the boards
reinstall the boards, standoffs, cables, and screws
The instructions in this section provide annotated illustrations to help you identify option boards and graphics board sets in your workstation.
Use the illustrations to identify the boards in your workstation.
Use the directions below the illustrations to move to the appropriate part of this manual to complete your task.

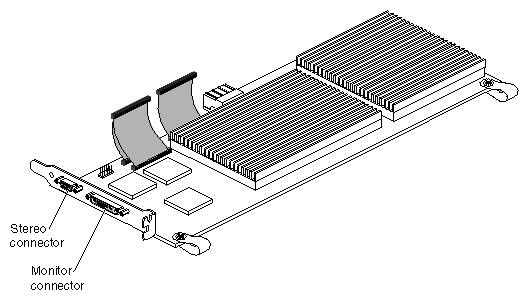

Your Solid IMPACT graphics board is always the bottom board attached by standoffs and cables to option boards.
Note: The Solid IMPACT board has a “3 board pull strap.”
If you have only a Solid IMPACT graphics board with no option boards, go to step 11 on page 127.

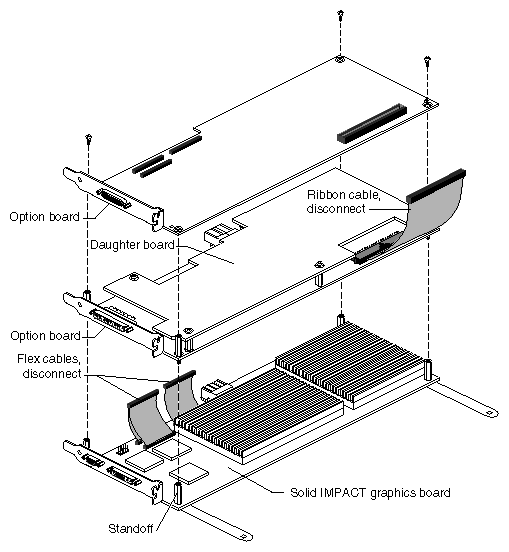

Figure 5-12 shows the maximum number of option boards that can be attached to the Solid IMPACT graphics board by standoffs and cables. You may see one option, an option with a daughter board, or two option boards as other possible connected combinations.
| Note: The daughter board in Figure 5-12 is not attached by corner standoffs. You do not need to remove the daughter board from an option board when removing the option board to reach the graphics board set. |
If you have a Solid IMPACT graphics board set with options, go to “Removing Standoffs and Cables to the Option Boards”.
Your graphics board set is always the bottom two boards (High IMPACT graphics board set) or three boards (Maximum IMPACT graphics board set) connected by corner standoffs and cables. See Figure 5-13.
| Tip: Pull straps are labeled “2 board pull strap” for the High IMPACT graphics board set, and “3 board pull strap” for the Solid IMPACT and Maximum IMPACT graphics board set. Board sets with option boards have 3 or 4 board straps. |
| Note: The daughter board in Figure 5-14 is not attached by corner standoffs. You do not need to remove the daughter board from an option board when removing the option board to reach the graphics board set. |
If you have only a High IMPACT graphics board set with no option boards, go to step 11 on page 127.

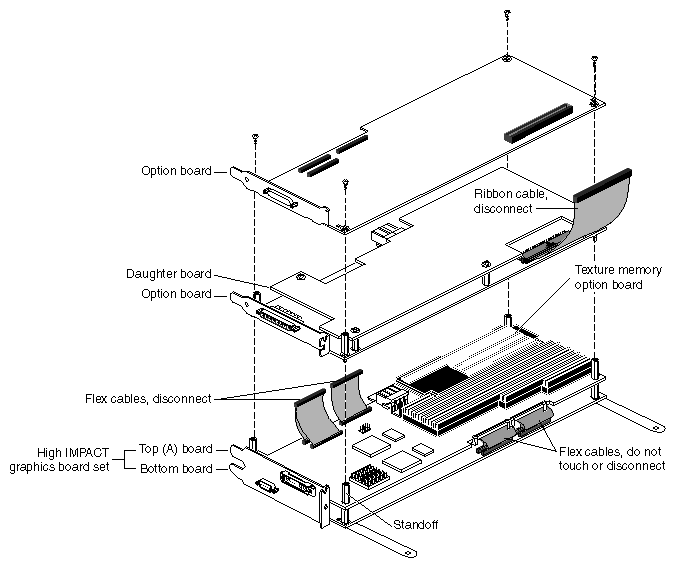

Figure 5-14 shows the maximum number of option boards that can be attached to the High IMPACT graphics board set by standoffs and cables. You may see one option, an option with a daughter board, or two option boards as other possible connected combinations.
If you have a High IMPACT graphics board set with options, go to “Removing Standoffs and Cables to the Option Boards”.
| Tip: Pull straps are labeled "3 board pull strap" for the Maximum IMPACT graphics board set; sets with attached option boards have 4 board straps. |
If you have only a Maximum IMPACT graphics board set with no option boards, go to step 11 on page 127.

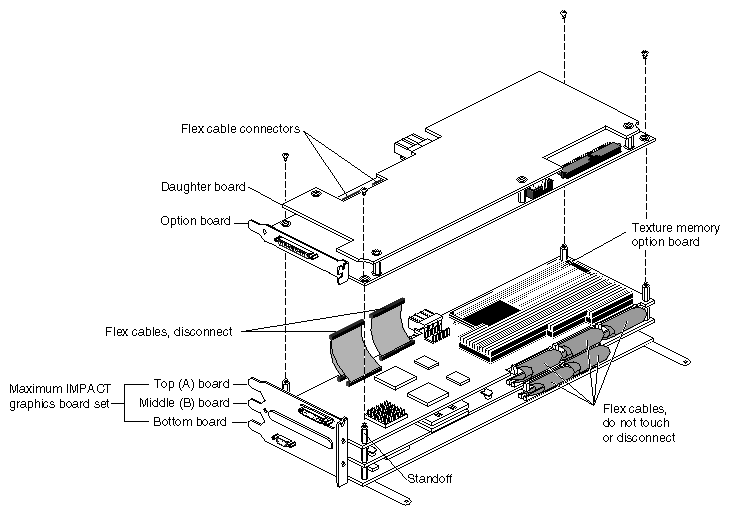

Figure 5-16. Maximum IMPACT Graphics Board Set With Texture Memory Option Boards and Connected Option Board
The Maximum IMPACT graphics board set can be attached by standoffs to one option board, or one option board and daughter board.
| Note: The daughter board is not attached by corner standoffs. You do not need to remove the daughter board from an option board when removing the option board to reach the graphics board set. |
If you have a Maximum IMPACT graphics board set with options, turn to “Removing Standoffs and Cables to the Option Boards”.
This section tells you how to remove standoffs and cables connecting the option boards and graphics board sets. You need a Phillips screwdriver to complete the task. You may find a standoff wrench, shown in Figure 5-17, useful.
Decide on a pattern for laying the boards you remove on an antistatic surface so that you can replace them in the proper order.

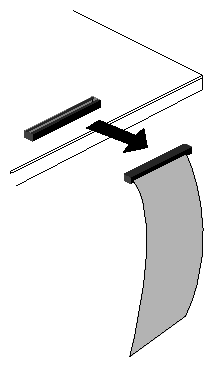

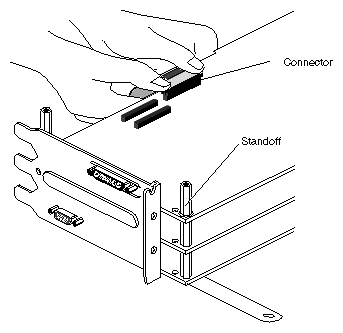

Disconnect any ribbon cable from the top board. See Figure 5-18. If you have no ribbon cable, go to step 3. Ribbon cable connectors push together and pull apart.
Pinch the connector on the sides and pull away. See Figure 5-18.

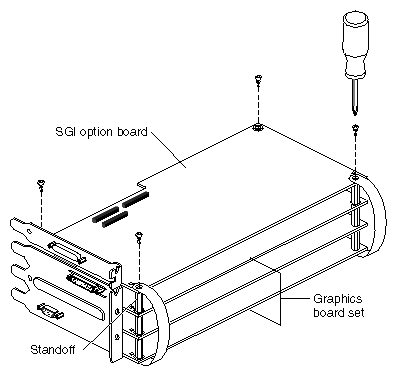

Unscrew the corner standoff screws from the top four corners. See Figure 5-19. If the standoff beneath the screw spins, hold it steady with the standoff wrench.
Note: Do not remove standoff screws unless they are corner standoff screws. Some daughter boards connect with standoffs located in other positions on the board. Do not remove daughter board standoffs. The daughter board will be removed as a unit with its parent board. Disconnect the pull straps from the top of the board by peeling the adhesive-backed strap from the board. See Figure 5-20.
If you have flex cables connected to the option board, go to step 7.
Remove the board and put it on an antistatic surface.
If you have no flex connectors on the next board, go to step 11.

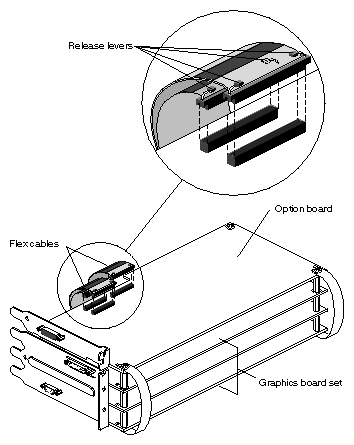

Disconnect any flex cables from the top of the board.

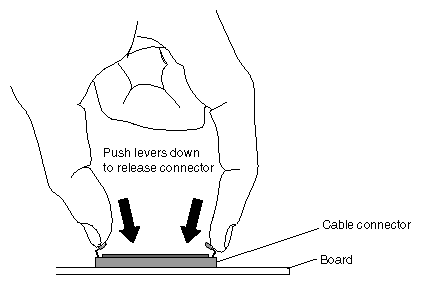

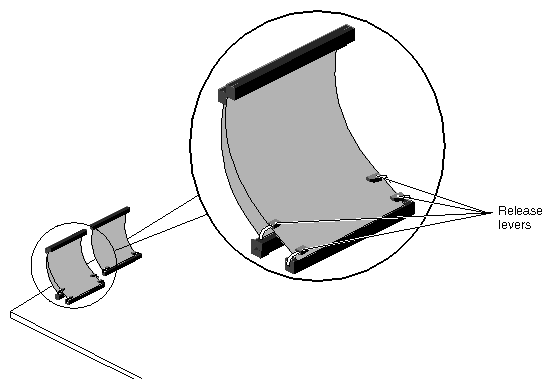

Press down on the levers to release the connector. See Figure 5-21.
Grasp the sides of the connector and pull up. See Figure 5-22.
If you have no standoffs to remove, go to step 10.

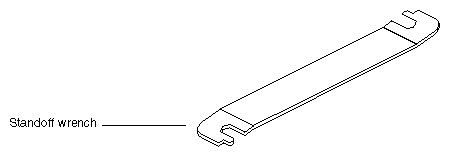

Remove the corner standoffs. Use the wrench if necessary.
Remove the board and place it on an antistatic surface.
To complete your task, go to the appropriate section in the installation manual that comes with your board or to the appropriate sections of this manual to do one of the following:
To install a texture memory option board on the top board of your High or Maximum IMPACT graphics board set, turn to page 131.
To install a texture memory option board on the middle board of your Maximum IMPACT graphics board set, turn to page 137.
To upgrade your graphics boards, turn to “Upgrading Graphics Boards”.
To reinstall the option boards, turn to “Installing Cables and Standoffs to the Option Boards”.
To install your Solid IMPACT graphics board, turn to page 163.
To install your High IMPACT graphics board set, turn to page 163
To install your Maximum IMPACT graphics board set, turn to page 166.

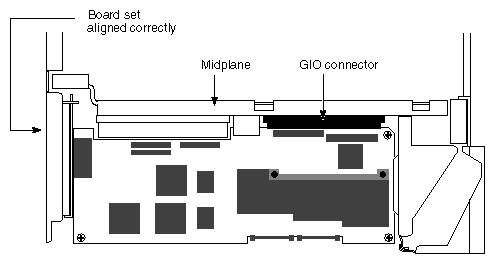

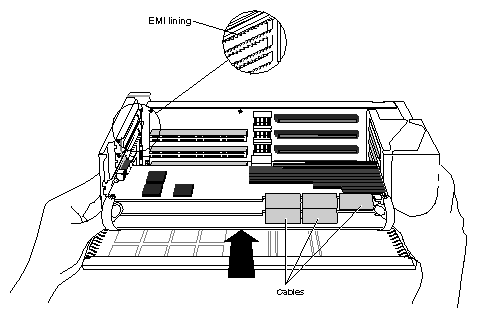

Should you need additional help placing your graphics board set with option boards in the proper slots, see Table 4-1 or Table 4-2 on page 87, or Table 4-3 on page 88.
To upgrade from a Solid IMPACT to a High IMPACT or Maximum IMPACT graphics board or from a High IMPACT to a Maximum IMPACT graphics board set, go to “Shutting Down the System”. You will need to shut down the system, remove the cover, remove the installed graphics board set and any attached graphics boards.
If you do not have option boards to attach to your upgrade board set, turn to page 150 for instructions on installing your new board set.
If you have option boards to install to your new upgrade board set, remove the flex cables that connect your graphics board or board set to an option board above. See Figure 5-23.
Note: The process will be the same for all graphics boards. The High IMPACT graphics board set is shown in the upgrade illustrations. Disconnect any flex cables from the top board.

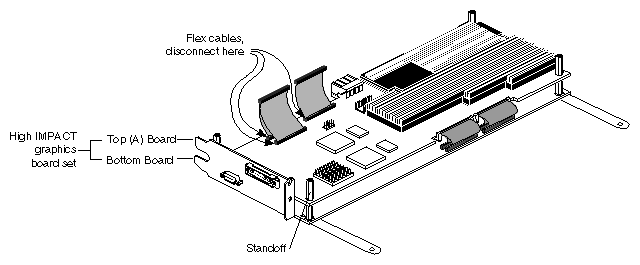

Press down on the levers to release the connector. Then grasp the sides of the connector and pull up. See Figure 5-24.
Install the flex cables into the same connectors on the top of the upgrade board set.
Slip the innermost cable through the levers of the outermost connector. See Figure 5-25.
Go to page 147 for instructions on installing the option boards on your new upgrade board set.
To remove or replace the texture memory option board, follow these instructions:
If you have not already shut down the system, removed the cover, attached the wrist strap, removed any option boards, and removed the graphics board set, go to “Shutting Down the System” for instructions. Follow the instructions through removing the graphics board set. Then return to this page.
The EISA or GIO board is extremely sensitive to static electricity; you must wear the wrist strap while installing it. The wrist strap prevents the flow of static electricity, which could damage the board.
The graphics board set must be removed before you can remove or replace the texture memory option board.
Removing or replacing the texture memory option board on the top board of the High IMPACT or Maximum IMPACT graphics board set is the same procedure for both board sets.
| Note: Texture memory boards on the top and middle boards of the Maximum IMPACT board set must both be removed if you are not replacing them. The board set will not operate properly with only one texture memory option board. |
To remove a texture memory option board from the top board, go to step 1, below.
To install or replace a texture memory option board, go to step 3.

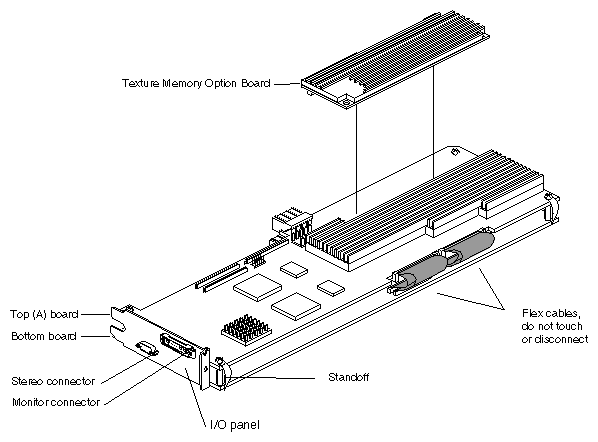

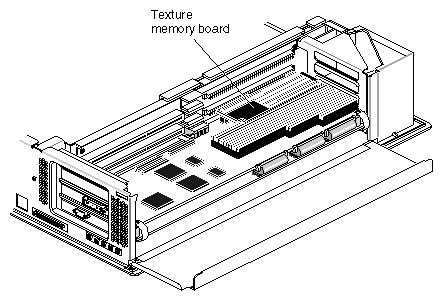

Determine the location of the texture memory board. The texture memory board sits on the top board of the graphics board set in the right rear corner. See Figure 5-26.
Remove the texture memory option board from the top of the graphics board set. See Figure 5-27.
Grasp the pins and pull up to remove. The pins fit tightly into their sockets.
Slide your fingers under the edge of the texture memory board that faces the interior of the workstation.
Slide your fingers under the edge of the texture memory board push up until the board is disconnected from the graphics board. See Figure 5-27.

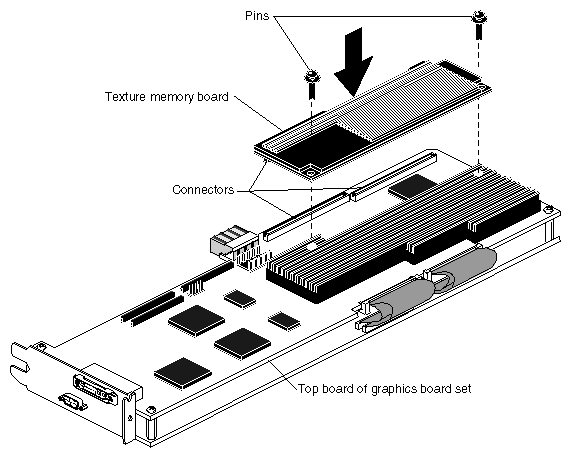

To replace the texture memory option board, place it on the top graphics board.

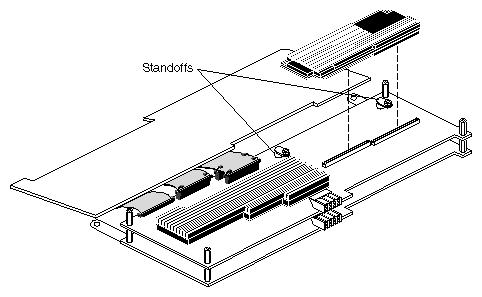

Align the connectors on the underside of the texture memory board with the connectors on the top graphics board. See Figure 5-28.

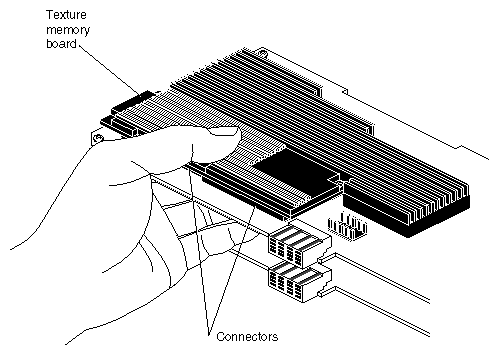

Seat the texture memory board.

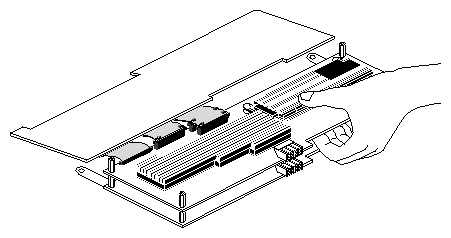

Place your fingers under the top graphics board and your thumb on top of the texture memory board. See Figure 5-29.
Pinch the texture memory board into the connectors, running your thumb along the edge of the texture memory board as you press the boards together.

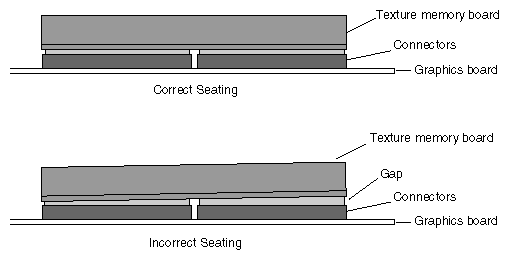

Check visually to see that the connectors are fully seated along their full length.

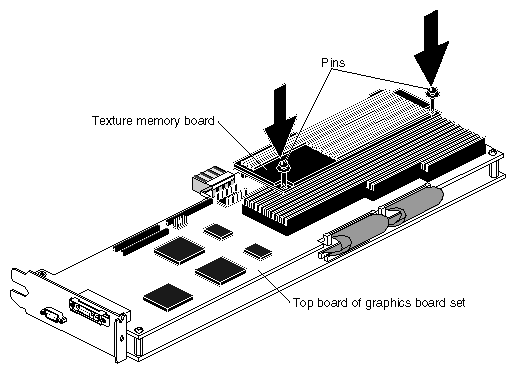

Use the push pins to connect the other ends of the texture memory board to the top graphics board.
Place each pin in a hole at the edge of the board. See Figure 5-30.
Push the pins into place. The pins snap into place when properly seated.
You are now ready to replace your High IMPACT graphics board set.
To remove, install, or replace your texture memory option board on the middle board of the Maximum IMPACT graphics board set, go to “Removing or Replacing the Texture Memory Option Board on the Middle Board of the Maximum IMPACT Board Set.”
| Note: Texture memory boards on the top and middle boards of the Maximum IMPACT board set must both be removed if you are not replacing them. The board cannot not operate properly with only one texture memory option board. |

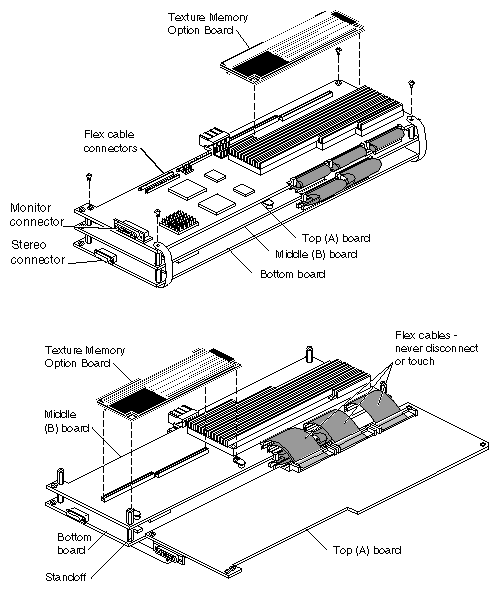

To remove or replace the texture memory option board on the middle board of the Maximum IMPACT board set, follow these steps:
Turn the board set so the long board edge with the pull straps is facing away from you.

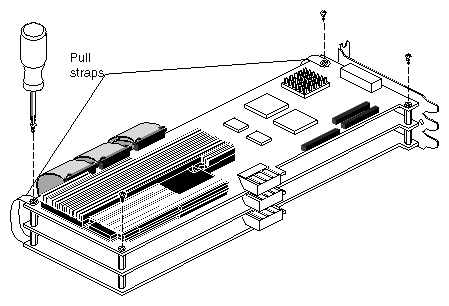

Use a Phillips screwdriver to remove the screws from the standoffs, as shown in Figure 5-31.
Note: If the standoffs spin as you unscrew the screws, use the wrench that comes with your texture memory option board to hold the standoffs steady.
Remove the pull straps from the top board. They are attached with adhesive.
Pull sideways and upward to remove the pull straps from the top board.
Do not detach the pull straps from the bottom of the board set.

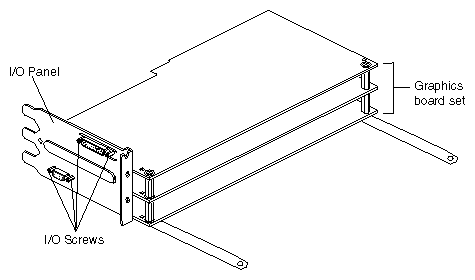

Remove the I/O panel from the side of the board set.
Use the I/O wrench to remove the screws from the I/O panel. See Figure 5-32.
Slide the I/O panel off the connectors. See Figure 5-33.

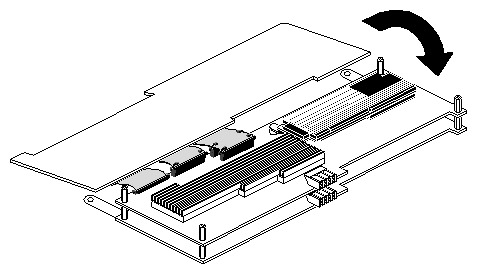

Grasp the top board on the back edge, opposite the side with pull straps, and gently rotate until the edge of the top board rests on the antistatic surface. See Figure 5-34.
To remove a texture memory option board from the middle board, see the next step. To install a texture memory option board on the middle board, go to step 8.
Determine the location of the texture memory option board. See Figure 5-35.
Remove the push pins by pulling up. See Figure 5-35.
Grasp the pins and pull up to remove them. The pins fit tightly into their sockets and may be hard to pull out.
Slide your fingers under the long edge of the texture memory board that faces the midplane.
Slide your fingers under the edge of the board and push up until the board is disconnected from the graphics board. See Figure 5-36.
To replace the texture memory option board, place it on the middle graphics board.
Align the connectors on the underside of the texture memory board with the connectors on the middle graphics board, and the standoffs with the holes along the edge of the texture memory option board. See Figure 5-37.
Note: If the texture memory option board is installed backward, the system will not work. Seat the texture memory board.
Place your fingers under the middle graphics board and your thumb on top of the texture memory board. See Figure 5-38.
Pinch the texture memory board into the connectors, running your thumb along the edge of the texture memory board as you press the boards together.
Check visually to see that the connectors are fully seated along their full length. See Figure 5-39.

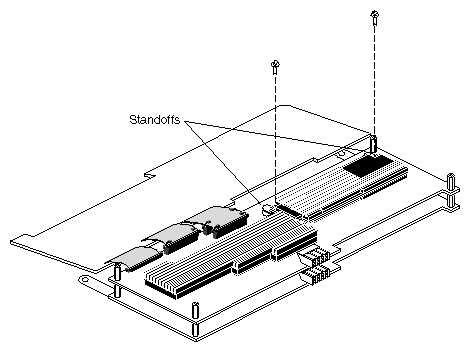

Use the push pins to attach the texture memory board to the standoffs on the middle graphics board. See Figure 5-40.
Note: If the push pins do not snap into standoffs beneath the edge of the texture memory board, check to make sure you have not placed the board in backwards. See Figure 5-40. Rotate the top board set into place above the middle board.

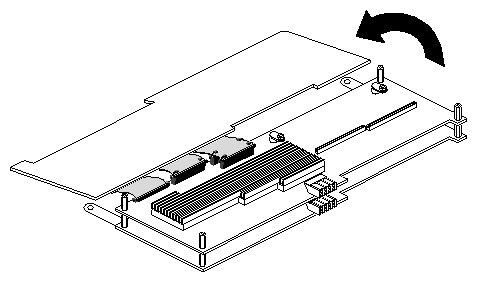

Reconnect the pull straps to the top board.
Align the pull strap holes over the screw holes to the standoffs.
Press on the end of the pull strap, causing the strap to adhere to the board.
Replace the screws in the standoffs. See Figure 5-42.
Replace the I/O panel.
Slide the panel over the connectors.
Replace the I/O screws, using the I/O wrench.
You are now ready to replace the Maximum IMPACT board set in the chassis.
To install the option board cables and standoffs, go to “Installing Cables and Standoffs to the Option Boards”.
To replace the Maximum IMPACT board set, see step 3 on page 166.
To reconnect cables and standoffs, follow these instructions:
Place the board on the standoffs attached to the board below. If the standoffs were removed, replace them.
Insert the standoffs through the holes in the corner of the board to the standoffs below. Tighten the standoff to the one below.
Reconnect the cable after you have attached the board to the standoffs.
Insert the cable of the innermost cable beneath the release levers of the outermost flex cable connector before it is reconnected. See Figure 5-44.
Continue attaching boards, standoffs, and cables, until you reach the top level.
At the top board level, reattach the pull straps to the top board.
Align the holes in the pull straps with the holes in the board.
Press down on the top of the pull strap to reattach the adhesive on the back of the strap to the board.
Insert the screws through the pull strap and corner holes of the board and into the standoffs. Tighten using a Phillips screwdriver.
Go to step 1, page 150 for instructions on replacing the Solid IMPACT graphics board.
Go to step 2, page 151 for instructions on replacing the High IMPACT graphics board set.
Go to step 4, page 153 for instructions on replacing the Maximum IMPACT board set.
Should you need help replacing your graphics board set in the proper slots, see Table 4-2 on page 88 or Table 4-3 on page 88.
Replace the Solid IMPACT board in the chassis. (For High IMPACT board set replacement, see step 2, page 151. For Maximum Board Set replacement, see step 4, page 153.)
Insert the board carefully so that the board edge does not catch on the EMI lining along the inner left cutout area. Make sure the EMI lining is not damaged and remains between the chassis and the graphics board's metal extension.
Grasp the chassis with your fingers and push the board set into place with your thumbs. See Figure 5-45.
Push the board set into the slot until the connector on the back of the board is securely connected to the connector on the midplane.
Replace the High IMPACT Board Set in the chassis.
Insert the board carefully so that the board edge does not catch on the EMI lining along the inner left cutout area. Make sure the EMI lining is not damaged and remains between the chassis and the graphics board's metal extension.
Grasp the chassis with your fingers and push the board set into place with your thumbs. See Figure 5-46
Push the board set into the slot until the connector on the back of the board is securely connected to the connector on the midplane.
Note: You must use some force to seat the connectors.
Tip: Place pressure on the recommended board edge or standoff near the top of any board stack when reinserting the board stack into the workstation. You must use some force to seat the board stack properly. Caution: As you replace the board set, do not press on the flexible cables that vertically connect your Indigo2 High IMPACT boards. Visually check to be sure the boards are completely seated in their connectors. The board set should not look tilted when viewed from above. See Figure 5-47.
Go to step 6, page 155.
Replace the Maximum IMPACT Board Set in the chassis.
Grasp the chassis with your fingers and push the board set into place with your thumbs.
Place your right thumbs behind the pull straps, and push against the right standoff. Place your left thumb behind the pull strap and press against the middle board as shown in Figure 5-48.
Push the board set into the slot until the connector on the back of the board is securely connected to the connector on the midplane.
Note: You must use some force to securely seat both connectors to the midplane. You may hear one popping sound and one set of connectors is seated. Press again to be sure the second set of connectors is also seated. Caution: As you replace the board set, do not press on the flexible cables that vertically connect your Indigo2 Maximum IMPACT boards to avoid damaging the cables.
Tip: Place pressure on the recommended board edge or standoff near the top of any board stack when reinserting the board stack into the workstation. You must use some force to seat the board stack properly. Visually check to be sure the boards are completely seated in their connectors. The board set should not look tilted when viewed from above. See Figure 5-49.
Insert and tighten the screws that hold the board set to the chassis. The screw openings are located on the metal extension on the left side of each board. The number of screws to insert will equal the numbers of boards in the set. See Figure 5-50.
Note: The Solid IMPACT board requires one screw and the Maximum IMPACT board set requires three screws. Hang the retention pin so that it sits in front of the board set. The retention pin prevents the board set from moving away from the connectors. See Figure 5-51.
Tip: Use the retention pin as a plumb line to determine if the board set is properly seated. If the pin is tilted, push on the board set until it is properly connected.
Tip the metal panel up in front of the boards until it snaps into place.
Remove the antistatic wrist strap.
You are finished replacing the Indigo2 Solid IMPACT graphics board or the Indigo2 High IMPACT or Maximum IMPACT graphics board set.
If you need help placing your graphics board set and option boards in the correct slots, see Chapter 4, Table 4-2 or Table 4-3.
To replace the top cover, turn to “Replacing the Cover”.
Upgrading your Indigo2 IMPACT Ready system to an Indigo2 IMPACT system requires replacing the board set and connecting power cables.
Go to “Shutting Down the System” to shut down the system, remove the cover, and attach the wrist strap.
Make sure the wrist strap is attached to a metal part of the chassis.
Move the workstation or position yourself so that you are facing the expansion slots, as shown in Figure 5-53.
Open the metal panel in front of the expansion slots by pulling up on the panel and lowering it.
Note: If an option board is installed above your Indigo2 Extreme, XZ, or XL graphics board set, you must remove it before proceeding. Follow the procedure for removing the option board as outlined in its installation manual. Indigo2 video option boards will not work with Indigo2 IMPACT graphics.
Remove the screws attaching the board set to the workstation slots, as shown in Figure 5-54.
The screws are located on the metal extension on the left side of each board.
Loosen each screw with the Phillips screwdriver.
Unscrew and remove the screws with your hand.
The screws are very small. If you drop a screw into the chassis, retrieve it to prevent shorting the system.
Remove the retention pin from the workstation.
Grasp the retention pin on the right-front end of the board set and pull it up and off. See Figure 5-55.
Note: Check the placement of the retention pin. It hangs in front of the board, not beside it.
Remove the XL graphics board from the workstation, using the two open-ended wrenches provided with the workstation.
Grasp the wrenches as shown in Figure 5-56. The orientation of the wrenches is important.
Hook the ends of the wrenches in the small holes on each side of the front of the board, as shown in Figure 5-57.
Brace your index fingers against the chassis and pry the wrenches outward. The boards comes out.
Place the board on a flat, antistatic surface so the side with the chips faces up. An empty antistatic bag or a clean, dry desktop works well.
Pull the XZ or Extreme board set out of the workstation, as shown in Figure 5-58.
Turn both hands inward so that your thumbs point to the floor.
Place your index fingers behind the small metal posts on each side of the board.
Brace your thumbs against the chassis, and pull the board out of the slot. You may need to use some force.
Place the board set down on a flat, antistatic surface so the side with the chips faces up. An empty antistatic bag or a clean, dry desktop works well.
Install the Solid IMPACT or High IMPACT board set in the chassis. (For Maximum IMPACT board set placement, see step 4, page 153.)
Insert the board carefully so that the board edge does not catch on the EMI lining along the inner left cutout area. Make sure the EMI lining is not damaged and remains between the chassis and the graphics board's metal extension.
Grasp the chassis with your fingers and push the board set into place with your thumbs. See Figure 5-59.
Push the board set into the slot until the connector on the back of the board is securely connected to the connector on the midplane. See Figure 5-60.
You must use some force to seat the connectors.
Tip: Place pressure on the recommended board edge or standoff near the top of any board stack when reinserting the board stack into the workstation. You will need to use some force to properly seat the board stack. Caution: As you replace the board set, do not press on the flexible cables that vertically connect your Indigo2 High IMPACT boards to avoid damage to the cables. Visually check to be sure the boards are completely seated in their connectors. The board set should not look tilted when viewed from above. See Figure 5-61.
Go to step 6, page 155.
Install the Maximum IMPACT Board Set in the chassis.
Grasp the chassis with your fingers and push the board set into place with your thumbs.
Place your right thumbs behind the pull straps, and push against the right standoff. Place your left thumb behind the pull strap and press against the middle board, as shown in Figure 5-62.
Push the board set into the slot until the connector on the back of the board is securely connected to the connector on the midplane.
Note: You will need to use some force to securely seat both connectors to the midplane. You may hear one popping sound which indicates that one set of connectors is seated. Press again to be sure the second set of connectors is also seated.
Caution: As you replace the board set, do not press on the flexible cables that vertically connect your Indigo2 Maximum IMPACT boards. Tip: Place pressure on the recommended board edge or standoff near the top of any board stack when reinserting the board stack into the workstation. You will need to use some force to properly seat the board stack. Visually check to be sure the boards are completely seated in their connectors. The board set should not look tilted when viewed from above. See Figure 5-63.
Insert and tighten the screws that hold the board set to the chassis. The screw openings are located on the metal extension on the left side of each board. See Figure 5-64.
Note: The Maximum IMPACT board set uses three screws. Hang the retention pin so that it sits in front of the board set. The retention pin prevents the board set from moving away from the connectors. See Figure 5-65.
Tip: Use the retention pin as a plumb line to determine if the board set is properly seated. If the pin is tilted, push on the board set until it is properly connected.
Tip the metal panel up in front of the boards until it snaps into place.
You are finished replacing the Indigo2 High IMPACT or Maximum IMPACT graphics board set.
Locate the power supply.

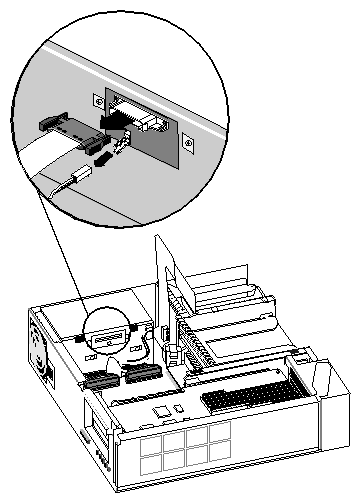

Disconnect the power supply cables from their storage site on the power supply. See Figure 5-67.

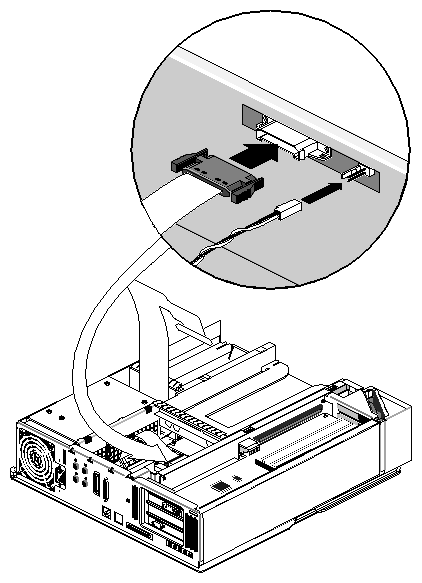

Connect the ribbon cable and twisted-pair cable to the gold-colored midplane.
Pinch together the corrugated edges on the ribbon cable connector, and connect it to the midplane. See Figure 5-68.
Push gently on the twisted-pair connector to connect it to the midplane.
Remove the antistatic wrist strap.
To replace the cover, and power on the system, turn to the next page.
Congratulations! You are finished upgrading your Indigo2 IMPACT Ready workstation to an Indigo2 IMPACT workstation.
To replace the top cover, follow these steps:
Locate the tabs on the inside and back of the top cover and the slots on the back of the workstation. See Figure 5-69.
Face the front of the workstation.
Look through the slots as you lower the cover and move the tabs into place.
Slide the tabs into the slots and pull the cover down until it snaps into place. The cover fits tightly over the workstation.
Replace the bezel.

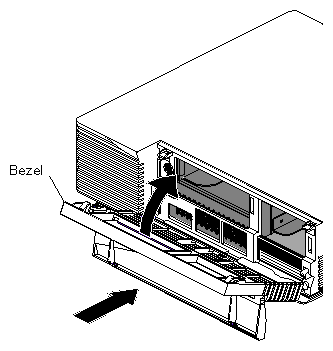

Place the tabs on the bottom of the bezel into the grooves in the front of the chassis, as shown in Figure 5-70.
Tilt the bezel up until it snaps into place.
Reinstall the lockbar if you had one installed.
Slide it through the bezel and out the back of the workstation.
Reattach the lock.
Close the front panel of the bezel.
Reconnect the cables to their connectors on the back of the Indigo2 IMPACT workstation.
You are ready to power on the system.
