This chapter tells you how to install or remove a second hard disk drive in your O2 workstation and how to connect external peripherals. The following topics are covered:
 | Note: The optional drive bay is not available on O2 R10000 workstations. |

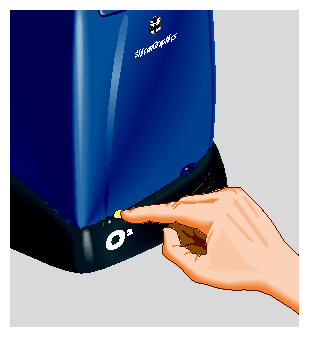

Turn off the workstation by pressing the power button on the front (Figure 3-1).

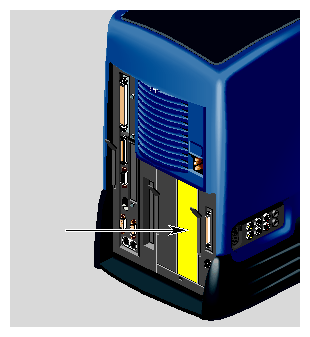

Locate the optional drive bay (Figure 3-2). This is where you install the second internal hard drive. The drive bay is covered with a blank panel that you must remove.

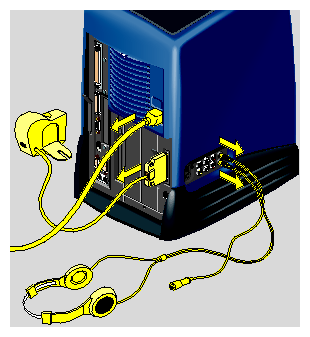

To remove the panel over the optional drive bay, you must first remove the audio-visual module located on the far right as you face the rear of the workstation. First, remove the power cable from the rear and any audio-visual cables that are connected to the side panel (Figure 3-3).
Release the audio-visual module by pulling down the lever (Figure 3-4).

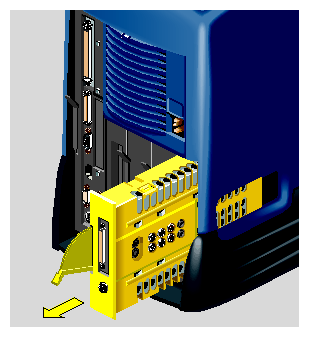

Slide the audio-visual module out of the chassis and place it carefully on a clean, flat, antistatic surface, such as your desktop (Figure 3-5).

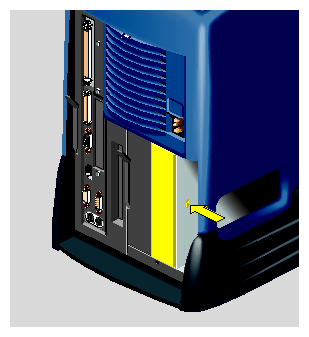

Press the button on the side of the optional drive bay to release the front panel (Figure 3-6).
Save the panel. If you remove the second drive and do not replace it, you must reinstall the panel.

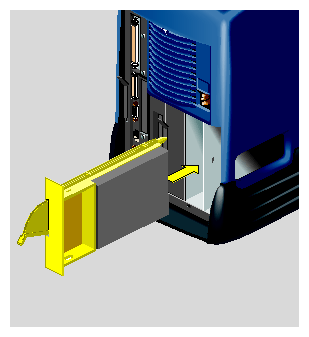

Slide the second hard drive you are installing into the optional drive bay until the lever engages (Figure 3-7).
Note: There is no need to set the SCSI address on the second drive. The optional drive bay on the O2 workstation is preconfigured.

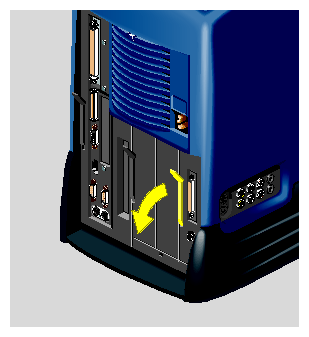

Push the lever up to lock the drive module in place (Figure 3-8).

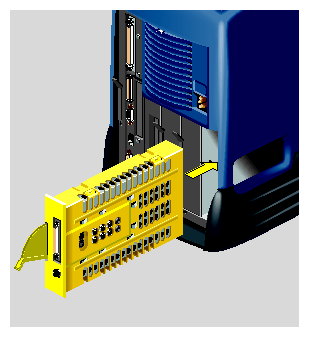

Slide the audio-visual module back into the bay on the far right of the chassis (Figure 3-9).

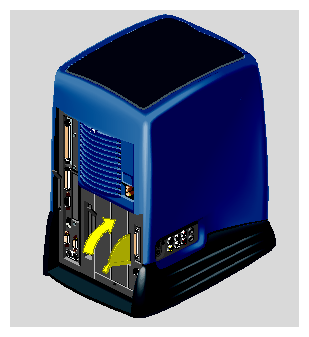

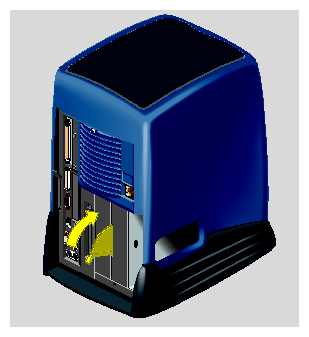

Push the lever up to secure the audio-visual module in place (Figure 3-10).

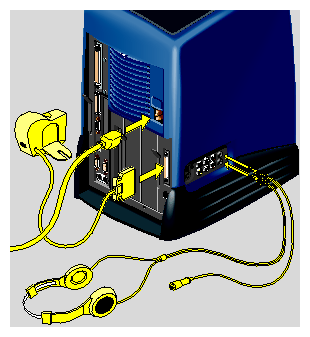

Reconnect the power cable to the rear of the workstation. Reconnect any audio and video cables you removed from the side panel of the workstation (Figure 3-9).
Turn on the workstation by pressing the power button on the front (Figure 3-12).
To check that the system recognizes the new hard disk drive, from the Toolchest choose System > System Manager > Hardware and Devices > Disk Manager. The system disk and the second disk display.
For information on how to manage your disk space, see “Taking Advantage of a Second Disk” in the Personal System Administration Guide.
Turn off the workstation by pressing the power button on the front (Figure 3-13).

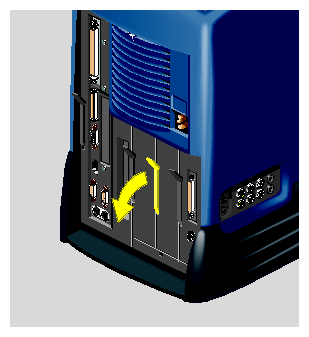

The second hard disk is in the optional drive bay—the one between the system drive and the audio-visual module. Pull down the lever on the left side of the optional drive module to release it (Figure 3-14).

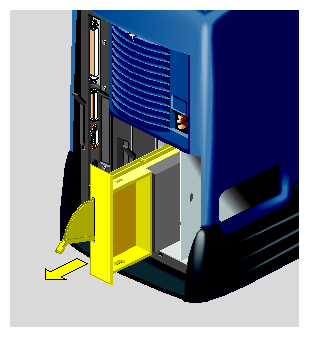

Pull the drive module out of the chassis (Figure 3-15).

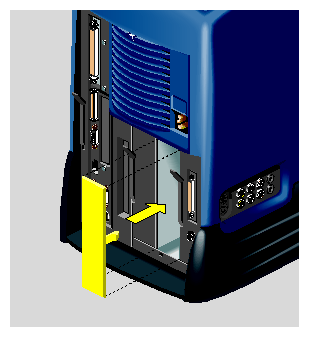

If you are installing another optional hard drive, see steps 7 and 8 of “Installing a Second Internal Hard Drive: R5000 Workstation.” Otherwise, replace the blank filler panel over the open drive slot (Figure 3-16). (You removed the panel when you first installed the drive.)
Reconnect the power cable to the rear of the workstation. Reconnect any audio-visual cables you removed from the side or rear panel of the workstation.
The following information is covered in this section:
You can connect one or more external SCSI devices to the O2 workstation in a daisy chain if the maximum combined cable length of all external SCSI cables does not exceed three meters. You can connect either wide (68-pin) or narrow (58-pin) SCSI devices.
Each device has a unique SCSI address and is connected to the other devices in a chain, with the first device connected to the SCSI port on the rear of the workstation. The last device on the daisy chain must be terminated with an active SCSI terminator.
 | Caution: For external SCSI devices to operate reliably, the maximum combined cable length of all external SCSI cables cannot exceed three meters. Use the cable and active SCSI terminator that came with the device. Using other types of cables or terminators can result in data loss. |
External SCSI devices include the following drives: 1/4" cartridge tape, digital audio tape, digital linear tape, optical disk, removable cartridge disk, and hard disk. SCSI scanners are also supported.
Each device on the daisy chain needs a unique numeric SCSI address to distinguish it from other devices. The O2 workstation has two built-in SCSI buses. The system drive, the optional hard drive (if installed), and the internal CD-ROM drive are on the internal SCSI bus. All external devices are on the external SCSI bus. You can connect up to fifteen wide or seven narrow external devices, as long as the cable length limitation is not exceeded.
If you have one or more external devices connected to your system, and you are adding another device, check which addresses are assigned to the existing devices and then choose another number. Follow these steps:
If the SCSI devices and their addresses do not appear under “About This System,” type hinv from a shell window.
Now you must set the address manually on the device you are installing. Most SCSI devices have a pushbutton switch or dial. The switch or dial is usually located on the rear or bottom of the device. You may need a small screwdriver or pen tip to set the dial or push the buttons.
If you are installing the first external SCSI device, go to “Connecting One External SCSI Device.”
If you are installing additional SCSI devices, go to “Connecting More Than One External Device.”
-
Choose the appropriate cable:
For a SCSI device with a wide, 68-pin connector, use a 68-pin SCSI-3 to 68-pin SCSI-3 cable (0.75 meter).
For a SCSI device with a narrow, 50-pin connector, use a 68-pin SCSI-3 to 50-pin Centronics SCSI-2 cable (0.75 meter).

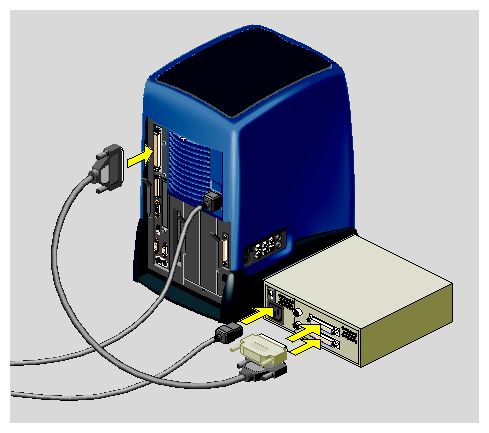

Connect the SCSI cable to the SCSI port on the rear of the workstation and to the SCSI connector on the back of the device. If there are thumbscrews on either side of the connectors, tighten them (Figure 3-19).
Note: The illustration shows an R5000 workstation. Installing external SCSI devices is the same on an R10000 workstation. Connect the power cable to the SCSI device and to a working electrical outlet.
Connect the active SCSI terminator to the device.
Turn on the device, and then turn on workstation. It's important that you do it in this order, so that the workstation recognizes the device.
You'll find more information in “Setting Up Peripheral Connections” in the Personal System Administration Guide.
Turn off the workstation.
Remove the active SCSI terminator from the first device on the daisy chain.
Note: You can connect both wide (68-pin) and narrow (50-pin) SCSI devices to the workstation, but keep in mind the following guidelines. If the first external device is a 68-pin, you can daisychain a 50-pin device to it, but you cannot then daisychain a 68-pin to the 50-pin device. You can, however, have a 68-pin as the first device, a 68-pin as the second device, and a 50-pin as the third device. Accepted configurations:
68-pin to 50-pin
68-pin to 68-pin to 50-pinIncorrect configuration:
68-pin to 50-pin to 68-pinChoose the appropriate SCSI cable:
First external device:
SCSI device with a wide, 68-pin connector, use a 68-pin SCSI-3 to 68-pin SCSI-3 cable (0.75 meter).
SCSI device with a narrow, 50-pin connector, use a 68-pin SCSI-3 to 50-pin Centronics SCSI-2 0 cable (0.75 meter).
Second and all other devices on the daisy chain:
SCSI device with a wide, 68-pin connector, use a 68-pin SCSI-3 to 68-pin SCSI-3 cable (0.25 meter).
SCSI device with a narrow, 50-pin connector, use a 50-pin Centronics SCSI-2 to 50-pin Centronics SCSI-2 cable
(.5 meter).

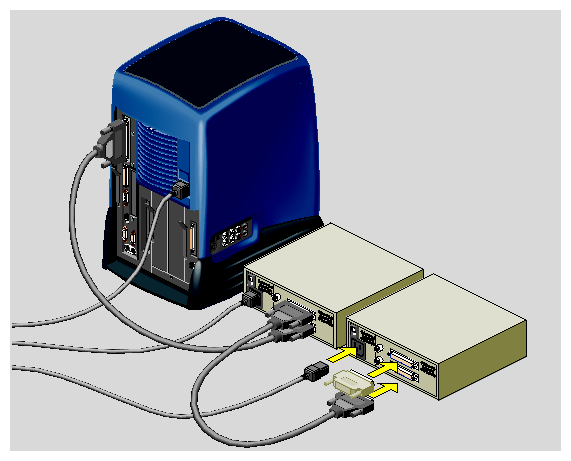

Link the devices in a daisychain (Figure 3-21).
First device: Connect the SCSI cable to the device and to the workstation. If there are thumbscrews on either side of the connectors, tighten them.
Second and all other devices: Connect the SCSI cable to the connector on the back of each device. If there are thumbscrews on either side of the connectors, tighten them.
Note: The illustration shows an R5000 workstation. Installing external SCSI devices is the same on an R10000 workstation. Connect a power cable to each SCSI device and to a working electrical outlet.
Connect the active SCSI terminator to only the last device on the daisy chain.
Turn on each device, and then turn on workstation. It's important that you do it in this order, so that the workstation recognizes the devices.
Silicon Graphics offers an optional floppy drive that you connect to the parallel port on the O2 workstation. The drive has an additional connector, to which you connect your printer. The printer needs a Silicon Graphics O2 printer cable.
If no floppy drive is connected to the workstation, connect your printer cable to the parallel port on the workstation.

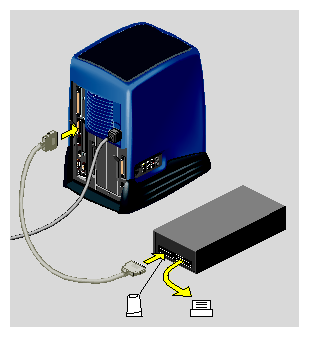

Follow these steps to connect the floppy drive (Figure 3-22).
| Note: The illustration shows an R5000 workstation. Installing a floppy drive is the same on an R10000 workstation. |
Connect either end of the cable that comes with the drive to the parallel port on the workstation. Connect the other end to the connector on the rear of the drive, below the workstation icon.
Connect your printer to the other connector on the rear of the drive (the one below the printer icon), using a Silicon Graphics O2 printer cable.
Examples of serial devices you can connect to your O2 workstation include: dial and button boxes, digitizer tablets, console terminals, modems, optical mice, MIDI (Musical Instrument Digital Interface) devices, Spaceball™ and the Logitech Magellan 3D input device.

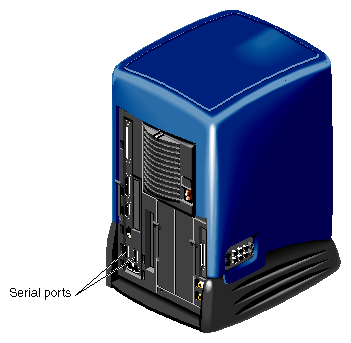

Figure 3-23 shows the location of the serial ports on the rear of the workstation. The serial ports are labeled 1 and 2 and are DB9 connectors. To view the serial port cable pinouts, and for information on Silicon Graphics serial cables and converters, click Hardware Central . (If your web browser is not loaded, it takes a few seconds to load.) Or, if you're viewing this on a remote server, see Appendix A, “Technical Specifications.”
| Note: The illustration shows an R5000 workstation. Connecting serial devices is the same on an R10000 workstation. |
Before connecting the device, use the Serial Device Manager to configure the serial port you will use. From the Toolchest choose System > System Manager > Hardware and Devices > Serial Devices Manager.
Connect one end of the serial cable to the serial port (Figure 3-23). Connect the other end to the serial device. Note the following:
If you are connecting a console terminal, attach it to serial connector 1 only.
If you are connecting a dial and button box, you need to attach a female-to-female adapter to the serial cable before connecting it to the workstation.
If you're connecting Macintosh® compatible MIDI (Musical Instrument Digital Interface) equipment, you need the Silicon Graphics MIDI converter. To purchase one, contact your Silicon Graphics service provider.

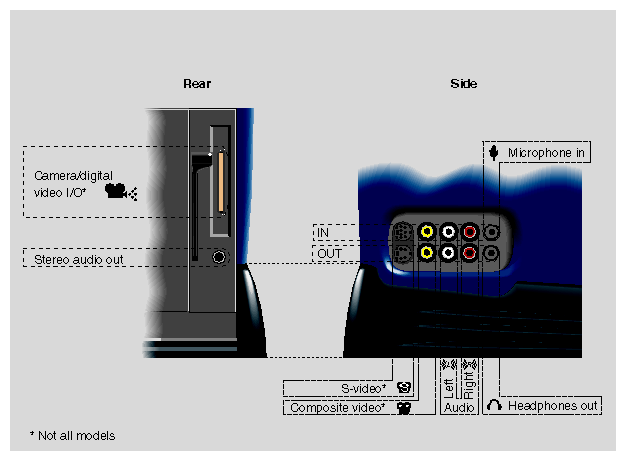

Figure 3-24 shows the location of the audio and video ports on the workstation.
| Note: The illustration shows an R5000 workstation. Connecting audio and video devices is the same on an R10000 workstation. |
For cable pinout information, click Hardware Central . (If your web browser is not loaded, it takes a few seconds to load.) Or, if you're viewing this on a remote server, see “Cable Pinout Assignments.”
For information on digital audio and video tools, see “About The Digital Media Tools Guide”.
The side panel audio ports support:
stereo line level in and out (RCA plugs)
stereo headphone out (3.5 mm phono)
mono microphone in (3.5 mm phono)
The rear panel audio ports support:
stereo line out (3.5-mm phono)
embedded microphone in the O2Cam
| Note: The video option is not available on all models. |
Your workstation can send and receive analog composite (RCA) and s-video (MINIDIN) signals. In addition, the digital camera port provides a digital video input and output signal. The signal is Silicon Graphics proprietary and is similar to the parallel D-1 signal used in professional video applications.
The analog s-video and analog composite video ports accept most consumer and industrial grade video equipment.
| Note: Connect the O2Cam before turning on the workstation, so that the system recognizes the camera. |
